CPU_MMU_WCA_31¶

Source: Verilog/CPU-BOARD-3202/circuit/CPU_MMU_WCA_31.v

Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).

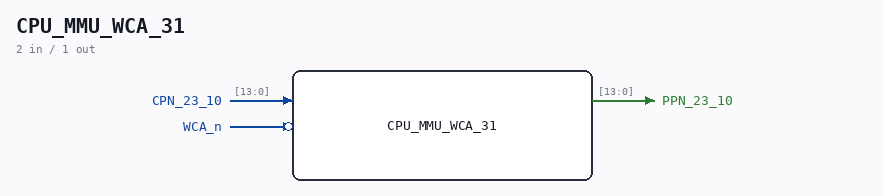

CPU_MMU_WCA_31 symbol

Schematic¶

Drawn from the Verilog: no build top uses this module, so it was elaborated from its own file with no defines and default parameters. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description¶

ND120 CPU, MM&M CPU/MMU/WCA PPN TO CPN SHEET 31 of 50 Last reviewed: 10-FEB-2024 Ronny Hansen

Ports¶

Direction	Width	Name
input	`[13:0]`	`CPN_23_10`
input	`1`	`WCA_n` (active low)
output	`[13:0]`	`PPN_23_10`

Verilog source¶

Verilog/CPU-BOARD-3202/circuit/CPU_MMU_WCA_31.v on GitHub.

Show the Verilog of CPU_MMU_WCA_31 (21 lines)

/**************************************************************************
** ND120 CPU, MM&M                                                       **
** CPU/MMU/WCA                                                           **
** PPN TO CPN                                                            **
** SHEET 31 of 50                                                        **
**                                                                       **
** Last reviewed: 10-FEB-2024                                            **
** Ronny Hansen                                                          **
***************************************************************************/

module CPU_MMU_WCA_31 (
    input  [13:0] CPN_23_10,
    input         WCA_n,
    output [13:0] PPN_23_10
);

  // Refactored logic
  assign PPN_23_10 = WCA_n ? 14'b0 : CPN_23_10;


endmodule
