CYC_CC_D¶

Source: Verilog/CPU-BOARD-3202/circuit/CYC_CC_D.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CYC_36 > CYC_CC_D - instance path: CORE.CPU_BOARD.CYC.U_CC_D

Used in: CYC_36 (all tops)

Contains: no other modules.

Module hierarchy - All modules

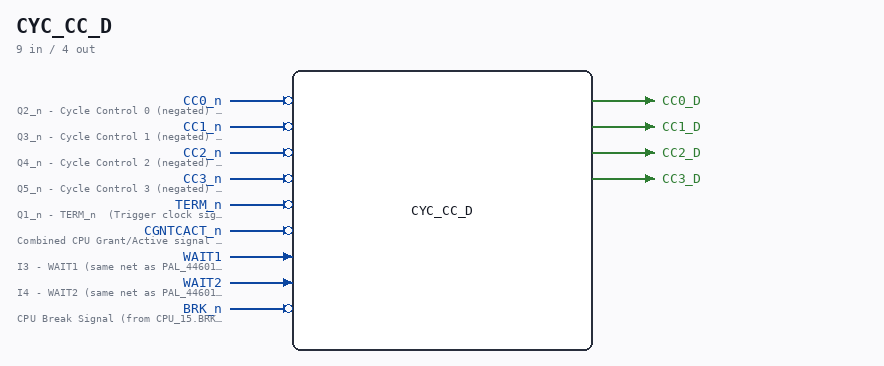

CYC_CC_D symbol

Schematic¶

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CYC.U_CC_D. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description¶

ND120 CPU, MM&M CYC_CC_D Combinational NEXT-state of the Cycle Controller CC3..CC0 counter. MIRROR of the CC0_reg/CC1_reg/CC2_reg/CC3_reg next-state logic inside PAL_44601B (the CYCFSM, sheet 36). PAL_44601B stays the golden source; this module reproduces only its CC D-inputs so CYC_36 can compute the NEXT cycle-control state and, via a second (combinational) PAL_44307C fed that next-state, build phase-accurate sysclk enables for MCLK / MACLK / UCLK. See docs/clock-enable-refactor.md. The equations below are the "flat" product-term forms the PAL author documented in comments (PAL_44601B.v CC3 132-138, CC2 159-166, CC1 188-195, CC0 216-223), which equal the implemented if/else next- state. DO NOT let this diverge from PAL_44601B: it is validated EXHAUSTIVELY against the real PAL by CYC_CC_D_tb.v (all 16 CC states x 2 TERM x the CC-relevant input combos). Re-run if PAL_44601B changes. Last reviewed: 5-JULY-2026 Ronny Hansen

Ports¶

Direction	Width	Name	Description
input	`1`	`CC0_n` (active low)	Q2_n - Cycle Control 0 (negated) (from PAL_44601B.CC0_n)
input	`1`	`CC1_n` (active low)	Q3_n - Cycle Control 1 (negated) (from PAL_44601B.CC1_n)
input	`1`	`CC2_n` (active low)	Q4_n - Cycle Control 2 (negated) (from PAL_44601B.CC2_n)
input	`1`	`CC3_n` (active low)	Q5_n - Cycle Control 3 (negated) (from PAL_44601B.CC3_n)
input	`1`	`TERM_n` (active low)	Q1_n - TERM_n (Trigger clock signal that latches CS input signals and more) (from PAL_44601B.TERM_n)
input	`1`	`CGNTCACT_n` (active low)	Combined CPU Grant/Active signal (from BIF_5.CGNTCACT_n)
input	`1`	`WAIT1`	I3 - WAIT1 (same net as PAL_44601B.WAIT1)
input	`1`	`WAIT2`	I4 - WAIT2 (same net as PAL_44601B.WAIT2)
input	`1`	`BRK_n` (active low)	CPU Break Signal (from CPU_15.BRK_n)
output	`1`	`CC0_D`
output	`1`	`CC1_D`
output	`1`	`CC2_D`
output	`1`	`CC3_D`

Verilog source¶

Verilog/CPU-BOARD-3202/circuit/CYC_CC_D.v on GitHub.

Show the Verilog of CYC_CC_D (107 lines)

/**************************************************************************
** ND120 CPU, MM&M                                                       **
** CYC_CC_D                                                              **
** Combinational NEXT-state of the Cycle Controller CC3..CC0 counter.    **
**                                                                       **
** MIRROR of the CC0_reg/CC1_reg/CC2_reg/CC3_reg next-state logic inside **
** PAL_44601B (the CYCFSM, sheet 36). PAL_44601B stays the golden        **
** source; this module reproduces only its CC D-inputs so CYC_36 can     **
** compute the NEXT cycle-control state and, via a second (combinational)**
** PAL_44307C fed that next-state, build phase-accurate sysclk enables    **
** for MCLK / MACLK / UCLK. See docs/clock-enable-refactor.md.           **
**                                                                       **
** The equations below are the "flat" product-term forms the PAL author  **
** documented in comments (PAL_44601B.v CC3 132-138, CC2 159-166,        **
** CC1 188-195, CC0 216-223), which equal the implemented if/else next-  **
** state. DO NOT let this diverge from PAL_44601B: it is validated       **
** EXHAUSTIVELY against the real PAL by CYC_CC_D_tb.v (all 16 CC states x **
** 2 TERM x the CC-relevant input combos). Re-run if PAL_44601B changes. **
**                                                                       **
** Last reviewed: 5-JULY-2026                                            **
** Ronny Hansen                                                          **
***************************************************************************/

module CYC_CC_D (
    // Current cycle-control state + TERM, as the PAL's active-low outputs.
    input CC0_n,  //! Q2_n - Cycle Control 0 (negated) (from PAL_44601B.CC0_n)
    input CC1_n,  //! Q3_n - Cycle Control 1 (negated) (from PAL_44601B.CC1_n)
    input CC2_n,  //! Q4_n - Cycle Control 2 (negated) (from PAL_44601B.CC2_n)
    input CC3_n,  //! Q5_n - Cycle Control 3 (negated) (from PAL_44601B.CC3_n)
    input TERM_n,  //! Q1_n - TERM_n  (Trigger clock signal that latches CS input signals and more) (from PAL_44601B.TERM_n)

    // FSM inputs the CC equations depend on (same nets PAL_44601B receives).
    input CGNTCACT_n,  //! Combined CPU Grant/Active signal (from BIF_5.CGNTCACT_n)
    input WAIT1,  //! I3 - WAIT1 (same net as PAL_44601B.WAIT1)
    input WAIT2,  //! I4 - WAIT2 (same net as PAL_44601B.WAIT2)
    input BRK_n,  //! CPU Break Signal (from CPU_15.BRK_n)

    // Combinational next values of CC3..CC0 (active-high, = CCx_reg D inputs).
    output CC0_D,
    output CC1_D,
    output CC2_D,
    output CC3_D
);

  // Active-high current state and PAL internal negated wires.
  wire CC0 = ~CC0_n;
  wire CC1 = ~CC1_n;
  wire CC2 = ~CC2_n;
  wire CC3 = ~CC3_n;
  wire s_cc0_n_int = CC0_n;
  wire s_cc1_n_int = CC1_n;
  wire s_cc2_n_int = CC2_n;
  wire s_cc3_n_int = CC3_n;
  wire s_term_n_int = TERM_n;

  // Input polarities (match PAL_44601B).
  wire CGNTCACT = ~CGNTCACT_n;
  wire WAIT1_n  = ~WAIT1;
  wire WAIT2_n  = ~WAIT2;
  wire BRK      = ~BRK_n;

  // ==== MIRROR of PAL_44601B CC next-state (flat forms). ====

  // CC3 (PAL_44601B.v:132-138)
  assign CC3_D =
        (CC2 & s_cc1_n_int & s_cc0_n_int & s_term_n_int)
      | (CC3 & CC1 & s_term_n_int & CC2)
      | (CC3 & CC1 & s_term_n_int & s_cc2_n_int)
      | (CC3 & CC0 & s_term_n_int & CC2 & CC1)
      | (CC3 & CC0 & s_term_n_int & s_cc2_n_int & CC1)
      | (CC3 & CC0 & s_term_n_int & CC2 & s_cc1_n_int)
      | (CC3 & CC0 & s_term_n_int & s_cc2_n_int & s_cc1_n_int);

  // CC2 (PAL_44601B.v:159-166)
  assign CC2_D =
        (s_cc3_n_int & CC2 & CC1 & s_term_n_int)
      | (CC2 & s_cc1_n_int & s_term_n_int & CC3)
      | (CC2 & s_cc1_n_int & s_term_n_int & s_cc3_n_int)
      | (CC2 & CC0 & s_term_n_int & CC3)
      | (CC2 & CC0 & s_term_n_int & s_cc3_n_int)
      | (s_cc3_n_int & s_cc2_n_int & CC1 & s_cc0_n_int & CGNTCACT & s_term_n_int)
      | (s_cc3_n_int & s_cc2_n_int & CC1 & s_cc0_n_int & WAIT1_n & s_term_n_int)
      | (s_cc3_n_int & s_cc2_n_int & CC1 & s_cc0_n_int & BRK & s_term_n_int);

  // CC1 (PAL_44601B.v:188-195)
  assign CC1_D =
        (s_cc3_n_int & s_cc2_n_int & CC0 & s_term_n_int & CC1)
      | (s_cc3_n_int & s_cc2_n_int & CC0 & s_term_n_int & s_cc1_n_int)
      | (CC3 & CC2 & CC0 & s_term_n_int & CC1)
      | (CC3 & CC2 & CC0 & s_term_n_int & s_cc1_n_int)
      | (CC1 & s_cc0_n_int & s_term_n_int & CC2 & CC3)
      | (CC1 & s_cc0_n_int & s_term_n_int & CC2 & s_cc3_n_int)
      | (CC1 & s_cc0_n_int & s_term_n_int & s_cc2_n_int & CC3)
      | (CC1 & s_cc0_n_int & s_term_n_int & s_cc2_n_int & s_cc3_n_int);

  // CC0 (PAL_44601B.v:216-223)
  assign CC0_D =
        (s_cc3_n_int & s_cc2_n_int & s_cc1_n_int & s_term_n_int)
      | (s_cc3_n_int & CC2 & CC1 & CC0 & s_term_n_int)
      | (CC3 & CC2 & s_cc1_n_int & s_term_n_int)
      | (CC3 & s_cc2_n_int & CC1 & s_term_n_int)
      | (s_cc3_n_int & CC2 & CC1 & s_cc0_n_int & CGNTCACT_n & s_term_n_int)
      | (s_cc3_n_int & CC2 & CC1 & s_cc0_n_int & BRK & s_term_n_int)
      | (s_cc3_n_int & CC2 & CC1 & s_cc0_n_int & WAIT2_n & s_term_n_int)
      | (s_cc3_n_int & s_cc2_n_int & CC1 & CC0 & CGNTCACT & BRK_n & s_term_n_int);

endmodule
