D_FLIPFLOP

Source: Verilog/Shared/logisim/D_FLIPFLOP.v

Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).

Module hierarchy - All modules

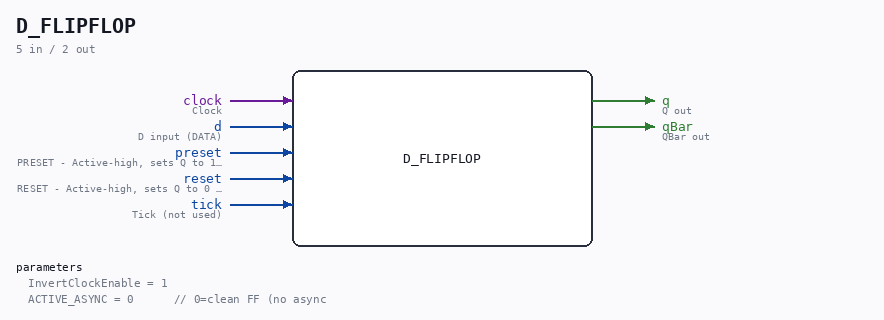

Schematic

Drawn from the Verilog: no build top uses this module, so it was elaborated from its own file with no defines and default parameters. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

ND120 SHARED CODE D FLIP-FLOP ACTIVE_ASYNC=0 (default): Clean synchronous FF for FPGA. ACTIVE_ASYNC=1: Async preset/reset for instances that need it. Last reviewed: 30-MAR-2026 Ronny Hansen

Parameters

Parameter	Default
InvertClockEnable	1
ACTIVE_ASYNC	0 // 0=clean FF (no async

Ports

Direction	Width	Name	Description
input	1	clock	Clock
input	1	d	D input (DATA)
input	1	preset	PRESET - Active-high, sets Q to 1 when asserted
input	1	reset	RESET - Active-high, sets Q to 0 when asserted
input	1	tick	Tick (not used)
output	1	q	Q out
output	1	qBar	QBar out

Verilog source

Verilog/Shared/logisim/D_FLIPFLOP.v on GitHub.

Show the Verilog of D_FLIPFLOP (59 lines)

/**************************************************************************
** ND120 SHARED CODE                                                     **
** D FLIP-FLOP                                                           **
**                                                                       **
** ACTIVE_ASYNC=0 (default): Clean synchronous FF for FPGA.             **
** ACTIVE_ASYNC=1: Async preset/reset for instances that need it.       **
**                                                                       **
** Last reviewed: 30-MAR-2026                                            **
** Ronny Hansen                                                          **
***************************************************************************/


module D_FLIPFLOP #(
    parameter integer InvertClockEnable = 1,
    parameter integer ACTIVE_ASYNC = 0      // 0=clean FF (no async), 1=async preset/reset
)(
    input clock,     //! Clock
    input d,         //! D input (DATA)
    input preset,    //! PRESET - Active-high, sets Q to 1 when asserted
    input reset,     //! RESET - Active-high, sets Q to 0 when asserted
    input tick,      //! Tick (not used)

    output q,        //! Q out
    output qBar      //! QBar out
);

   wire s_clock;
   reg s_currentState;

   assign q       = s_currentState;
   assign qBar    = ~s_currentState;
   assign s_clock = (InvertClockEnable == 0) ? clock : ~clock;

   initial begin
      s_currentState = 0;
   end

   generate
      if (ACTIVE_ASYNC == 1) begin : gen_async
         // Async preset/reset -- for instances that use active preset or reset signals.
         // Creates combinational loop warning in Vivado (expected, resolves in one LUT delay).
         always @(posedge s_clock or posedge preset or posedge reset)
         begin
            s_currentState <= preset ? 1'b1 :
                              reset  ? 1'b0 :
                              d;
         end
      end else begin : gen_sync
         // Clean synchronous FF -- no combinational loop, maps to native FPGA FF.
         // Safe when preset and reset are tied to constant 0.
         always @(posedge s_clock)
         begin
            s_currentState <= d;
         end
      end
   endgenerate

endmodule
