TTL_74241

Source: Verilog/Shared/support/TTL_74241.v

Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).

Module hierarchy - All modules

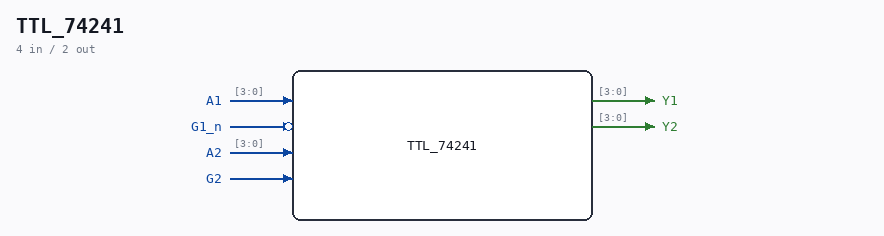

TTL_74241 symbol

Schematic

Drawn from the Verilog: no build top uses this module, so it was elaborated from its own file with no defines and default parameters. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

TTL_74241 schematic

Description

Component : TTL_74241 buffers with TTL-compatible CMOS inputs and 3-state outputs https://www.ti.com/product/SN74ABT241A

Ports

Direction Width Name Description
input [3:0] A1
output [3:0] Y1
input 1 G1_n (active low)
input [3:0] A2
output [3:0] Y2
input 1 G2

Verilog source

Verilog/Shared/support/TTL_74241.v on GitHub.

Show the Verilog of TTL_74241 (22 lines)
/******************************************************************************
 ** Component : TTL_74241                                                    **
 ** buffers with TTL-compatible CMOS inputs and 3-state outputs              **
 ** https://www.ti.com/product/SN74ABT241A                                   **
 *****************************************************************************/

module TTL_74241
(
   input  [3:0] A1,
   output [3:0] Y1,
   input        G1_n,


   input  [3:0] A2,
   output [3:0] Y2,
   input        G2
);

   assign Y1[3:0] = G1_n ? 4'b0     : A1[3:0];
   assign Y2[3:0] = G2   ? A2[3:0]  : 4'b0;

endmodule
