MUX21L

Source: Verilog/Shared/ndlib/MUX21L.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_MIC > MUX21L - instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MIC.M_RF1

Used in: CGA_MIC (all tops)

Contains: Multiplexer_2

Module hierarchy - All modules

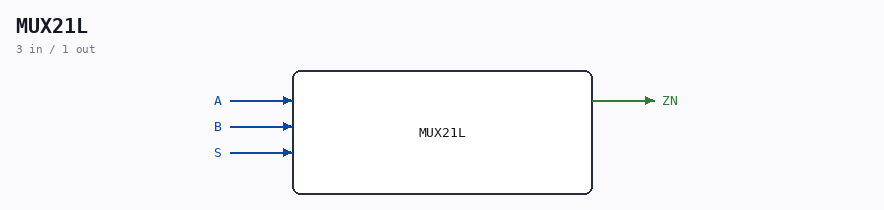

Schematic

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MIC.M_RF1. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

ND120 Shared Component : MUX21L Last reviewed: 11-NOV-2024 Ronny Hansen

Ports

Direction	Width	Name	Description
input	1	A
input	1	B
input	1	S
output	1	ZN

Verilog source

Verilog/Shared/ndlib/MUX21L.v on GitHub.

Show the Verilog of MUX21L (61 lines)

/**************************************************************************
** ND120 Shared                                                          **
**                                                                       **
** Component : MUX21L                                                    **
**                                                                       **
** Last reviewed: 11-NOV-2024                                            **
** Ronny Hansen                                                          **
***************************************************************************/

module MUX21L (
    input A,
    input B,
    input S,

    output ZN
);

  /*******************************************************************************
   ** The wires are defined here                                                 **
   *******************************************************************************/
  wire s_z;
  wire s_s;
  wire s_zn_out;
  wire s_a;
  wire s_b;

  /*******************************************************************************
   ** The module functionality is described here                                 **
   *******************************************************************************/

  /*******************************************************************************
   ** Here all input connections are defined                                     **
   *******************************************************************************/
  assign s_s = S;
  assign s_a = A;
  assign s_b = B;

  /*******************************************************************************
   ** Here all output connections are defined                                    **
   *******************************************************************************/
  assign ZN = s_zn_out;

  /*******************************************************************************
   ** Here all in-lined components are defined                                   **
   *******************************************************************************/

  // NOT Gate
  assign s_zn_out = ~s_z;

  /*******************************************************************************
   ** Here all normal components are defined                                     **
   *******************************************************************************/
  Multiplexer_2 PLEXERS_1 (
      .muxIn_0(s_a),
      .muxIn_1(s_b),
      .muxOut(s_z),
      .sel(s_s)
  );


endmodule
