CMP4

Source: Verilog/Shared/ndlib/CMP4.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_MIC > CMP4 - instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MIC.LC_CMP

Used in: CGA_MIC (all tops)

Contains: Comparator

Module hierarchy - All modules

Schematic

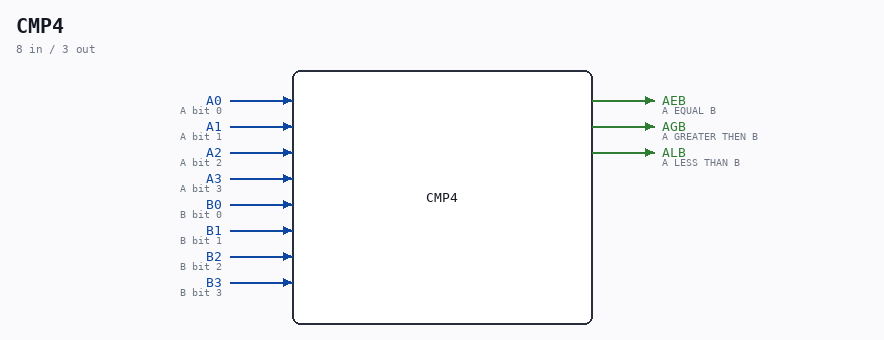

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MIC.LC_CMP. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

ND120 Shared Component: CMP4 (4 bit comparator) Last reviewed: 9-NOV-2024 Ronny Hansen

Ports

Direction	Width	Name	Description
input	1	A0	A bit 0
input	1	A1	A bit 1
input	1	A2	A bit 2
input	1	A3	A bit 3
input	1	B0	B bit 0
input	1	B1	B bit 1
input	1	B2	B bit 2
input	1	B3	B bit 3
output	1	AEB	A EQUAL B
output	1	AGB	A GREATER THEN B
output	1	ALB	A LESS THAN B

Verilog source

Verilog/Shared/ndlib/CMP4.v on GitHub.

Show the Verilog of CMP4 (70 lines)

/**************************************************************************
** ND120 Shared                                                          **
**                                                                       **
** Component: CMP4 (4 bit comparator)                                    **
**                                                                       **
** Last reviewed: 9-NOV-2024                                             **
** Ronny Hansen                                                          **
***************************************************************************/

module CMP4 (
    input A0,  //! A bit 0
    input A1,  //! A bit 1
    input A2,  //! A bit 2
    input A3,  //! A bit 3

    input B0,  //! B bit 0
    input B1,  //! B bit 1
    input B2,  //! B bit 2
    input B3,  //! B bit 3

    output AEB,  //! A EQUAL B
    output AGB,  //! A GREATER THEN B
    output ALB   //! A LESS THAN B
);

  /*******************************************************************************
   ** The wires are defined here                                                 **
   *******************************************************************************/
  wire [3:0] s_data_A;
  wire [3:0] s_data_B;
  wire       s_aeb_out;
  wire       s_agb_out;
  wire       s_alb_out;

  /*******************************************************************************
   ** Here all input connections are defined                                     **
   *******************************************************************************/
  assign s_data_A[0] = A0;
  assign s_data_A[1] = A1;
  assign s_data_A[2] = A2;
  assign s_data_A[3] = A3;

  assign s_data_B[0] = B0;
  assign s_data_B[1] = B1;
  assign s_data_B[2] = B2;
  assign s_data_B[3] = B3;

  /*******************************************************************************
   ** Here all output connections are defined                                    **
   *******************************************************************************/
  assign AEB = s_aeb_out;
  assign AGB = s_agb_out;
  assign ALB = s_alb_out;

  /*******************************************************************************
   ** Here all normal components are defined                                     **
   *******************************************************************************/
  Comparator #(
      .nrOfBits(4),
      .twosComplement(1)
  ) ARITH_1 (
      .aEqualsB(s_aeb_out),
      .aGreaterThanB(s_agb_out),
      .aLessThanB(s_alb_out),
      .dataA(s_data_A[3:0]),
      .dataB(s_data_B[3:0])
  );


endmodule
