FIFO_8BIT

Source: Verilog/Shared/support/FIFO_8BIT.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > IO_37 > IO_DCD_38 > DECODE_DGA > FIFO_8BIT - instance path: CORE.CPU_BOARD.IO.DCD.DGA.fifo_inst

Used in: DECODE_DGA (all tops)

Contains: no other modules.

Module hierarchy - All modules

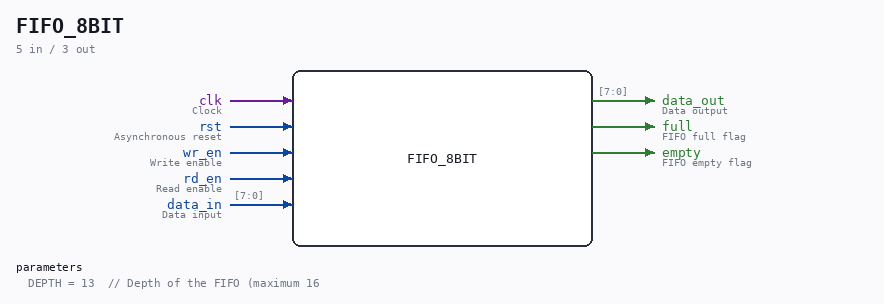

Schematic

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.IO.DCD.DGA.fifo_inst. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

FIFO 8 bit Last reviewed: 11-NOV-2024 Ronny Hansen

Parameters

Parameter	Default
DEPTH	13 // Depth of the FIFO (maximum 16

Ports

Direction	Width	Name	Description
input	1	clk	Clock
input	1	rst	Asynchronous reset
input	1	wr_en	Write enable
input	1	rd_en	Read enable
input	[7:0]	data_in	Data input
output	[7:0]	data_out	Data output
output	1	full	FIFO full flag
output	1	empty	FIFO empty flag

Verilog source

Verilog/Shared/support/FIFO_8BIT.v on GitHub.

Show the Verilog of FIFO_8BIT (69 lines)

/**************************************************************************
** FIFO 8 bit                                                            **
**                                                                       **
**                                                                       **
** Last reviewed: 11-NOV-2024                                            **
** Ronny Hansen                                                          **
***************************************************************************/

// Turn of warning/error for mixed block and none-blocking assignments as its valid verilog
// verilator lint_off BLKANDNBLK
// https://verilator.org/guide/latest/warnings.html#cmdoption-arg-BLKANDNBLK

module FIFO_8BIT #(
    parameter integer DEPTH = 13  // Depth of the FIFO (maximum 16, default 13)
) (
    input            clk,       // Clock
    input            rst,       // Asynchronous reset
    input            wr_en,     // Write enable
    input            rd_en,     // Read enable
    input      [7:0] data_in,   // Data input
    output reg [7:0] data_out,  // Data output
    output           full,      // FIFO full flag
    output           empty      // FIFO empty flag
);

  /* verilator lint_off LATCH */
  /* verilator lint_off BLKSEQ */
  /* verilator lint_off UNOPTFLAT */

  // Calculate address width based on depth
  localparam integer AddressWidth = $clog2(DEPTH + 1);

  reg [7:0] mem[DEPTH-1:0];  // Memory array
  reg [AddressWidth-1:0] wr_ptr;  // Write pointer
  reg [AddressWidth-1:0] rd_ptr;  // Read pointer
  reg [AddressWidth:0] fifo_count;  // Counter for number of elements in the FIFO

  always @(posedge clk or posedge rst) begin
    //always @(posedge rd_en or posedge wr_en or posedge rst) begin
    if (rst) begin
      wr_ptr <= 0;
      rd_ptr <= 0;
      data_out <= 8'b0;
      fifo_count <= 0;
    end else begin

      if (wr_en && !full) begin
        mem[wr_ptr] <= data_in;
        wr_ptr <= (wr_ptr == (DEPTH - 1)) ? 0 : wr_ptr + 1;
        fifo_count <= fifo_count + 1;
      end

      if (rd_en) begin
        if (!empty) begin
          data_out <= mem[rd_ptr];
          rd_ptr <= (rd_ptr == (DEPTH - 1)) ? 0 : rd_ptr + 1;
          fifo_count <= fifo_count - 1;
        end else begin
          data_out <= 8'b0;
        end
      end

    end
  end

  assign full  = (fifo_count == DEPTH);
  assign empty = (fifo_count == 0);

endmodule
