BACKWIRING_PROM¶
Back-wiring PROM (installation number), addressed by PIL[3:0]
Source: Verilog/Shared/support/BACKWIRING_PROM.v
ยท Author: Ronny Hansen
Where it sits (Simulation): ND120_TOP > ND120_CORE > BACKWIRING_PROM
- instance path: CORE.BACKPLANE_INR_PROM
Used in: ND120_CORE (all tops)
Contains: no other modules.
Module hierarchy - All modules

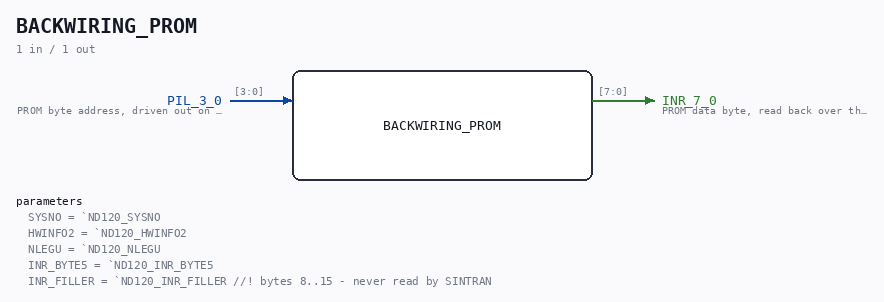

Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.BACKPLANE_INR_PROM. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
BACK-WIRING PROM (installation number PROM) The small PROM that sits on the ND-100/ND-120 BACKPLANE behind the CPU board's B-plug. It is NOT an I/O device: it is not reachable by IOX, not memory mapped, and not reachable by TRA/TRR. The only way to read it is the VERSN instruction (opcode 140133 octal), which selects the internal data bus source IDBS,INR (code 35 octal). Signal path (all citations are files in this repo): DECODE-GateArray/DGA/circuit/DECODE_DGA_IDBS.v:32 RINRN - "Read Installation Number from B-PLUG (RINR) IDBS=35" CPU-BOARD-3202/circuit/ND3202D.v:83 input [7:0] INR_7_0 - under "BACKPLANE B-PLUG / FROM B plug" CPU-BOARD-3202/circuit/ND3202D.v:89 output [3:0] PIL - driven OUT to the same B-plug CPU-BOARD-3202/circuit/IO_REG_41.v:189 s_idb_7_0_inr_out = s_rinr_n ? 8'b0 : s_inr_7_0 CPU-BOARD-3202/circuit/IO_37.v:295 5'o35: s_idb_mux = s_idb_15_0_reg_out; // RINR B-plug pin order of the 8 INR data bits, preserved from the original ND120_CORE.v comment on the .INR_7_0() connection: INR7..INR0 = B15, B4, B5, B17, B8, B7, B13, B6 and the PIL nibble that addresses this PROM: XPIL3=B-C8, PIL2=B-B12, PIL1=B-B10, PIL0=B-B9 ADDRESSING - INFERENCE, NOT READ FROM A SCHEMATIC. No backplane schematic for the PROM decode was found in this repo or in NDInsight, and no dump of a real back-wiring PROM exists here either. That PIL[3:0] is the PROM's byte address is STRONG INFERENCE from three independent things: 1. the VERSN microcode does COMM,LDPIL (from A bits 8-11) and then samples IDBS,INR - Code/Microcode/ND-120-DELILAH-L.LISTING.txt lines 115-119; 2. the CPU board drives PIL out to the B-plug and takes INR back in from it (the paired signals above); 3. SINTRAN's GCPUNR reads exactly 8 bytes by executing VERSN once per interrupt level 0..7 - $ND_REPOS/NDInsight/SINTRAN/ NPL-SOURCE/NPL/PH-P2-OPPSTART.NPL:3534-3570. MICROCODE TIMING NOTE (real hardware bug, both behaviours work): LDPIL has not settled when the very next microword samples IDBS,INR, so the CURRENT PIL is used instead of the just-loaded one. ND-120 revision L inserts a COMM,SLOW microword between them to fix this (L.LISTING.txt:122, "L-ONLY WORD"); revision K (K.LISTING.txt:116-119) and the ND-100/ND-110 do not have it. SINTRAN works around it unconditionally by running VERSN on levels 0..7, so this model is correct for both: it simply decodes whatever PIL nibble the CPU board presents. Byte layout that SINTRAN GCPUNR decodes (bytes 8-15 are never read): 0 (MSB) + 1 (LSB) : SYSNO -> banner "CPU NUMBER"; -1 = absent 2 (MSB) + 3 (LSB) : HWINFO(2) system type -> "CPU TYPE"; -1 = absent 4 : NLEGU number of legal users; 0377B = absent 5 : not used by SINTRAN (GCPUNR does INF2 SHZ -10) 6 + 7 : signature INF3, MUST be 52652B = 0x55AA 8..15 : unknown, SINTRAN never reads them If the signature is wrong GCPUNR EXITs and every other byte is ignored, so bytes 6/7 are hardwired here and are NOT parameterised. Ronny Hansen
Parameters¶
| Parameter | Default |
|---|---|
SYSNO |
`ND120_SYSNO |
HWINFO2 |
`ND120_HWINFO2 |
NLEGU |
`ND120_NLEGU |
INR_BYTE5 |
`ND120_INR_BYTE5 |
INR_FILLER |
`ND120_INR_FILLER //! bytes 8..15 - never read by SINTRAN |
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | [3:0] |
PIL_3_0 |
PROM byte address, driven out on the B-plug by the CPU board |
| output | [7:0] |
INR_7_0 |
PROM data byte, read back over the B-plug (IDBS,INR = 35 octal) |
Verilog source¶
Verilog/Shared/support/BACKWIRING_PROM.v on GitHub.
Show the Verilog of BACKWIRING_PROM (108 lines)
/**************************************************************************
** BACK-WIRING PROM (installation number PROM) **
** **
** The small PROM that sits on the ND-100/ND-120 BACKPLANE behind the **
** CPU board's B-plug. It is NOT an I/O device: it is not reachable by **
** IOX, not memory mapped, and not reachable by TRA/TRR. The only way to **
** read it is the VERSN instruction (opcode 140133 octal), which selects **
** the internal data bus source IDBS,INR (code 35 octal). **
** **
** Signal path (all citations are files in this repo): **
** DECODE-GateArray/DGA/circuit/DECODE_DGA_IDBS.v:32 **
** RINRN - "Read Installation Number from B-PLUG (RINR) IDBS=35" **
** CPU-BOARD-3202/circuit/ND3202D.v:83 **
** input [7:0] INR_7_0 - under "BACKPLANE B-PLUG / FROM B plug" **
** CPU-BOARD-3202/circuit/ND3202D.v:89 **
** output [3:0] PIL - driven OUT to the same B-plug **
** CPU-BOARD-3202/circuit/IO_REG_41.v:189 **
** s_idb_7_0_inr_out = s_rinr_n ? 8'b0 : s_inr_7_0 **
** CPU-BOARD-3202/circuit/IO_37.v:295 **
** 5'o35: s_idb_mux = s_idb_15_0_reg_out; // RINR **
** **
** B-plug pin order of the 8 INR data bits, preserved from the original **
** ND120_CORE.v comment on the .INR_7_0() connection: **
** INR7..INR0 = B15, B4, B5, B17, B8, B7, B13, B6 **
** and the PIL nibble that addresses this PROM: **
** XPIL3=B-C8, PIL2=B-B12, PIL1=B-B10, PIL0=B-B9 **
** **
** ADDRESSING - INFERENCE, NOT READ FROM A SCHEMATIC. **
** No backplane schematic for the PROM decode was found in this repo or **
** in NDInsight, and no dump of a real back-wiring PROM exists here **
** either. That PIL[3:0] is the PROM's byte address is STRONG INFERENCE **
** from three independent things: **
** 1. the VERSN microcode does COMM,LDPIL (from A bits 8-11) and then **
** samples IDBS,INR - Code/Microcode/ND-120-DELILAH-L.LISTING.txt **
** lines 115-119; **
** 2. the CPU board drives PIL out to the B-plug and takes INR back **
** in from it (the paired signals above); **
** 3. SINTRAN's GCPUNR reads exactly 8 bytes by executing VERSN once **
** per interrupt level 0..7 - $ND_REPOS/NDInsight/SINTRAN/ **
** NPL-SOURCE/NPL/PH-P2-OPPSTART.NPL:3534-3570. **
** **
** MICROCODE TIMING NOTE (real hardware bug, both behaviours work): **
** LDPIL has not settled when the very next microword samples IDBS,INR, **
** so the CURRENT PIL is used instead of the just-loaded one. ND-120 **
** revision L inserts a COMM,SLOW microword between them to fix this **
** (L.LISTING.txt:122, "L-ONLY WORD"); revision K (K.LISTING.txt:116-119)**
** and the ND-100/ND-110 do not have it. SINTRAN works around it **
** unconditionally by running VERSN on levels 0..7, so this model is **
** correct for both: it simply decodes whatever PIL nibble the CPU board **
** presents. **
** **
** Byte layout that SINTRAN GCPUNR decodes (bytes 8-15 are never read): **
** 0 (MSB) + 1 (LSB) : SYSNO -> banner "CPU NUMBER"; -1 = absent **
** 2 (MSB) + 3 (LSB) : HWINFO(2) system type -> "CPU TYPE"; -1 = absent**
** 4 : NLEGU number of legal users; 0377B = absent **
** 5 : not used by SINTRAN (GCPUNR does INF2 SHZ -10) **
** 6 + 7 : signature INF3, MUST be 52652B = 0x55AA **
** 8..15 : unknown, SINTRAN never reads them **
** If the signature is wrong GCPUNR EXITs and every other byte is **
** ignored, so bytes 6/7 are hardwired here and are NOT parameterised. **
** **
** Ronny Hansen **
***************************************************************************/
//! @title Back-wiring PROM (installation number), addressed by PIL[3:0]
//! @author Ronny Hansen
// Build-time values and their "not present" sentinels. Same `param + `define
// default` idiom SC2661_UART.v:139-144 uses for BOARD_CLK_FREQ /
// UART_BAUD_RATE, so a bitstream can fix them either by overriding the module
// parameter or by a -D on the toolchain command line.
`include "nd120_backwiring_defaults.vh"
module BACKWIRING_PROM #(
parameter [15:0] SYSNO = `ND120_SYSNO, //! bytes 0/1 - CPU NUMBER (16'hFFFF = absent)
parameter [15:0] HWINFO2 = `ND120_HWINFO2, //! bytes 2/3 - CPU TYPE (16'hFFFF = absent)
parameter [ 7:0] NLEGU = `ND120_NLEGU, //! byte 4 - legal users (8'o377 = absent)
parameter [ 7:0] INR_BYTE5 = `ND120_INR_BYTE5, //! byte 5 - no known consumer
parameter [ 7:0] INR_FILLER = `ND120_INR_FILLER //! bytes 8..15 - never read by SINTRAN
) (
input wire [3:0] PIL_3_0, //! PROM byte address, driven out on the B-plug by the CPU board
output reg [7:0] INR_7_0 //! PROM data byte, read back over the B-plug (IDBS,INR = 35 octal)
);
// Signature bytes 6/7 = 52652 octal = 21930 decimal = 0x55AA. NOT a
// parameter on purpose: a wrong signature makes GCPUNR EXIT and disables
// everything else in the PROM.
localparam [7:0] SIGN_HI = 8'h55; //! byte 6 - high byte of INF3
localparam [7:0] SIGN_LO = 8'hAA; //! byte 7 - low byte of INF3
// Pure combinational lookup. The CPU board already gates this with RINR_n
// (IO_REG_41.v:189), so the PROM itself is always driving - exactly like the
// real part sitting on the backplane with its output tied to the B-plug.
always @(*) begin
case (PIL_3_0)
4'd0: INR_7_0 = SYSNO[15:8]; // SYSNO MSB
4'd1: INR_7_0 = SYSNO[7:0]; // SYSNO LSB
4'd2: INR_7_0 = HWINFO2[15:8]; // HWINFO(2) MSB
4'd3: INR_7_0 = HWINFO2[7:0]; // HWINFO(2) LSB
4'd4: INR_7_0 = NLEGU; // number of legal users
4'd5: INR_7_0 = INR_BYTE5; // no known consumer
4'd6: INR_7_0 = SIGN_HI; // signature, forced
4'd7: INR_7_0 = SIGN_LO; // signature, forced
default: INR_7_0 = INR_FILLER; // bytes 8..15
endcase
end
endmodule
