AM29861A¶

Source: Verilog/Shared/support/AM29861A.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > MEM_43 > MEM_ADDR_44 > AM29861A - instance path: CORE.CPU_BOARD.MEM.ADDR.CHIP_5H

Used in: MEM_ADDR_44 (all tops)

Contains: no other modules.

Module hierarchy - All modules

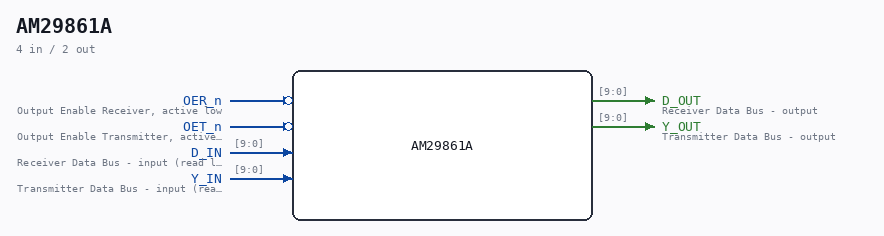

AM29861A symbol

Schematic¶

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.MEM.ADDR.CHIP_5H. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description¶

ND120 CPU AM29861A 10 Bit Bus Tranceivers Documentation: https://datasheetspdf.com/datasheet/AM29861.html Last reviewed: 11-NOV-2024 Ronny Hansen

Ports¶

Direction	Width	Name	Description
input	`1`	`OER_n` (active low)	Output Enable Receiver, active low
input	`1`	`OET_n` (active low)	Output Enable Transmitter, active low
input	`[9:0]`	`D_IN`	Receiver Data Bus - input (read left, write right)
input	`[9:0]`	`Y_IN`	Transmitter Data Bus - input (read right, write left)
output	`[9:0]`	`D_OUT`	Receiver Data Bus - output
output	`[9:0]`	`Y_OUT`	Transmitter Data Bus - output

Verilog source¶

Verilog/Shared/support/AM29861A.v on GitHub.

Show the Verilog of AM29861A (43 lines)

/**************************************************************************************************
** ND120 CPU                                                                                     **
**                                                                                               **
** AM29861A                                                                                      **
**                                                                                               **
** 10 Bit Bus Tranceivers                                                                        **
**                                                                                               **
** Documentation:                                                                                **
** https://datasheetspdf.com/datasheet/AM29861.html                                              **
**                                                                                               **
** Last reviewed: 11-NOV-2024                                                                    **
** Ronny Hansen                                                                                  **
***************************************************************************************************/

module AM29861A (
    input OER_n,  //! Output Enable Receiver, active low
    input OET_n,  //! Output Enable Transmitter, active low

    input [9:0] D_IN,  //! Receiver Data Bus - input (read left, write right)
    input [9:0] Y_IN,  //! Transmitter Data Bus - input (read right, write left)

    output [9:0] D_OUT,  //! Receiver Data Bus - output
    output [9:0] Y_OUT   //! Transmitter Data Bus - output
);

  /*******************************************************************************
   ** The wires are defined here                                                 **
   *******************************************************************************/
  wire s_receive;
  wire s_transmit;

   /*******************************************************************************
   ** Here all in-lined components are defined                                   **
   *******************************************************************************/

  assign s_receive = !OER_n & OET_n;
  assign s_transmit = OER_n & !OET_n;

  // Logic to drive the internal bus signals
  assign Y_OUT = s_transmit ? D_IN : 10'b0;
  assign D_OUT = s_receive ? Y_IN : 10'b0;

endmodule
