D_FLIPFLOP_SIMPLE

Source: Verilog/Shared/logisim/D_FLIPFLOP_SIMPLE.v

Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).

Module hierarchy - All modules

Schematic

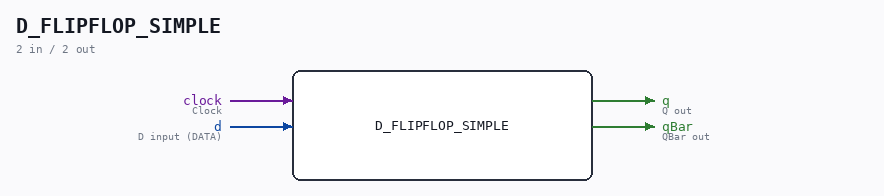

Drawn from the Verilog: no build top uses this module, so it was elaborated from its own file with no defines and default parameters. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

ND120 SHARED CODE D FLIP-FLOP (Wihtout SET or RESET) Last reviewed: 9-FEB-2025 Ronny Hansen

Ports

Direction	Width	Name	Description
input	1	clock	Clock
input	1	d	D input (DATA)
output	1	q	Q out
output	1	qBar	QBar out

Verilog source

Verilog/Shared/logisim/D_FLIPFLOP_SIMPLE.v on GitHub.

Show the Verilog of D_FLIPFLOP_SIMPLE (49 lines)

/**************************************************************************
** ND120 SHARED CODE                                                     **
** D FLIP-FLOP (Wihtout SET or RESET)                                    **
**                                                                       **
**                                                                       **
** Last reviewed: 9-FEB-2025                                             **
** Ronny Hansen                                                          **
***************************************************************************/


module D_FLIPFLOP_SIMPLE (
    input clock,     //! Clock
    input d,         //! D input (DATA)

    output q,        //! Q out
    output qBar      //! QBar out
);

   /*******************************************************************************
   ** The wires are defined here                                                 **
   *******************************************************************************/
   wire s_clock;

   /*******************************************************************************
   ** The registers are defined here                                             **
   *******************************************************************************/
   reg s_currentState;

   /*******************************************************************************
   ** Here the output signals are defined                                        **
   *******************************************************************************/
   assign q        = s_currentState;
   assign qBar     = ~(s_currentState);

   /*******************************************************************************
   ** Here the initial register value is defined; for simulation only            **
   *******************************************************************************/
   initial
   begin
      s_currentState = 0;
   end

   always @(posedge clock)
   begin
      s_currentState <= d;
   end

endmodule
