TTL_74393

Source: Verilog/Shared/support/TTL_74393.v

Hierarchy: not instantiated by any of the 9 build tops (elaborated by yosys).

Module hierarchy - All modules

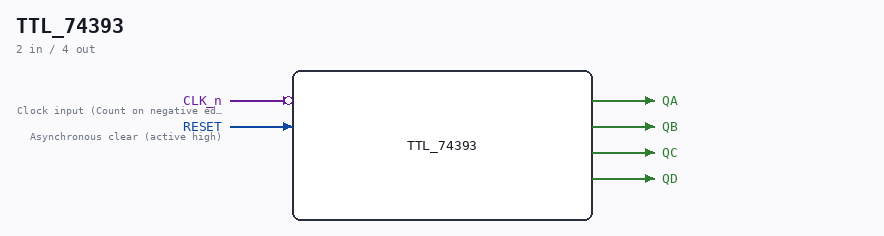

Schematic

Drawn from the Verilog: no build top uses this module, so it was elaborated from its own file with no defines and default parameters. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Ports

Direction	Width	Name	Description
input	1	CLK_n (active low)	Clock input (Count on negative edge)
input	1	RESET	Asynchronous clear (active high)
output	1	QA
output	1	QB
output	1	QC
output	1	QD

Verilog source

Verilog/Shared/support/TTL_74393.v on GitHub.

Show the Verilog of TTL_74393 (32 lines)

// 74393
// Dual 4-Stage Binary Ripple Counter
// Implementing just one of the clocks. Instantiate two modules to get both
// Documentation: https://www.onsemi.com/pdf/datasheet/mc74hc393a-d.pdf

module TTL_74393 (
    input CLK_n,     // Clock input (Count on negative edge)
    input RESET,     // Asynchronous clear (active high)

    output QA,
    output QB,
    output QC,
    output QD
);

reg [3:0] counter1 = 4'b0000;


// First 4-bit counter
always @(negedge CLK_n or posedge RESET) begin
    if (RESET)
        counter1 <= 4'b0000;
    else
        counter1 <= counter1 + 1;
end

assign QA = counter1[0];
assign QB = counter1[1];
assign QC = counter1[2];
assign QD = counter1[3];

endmodule
