Multiplexer_8¶

Source: Verilog/Shared/logisim/Multiplexer_8.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_MIC > CGA_MIC_CSEL > Multiplexer_8 - instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MIC.CSEL.PLEXERS_1

Used in: CGA_MIC_CSEL (all tops), MUX81 (all tops)

Contains: no other modules.

Module hierarchy - All modules

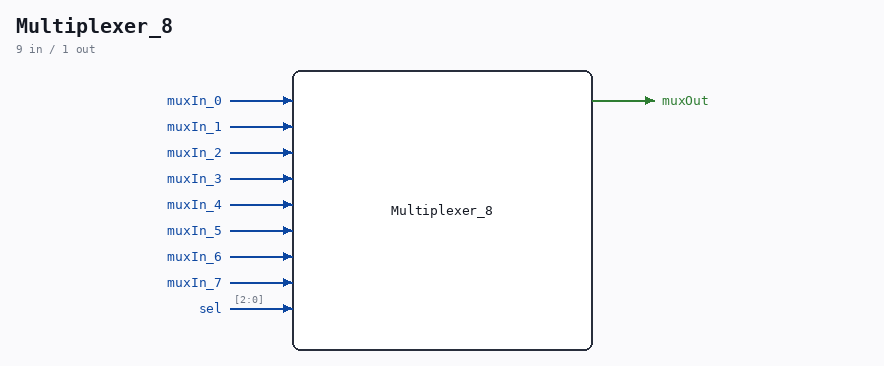

Multiplexer_8 symbol

Schematic¶

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MIC.CSEL.PLEXERS_1. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description¶

Component : Multiplexer_8

Ports¶

Direction	Width	Name
input	`1`	`muxIn_0`
input	`1`	`muxIn_1`
input	`1`	`muxIn_2`
input	`1`	`muxIn_3`
input	`1`	`muxIn_4`
input	`1`	`muxIn_5`
input	`1`	`muxIn_6`
input	`1`	`muxIn_7`
input	`[2:0]`	`sel`
output	`1`	`muxOut`

Verilog source¶

Verilog/Shared/logisim/Multiplexer_8.v on GitHub.

Show the Verilog of Multiplexer_8 (35 lines)

/******************************************************************************
 **                                                                          **
 ** Component : Multiplexer_8                                                **
 **                                                                          **
 *****************************************************************************/

module Multiplexer_8(
    input  muxIn_0,
    input  muxIn_1,
    input  muxIn_2,
    input  muxIn_3,
    input  muxIn_4,
    input  muxIn_5,
    input  muxIn_6,
    input  muxIn_7,
    input  [2:0] sel,
    output reg muxOut
);

    // Logic for the 8-to-1 multiplexer
    always @(*) begin
        case (sel)
            3'b000: muxOut = muxIn_0; // Select input 0
            3'b001: muxOut = muxIn_1; // Select input 1
            3'b010: muxOut = muxIn_2; // Select input 2
            3'b011: muxOut = muxIn_3; // Select input 3
            3'b100: muxOut = muxIn_4; // Select input 4
            3'b101: muxOut = muxIn_5; // Select input 5
            3'b110: muxOut = muxIn_6; // Select input 6
            3'b111: muxOut = muxIn_7; // Select input 7
            default: muxOut = 1'bx;   // Undefined state
        endcase
    end

endmodule
