M169C_EN¶
Source: Verilog/Shared/ndlib/M169C_EN.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_MIC > M169C_EN
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MIC.LC_HI
Used in: CGA_MIC (all tops)
Contains: AND_GATE x17, AND_GATE_3_INPUTS x2, AND_GATE_4_INPUTS, AND_GATE_6_INPUTS x2, D_FLIPFLOP_EN x4, NOR_GATE x9, XOR_GATE_ONEHOT x4
Module hierarchy - All modules

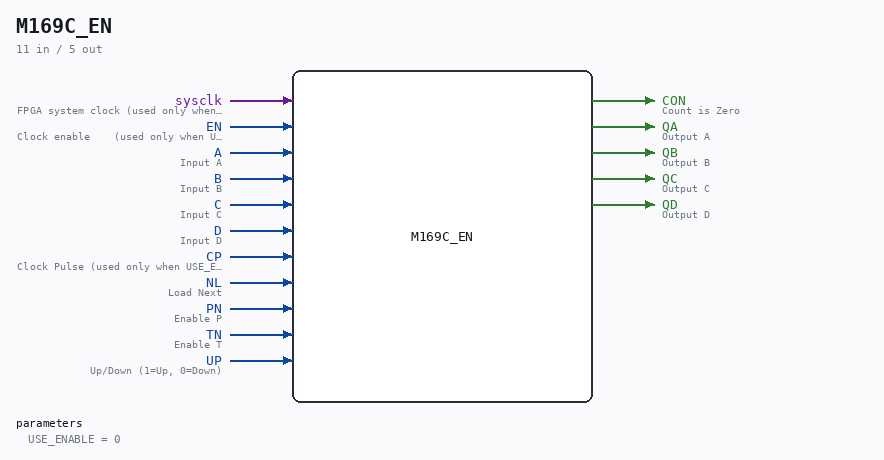

Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MIC.LC_HI. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 Shared M169C_EN - M169C (74LS169 synchronous 4-bit up/down binary counter) with an optional clock-enable mode. USE_ENABLE=0 (default): wraps the original M169C - posedge CP, original behaviour. USE_ENABLE=1: posedge sysclk, counts when EN is high (P2 clock- domain conversion mode - see SCAN_FF_EN.v / the plan doc). This branch is a STRUCTURAL COPY of the original M169C body - every gate and wire identical - with only the four internal flops swapped from D_FLIPFLOP #(.InvertClockEnable(0)) to D_FLIPFLOP_EN #(.USE_ENABLE(1)) (default ASYNC_RESET=0; the originals tie preset/reset to 0 and tick to 1, preserved here). The CON output logic stays gate-identical. The CP pin is routed to the flops' (unused-in-mode-1) clock pins. https://www.ti.com/lit/ds/symlink/sn74als169b.pdf Last reviewed: 10-JUL-2026 Ronny Hansen
Parameters¶
| Parameter | Default |
|---|---|
USE_ENABLE |
0 |
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
FPGA system clock (used only when USE_ENABLE=1) |
| input | 1 |
EN |
Clock enable (used only when USE_ENABLE=1) |
| input | 1 |
A |
Input A |
| input | 1 |
B |
Input B |
| input | 1 |
C |
Input C |
| input | 1 |
D |
Input D |
| input | 1 |
CP |
Clock Pulse (used only when USE_ENABLE=0) |
| input | 1 |
NL |
Load Next |
| input | 1 |
PN |
Enable P |
| input | 1 |
TN |
Enable T |
| input | 1 |
UP |
Up/Down (1=Up, 0=Down) |
| output | 1 |
CON |
Count is Zero |
| output | 1 |
QA |
Output A |
| output | 1 |
QB |
Output B |
| output | 1 |
QC |
Output C |
| output | 1 |
QD |
Output D |
Verilog source¶
Verilog/Shared/ndlib/M169C_EN.v on GitHub.
Show the Verilog of M169C_EN (532 lines)
/**************************************************************************
** ND120 Shared **
** **
** M169C_EN - M169C (74LS169 synchronous 4-bit up/down binary counter) **
** with an optional clock-enable mode. **
** **
** USE_ENABLE=0 (default): wraps the original M169C - posedge CP, **
** original behaviour. **
** USE_ENABLE=1: posedge sysclk, counts when EN is high (P2 clock- **
** domain conversion mode - see SCAN_FF_EN.v / the plan doc). This **
** branch is a STRUCTURAL COPY of the original M169C body - every **
** gate and wire identical - with only the four internal flops **
** swapped from D_FLIPFLOP #(.InvertClockEnable(0)) to **
** D_FLIPFLOP_EN #(.USE_ENABLE(1)) (default ASYNC_RESET=0; the **
** originals tie preset/reset to 0 and tick to 1, preserved here). **
** The CON output logic stays gate-identical. The CP pin is routed **
** to the flops' (unused-in-mode-1) clock pins. **
** **
** https://www.ti.com/lit/ds/symlink/sn74als169b.pdf **
** **
** Last reviewed: 10-JUL-2026 **
** Ronny Hansen **
***************************************************************************/
module M169C_EN #(
parameter integer USE_ENABLE = 0
) (
input sysclk, //! FPGA system clock (used only when USE_ENABLE=1)
input EN, //! Clock enable (used only when USE_ENABLE=1)
input A, //! Input A
input B, //! Input B
input C, //! Input C
input D, //! Input D
input CP, //! Clock Pulse (used only when USE_ENABLE=0)
input NL, //! Load Next
input PN, //! Enable P
input TN, //! Enable T
input UP, //! Up/Down (1=Up, 0=Down)
output CON, //! Count is Zero
output QA, //! Output A
output QB, //! Output B
output QC, //! Output C
output QD //! Output D
);
generate
if (USE_ENABLE == 1) begin : gen_enable
/*******************************************************************************
** The wires are defined here (structural copy of M169C) **
*******************************************************************************/
wire s_a;
wire s_b;
wire s_c;
wire s_con_out;
wire s_cp;
wire s_d;
wire s_gates27_out;
wire s_ff_out_qc;
wire s_gates24_out;
wire s_qd_nl;
wire s_ff_out_qb;
wire s_gates18_out;
wire s_qb_zero;
wire s_gates15_out;
wire s_gates22_out;
wire s_gates33_out;
wire s_gates12_out;
wire s_ff_out_qd;
wire s_gates7_out;
wire s_gates19_out;
wire s_qan_up;
wire s_ff_qa_q;
wire s_gates13_out;
wire s_gates26_out;
wire s_gates5_out;
wire s_gates28_n_out;
wire s_gates35_out;
wire s_gates16_out;
wire s_gates17_out;
wire s_qa_zero;
wire s_gates30_n_out;
wire s_qc_zero;
wire s_qa_down;
wire s_qd_zero;
wire s_gates3_out;
wire s_gates28_out;
wire s_qa_nl;
wire s_gates14_out;
wire s_gates25_out;
wire s_qc_nl;
wire s_gates32_out;
wire s_gates30_out;
wire s_gates29_n_out;
wire s_gates23_out;
wire s_gates31_n_out;
wire s_gates29_out;
wire s_qb_nl;
wire s_gates31_out;
wire s_nl_n;
wire s_nl;
wire s_p_n;
wire s_ff_qa_qn;
wire s_qa_out;
wire s_qb_n_out;
wire s_qb_out;
wire s_qc_n_out;
wire s_qc_out;
wire s_qd_n_out;
wire s_qd_out;
wire s_t_n;
wire s_t;
wire s_up_n;
wire s_up;
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_a = A;
assign s_b = B;
assign s_c = C;
assign s_d = D;
assign s_cp = CP;
assign s_nl = NL;
assign s_p_n = PN;
assign s_t_n = TN;
assign s_up = UP;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign CON = s_con_out;
assign QA = s_qa_out;
assign QB = s_qb_out;
assign QC = s_qc_out;
assign QD = s_qd_out;
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// NOT Gate
assign s_gates28_n_out = ~s_gates28_out;
assign s_gates29_n_out = ~s_gates29_out;
assign s_gates30_n_out = ~s_gates30_out;
assign s_gates31_n_out = ~s_gates31_out;
assign s_qa_out = ~s_ff_qa_qn;
assign s_qb_out = ~s_qb_n_out;
assign s_qc_out = ~s_qc_n_out;
assign s_qd_out = ~s_qd_n_out;
assign s_up_n = ~s_up;
assign s_t = ~s_t_n;
assign s_nl_n = ~s_nl;
/*******************************************************************************
** Here all normal components are defined **
*******************************************************************************/
AND_GATE #(
.BubblesMask(2'b00)
) AND_QA_NL (
.input1(s_ff_qa_q),
.input2(s_nl),
.result(s_qa_nl)
);
AND_GATE #(
.BubblesMask(2'b00)
) AND_QB_NL (
.input1(s_ff_out_qb),
.input2(s_nl),
.result(s_qb_nl)
);
AND_GATE #(
.BubblesMask(2'b00)
) AND_QC_NL (
.input1(s_ff_out_qc),
.input2(s_nl),
.result(s_qc_nl)
);
AND_GATE #(
.BubblesMask(2'b00)
) AND_QD_NL (
.input1(s_ff_out_qd),
.input2(s_nl),
.result(s_qd_nl)
);
AND_GATE #(
.BubblesMask(2'b00)
) GATES_3 (
.input1(s_gates35_out),
.input2(s_qa_zero),
.result(s_gates3_out)
);
AND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_5 (
.input1(s_gates35_out),
.input2(s_qa_zero),
.input3(s_qb_zero),
.result(s_gates5_out)
);
AND_GATE_4_INPUTS #(
.BubblesMask(4'h0)
) GATES_7 (
.input1(s_gates35_out),
.input2(s_qa_zero),
.input3(s_qb_zero),
.input4(s_qc_zero),
.result(s_gates7_out)
);
NOR_GATE #(
.BubblesMask(2'b00)
) GATES_8 (
.input1(s_qan_up),
.input2(s_qa_down),
.result(s_qa_zero) // QA is zero
);
NOR_GATE #(
.BubblesMask(2'b00)
) GATES_9 (
.input1(s_gates22_out),
.input2(s_gates23_out),
.result(s_qb_zero)
);
NOR_GATE #(
.BubblesMask(2'b00)
) GATES_10 (
.input1(s_gates24_out),
.input2(s_gates25_out),
.result(s_qc_zero)
);
NOR_GATE #(
.BubblesMask(2'b00)
) GATES_11 (
.input1(s_gates26_out),
.input2(s_gates27_out),
.result(s_qd_zero)
);
XOR_GATE_ONEHOT #(
.BubblesMask(2'b00)
) GATES_12 (
.input1(s_qa_nl),
.input2(s_gates35_out),
.result(s_gates12_out)
);
AND_GATE #(
.BubblesMask(2'b00)
) GATES_13 (
.input1(s_nl_n),
.input2(s_a),
.result(s_gates13_out)
);
XOR_GATE_ONEHOT #(
.BubblesMask(2'b00)
) GATES_14 (
.input1(s_qb_nl),
.input2(s_gates3_out),
.result(s_gates14_out)
);
AND_GATE #(
.BubblesMask(2'b00)
) GATES_15 (
.input1(s_nl_n),
.input2(s_b),
.result(s_gates15_out)
);
XOR_GATE_ONEHOT #(
.BubblesMask(2'b00)
) GATES_16 (
.input1(s_qc_nl),
.input2(s_gates5_out),
.result(s_gates16_out)
);
AND_GATE #(
.BubblesMask(2'b00)
) GATES_17 (
.input1(s_nl_n),
.input2(s_c),
.result(s_gates17_out)
);
XOR_GATE_ONEHOT #(
.BubblesMask(2'b00)
) GATES_18 (
.input1(s_qd_nl),
.input2(s_gates7_out),
.result(s_gates18_out)
);
AND_GATE #(
.BubblesMask(2'b00)
) GATES_19 (
.input1(s_nl_n),
.input2(s_d),
.result(s_gates19_out)
);
AND_GATE #(
.BubblesMask(2'b00)
) AND_QAN_UP (
.input1(s_up),
.input2(s_ff_qa_qn),
.result(s_qan_up)
);
AND_GATE #(
.BubblesMask(2'b00)
) AND_QA_UPN ( // AND_QA_UPN
.input1(s_up_n),
.input2(s_ff_qa_q),
.result(s_qa_down)
);
AND_GATE #(
.BubblesMask(2'b00)
) GATES_22 (
.input1(s_up),
.input2(s_qb_n_out),
.result(s_gates22_out)
);
AND_GATE #(
.BubblesMask(2'b00)
) GATES_23 (
.input1(s_up_n),
.input2(s_ff_out_qb),
.result(s_gates23_out)
);
AND_GATE #(
.BubblesMask(2'b00)
) GATES_24 (
.input1(s_up),
.input2(s_qc_n_out),
.result(s_gates24_out)
);
AND_GATE #(
.BubblesMask(2'b00)
) GATES_25 (
.input1(s_up_n),
.input2(s_ff_out_qc),
.result(s_gates25_out)
);
AND_GATE #(
.BubblesMask(2'b00)
) GATES_26 (
.input1(s_up),
.input2(s_qd_n_out),
.result(s_gates26_out)
);
AND_GATE #(
.BubblesMask(2'b00)
) GATES_27 (
.input1(s_up_n),
.input2(s_ff_out_qd),
.result(s_gates27_out)
);
NOR_GATE #(
.BubblesMask(2'b00)
) GATES_28 (
.input1(s_gates12_out),
.input2(s_gates13_out),
.result(s_gates28_out)
);
NOR_GATE #(
.BubblesMask(2'b00)
) GATES_29 (
.input1(s_gates14_out),
.input2(s_gates15_out),
.result(s_gates29_out)
);
NOR_GATE #(
.BubblesMask(2'b00)
) GATES_30 (
.input1(s_gates16_out),
.input2(s_gates17_out),
.result(s_gates30_out)
);
NOR_GATE #(
.BubblesMask(2'b00)
) GATES_31 (
.input1(s_gates18_out),
.input2(s_gates19_out),
.result(s_gates31_out)
);
AND_GATE_6_INPUTS #(
.BubblesMask({2'b00, 4'h0})
) GATES_32 (
.input1(s_qd_zero),
.input2(s_qc_zero),
.input3(s_qb_zero),
.input4(s_qa_zero),
.input5(s_t),
.input6(s_up),
.result(s_gates32_out)
);
AND_GATE_6_INPUTS #(
.BubblesMask({2'b00, 4'h0})
) GATES_33 (
.input1(s_up_n),
.input2(s_t),
.input3(s_qa_zero),
.input4(s_qb_zero),
.input5(s_qc_zero),
.input6(s_qd_zero),
.result(s_gates33_out)
);
NOR_GATE #(
.BubblesMask(2'b00)
) GATES_34 (
.input1(s_gates32_out),
.input2(s_gates33_out),
.result(s_con_out)
);
AND_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_35 (
.input1(s_p_n),
.input2(s_t_n),
.input3(s_nl_n),
.result(s_gates35_out)
);
// The four internal flops, swapped to D_FLIPFLOP_EN in mode 1.
// Originals were D_FLIPFLOP #(.InvertClockEnable(0)) with
// preset/reset tied 0 and tick tied 1 (D_FLIPFLOP_EN defaults:
// ASYNC_RESET=0; its mode-0 branch also uses InvertClockEnable(0)).
// The clock pin (s_cp) is unused inside D_FLIPFLOP_EN when
// USE_ENABLE=1 and is lint-waived there.
D_FLIPFLOP_EN #(
.USE_ENABLE(1)
) MEMORY_36 (
.sysclk(sysclk),
.EN(EN),
.clock(s_cp),
.d(s_gates28_n_out),
.preset(1'b0),
.q(s_ff_qa_q),
.qBar(s_ff_qa_qn),
.reset(1'b0),
.tick(1'b1)
);
D_FLIPFLOP_EN #(
.USE_ENABLE(1)
) MEMORY_37 (
.sysclk(sysclk),
.EN(EN),
.clock(s_cp),
.d(s_gates29_n_out),
.preset(1'b0),
.q(s_ff_out_qb),
.qBar(s_qb_n_out),
.reset(1'b0),
.tick(1'b1)
);
D_FLIPFLOP_EN #(
.USE_ENABLE(1)
) MEMORY_38 (
.sysclk(sysclk),
.EN(EN),
.clock(s_cp),
.d(s_gates30_n_out),
.preset(1'b0),
.q(s_ff_out_qc),
.qBar(s_qc_n_out),
.reset(1'b0),
.tick(1'b1)
);
D_FLIPFLOP_EN #(
.USE_ENABLE(1)
) MEMORY_39 (
.sysclk(sysclk),
.EN(EN),
.clock(s_cp),
.d(s_gates31_n_out),
.preset(1'b0),
.q(s_ff_out_qd),
.qBar(s_qd_n_out),
.reset(1'b0),
.tick(1'b1)
);
end else begin : gen_orig
/* verilator lint_off UNUSEDSIGNAL */
wire unused_sys = sysclk & EN;
/* verilator lint_on UNUSEDSIGNAL */
M169C CNT (
.A(A), .B(B), .C(C), .D(D),
.CP(CP),
.NL(NL), .PN(PN), .TN(TN), .UP(UP),
.CON(CON),
.QA(QA), .QB(QB), .QC(QC), .QD(QD)
);
end
endgenerate
endmodule
