TTL_74648

Source: Verilog/Shared/support/TTL_74648.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > BIF_5 > BIF_DPATH_9 > BIF_DPATH_BDLBD_10 > TTL_74648 - instance path: CORE.CPU_BOARD.BIF.DPATH.BDLBD.CHIP_4A

Used in: BIF_DPATH_BDLBD_10 (all tops)

Contains: no other modules.

Module hierarchy - All modules

Schematic

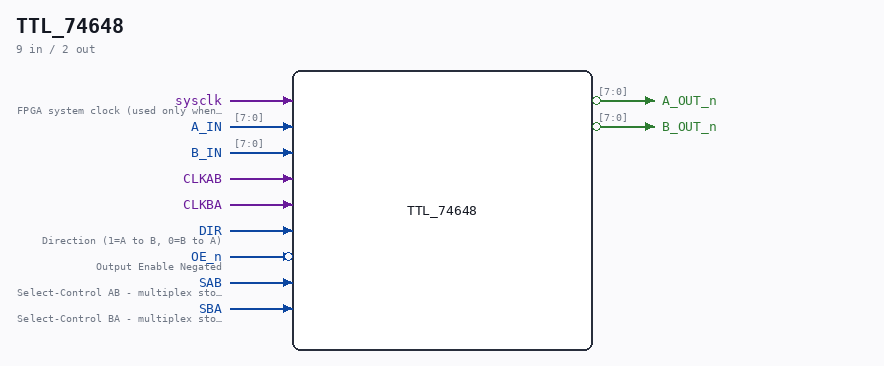

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.BIF.DPATH.BDLBD.CHIP_4A. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

Component : TTL_74648 OCTAL BUS TRANSCEIVERS AND REGISTERS WITH 3-STATE OUTPUTS (INVERTING) DOC: https://www.ti.com/lit/ds/symlink/sn54as646.pdf Last reviewed: 9-MAR-2025 Ronny Hansen

Ports

Direction	Width	Name	Description
input	1	sysclk	FPGA system clock (used only when USE_SYSCLK_AB/BA=2)
input	[7:0]	A_IN
input	[7:0]	B_IN
input	1	CLKAB
input	1	CLKBA
input	1	DIR	Direction (1=A to B, 0=B to A)
input	1	OE_n (active low)	Output Enable Negated
input	1	SAB	Select-Control AB - multiplex stored and real-time (transparent mode) registeres
input	1	SBA	Select-Control BA - multiplex stored and real-time (transparent mode) registeres. 0=REAL-TIME
output	[7:0]	A_OUT_n (active low)
output	[7:0]	B_OUT_n (active low)

Verilog source

Verilog/Shared/support/TTL_74648.v on GitHub.

Show the Verilog of TTL_74648 (136 lines)

/******************************************************************************
 **                                                                          **
 ** Component : TTL_74648                                                    **
 **                                                                          **
 ** OCTAL BUS TRANSCEIVERS AND REGISTERS WITH 3-STATE OUTPUTS                **
 ** (INVERTING)                                                              **
 **                                                                          **
 ** DOC: https://www.ti.com/lit/ds/symlink/sn54as646.pdf                     **
 **                                                                          **
 ** Last reviewed: 9-MAR-2025                                                **
 ** Ronny Hansen                                                             **
 ******************************************************************************/

module TTL_74648 (
    input sysclk,  // FPGA system clock (used only when USE_SYSCLK_AB/BA=2)
    input [7:0] A_IN,
    input [7:0] B_IN,
    input CLKAB,
    input CLKBA,
    input DIR,  // Direction (1=A to B, 0=B to A)
    input OE_n,  // Output Enable Negated
    input SAB,  // Select-Control AB - multiplex stored and real-time (transparent mode) registeres
    input SBA,   // Select-Control BA - multiplex stored and real-time (transparent mode) registeres. 0=REAL-TIME

    output [7:0] A_OUT_n,
    output [7:0] B_OUT_n
);

  // USE_SYSCLK_AB / USE_SYSCLK_BA: 0 (default) = original posedge CLKAB/CLKBA;
  // 2 = sysclk-sampled rising-edge capture (AM29C821 USE_SYSCLK=2 pattern) for
  // when the clock pin carries a control strobe (BGNT_n, CLKBD ...), not a
  // clock. See TTL_74646.v for the full rationale.
  parameter USE_SYSCLK_AB = 0;
  parameter USE_SYSCLK_BA = 0;



  /*******************************************************************************
   ** The wires are defined here                                                 **
   *******************************************************************************/
  wire s_sab;
  wire s_clkab;
  wire s_sba;
  wire s_clkba;
  wire s_dir;
  wire s_oe_n;

  wire [7:0] a_in_n;
  wire [7:0] b_in_n;


  /*******************************************************************************
   ** The module functionality is described here                                 **
   *******************************************************************************/

  /*******************************************************************************
   ** Here all input connections are defined                                     **
   *******************************************************************************/
  assign s_sab   = SAB;
  assign s_clkab = CLKAB;
  assign s_sba   = SBA;
  assign s_clkba = CLKBA;
  assign s_dir   = DIR;
  assign s_oe_n  = OE_n;

  assign a_in_n  = A_IN;
  assign b_in_n  = B_IN;



  /*******************************************************************************
   ** Here all in-lined components are defined                                   **
   *******************************************************************************/

  reg [7:0] regA;
  reg [7:0] regB;

  generate
    if (USE_SYSCLK_AB == 2) begin : gen_ab_edge
      reg clkab_d = 1'b0;
      always @(posedge sysclk) begin
        clkab_d <= s_clkab;
        if (s_clkab && !clkab_d) regA <= a_in_n;
      end
    end else begin : gen_ab_posedge
      always @(posedge s_clkab) begin
        regA <= a_in_n;
      end
    end

    if (USE_SYSCLK_BA == 2) begin : gen_ba_edge
      reg clkba_d = 1'b0;
      always @(posedge sysclk) begin
        clkba_d <= s_clkba;
        if (s_clkba && !clkba_d) regB <= b_in_n;
      end
    end else begin : gen_ba_posedge
      always @(posedge s_clkba) begin
        regB <= b_in_n;
      end
    end
  endgenerate


  /*
A_OUT:
   If OE_n is not active (low), the output is 0.

   If DIR is 0 (B to A direction):
      If SBA is 0, A_OUT gets real-time data from B_IN.
      If SBA is 1, A_OUT gets stored data from regB.

*/
  // sdir = 0 => B => A

  // s_sba = 0 => Real Time B to A
  // s_sba = 1 => Register  B to A
  assign A_OUT_n = s_oe_n ? 8'b0 : !s_dir ? ((!s_sba) ? ~b_in_n : ~regB) : 8'b0;


  /*
B_OUT:
      If OE_n is not active (low), the output is 0.

      If DIR is 1 (A to B direction):
         If SAB is 0, B_OUT gets real-time data from A_IN.
         If SAB is 1, B_OUT gets stored data from regA.
*/

  // sdir = 1 => A => B

  // s_sab = 0 => Real Time A to B
  // s_sab = 1 => Register  A to B
  assign B_OUT_n = s_oe_n ? 8'b0 : s_dir ? ((!s_sab) ? ~a_in_n : ~regA) : 8'b0;

endmodule
