MUX24P

Source: Verilog/Shared/ndlib/MUX24P.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_WRF > CGA_WRF_RBLOCK > CGA_WRF_RBLOCK_LR16 > MUX24P - instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.WRF.RBLOCK.B_REG_3.MUX_15_12

Used in: CGA_WRF_RBLOCK_LR16 (all tops)

Contains: Multiplexer_2 x4

Module hierarchy - All modules

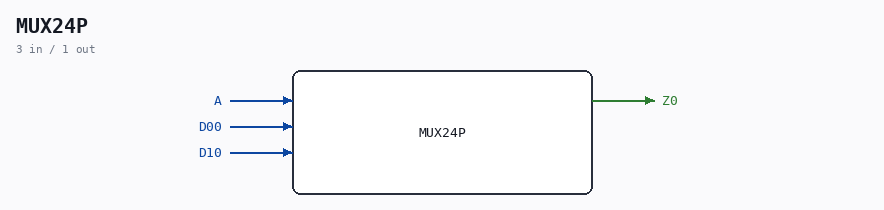

Schematic

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.WRF.RBLOCK.B_REG_3.MUX_15_12. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Ports

Direction	Width	Name	Description
input	1	A
input	1	D00
input	1	D10
output	1	Z0

Verilog source

Verilog/Shared/ndlib/MUX24P.v on GitHub.

Show the Verilog of MUX24P (37 lines)

module MUX24P(
    input A,
    input D00, D01, D02, D03,
    input D10, D11, D12, D13,
    output Z0, Z1, Z2, Z3
);

    // Instantiating four 2-to-1 multiplexers
    Multiplexer_2 PLEXER_1 (
        .muxIn_0(D00),
        .muxIn_1(D10),
        .muxOut(Z0),
        .sel(A)
    );

    Multiplexer_2 PLEXER_2 (
        .muxIn_0(D01),
        .muxIn_1(D11),
        .muxOut(Z1),
        .sel(A)
    );

    Multiplexer_2 PLEXER_3 (
        .muxIn_0(D02),
        .muxIn_1(D12),
        .muxOut(Z2),
        .sel(A)
    );

    Multiplexer_2 PLEXER_4 (
        .muxIn_0(D03),
        .muxIn_1(D13),
        .muxOut(Z3),
        .sel(A)
    );

endmodule
