TTL_74139¶

Source: Verilog/Shared/support/TTL_74139.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_CS_16 > CPU_CS_CTL_18 > TTL_74139 - instance path: CORE.CPU_BOARD.CPU.CS.CTL.CHIP_30B

Used in: CPU_CS_CTL_18 (all tops)

Contains: no other modules.

Module hierarchy - All modules

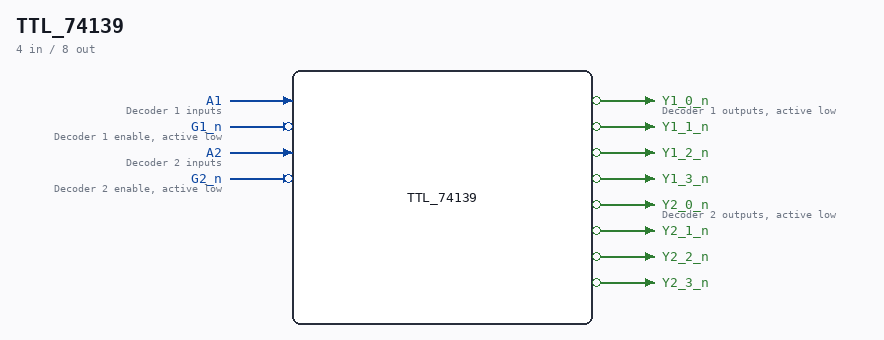

TTL_74139 symbol

Schematic¶

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.CS.CTL.CHIP_30B. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description¶

TTL 74139 DUAL 2-LINE to 4-LINE DECODERS/DEMULTIPLEXERS https://www.ti.com/lit/ds/symlink/sn54ls139a-sp.pdf?ts=1702906423213

Ports¶

Direction	Width	Name	Description
input	`1`	`A1`	Decoder 1 inputs
input	`1`	`G1_n` (active low)	Decoder 1 enable, active low
output	`1`	`Y1_0_n` (active low)	Decoder 1 outputs, active low
output	`1`	`Y1_1_n` (active low)
output	`1`	`Y1_2_n` (active low)
output	`1`	`Y1_3_n` (active low)
input	`1`	`A2`	Decoder 2 inputs
input	`1`	`G2_n` (active low)	Decoder 2 enable, active low
output	`1`	`Y2_0_n` (active low)	Decoder 2 outputs, active low
output	`1`	`Y2_1_n` (active low)
output	`1`	`Y2_2_n` (active low)
output	`1`	`Y2_3_n` (active low)

Verilog source¶

Verilog/Shared/support/TTL_74139.v on GitHub.

Show the Verilog of TTL_74139 (44 lines)

/******************************************************************************
 ** TTL 74139                                                                **
 **                                                                          **
 ** DUAL 2-LINE to 4-LINE DECODERS/DEMULTIPLEXERS                            **
 ** https://www.ti.com/lit/ds/symlink/sn54ls139a-sp.pdf?ts=1702906423213     **
 **                                                                          **
 *****************************************************************************/

module TTL_74139(
    input A1, B1,     // Decoder 1 inputs
    input G1_n,       // Decoder 1 enable, active low
    output Y1_0_n,    // Decoder 1 outputs, active low
    output Y1_1_n,
    output Y1_2_n,
    output Y1_3_n,
    input A2, B2,     // Decoder 2 inputs
    input G2_n,       // Decoder 2 enable, active low
    output Y2_0_n,    // Decoder 2 outputs, active low
    output Y2_1_n,
    output Y2_2_n,
    output Y2_3_n
);
   // DECODER 1

    // Check the enable signal and set outputs
    // When G_n is low, one output goes low based on the combination of B and A
    // When G_n is high, all outputs are high
    assign Y1_0_n = G1_n ? 1'b1 : ~((~B1) & (~A1));  // Y[0] is low when B=0, A=0
    assign Y1_1_n = G1_n ? 1'b1 : ~((~B1) & A1);     // Y[1] is low when B=0, A=1
    assign Y1_2_n = G1_n ? 1'b1 : ~(B1 & (~A1));     // Y[2] is low when B=1, A=0
    assign Y1_3_n = G1_n ? 1'b1 : ~(B1 & A1);        // Y[3] is low when B=1, A=1

   // DECODER 2

    // Check the enable signal and set outputs
    // When G_n is low, one output goes low based on the combination of B and A
    // When G_n is high, all outputs are high
    assign Y2_0_n = G2_n ? 1'b1 : ~((~B2) & (~A2));  // Y[0] is low when B=0, A=0
    assign Y2_1_n = G2_n ? 1'b1 : ~((~B2) & A2);     // Y[1] is low when B=0, A=1
    assign Y2_2_n = G2_n ? 1'b1 : ~(B2 & (~A2));     // Y[2] is low when B=1, A=0
    assign Y2_3_n = G2_n ? 1'b1 : ~(B2 & A2);        // Y[3] is low when B=1, A=1


endmodule
