L4

Source: Verilog/Shared/ndlib/L4.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_MAC > CGA_MAC_SEGPT > CGA_MAC_SEGPT_XPT > L4 - instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MAC.MAC_SEGPT.XPT.XPT_L

Used in: CGA_MAC_SEGPT_PCR (all tops), CGA_MAC_SEGPT_XPT (all tops)

Contains: no other modules.

Module hierarchy - All modules

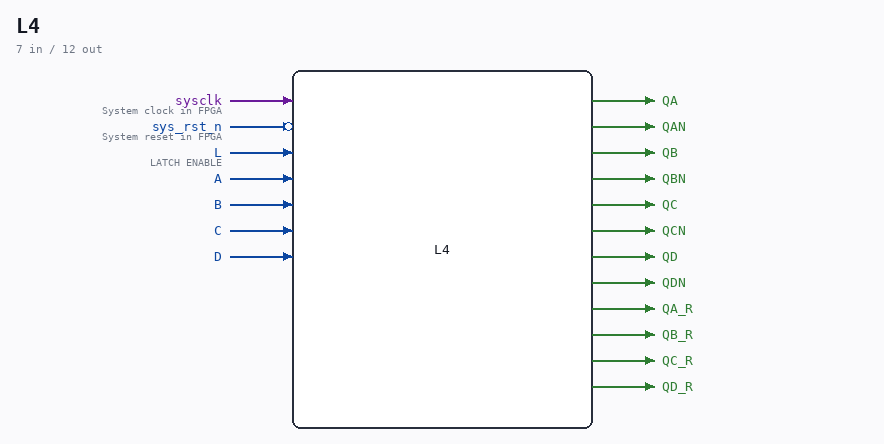

Schematic

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MAC.MAC_SEGPT.XPT.XPT_L. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

ND120 Shared Component L4 (4-bit latch) Last reviewed: 9-FEB-2025 Ronny Hansen

Ports

Direction	Width	Name	Description
input	1	sysclk	System clock in FPGA
input	1	sys_rst_n (active low)	System reset in FPGA
input	1	L	LATCH ENABLE
input	1	A
input	1	B
input	1	C
input	1	D
output	1	QA
output	1	QAN
output	1	QB
output	1	QBN
output	1	QC
output	1	QCN
output	1	QD
output	1	QDN
output	1	QA_R
output	1	QB_R
output	1	QC_R
output	1	QD_R

Verilog source

Verilog/Shared/ndlib/L4.v on GitHub.

Show the Verilog of L4 (81 lines)

/**************************************************************************
** ND120 Shared                                                          **
**                                                                       **
** Component L4 (4-bit latch)                                            **
**                                                                       **
** Last reviewed: 9-FEB-2025                                             **
** Ronny Hansen                                                          **
***************************************************************************/

module L4 (
    // System input signals
    input sysclk,    // System clock in FPGA
    input sys_rst_n, // System reset in FPGA

    input L, //! LATCH ENABLE

    input A,
    input B,
    input C,
    input D,

    output QA,
    output QAN,
    output QB,
    output QBN,
    output QC,
    output QCN,
    output QD,
    output QDN,

    // Registered-value taps (21-AUG-2026): the stored value WITHOUT the
    // FF-mode transparent bypass mux - same contract as L8's QA_R..QH_R,
    // see Shared/ndlib/L8.v. Leave unconnected where the transparent
    // output is the wanted one.
    output QA_R,
    output QB_R,
    output QC_R,
    output QD_R
);

reg [3:0] reg4bit;

assign {QA_R, QB_R, QC_R, QD_R} =
       {reg4bit[0], reg4bit[1], reg4bit[2], reg4bit[3]};

`ifdef USE_TRANSPARENT_LATCHES
assign QA=reg4bit[0]; assign QAN=~reg4bit[0];
assign QB=reg4bit[1]; assign QBN=~reg4bit[1];
assign QC=reg4bit[2]; assign QCN=~reg4bit[2];
assign QD=reg4bit[3]; assign QDN=~reg4bit[3];
`else
// FPGA: synthesizable transparent latch = mux + FF (Q follows input while L high)
wire q_a = L ? A : reg4bit[0]; assign QA=q_a; assign QAN=~q_a;
wire q_b = L ? B : reg4bit[1]; assign QB=q_b; assign QBN=~q_b;
wire q_c = L ? C : reg4bit[2]; assign QC=q_c; assign QCN=~q_c;
wire q_d = L ? D : reg4bit[3]; assign QD=q_d; assign QDN=~q_d;
`endif



`ifdef USE_TRANSPARENT_LATCHES
always @(*) begin
    if (L) begin
        reg4bit[0] = A;
        reg4bit[1] = B;
        reg4bit[2] = C;
        reg4bit[3] = D;
    end
end
`else
always @(posedge sysclk) begin
    if (L) begin
        reg4bit[0] <= A;
        reg4bit[1] <= B;
        reg4bit[2] <= C;
        reg4bit[3] <= D;
    end
end
`endif

endmodule
