CGA_MAC_SEGPT_PCR¶
Source: Verilog/DELILAH-CPU/CGA_MAC/circuit/CGA_MAC_SEGPT_PCR.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_MAC > CGA_MAC_SEGPT > CGA_MAC_SEGPT_PCR
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MAC.MAC_SEGPT.PCR
Used in: CGA_MAC_SEGPT (all tops)
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MAC.MAC_SEGPT.PCR. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/MAC/SEGPT/PCR PCR REGISTER Page 37 SHEET 1 of 1 Last reviewed: 9-FEB-2025 Ronny Hansen 02-FEB-2025 - Refactored and renamed FIDBO_15_7_2_0 to FIDBO_15_0 Refactored and merged output PCR_14_13_10_9_N and PCR_15_7_2_0 to PCR_15_0

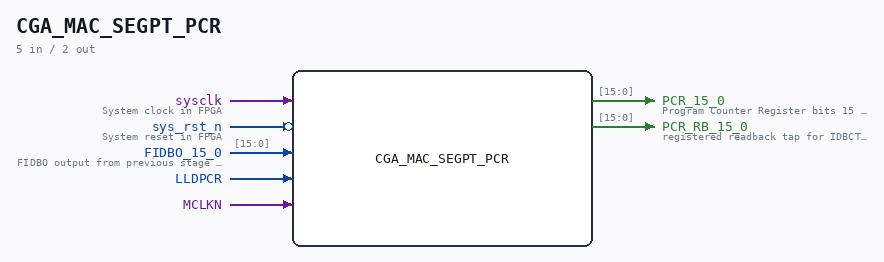

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
System clock in FPGA |
| input | 1 |
sys_rst_n (active low) |
System reset in FPGA |
| input | [15:0] |
FIDBO_15_0 |
FIDBO output from previous stage (from CGA_MAC.FIDBO_15_0) |
| input | 1 |
LLDPCR |
|
| input | 1 |
MCLKN |
|
| output | [15:0] |
PCR_15_0 |
Program Counter Register bits 15 to 0 (to CGA_MAC.PCR_15_0) |
| output | [15:0] |
PCR_RB_15_0 |
registered readback tap for IDBCTL/SEL6 (loop cut) (to CGA_MAC_SEGPT.PCR_RB_15_0) |
Verilog source¶
Verilog/DELILAH-CPU/CGA_MAC/circuit/CGA_MAC_SEGPT_PCR.v on GitHub.
Show the Verilog of CGA_MAC_SEGPT_PCR (155 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/MAC/SEGPT/PCR **
** PCR REGISTER **
** **
** Page 37 **
** SHEET 1 of 1 **
** **
** Last reviewed: 9-FEB-2025 **
** Ronny Hansen **
** **
** 02-FEB-2025 - Refactored and renamed FIDBO_15_7_2_0 to FIDBO_15_0 **
** Refactored and merged output PCR_14_13_10_9_N and **
** PCR_15_7_2_0 to PCR_15_0 **
***************************************************************************/
module CGA_MAC_SEGPT_PCR (
// System input signals
input sysclk, // System clock in FPGA
input sys_rst_n, // System reset in FPGA
// Input signals
input [15:0] FIDBO_15_0, //! FIDBO output from previous stage (from CGA_MAC.FIDBO_15_0)
input LLDPCR,
input MCLKN,
// Output signals
output [15:0] PCR_15_0, //! Program Counter Register bits 15 to 0 (to CGA_MAC.PCR_15_0)
// Registered readback tap (21-AUG-2026): same stored value as PCR_15_0
// but taken from the L8/L4 register (QA_R taps), WITHOUT the FF-mode
// transparent bypass. Feeds ONLY the IDBCTL/SEL6 IDB readback - this
// cuts the combinational IDB ring FIDBO -> PCR -> SEL6 -> FIDBI ->
// OUTMUX(EFIDB) -> FIDBO. All other consumers keep PCR_15_0.
output [15:0] PCR_RB_15_0 //! registered readback tap for IDBCTL/SEL6 (loop cut) (to CGA_MAC_SEGPT.PCR_RB_15_0)
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [15:0] s_pcr_15_0_out;
wire [15:0] s_pcr_rb_15_0_out;
wire [15:0] s_fidbo_15_0;
wire s_gates1_out;
wire s_lldpcr;
wire s_mclk_n;
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_fidbo_15_0[15:0] = FIDBO_15_0;
assign s_mclk_n = MCLKN;
assign s_lldpcr = LLDPCR;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign PCR_15_0 = s_pcr_15_0_out[15:0];
assign PCR_RB_15_0 = s_pcr_rb_15_0_out[15:0];
// Bits 6:3 is PIL (current program level), and is not set here.
assign s_pcr_15_0_out[6:3] = 4'b0000;
assign s_pcr_rb_15_0_out[6:3] = 4'b0000;
// Code to make LINTER not complain about bits not read in FIDBO 6:3
(* keep = "true", DONT_TOUCH = "true" *) wire [4:0] unused_FIDBO_bits;
assign unused_FIDBO_bits[4:0] = s_fidbo_15_0[6:3];
/*******************************************************************************
** Here all normal components are defined **
*******************************************************************************/
AND_GATE #(
.BubblesMask(2'b00)
) GATES_1 (
.input1(s_mclk_n),
.input2(s_lldpcr),
.result(s_gates1_out)
);
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
L8 PCR_HI (
// Input signals
.sysclk(sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
.A (s_fidbo_15_0[15]),
.B (s_fidbo_15_0[14]),
.C (s_fidbo_15_0[13]),
.D (s_fidbo_15_0[12]),
.E (s_fidbo_15_0[11]),
.F (s_fidbo_15_0[10]),
.G (s_fidbo_15_0[9]),
.H (s_fidbo_15_0[8]),
.L (s_gates1_out),
.QA (s_pcr_15_0_out[15]),
.QAN(),
.QB (s_pcr_15_0_out[14]),
.QBN(),
.QC (s_pcr_15_0_out[13]),
.QCN(),
.QD (s_pcr_15_0_out[12]),
.QDN(),
.QE (s_pcr_15_0_out[11]),
.QEN(),
.QF (s_pcr_15_0_out[10]),
.QFN(),
.QG (s_pcr_15_0_out[9]),
.QGN(),
.QH (s_pcr_15_0_out[8]),
.QHN(),
.QA_R(s_pcr_rb_15_0_out[15]),
.QB_R(s_pcr_rb_15_0_out[14]),
.QC_R(s_pcr_rb_15_0_out[13]),
.QD_R(s_pcr_rb_15_0_out[12]),
.QE_R(s_pcr_rb_15_0_out[11]),
.QF_R(s_pcr_rb_15_0_out[10]),
.QG_R(s_pcr_rb_15_0_out[9]),
.QH_R(s_pcr_rb_15_0_out[8])
);
L4 PCR_LO
(
// Input signals
.sysclk(sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
.L (s_gates1_out),
.A (s_fidbo_15_0[7]),
.B (s_fidbo_15_0[2]),
.C (s_fidbo_15_0[1]),
.D (s_fidbo_15_0[0]),
.QA (s_pcr_15_0_out[7]),
.QAN(),
.QB (s_pcr_15_0_out[2]),
.QBN(),
.QC (s_pcr_15_0_out[1]),
.QCN(),
.QD (s_pcr_15_0_out[0]),
.QDN(),
.QA_R(s_pcr_rb_15_0_out[7]),
.QB_R(s_pcr_rb_15_0_out[2]),
.QC_R(s_pcr_rb_15_0_out[1]),
.QD_R(s_pcr_rb_15_0_out[0])
);
endmodule
