CGA_MAC_APOS_INC¶
Source: Verilog/DELILAH-CPU/CGA_MAC/circuit/CGA_MAC_APOS_INC.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_MAC > CGA_MAC_AP09 > CGA_MAC_APOS_INC
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MAC.MAC_AP09.AINC
Used in: CGA_MAC_AP09 (all tops)
Contains: no other modules.
Module hierarchy - All modules

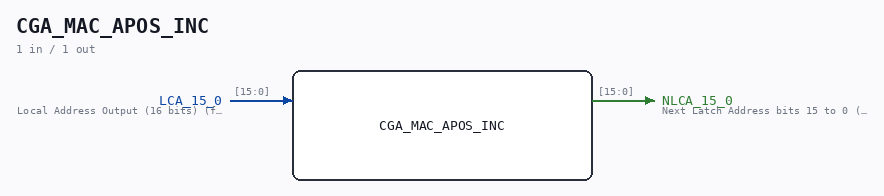

Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MAC.MAC_AP09.AINC. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/MAC/APOS/INC INCREMENT Page 33 SHEET 1 of 1 Last reviewed: 01-FEB-2025 Ronny Hansen
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | [15:0] |
LCA_15_0 |
Local Address Output (16 bits) (from CGA_MAC_APOS_CALCA.LCA_15_0) |
| output | [15:0] |
NLCA_15_0 |
Next Latch Address bits 15 to 0 (to CGA_MAC.NLCA_15_0) |
Verilog source¶
Verilog/DELILAH-CPU/CGA_MAC/circuit/CGA_MAC_APOS_INC.v on GitHub.
Show the Verilog of CGA_MAC_APOS_INC (263 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/MAC/APOS/INC **
** INCREMENT **
** **
** Page 33 **
** SHEET 1 of 1 **
** **
** Last reviewed: 01-FEB-2025 **
** Ronny Hansen **
***************************************************************************/
module CGA_MAC_APOS_INC (
input [15:0] LCA_15_0, //! Local Address Output (16 bits) (from CGA_MAC_APOS_CALCA.LCA_15_0)
output [15:0] NLCA_15_0 //! Next Latch Address bits 15 to 0 (to CGA_MAC.NLCA_15_0)
);
// New implementation using Verilog arithmetic
assign NLCA_15_0 = LCA_15_0 + 16'd1;
`ifdef _OLD_WAY_
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [15:0] s_lca_15_0;
wire [15:0] s_nlca_15_0_out;
wire s_carryout_0;
wire s_carryout_1;
wire s_carryout_10;
wire s_carryout_11;
wire s_carryout_13;
wire s_carryout_14;
wire s_carryout_2;
wire s_carryout_3;
wire s_carryout_4;
wire s_carryout_5;
wire s_carryout_6;
wire s_carryout_8;
wire s_carryout_9;
wire s_gates1_n;
wire s_gates1_out;
wire s_gates2_n;
wire s_gates2_out;
wire s_power;
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_lca_15_0[15:0] = LCA_15_0;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign NLCA_15_0 = s_nlca_15_0_out[15:0];
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// Power
assign s_power = 1'b1;
// NOT Gate
assign s_gates1_n = ~s_gates1_out;
assign s_gates2_n = ~s_gates2_out;
/*******************************************************************************
** Here all normal components are defined **
*******************************************************************************/
NAND_GATE_8_INPUTS #(
.BubblesMask(8'h00)
) GATES_1 (
.input1(s_lca_15_0[7]),
.input2(s_lca_15_0[6]),
.input3(s_lca_15_0[5]),
.input4(s_lca_15_0[4]),
.input5(s_lca_15_0[3]),
.input6(s_lca_15_0[2]),
.input7(s_lca_15_0[1]),
.input8(s_lca_15_0[0]),
.result(s_gates1_out)
);
NAND_GATE_6_INPUTS #(
.BubblesMask({2'b00, 4'h0})
) GATES_2 (
.input1(s_lca_15_0[12]),
.input2(s_lca_15_0[11]),
.input3(s_lca_15_0[10]),
.input4(s_lca_15_0[9]),
.input5(s_lca_15_0[8]),
.input6(s_gates1_n),
.result(s_gates2_out)
);
FullAdder #(
.extendedBits(2)
) ARITH_14 (
.carryIn(1'b0),
.carryOut(s_carryout_0),
.dataA(s_lca_15_0[0]),
.dataB(s_power),
.result(s_nlca_15_0_out[0])
);
FullAdder #(
.extendedBits(2)
) ARITH_15 (
.carryIn(1'b0),
.carryOut(s_carryout_1),
.dataA(s_lca_15_0[1]),
.dataB(s_carryout_0),
.result(s_nlca_15_0_out[1])
);
FullAdder #(
.extendedBits(2)
) ARITH_16 (
.carryIn(1'b0),
.carryOut(s_carryout_2),
.dataA(s_lca_15_0[2]),
.dataB(s_carryout_1),
.result(s_nlca_15_0_out[2])
);
FullAdder #(
.extendedBits(2)
) ARITH_17 (
.carryIn(1'b0),
.carryOut(s_carryout_3),
.dataA(s_lca_15_0[3]),
.dataB(s_carryout_2),
.result(s_nlca_15_0_out[3])
);
FullAdder #(
.extendedBits(2)
) ARITH_18 (
.carryIn(1'b0),
.carryOut(s_carryout_4),
.dataA(s_lca_15_0[4]),
.dataB(s_carryout_3),
.result(s_nlca_15_0_out[4])
);
FullAdder #(
.extendedBits(2)
) ARITH_3 (
.carryIn(1'b0),
.carryOut(s_carryout_5),
.dataA(s_lca_15_0[5]),
.dataB(s_carryout_4),
.result(s_nlca_15_0_out[5])
);
FullAdder #(
.extendedBits(2)
) ARITH_4 (
.carryIn(1'b0),
.carryOut(s_carryout_6),
.dataA(s_lca_15_0[6]),
.dataB(s_carryout_5),
.result(s_nlca_15_0_out[6])
);
FullAdder #(
.extendedBits(2)
) ARITH_5 (
.carryIn(1'b0),
.carryOut(),
.dataA(s_lca_15_0[7]),
.dataB(s_carryout_6),
.result(s_nlca_15_0_out[7])
);
FullAdder #(
.extendedBits(2)
) ARITH_6 (
.carryIn(1'b0),
.carryOut(s_carryout_8),
.dataA(s_lca_15_0[8]),
.dataB(s_gates1_n),
.result(s_nlca_15_0_out[8])
);
FullAdder #(
.extendedBits(2)
) ARITH_7 (
.carryIn(1'b0),
.carryOut(s_carryout_9),
.dataA(s_lca_15_0[9]),
.dataB(s_carryout_8),
.result(s_nlca_15_0_out[9])
);
FullAdder #(
.extendedBits(2)
) ARITH_8 (
.carryIn(1'b0),
.carryOut(s_carryout_10),
.dataA(s_lca_15_0[10]),
.dataB(s_carryout_9),
.result(s_nlca_15_0_out[10])
);
FullAdder #(
.extendedBits(2)
) ARITH_9 (
.carryIn(1'b0),
.carryOut(s_carryout_11),
.dataA(s_lca_15_0[11]),
.dataB(s_carryout_10),
.result(s_nlca_15_0_out[11])
);
FullAdder #(
.extendedBits(2)
) ARITH_10 (
.carryIn(1'b0),
.carryOut(),
.dataA(s_lca_15_0[12]),
.dataB(s_carryout_11),
.result(s_nlca_15_0_out[12])
);
FullAdder #(
.extendedBits(2)
) ARITH_11 (
.carryIn(1'b0),
.carryOut(s_carryout_13),
.dataA(s_lca_15_0[13]),
.dataB(s_gates2_n),
.result(s_nlca_15_0_out[13])
);
FullAdder #(
.extendedBits(2)
) ARITH_12 (
.carryIn(1'b0),
.carryOut(s_carryout_14),
.dataA(s_lca_15_0[14]),
.dataB(s_carryout_13),
.result(s_nlca_15_0_out[14])
);
FullAdder #(
.extendedBits(2)
) ARITH_13 (
.carryIn(1'b0),
.carryOut(),
.dataA(s_lca_15_0[15]),
.dataB(s_carryout_14),
.result(s_nlca_15_0_out[15])
);
`endif
endmodule
