CGA_ALU_RALU_MUX216L

Source: Verilog/DELILAH-CPU/CGA_ALU/circuit/CGA_ALU_RALU_MUX216L.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_ALU > CGA_CPU_ALU_RALU > CGA_ALU_RALU_MUX216L - instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.ALU.ALU_RALU.RN_R_MUX

Used in: CGA_CPU_ALU_RALU (all tops)

Contains: MUX21LP x16

Module hierarchy - All modules

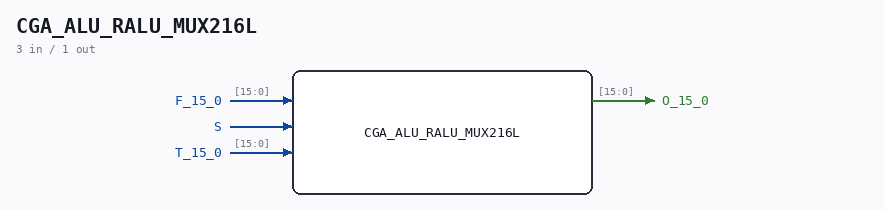

Schematic

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.ALU.ALU_RALU.RN_R_MUX. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

ND120 CGA (CPU Gate Array / DELILAH) /CGA/ALU/RALU/MUX216L LOGOP Page 47 SHEET 1 of 1 Last reviewed: 10-NOV-2024 Ronny Hansen

Ports

Direction	Width	Name	Description
input	[15:0]	F_15_0
input	1	S
input	[15:0]	T_15_0
output	[15:0]	O_15_0

Verilog source

Verilog/DELILAH-CPU/CGA_ALU/circuit/CGA_ALU_RALU_MUX216L.v on GitHub.

Show the Verilog of CGA_ALU_RALU_MUX216L (169 lines)

/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH)                                  **
** /CGA/ALU/RALU/MUX216L                                                 **
** LOGOP                                                                 **
**                                                                       **
** Page 47                                                               **
** SHEET 1 of 1                                                          **
**                                                                       **
** Last reviewed: 10-NOV-2024                                            **
** Ronny Hansen                                                          **
**************************************************************************/

module CGA_ALU_RALU_MUX216L (
    input [15:0] F_15_0,
    input        S,
    input [15:0] T_15_0,

    output [15:0] O_15_0
);

  /*******************************************************************************
   ** The wires are defined here                                                 **
   *******************************************************************************/
  wire [15:0] s_o_15_0_out;
  wire [15:0] s_t_15_0;
  wire [15:0] s_f_15_0;
  wire        s_s_n;
  wire        s_s;

  /*******************************************************************************
   ** The module functionality is described here                                 **
   *******************************************************************************/

  /*******************************************************************************
   ** Here all input connections are defined                                     **
   *******************************************************************************/
  assign s_t_15_0[15:0] = T_15_0;
  assign s_f_15_0[15:0] = F_15_0;
  assign s_s            = S;

  /*******************************************************************************
   ** Here all output connections are defined                                    **
   *******************************************************************************/
  assign O_15_0         = s_o_15_0_out[15:0];

  /*******************************************************************************
   ** Here all in-lined components are defined                                   **
   *******************************************************************************/

  // NOT Gate
  assign s_s_n          = ~s_s;

  /*******************************************************************************
   ** Here all sub-circuits are defined                                          **
   *******************************************************************************/

  MUX21LP MUXQ15 (
      .A (s_f_15_0[15]),
      .B (s_t_15_0[15]),
      .S (s_s_n),
      .ZN(s_o_15_0_out[15])
  );

  MUX21LP MUXQ14 (
      .A (s_f_15_0[14]),
      .B (s_t_15_0[14]),
      .S (s_s_n),
      .ZN(s_o_15_0_out[14])
  );

  MUX21LP MUXQ13 (
      .A (s_f_15_0[13]),
      .B (s_t_15_0[13]),
      .S (s_s_n),
      .ZN(s_o_15_0_out[13])
  );

  MUX21LP MUXQ12 (
      .A (s_f_15_0[12]),
      .B (s_t_15_0[12]),
      .S (s_s_n),
      .ZN(s_o_15_0_out[12])
  );

  MUX21LP MUXQ11 (
      .A (s_f_15_0[11]),
      .B (s_t_15_0[11]),
      .S (s_s_n),
      .ZN(s_o_15_0_out[11])
  );

  MUX21LP MUXQ10 (
      .A (s_f_15_0[10]),
      .B (s_t_15_0[10]),
      .S (s_s_n),
      .ZN(s_o_15_0_out[10])
  );

  MUX21LP MUXQ9 (
      .A (s_f_15_0[9]),
      .B (s_t_15_0[9]),
      .S (s_s_n),
      .ZN(s_o_15_0_out[9])
  );

  MUX21LP MUXQ8 (
      .A (s_f_15_0[8]),
      .B (s_t_15_0[8]),
      .S (s_s_n),
      .ZN(s_o_15_0_out[8])
  );

  MUX21LP MUXQ7 (
      .A (s_f_15_0[7]),
      .B (s_t_15_0[7]),
      .S (s_s_n),
      .ZN(s_o_15_0_out[7])
  );

  MUX21LP MUXQ6 (
      .A (s_f_15_0[6]),
      .B (s_t_15_0[6]),
      .S (s_s_n),
      .ZN(s_o_15_0_out[6])
  );

  MUX21LP MUXQ5 (
      .A (s_f_15_0[5]),
      .B (s_t_15_0[5]),
      .S (s_s_n),
      .ZN(s_o_15_0_out[5])
  );

  MUX21LP MUXQ4 (
      .A (s_f_15_0[4]),
      .B (s_t_15_0[4]),
      .S (s_s_n),
      .ZN(s_o_15_0_out[4])
  );

  MUX21LP MUXQ3 (
      .A (s_f_15_0[3]),
      .B (s_t_15_0[3]),
      .S (s_s_n),
      .ZN(s_o_15_0_out[3])
  );

  MUX21LP MUXQ2 (
      .A (s_f_15_0[2]),
      .B (s_t_15_0[2]),
      .S (s_s_n),
      .ZN(s_o_15_0_out[2])
  );

  MUX21LP MUXQ1 (
      .A (s_f_15_0[1]),
      .B (s_t_15_0[1]),
      .S (s_s_n),
      .ZN(s_o_15_0_out[1])
  );

  MUX21LP MUXQ0 (
      .A (s_f_15_0[0]),
      .B (s_t_15_0[0]),
      .S (s_s_n),
      .ZN(s_o_15_0_out[0])
  );

endmodule
