CGA_MAC_PTSEL

Source: Verilog/DELILAH-CPU/CGA_MAC/circuit/CGA_MAC_PTSEL.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_MAC > CGA_MAC_PTSEL - instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MAC.MAC_PTSEL

Used in: CGA_MAC (all tops)

Contains: J_K_FLIPFLOP_EN, NAND_GATE, NOR_GATE, OR_GATE, OR_GATE_3_INPUTS

Module hierarchy - All modules

Schematic

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MAC.MAC_PTSEL. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

ND120 CGA (CPU Gate Array / DELILAH) /CGA/MAC/PTSEL PTSEL Page 34 SHEET 1 of 1 Last reviewed: 10-NOV-2024 Ronny Hansen

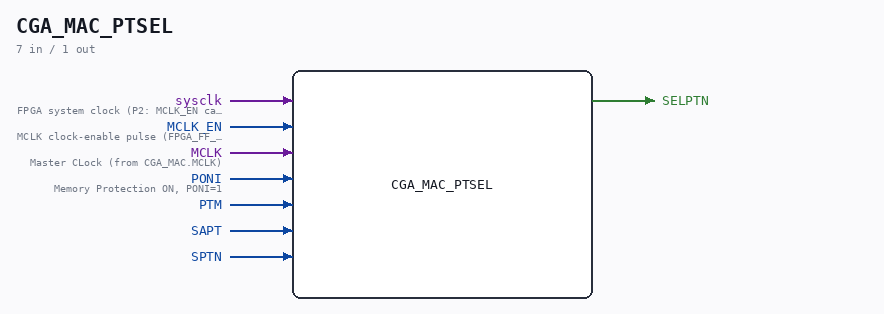

Ports

Direction	Width	Name	Description
input	1	sysclk	FPGA system clock (P2: MCLK_EN capture)
input	1	MCLK_EN	MCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input	1	MCLK	Master CLock (from CGA_MAC.MCLK)
input	1	PONI	Memory Protection ON, PONI=1
input	1	PTM
input	1	SAPT
input	1	SPTN
output	1	SELPTN

Verilog source

Verilog/DELILAH-CPU/CGA_MAC/circuit/CGA_MAC_PTSEL.v on GitHub.

Show the Verilog of CGA_MAC_PTSEL (131 lines)

/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH)                                  **
 ** /CGA/MAC/PTSEL                                                       **
** PTSEL                                                                 **
**                                                                       **
** Page 34                                                               **
** SHEET 1 of 1                                                          **
**                                                                       **
** Last reviewed: 10-NOV-2024                                            **
** Ronny Hansen                                                          **
***************************************************************************/

module CGA_MAC_PTSEL (
    input sysclk,   //! FPGA system clock (P2: MCLK_EN capture)
    input MCLK_EN,  //! MCLK clock-enable pulse (FPGA_FF_MODE, else 0)

    input MCLK,     //! Master CLock (from CGA_MAC.MCLK)
    input PONI, //! Memory Protection ON, PONI=1
    input PTM,
    input SAPT,
    input SPTN,

    output SELPTN
);

  /*******************************************************************************
   ** The wires are defined here                                                 **
   *******************************************************************************/
  wire s_sapt;
  wire s_gates2_out;
  wire s_mclk;
  wire s_gates1_n_out;
  wire s_spt;
  wire s_gates3_out;
  wire s_gates4_out;
  wire s_ptm;
  wire s_poni;
  wire s_gates1_out;
  wire s_jkff_q_n_out;
  wire s_spt_n;
  wire s_gnd;

  /*******************************************************************************
   ** Here all input connections are defined                                     **
   *******************************************************************************/
  assign s_sapt = SAPT;
  assign s_mclk = MCLK;
  assign s_ptm = PTM;
  assign s_poni = PONI;
  assign s_spt_n = SPTN;

  // P2 (docs/plan-fix-unconstrained-clocks.md): in FF mode the MCLK-
  // clocked flip-flop captures on posedge sysclk gated by MCLK_EN
  // (aligned to the MCLK rise) instead of clocking on the routed net.
`ifdef FPGA_FF_MODE
  localparam MCLK_CE = 1;
`else
  localparam MCLK_CE = 0;
`endif

  /*******************************************************************************
   ** Here all output connections are defined                                    **
   *******************************************************************************/
  assign SELPTN = s_gates4_out;

  /*******************************************************************************
   ** Here all in-lined components are defined                                   **
   *******************************************************************************/

  // Ground
  assign s_gnd = 1'b0;

  // NOT Gate
  assign s_spt = ~s_spt_n;
  assign s_gates1_n_out = ~s_gates1_out;

  /*******************************************************************************
   ** Here all normal components are defined                                     **
   *******************************************************************************/
  NOR_GATE #(
      .BubblesMask(2'b11)
  ) GATES_1 (
      .input1(s_ptm),
      .input2(s_poni),
      .result(s_gates1_out)
  );

  OR_GATE #(
      .BubblesMask(2'b11)
  ) GATES_2 (
      .input1(s_spt_n),
      .input2(s_jkff_q_n_out),
      .result(s_gates2_out)
  );

  OR_GATE_3_INPUTS #(
      .BubblesMask(3'b111)
  ) GATES_3 (
      .input1(s_sapt),
      .input2(s_poni),
      .input3(s_ptm),
      .result(s_gates3_out)
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_4 (
      .input1(s_gates2_out),
      .input2(s_gates3_out),
      .result(s_gates4_out)
  );

  // InvertClockEnable(0): fires on the rising edge of s_mclk = posedge MCLK
  J_K_FLIPFLOP_EN #(
      .USE_ENABLE(MCLK_CE),
      .InvertClockEnable(0)
  ) MEMORY_5 (
      .sysclk(sysclk),
      .EN(MCLK_EN),
      .clock(s_mclk),
      .j(s_spt),
      .k(s_sapt),
      .preset(s_gates1_n_out),
      .q(),
      .qBar(s_jkff_q_n_out),
      .reset(s_gnd),
      .tick(1'b1)
  );


endmodule
