CGA_MIC_WCAREG¶
Source: Verilog/DELILAH-CPU/CGA_MIC/circuit/CGA_MIC_WCAREG.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_MIC > CGA_MIC_WCAREG
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MIC.MIC_WCAREG
Used in: CGA_MIC (all tops)
Contains: NOR_GATE, SCAN_FF_EN x14
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MIC.MIC_WCAREG. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/MIC/WCAREG WCAREG Page 21 SHEET 1 of 1 Last reviewed: 02-FEB-2025 Ronny Hansen

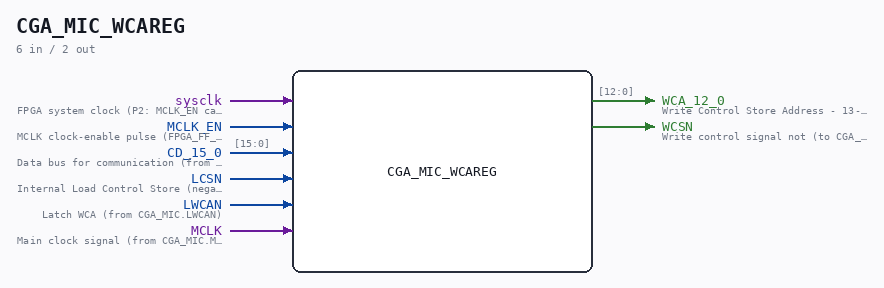

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
FPGA system clock (P2: MCLK_EN capture) |
| input | 1 |
MCLK_EN |
MCLK clock-enable pulse (FPGA_FF_MODE, else 0) |
| input | [15:0] |
CD_15_0 |
Data bus for communication (from CGA_MIC.CD_15_0) |
| input | 1 |
LCSN |
Internal Load Control Store (negated) (from CGA_MIC.ILCSN) |
| input | 1 |
LWCAN |
Latch WCA (from CGA_MIC.LWCAN) |
| input | 1 |
MCLK |
Main clock signal (from CGA_MIC.MCLK) |
| output | [12:0] |
WCA_12_0 |
Write Control Store Address - 13-bit address for writing to control store (to CGA_MIC_IPOS.WCA_12_0) |
| output | 1 |
WCSN |
Write control signal not (to CGA_MIC.WCSN) |
Verilog source¶
Verilog/DELILAH-CPU/CGA_MIC/circuit/CGA_MIC_WCAREG.v on GitHub.
Show the Verilog of CGA_MIC_WCAREG (259 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/MIC/WCAREG **
** WCAREG **
** **
** Page 21 **
** SHEET 1 of 1 **
** **
** Last reviewed: 02-FEB-2025 **
** Ronny Hansen **
***************************************************************************/
module CGA_MIC_WCAREG (
input sysclk, //! FPGA system clock (P2: MCLK_EN capture)
input MCLK_EN, //! MCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input [15:0] CD_15_0, //! Data bus for communication (from CGA_MIC.CD_15_0)
input LCSN, //! Internal Load Control Store (negated) (from CGA_MIC.ILCSN)
input LWCAN, //! Latch WCA (from CGA_MIC.LWCAN)
input MCLK, //! Main clock signal (from CGA_MIC.MCLK)
output [12:0] WCA_12_0, //! Write Control Store Address - 13-bit address for writing to control store (to CGA_MIC_IPOS.WCA_12_0)
output WCSN //! Write control signal not (to CGA_MIC.WCSN)
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [15:0] s_cd_15_0;
wire [12:0] s_wca_12_0_out;
wire s_lcs_n;
wire s_lwca_n;
wire s_lwca;
wire s_mclk;
wire s_wca13_n;
wire s_wcs_n_out;
wire s_wcsnff_out_q;
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_cd_15_0[15:0] = CD_15_0;
assign s_mclk = MCLK;
assign s_lcs_n = LCSN;
assign s_lwca_n = LWCAN;
// P2 (docs/plan-fix-unconstrained-clocks.md): in FF mode the MCLK-
// clocked registers capture on posedge sysclk gated by MCLK_EN
// (aligned to the MCLK rise) instead of clocking on the routed net.
`ifdef FPGA_FF_MODE
localparam MCLK_CE = 1;
`else
localparam MCLK_CE = 0;
`endif
// Code to make LINTER _not_ complain about bits not read in CD bits 1:0
(* keep = "true", DONT_TOUCH = "true" *) wire [1:0] unused_CD_bits;
assign unused_CD_bits[1:0] = s_cd_15_0[1:0];
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign WCA_12_0 = s_wca_12_0_out[12:0];
assign WCSN = s_wcs_n_out;
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// NOT Gate
assign s_lwca = ~s_lwca_n;
/*******************************************************************************
** Here all normal components are defined **
*******************************************************************************/
NOR_GATE #(
.BubblesMask(2'b11)
) GATES_1 (
.input1(s_wca13_n),
.input2(s_lcs_n),
.result(s_wcs_n_out)
);
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
// MCLK domain: clocked on posedge s_mclk
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) WCAFF12 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_wca_12_0_out[12]),
.Q (s_wca_12_0_out[12]),
.QN (),
.TE (s_lwca),
.TI (s_cd_15_0[14])
);
// MCLK domain: clocked on posedge s_mclk
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) WCAFF11 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_wca_12_0_out[11]),
.Q (s_wca_12_0_out[11]),
.QN (),
.TE (s_lwca),
.TI (s_cd_15_0[13])
);
// MCLK domain: clocked on posedge s_mclk
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) WCAFF10 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_wca_12_0_out[10]),
.Q (s_wca_12_0_out[10]),
.QN (),
.TE (s_lwca),
.TI (s_cd_15_0[12])
);
// MCLK domain: clocked on posedge s_mclk
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) WCAFF9 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_wca_12_0_out[9]),
.Q (s_wca_12_0_out[9]),
.QN (),
.TE (s_lwca),
.TI (s_cd_15_0[11])
);
// MCLK domain: clocked on posedge s_mclk
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) WCAFF8 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_wca_12_0_out[8]),
.Q (s_wca_12_0_out[8]),
.QN (),
.TE (s_lwca),
.TI (s_cd_15_0[10])
);
// MCLK domain: clocked on posedge s_mclk
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) WCAFF7 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_wca_12_0_out[7]),
.Q (s_wca_12_0_out[7]),
.QN (),
.TE (s_lwca),
.TI (s_cd_15_0[9])
);
// MCLK domain: clocked on posedge s_mclk
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) WCAFF6 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_wca_12_0_out[6]),
.Q (s_wca_12_0_out[6]),
.QN (),
.TE (s_lwca),
.TI (s_cd_15_0[8])
);
// MCLK domain: clocked on posedge s_mclk
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) WCAFF5 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_wca_12_0_out[5]),
.Q (s_wca_12_0_out[5]),
.QN (),
.TE (s_lwca),
.TI (s_cd_15_0[7])
);
// MCLK domain: clocked on posedge s_mclk
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) WCAFF4 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_wca_12_0_out[4]),
.Q (s_wca_12_0_out[4]),
.QN (),
.TE (s_lwca),
.TI (s_cd_15_0[6])
);
// MCLK domain: clocked on posedge s_mclk
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) WCAFF3 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_wca_12_0_out[3]),
.Q (s_wca_12_0_out[3]),
.QN (),
.TE (s_lwca),
.TI (s_cd_15_0[5])
);
// MCLK domain: clocked on posedge s_mclk
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) WCAFF2 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_wca_12_0_out[2]),
.Q (s_wca_12_0_out[2]),
.QN (),
.TE (s_lwca),
.TI (s_cd_15_0[4])
);
// MCLK domain: clocked on posedge s_mclk
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) WCAFF1 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_wca_12_0_out[1]),
.Q (s_wca_12_0_out[1]),
.QN (),
.TE (s_lwca),
.TI (s_cd_15_0[3])
);
// MCLK domain: clocked on posedge s_mclk
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) WCAFF0 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_wca_12_0_out[0]),
.Q (s_wca_12_0_out[0]),
.QN (),
.TE (s_lwca),
.TI (s_cd_15_0[2])
);
// MCLK domain: clocked on posedge s_mclk
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) WCSNFF (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_wcsnff_out_q),
.Q (s_wcsnff_out_q),
.QN (s_wca13_n),
.TE (s_lwca),
.TI (s_cd_15_0[15])
);
endmodule
