CGA_TRAP_TBUF¶
Source: Verilog/DELILAH-CPU/CGA_TRAP/circuit/CGA_TRAP_TBUF.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_TRAP > CGA_TRAP_TBUF
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.TRAP.TBUF
Used in: CGA_TRAP (all tops)
Contains: no other modules.
Module hierarchy - All modules
Schematic¶

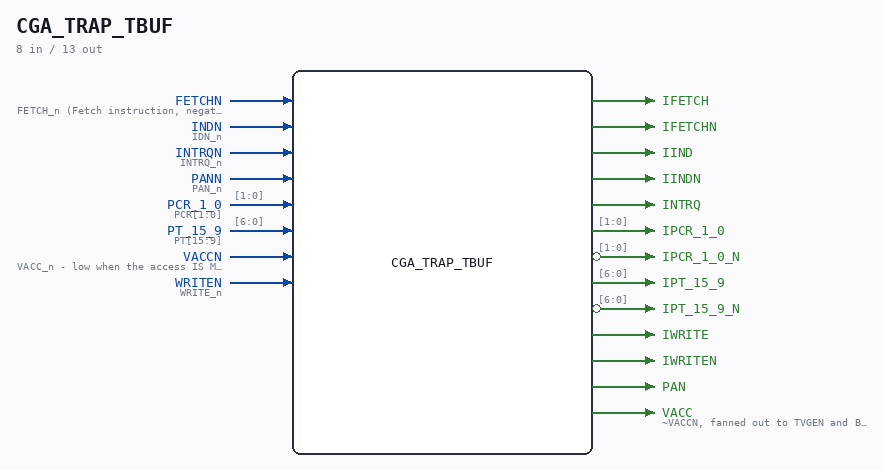

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.TRAP.TBUF. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/TRAP/TBUF TRAP BUFFERS Page 101 SHEET 1 of 1 Last reviewed: 19-JAN-2025 Ronny Hansen
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
FETCHN |
FETCH_n (Fetch instruction, negate) |
| input | 1 |
INDN |
IDN_n |
| input | 1 |
INTRQN |
INTRQ_n |
| input | 1 |
PANN |
PAN_n |
| input | [1:0] |
PCR_1_0 |
PCR[1:0] |
| input | [6:0] |
PT_15_9 |
PT[15:9] |
| input | 1 |
VACCN |
VACC_n - low when the access IS MMU-translated |
| input | 1 |
WRITEN |
WRITE_n |
| output | 1 |
IFETCH |
|
| output | 1 |
IFETCHN |
|
| output | 1 |
IIND |
|
| output | 1 |
IINDN |
|
| output | 1 |
INTRQ |
|
| output | [1:0] |
IPCR_1_0 |
|
| output | [1:0] |
IPCR_1_0_N (active low) |
|
| output | [6:0] |
IPT_15_9 |
|
| output | [6:0] |
IPT_15_9_N (active low) |
|
| output | 1 |
IWRITE |
|
| output | 1 |
IWRITEN |
|
| output | 1 |
PAN |
|
| output | 1 |
VACC |
~VACCN, fanned out to TVGEN and BRKDET |
Verilog source¶
Verilog/DELILAH-CPU/CGA_TRAP/circuit/CGA_TRAP_TBUF.v on GitHub.
Show the Verilog of CGA_TRAP_TBUF (122 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/TRAP/TBUF **
** TRAP BUFFERS **
** **
** Page 101 **
** SHEET 1 of 1 **
** **
** Last reviewed: 19-JAN-2025 **
** Ronny Hansen **
***************************************************************************/
module CGA_TRAP_TBUF (
input FETCHN, //! FETCH_n (Fetch instruction, negate)
input INDN, //! IDN_n
input INTRQN, //! INTRQ_n
input PANN, //! PAN_n
input [1:0] PCR_1_0, //! PCR[1:0]
input [6:0] PT_15_9, //! PT[15:9]
// VACCN in / VACC out: this buffer just inverts VACCN and fans it out to
// CGA_TRAP_TVGEN and CGA_TRAP_BRKDET. VACC = "this cycle is an MMU-
// translated memory reference", generated in CGA_DCD.v sheet 10/10.
input VACCN, //! VACC_n - low when the access IS MMU-translated
input WRITEN, //! WRITE_n
output IFETCH,
output IFETCHN,
output IIND,
output IINDN,
output INTRQ,
output [1:0] IPCR_1_0,
output [1:0] IPCR_1_0_N,
output [6:0] IPT_15_9,
output [6:0] IPT_15_9_N,
output IWRITE,
output IWRITEN,
output PAN,
output VACC //! ~VACCN, fanned out to TVGEN and BRKDET
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [1:0] s_ipcr_1_0_out;
wire [6:0] s_ipt_15_9_out;
wire [6:0] s_ipt_15_9_n_out;
wire [1:0] s_ipcr_1_0_n_out;
wire [1:0] s_pcr_1_0;
wire [6:0] s_pt_15_9;
wire s_fetch_n;
wire s_ifetch_n_out;
wire s_ifetch_out;
wire s_iind_n_out;
wire s_iind_out;
wire s_ind_n;
wire s_intrq_n;
wire s_intrq_out;
wire s_iwrite_n_out;
wire s_iwrite_out;
wire s_pan_n;
wire s_pan_out;
wire s_vacc_n;
wire s_vacc;
wire s_write_n;
/*******************************************************************************
** The module functionality is described here **
*******************************************************************************/
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_pcr_1_0[1:0] = PCR_1_0[1:0];
assign s_pt_15_9[6:0] = PT_15_9[6:0];
assign s_pan_n = PANN;
assign s_vacc_n = VACCN;
assign s_ind_n = INDN;
assign s_intrq_n = INTRQN;
assign s_fetch_n = FETCHN;
assign s_write_n = WRITEN;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign IFETCH = s_ifetch_out;
assign IFETCHN = s_ifetch_n_out;
assign IIND = s_iind_out;
assign IINDN = s_iind_n_out;
assign INTRQ = s_intrq_out;
assign IPCR_1_0[1:0] = s_ipcr_1_0_out[1:0];
assign IPCR_1_0_N[1:0] = s_ipcr_1_0_n_out[1:0];
assign IPT_15_9[6:0] = s_ipt_15_9_out[6:0];
assign IPT_15_9_N[6:0] = s_ipt_15_9_n_out[6:0];
assign IWRITE = s_iwrite_out;
assign IWRITEN = s_iwrite_n_out;
assign PAN = s_pan_out;
assign VACC = s_vacc;
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// NOT Gate
assign s_ifetch_n_out = ~s_ifetch_out;
assign s_ifetch_out = ~s_fetch_n;
assign s_iind_n_out = ~s_iind_out;
assign s_iind_out = ~s_ind_n;
assign s_intrq_out = ~s_intrq_n;
assign s_ipcr_1_0_n_out[1:0] = ~s_pcr_1_0[1:0];
assign s_ipcr_1_0_out[1:0] = ~s_ipcr_1_0_n_out[1:0];
assign s_ipt_15_9_n_out[6:0] = ~s_pt_15_9[6:0];
assign s_ipt_15_9_out[6:0] = ~s_ipt_15_9_n_out[6:0];
assign s_iwrite_n_out = ~s_iwrite_out;
assign s_iwrite_out = ~s_write_n;
assign s_pan_out = ~s_pan_n;
assign s_vacc = ~s_vacc_n;
endmodule
