CGA_CPU_ALU_CONTR¶
Source: Verilog/DELILAH-CPU/CGA_ALU/circuit/CGA_CPU_ALU_CONTR.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_ALU > CGA_CPU_ALU_CONTR
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.ALU.ALU_CONTR
Used in: CGA_ALU (all tops)
Contains: AND_GATE x5, D_FLIPFLOP_EN x2, L8, MUX21LP x6, MUX41P, NAND_GATE x34, NAND_GATE_3_INPUTS x5, NAND_GATE_4_INPUTS, NOR_GATE x5, NOR_GATE_3_INPUTS x2, R41P_EN x2, R81_EN
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.ALU.ALU_CONTR. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/ALU/CONTR ALU CONTROLLER Page 42 SHEET 1 of 1 Last reviewed: 22-MAR-2025 Ronny Hansen

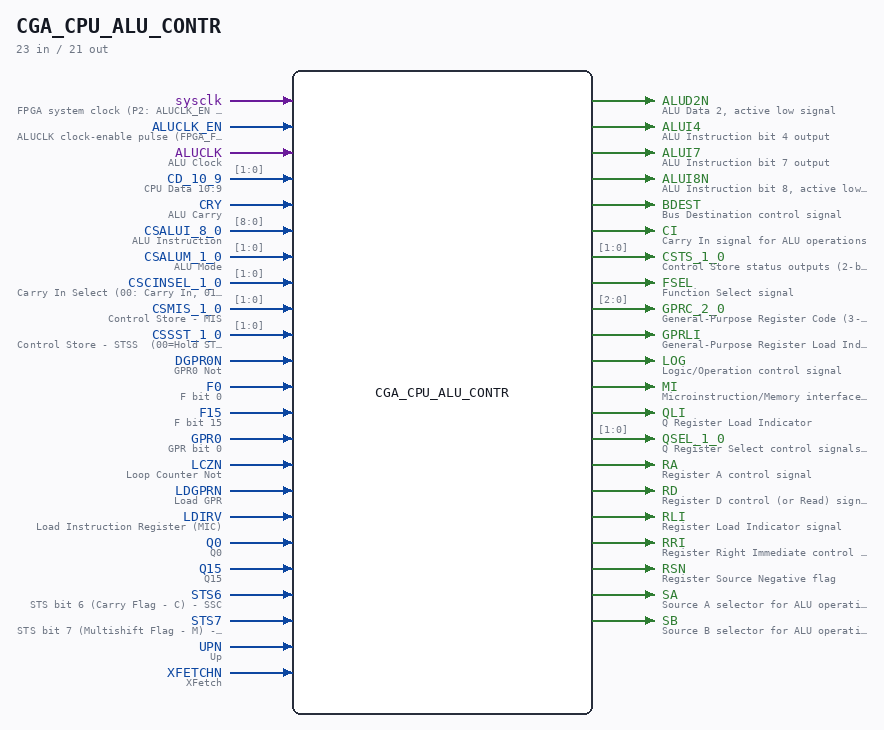

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
FPGA system clock (P2: ALUCLK_EN capture) |
| input | 1 |
ALUCLK_EN |
ALUCLK clock-enable pulse (FPGA_FF_MODE, else 0) |
| input | 1 |
ALUCLK |
ALU Clock |
| input | [1:0] |
CD_10_9 |
CPU Data 10:9 |
| input | 1 |
CRY |
ALU Carry |
| input | [8:0] |
CSALUI_8_0 |
ALU Instruction |
| input | [1:0] |
CSALUM_1_0 |
ALU Mode |
| input | [1:0] |
CSCINSEL_1_0 |
Carry In Select (00: Carry In, 01: Carry In Not, 10: Carry In Not, 11: Carry In) |
| input | [1:0] |
CSMIS_1_0 |
Control Store - MIS |
| input | [1:0] |
CSSST_1_0 |
Control Store - STSS (00=Hold STS, 01=Enable Set C O Q, 10=Enable set M, 11=Load STS) |
| input | 1 |
DGPR0N |
GPR0 Not |
| input | 1 |
F0 |
F bit 0 |
| input | 1 |
F15 |
F bit 15 |
| input | 1 |
GPR0 |
GPR bit 0 |
| input | 1 |
LCZN |
Loop Counter Not |
| input | 1 |
LDGPRN |
Load GPR |
| input | 1 |
LDIRV |
Load Instruction Register (MIC) |
| input | 1 |
Q0 |
Q0 |
| input | 1 |
Q15 |
Q15 |
| input | 1 |
STS6 |
STS bit 6 (Carry Flag - C) - SSC |
| input | 1 |
STS7 |
STS bit 7 (Multishift Flag - M) - SSM |
| input | 1 |
UPN |
Up |
| input | 1 |
XFETCHN |
XFetch |
| output | 1 |
ALUD2N |
ALU Data 2, active low signal |
| output | 1 |
ALUI4 |
ALU Instruction bit 4 output |
| output | 1 |
ALUI7 |
ALU Instruction bit 7 output |
| output | 1 |
ALUI8N |
ALU Instruction bit 8, active low output |
| output | 1 |
BDEST |
Bus Destination control signal |
| output | 1 |
CI |
Carry In signal for ALU operations |
| output | [1:0] |
CSTS_1_0 |
Control Store status outputs (2-bit) |
| output | 1 |
FSEL |
Function Select signal |
| output | [2:0] |
GPRC_2_0 |
General-Purpose Register Code (3-bit) |
| output | 1 |
GPRLI |
General-Purpose Register Load Indicator |
| output | 1 |
LOG |
Logic/Operation control signal |
| output | 1 |
MI |
Microinstruction/Memory interface indicator |
| output | 1 |
QLI |
Q Register Load Indicator |
| output | [1:0] |
QSEL_1_0 |
Q Register Select control signals (2-bit) |
| output | 1 |
RA |
Register A control signal |
| output | 1 |
RD |
Register D control (or Read) signal |
| output | 1 |
RLI |
Register Load Indicator signal |
| output | 1 |
RRI |
Register Right Immediate control signal |
| output | 1 |
RSN |
Register Source Negative flag |
| output | 1 |
SA |
Source A selector for ALU operations |
| output | 1 |
SB |
Source B selector for ALU operations |
Verilog source¶
Verilog/DELILAH-CPU/CGA_ALU/circuit/CGA_CPU_ALU_CONTR.v on GitHub.
Show the Verilog of CGA_CPU_ALU_CONTR (922 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/ALU/CONTR **
** ALU CONTROLLER **
** **
** Page 42 **
** SHEET 1 of 1 **
** **
** Last reviewed: 22-MAR-2025 **
** Ronny Hansen **
***************************************************************************/
module CGA_CPU_ALU_CONTR (
input sysclk, //! FPGA system clock (P2: ALUCLK_EN capture)
input ALUCLK_EN, //! ALUCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input ALUCLK, //! ALU Clock
input [1:0] CD_10_9, //! CPU Data 10:9
input CRY, //! ALU Carry
input [8:0] CSALUI_8_0, //! ALU Instruction
input [1:0] CSALUM_1_0, //! ALU Mode
input [1:0] CSCINSEL_1_0, //! Carry In Select (00: Carry In, 01: Carry In Not, 10: Carry In Not, 11: Carry In)
input [1:0] CSMIS_1_0, //! Control Store - MIS
input [1:0] CSSST_1_0, //! Control Store - STSS (00=Hold STS, 01=Enable Set C O Q, 10=Enable set M, 11=Load STS)
input DGPR0N, //! GPR0 Not
input F0, //! F bit 0
input F15, //! F bit 15
input GPR0, //! GPR bit 0
input LCZN, //! Loop Counter Not
input LDGPRN, //! Load GPR
input LDIRV, //! Load Instruction Register (MIC)
input Q0, //! Q0
input Q15, //! Q15
input STS6, //! STS bit 6 (Carry Flag - C) - SSC
input STS7, //! STS bit 7 (Multishift Flag - M) - SSM
input UPN, //! Up
input XFETCHN, //! XFetch
output ALUD2N, //! ALU Data 2, active low signal
output ALUI4, //! ALU Instruction bit 4 output
output ALUI7, //! ALU Instruction bit 7 output
output ALUI8N, //! ALU Instruction bit 8, active low output
output BDEST, //! Bus Destination control signal
output CI, //! Carry In signal for ALU operations
output [1:0] CSTS_1_0, //! Control Store status outputs (2-bit)
output FSEL, //! Function Select signal
output [2:0] GPRC_2_0, //! General-Purpose Register Code (3-bit)
output GPRLI, //! General-Purpose Register Load Indicator
output LOG, //! Logic/Operation control signal
output MI, //! Microinstruction/Memory interface indicator
output QLI, //! Q Register Load Indicator
output [1:0] QSEL_1_0, //! Q Register Select control signals (2-bit)
output RA, //! Register A control signal
output RD, //! Register D control (or Read) signal
output RLI, //! Register Load Indicator signal
output RRI, //! Register Right Immediate control signal
output RSN, //! Register Source Negative flag
output SA, //! Source A selector for ALU operations
output SB //! Source B selector for ALU operations
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [1:0] s_cd_10_9;
wire [1:0] s_csalum_1_0;
wire [1:0] s_cscinsel_1_0;
wire [1:0] s_csmis_1_0;
wire [1:0] s_csst_1_0;
wire [1:0] s_csts_1_0;
wire [1:0] s_qsel_1_0_out;
wire [8:0] s_csalui_8_0;
wire s_aluclk;
wire s_alud2_n_out;
wire s_alui1n;
wire s_alui3n;
wire s_alui4_n_out;
wire s_alui4_out;
wire s_alui6_n;
wire s_alui6;
wire s_alui7_n;
wire s_alui7_out;
wire s_alui8_n_out;
wire s_alui8;
wire s_bdest_n;
wire s_bdest_out;
wire s_ci_out;
wire s_cinsel0;
wire s_cinsel1;
wire s_cry;
wire s_csalui0_n;
wire s_csalui2_n;
wire s_csalui3_n;
wire s_csalui4_n;
wire s_csalum_0_n;
wire s_dgpr0_n;
wire s_f0;
wire s_f15;
wire s_fsel_n;
wire s_fsel;
wire s_gates1_out;
wire s_gates10_out;
wire s_gates11_out;
wire s_gates12_out;
wire s_gates13_out;
wire s_gates14_out;
wire s_gates15_out;
wire s_gates16_out;
wire s_gates17_out;
wire s_gates18_out;
wire s_gates2_out;
wire s_gates20_out;
wire s_gates21_out;
wire s_gates22_out;
wire s_gates23_out;
wire s_gates24_out;
wire s_gates28_out;
wire s_gates29_out;
wire s_gates3_out;
wire s_gates30_out;
wire s_gates_31_out;
wire s_gates_32_out;
wire s_gates_33_out;
wire s_gates34_out;
wire s_gates_35_out;
wire s_gates39_out;
wire s_gates4_out;
wire s_gates41_out;
wire s_gates42_out;
wire s_gates43_out;
wire s_gates44_out;
wire s_gates49_out;
wire s_gates5_out;
wire s_gates50_out;
wire s_gates52_out;
wire s_gates53_out;
wire s_gates54_out;
wire s_gates55_out;
wire s_gates56_out;
wire s_gates6_out;
wire s_gates7_out;
wire s_gates8_out;
wire s_gates9_out;
wire s_gnd;
wire s_gpr0;
wire s_gprli_out;
wire s_ialii7_n;
wire s_ialii8_n;
wire s_icsst1;
wire s_isel0_n;
wire s_isel1_n;
wire s_lcz_n;
wire s_ldgpr_n;
wire s_ldirv;
wire s_log_n_out;
wire s_log_out;
wire s_memory46_q;
wire s_memory47_q;
wire s_mi_out;
wire s_power;
wire s_q0;
wire s_q15;
wire s_qli_out;
wire s_qsel_0_n_out;
wire s_qsel_1_n_out;
wire s_ra_n_out;
wire s_ra_out;
wire s_rd_n_out;
wire s_rd_out;
wire s_rli_out;
wire s_rri_out;
wire s_rsn_n_out;
wire s_rsn_out;
wire s_sa_n_out;
wire s_sa_out;
wire s_sb_n_out;
wire s_sb_out;
wire s_ssel0;
wire s_ssel0n;
wire s_ssel1;
wire s_ssel1n;
wire s_sts6;
wire s_sts7;
wire s_up_n;
wire s_xfetch_n;
/*******************************************************************************
** The module functionality is described here **
*******************************************************************************/
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_csst_1_0[1:0] = CSSST_1_0;
assign s_csalum_1_0[1:0] = CSALUM_1_0;
assign s_cd_10_9[1:0] = CD_10_9;
assign s_csmis_1_0[1:0] = CSMIS_1_0;
assign s_cscinsel_1_0[1:0] = CSCINSEL_1_0;
assign s_csalui_8_0[8:0] = CSALUI_8_0;
assign s_lcz_n = LCZN;
assign s_sts6 = STS6;
assign s_cry = CRY;
assign s_ldgpr_n = LDGPRN;
assign s_sts7 = STS7;
assign s_f0 = F0;
assign s_q0 = Q0;
assign s_f15 = F15;
assign s_q15 = Q15;
assign s_xfetch_n = XFETCHN;
assign s_dgpr0_n = DGPR0N;
assign s_aluclk = ALUCLK;
// P2b (docs/plan-fix-unconstrained-clocks.md): in FF mode the ALUCLK-
// clocked registers capture on posedge sysclk gated by ALUCLK_EN
// (aligned to the ALUCLK rise) instead of clocking on the routed net.
`ifdef FPGA_FF_MODE
localparam ALUCLK_CE = 1;
`else
localparam ALUCLK_CE = 0;
`endif
assign s_up_n = UPN;
assign s_ldirv = LDIRV;
assign s_gpr0 = GPR0;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign ALUD2N = s_alud2_n_out;
assign ALUI4 = s_alui4_out;
assign ALUI7 = s_alui7_out;
assign ALUI8N = s_alui8_n_out;
assign BDEST = s_bdest_out;
assign CI = s_ci_out;
assign CSTS_1_0 = s_csts_1_0[1:0];
assign FSEL = s_fsel;
assign GPRC_2_0 = {~s_gates44_out, ~s_gates43_out, ~s_gates42_out};
assign GPRLI = s_gprli_out;
assign LOG = s_log_out;
assign MI = s_mi_out;
assign QLI = s_qli_out;
assign QSEL_1_0 = s_qsel_1_0_out[1:0];
assign RA = s_ra_out;
assign RD = s_rd_out;
assign RLI = s_rli_out;
assign RRI = s_rri_out;
assign RSN = s_rsn_out;
assign SA = s_sa_out;
assign SB = s_sb_out;
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// Ground
assign s_gnd = 1'b0;
assign s_power = 1'b1;
// NOT Gate
assign s_csalui3_n = ~s_csalui_8_0[3];
assign s_csalui2_n = ~s_csalui_8_0[2];
assign s_csalui0_n = ~s_csalui_8_0[0];
assign s_csalui4_n = ~s_csalui_8_0[4];
assign s_qsel_1_0_out[1] = ~s_qsel_1_n_out;
assign s_qsel_1_0_out[0] = ~s_qsel_0_n_out;
assign s_rsn_out = ~s_rsn_n_out;
assign s_fsel = ~s_fsel_n;
assign s_log_out = ~s_log_n_out;
assign s_alui4_out = ~s_alui4_n_out;
assign s_sb_out = ~s_sb_n_out;
assign s_sa_out = ~s_sa_n_out;
assign s_ra_out = ~s_ra_n_out;
assign s_rd_out = ~s_rd_n_out;
assign s_csalum_0_n = ~s_csalum_1_0[0];
// NOT Gate
assign s_alui7_out = ~s_alui7_n;
assign s_alui8 = ~s_alui8_n_out;
assign s_bdest_out = ~s_bdest_n;
/*******************************************************************************
** Here all normal components are defined **
*******************************************************************************/
AND_GATE #(
.BubblesMask(2'b00)
) GATES_1 (
.input1(s_csalum_1_0[1]),
.input2(s_csalum_1_0[0]),
.result(s_gates1_out)
);
NOR_GATE #(
.BubblesMask(2'b00)
) GATES_2 (
.input1(s_csalum_1_0[1]),
.input2(s_csalum_0_n),
.result(s_gates2_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_3 (
.input1(s_csalum_1_0[1]),
.input2(s_csalum_0_n),
.result(s_gates3_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_4 (
.input1(s_csalui_8_0[2]),
.input2(s_csalui_8_0[0]),
.result(s_gates4_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_5 (
.input1(s_csalui_8_0[2]),
.input2(s_alui1n),
.result(s_gates5_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_6 (
.input1(s_csalui2_n),
.input2(s_csalui_8_0[0]),
.result(s_gates6_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_7 (
.input1(s_alui1n),
.input2(s_csalui2_n),
.result(s_gates7_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_8 (
.input1(s_alui1n),
.input2(s_csalui0_n),
.result(s_gates8_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_9 (
.input1(s_alui7_out),
.input2(s_f15),
.result(s_gates9_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_10 (
.input1(s_alui7_n),
.input2(s_alui6_n),
.input3(s_q0),
.result(s_gates10_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_11 (
.input1(s_alui7_n),
.input2(s_alui6),
.input3(s_f0),
.result(s_gates11_out)
);
NOR_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_12 (
.input1(s_gates56_out),
.input2(s_csalui_8_0[5]),
.input3(s_gnd),
.result(s_gates12_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_13 (
.input1(s_gates4_out),
.input2(s_gates5_out),
.result(s_gates13_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_14 (
.input1(s_gates5_out),
.input2(s_gates6_out),
.result(s_gates14_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_15 (
.input1(s_gates8_out),
.input2(s_csalui_8_0[2]),
.result(s_gates15_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_16 (
.input1(s_alui6),
.input2(s_f0),
.result(s_gates16_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_17 (
.input1(s_q0),
.input2(s_alui6_n),
.result(s_gates17_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_18 (
.input1(s_alui6_n),
.input2(s_q15),
.result(s_gates18_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_19 (
.input1(s_gates9_out),
.input2(s_gates10_out),
.input3(s_gates11_out),
.result(s_mi_out)
);
NOR_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_20 (
.input1(s_ssel1n),
.input2(s_ssel0),
.input3(s_alui6),
.result(s_gates20_out)
);
NOR_GATE #(
.BubblesMask(2'b00)
) GATES_21 (
.input1(s_ssel0n),
.input2(s_ssel1),
.result(s_gates21_out)
);
NOR_GATE #(
.BubblesMask(2'b00)
) GATES_22 (
.input1(s_ssel0),
.input2(s_ssel1),
.result(s_gates22_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_23 (
.input1(s_gates16_out),
.input2(s_gates17_out),
.result(s_gates23_out)
);
NOR_GATE #(
.BubblesMask(2'b00)
) GATES_24 (
.input1(s_ssel1n),
.input2(s_ssel0n),
.result(s_gates24_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_25 (
.input1(s_alui6_n),
.input2(s_alui7_out),
.input3(s_alui8_n_out),
.result(s_alud2_n_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_26 (
.input1(s_alui6_n),
.input2(s_alui8),
.result(s_qsel_1_n_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_27 (
.input1(s_alui6_n),
.input2(s_alui7_n),
.result(s_qsel_0_n_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_28 (
.input1(s_sts7),
.input2(s_cry),
.result(s_gates28_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_29 (
.input1(s_sts7),
.input2(s_gpr0),
.result(s_gates29_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_30 (
.input1(s_gpr0),
.input2(s_cry),
.result(s_gates30_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_34 (
.input1(s_f15),
.input2(s_gates21_out),
.result(s_gates34_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_36 (
.input1(s_gates_35_out),
.input2(s_gates34_out),
.result(s_qli_out)
);
/** RRI GATES **/
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_35 (
.input1(s_sts7),
.input2(s_gates24_out),
.result(s_gates_35_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_31 (
.input1(s_cry),
.input2(s_gates20_out),
.result(s_gates_31_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_32 (
.input1(s_gates23_out),
.input2(s_gates21_out),
.result(s_gates_32_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_33 (
.input1(s_f15),
.input2(s_gates22_out),
.result(s_gates_33_out)
);
NAND_GATE_4_INPUTS #(
.BubblesMask(4'h0)
) GATES_37 (
.input1(s_gates_35_out),
.input2(s_gates_31_out),
.input3(s_gates_32_out),
.input4(s_gates_33_out),
.result(s_rri_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_38 (
.input1(s_gates28_out),
.input2(s_gates29_out),
.input3(s_gates30_out),
.result(s_gprli_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_39 (
.input1(s_qli_out),
.input2(s_alui6),
.result(s_gates39_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_40 (
.input1(s_gates39_out),
.input2(s_gates18_out),
.result(s_rli_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_41 (
.input1(s_xfetch_n),
.input2(s_alui7_n),
.result(s_gates41_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_42 (
.input1(s_gates41_out),
.input2(s_ldgpr_n),
.result(s_gates42_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_43 (
.input1(s_ldgpr_n),
.input2(s_xfetch_n),
.result(s_gates43_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_44 (
.input1(~s_gates43_out),
.input2(s_alui8_n_out),
.result(s_gates44_out)
);
D_FLIPFLOP_EN #(
.USE_ENABLE(ALUCLK_CE)
) MEMORY_45 (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.clock(s_aluclk),
.d(s_csalui_8_0[6]),
.preset(1'b0),
.q(s_alui6),
.qBar(s_alui6_n),
.reset(1'b0),
.tick(1'b1)
);
// Shift-type capture (instruction bits 10:9 -> SSEL via the CSMIS muxes).
// Must be a TRANSPARENT LATCH on LDIRV, exactly like the MIC IR latch
// (CGA_MIC IRLATCH): the instruction word is valid on the CD bus late in
// the LDIRV-high window and is gone again before the next rise, so a
// rising-edge flip-flop can never capture it (measured: CD=000000 at
// every LDIRV rise, instruction present at every fall). As flip-flops
// these bits stayed 0, SSEL decoded as 00 and every SHA/SHD/SHT/SAD
// ROT / ZIN-right / LIN shift executed as a plain arithmetic shift
// (INSTRUCTION-B SHIFT sub-tests 5OP-8OP, 256 failures each).
L8 SSEL_LATCH (
.sysclk(sysclk),
.sys_rst_n(1'b1),
.L(s_ldirv),
.A(s_cd_10_9[1]),
.B(s_cd_10_9[0]),
.C(1'b0),
.D(1'b0),
.E(1'b0),
.F(1'b0),
.G(1'b0),
.H(1'b0),
.QA (s_memory46_q),
.QAN(),
.QB (s_memory47_q),
.QBN(),
.QC (),
.QCN(),
.QD (),
.QDN(),
.QE (),
.QEN(),
.QF (),
.QFN(),
.QG (),
.QGN(),
.QH (),
.QHN(),
// registered-value taps: deliberately unconnected here -
// the transparent output is the wanted one (see L8/L4 header).
.QA_R(),
.QB_R(),
.QC_R(),
.QD_R(),
.QE_R(),
.QF_R(),
.QG_R(),
.QH_R()
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_48 (
.input1(s_icsst1),
.input2(s_gates49_out),
.result(s_csts_1_0[1])
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_49 (
.input1(s_alui8),
.input2(s_gates1_out),
.result(s_gates49_out)
);
AND_GATE #(
.BubblesMask(2'b00)
) GATES_50 (
.input1(s_ialii7_n),
.input2(s_ialii8_n),
.result(s_gates50_out)
);
D_FLIPFLOP_EN #(
.USE_ENABLE(ALUCLK_CE)
) MEMORY_51 (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.clock(s_aluclk),
.d(s_gates50_out),
.preset(1'b0),
.q(s_bdest_n),
.qBar(),
.reset(1'b0),
.tick(1'b1)
);
AND_GATE #(
.BubblesMask(2'b00)
) GATES_52 (
.input1(s_alui3n),
.input2(s_csalui_8_0[5]),
.result(s_gates52_out)
);
AND_GATE #(
.BubblesMask(2'b00)
) GATES_53 (
.input1(s_csalui4_n),
.input2(s_alui3n),
.result(s_gates53_out)
);
NOR_GATE #(
.BubblesMask(2'b00)
) GATES_54 (
.input1(s_gates53_out),
.input2(s_gates52_out),
.result(s_gates54_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_55 (
.input1(s_csalui_8_0[5]),
.input2(s_csalui_8_0[4]),
.result(s_gates55_out)
);
AND_GATE #(
.BubblesMask(2'b00)
) GATES_56 (
.input1(s_alui3n),
.input2(s_csalui_8_0[4]),
.result(s_gates56_out)
);
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
MUX21LP CSMIS1_MUX (
.A (s_csmis_1_0[1]),
.B (s_memory46_q),
.S (s_gates1_out),
.ZN(s_isel1_n)
);
MUX21LP CSMIS0_MUX (
.A (s_csmis_1_0[0]),
.B (s_memory47_q),
.S (s_gates1_out),
.ZN(s_isel0_n)
);
MUX21LP CSALUI7_MUX (
.A (s_csalui_8_0[7]),
.B (s_up_n),
.S (s_gates1_out),
.ZN(s_ialii7_n)
);
MUX21LP CSALUI8_MUX (
.A (s_csalui_8_0[8]),
.B (s_lcz_n),
.S (s_gates1_out),
.ZN(s_ialii8_n)
);
MUX21LP ALUI3_MUX (
.A (s_dgpr0_n),
.B (s_csalui3_n),
.S (s_gates3_out),
.ZN(s_alui3n)
);
MUX21LP ALUI1N_MUX (
.A (s_csalui_8_0[1]),
.B (s_dgpr0_n),
.S (s_gates2_out),
.ZN(s_alui1n)
);
R41P_EN #(.USE_ENABLE(ALUCLK_CE)) REG_RFLA4 (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CP(s_aluclk),
.A (s_gates54_out),
.B (s_gates55_out),
.C (s_gates12_out),
.D (s_csalui_8_0[4]),
.QA (s_rsn_n_out),
.QAN(),
.QB (),
.QBN(s_fsel_n),
.QC (s_log_n_out),
.QCN(),
.QD (),
.QDN(s_alui4_n_out)
);
R41P_EN #(.USE_ENABLE(ALUCLK_CE)) REG_BAAD (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CP(s_aluclk),
.A (s_gates13_out),
.B (s_gates14_out),
.C (s_gates7_out),
.D (s_gates15_out),
.QA (),
.QAN(s_sb_n_out),
.QB (),
.QBN(s_sa_n_out),
.QC (s_ra_n_out),
.QCN(),
.QD (s_rd_n_out),
.QDN()
);
R81_EN #(.USE_ENABLE(ALUCLK_CE)) CONTR_REG (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CP(s_aluclk),
.A (s_isel1_n),
.B (s_isel0_n),
.C (s_ialii7_n),
.D (s_ialii8_n),
.E (s_csst_1_0[0]),
.F (s_csst_1_0[1]),
.G (s_cscinsel_1_0[0]),
.H (s_cscinsel_1_0[1]),
.QA (s_ssel1n),
.QAN(s_ssel1),
.QB (s_ssel0n),
.QBN(s_ssel0),
.QC (s_alui7_n),
.QCN(),
.QD (s_alui8_n_out),
.QDN(),
.QE (s_csts_1_0[0]),
.QEN(),
.QF (),
.QFN(s_icsst1),
.QG (s_cinsel0),
.QGN(),
.QH (s_cinsel1),
.QHN()
);
MUX41P CI_SEL_MUX (
.A (s_cinsel0),
.B (s_cinsel1),
.D0(s_gnd),
.D1(s_power),
.D2(s_sts6),
.D3(s_gpr0),
.Z (s_ci_out)
);
endmodule
