CGA_MAC_DECODE¶
Source: Verilog/DELILAH-CPU/CGA_MAC/circuit/CGA_MAC_DECODE.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_MAC > CGA_MAC_DECODE
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MAC.MAC_DECODE
Used in: CGA_MAC (all tops)
Contains: NAND_GATE x10, NAND_GATE_3_INPUTS x18, NAND_GATE_4_INPUTS x11, NAND_GATE_5_INPUTS x5, NAND_GATE_6_INPUTS x6, NAND_GATE_7_INPUTS, NAND_GATE_8_INPUTS x5, NOR_GATE x2, NOR_GATE_4_INPUTS x2, R41P_EN
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MAC.MAC_DECODE. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/MAC/DECODE INCREMENT Page 25-28 SHEET 1-4 Last reviewed: 10-NOV-2024 Ronny Hansen

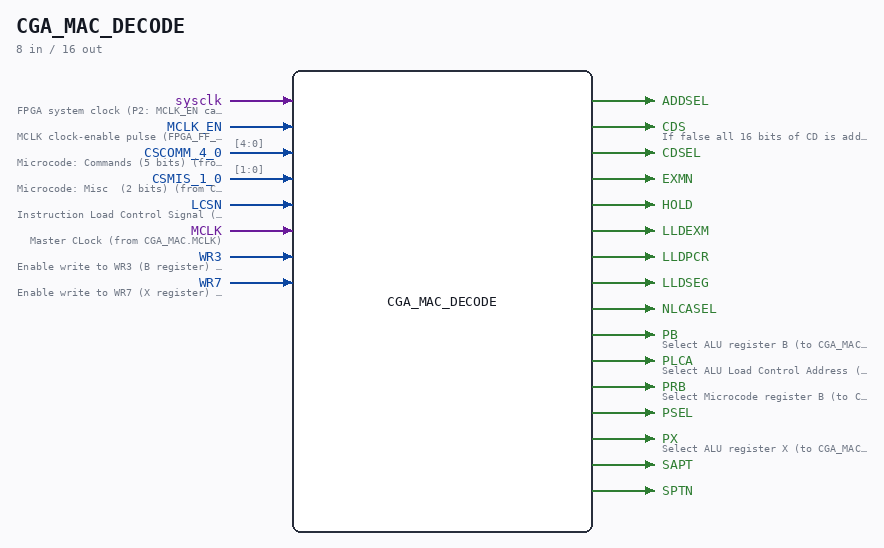

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
FPGA system clock (P2: MCLK_EN capture) |
| input | 1 |
MCLK_EN |
MCLK clock-enable pulse (FPGA_FF_MODE, else 0) |
| input | [4:0] |
CSCOMM_4_0 |
Microcode: Commands (5 bits) (from CGA_MAC.CSCOMM_4_0) |
| input | [1:0] |
CSMIS_1_0 |
Microcode: Misc (2 bits) (from CGA_MAC.CMIS_1_0) |
| input | 1 |
LCSN |
Instruction Load Control Signal (from CGA_MAC.ILCSN) |
| input | 1 |
MCLK |
Master CLock (from CGA_MAC.MCLK) |
| input | 1 |
WR3 |
Enable write to WR3 (B register) (from WR_15_0) (from CGA_WRF.WR3) |
| input | 1 |
WR7 |
Enable write to WR7 (X register) (from WR_15_0) (from CGA_WRF.WR7) |
| output | 1 |
ADDSEL |
|
| output | 1 |
CDS |
If false all 16 bits of CD is added. If true, only the low 8 bits are added. (to CGA_MAC_ADD.CDS) |
| output | 1 |
CDSEL |
|
| output | 1 |
EXMN |
|
| output | 1 |
HOLD |
|
| output | 1 |
LLDEXM |
|
| output | 1 |
LLDPCR |
|
| output | 1 |
LLDSEG |
|
| output | 1 |
NLCASEL |
|
| output | 1 |
PB |
Select ALU register B (to CGA_MAC_ADD.PB) |
| output | 1 |
PLCA |
Select ALU Load Control Address (to CGA_MAC_ADD.PLCA) |
| output | 1 |
PRB |
Select Microcode register B (to CGA_MAC_ADD.PRB) |
| output | 1 |
PSEL |
|
| output | 1 |
PX |
Select ALU register X (to CGA_MAC_ADD.PX) |
| output | 1 |
SAPT |
|
| output | 1 |
SPTN |
Verilog source¶
Verilog/DELILAH-CPU/CGA_MAC/circuit/CGA_MAC_DECODE.v on GitHub.
Show the Verilog of CGA_MAC_DECODE (843 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/MAC/DECODE **
** INCREMENT **
** **
** Page 25-28 **
** SHEET 1-4 **
** **
** Last reviewed: 10-NOV-2024 **
** Ronny Hansen **
***************************************************************************/
module CGA_MAC_DECODE (
input sysclk, //! FPGA system clock (P2: MCLK_EN capture)
input MCLK_EN, //! MCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input [4:0] CSCOMM_4_0, //! Microcode: Commands (5 bits) (from CGA_MAC.CSCOMM_4_0)
input [1:0] CSMIS_1_0, //! Microcode: Misc (2 bits) (from CGA_MAC.CMIS_1_0)
input LCSN, //! Instruction Load Control Signal (from CGA_MAC.ILCSN)
input MCLK, //! Master CLock (from CGA_MAC.MCLK)
input WR3, //! Enable write to WR3 (B register) (from WR_15_0) (from CGA_WRF.WR3)
input WR7, //! Enable write to WR7 (X register) (from WR_15_0) (from CGA_WRF.WR7)
output ADDSEL,
output CDS, //! If false all 16 bits of CD is added. If true, only the low 8 bits are added. (to CGA_MAC_ADD.CDS)
output CDSEL,
output EXMN,
output HOLD,
output LLDEXM,
output LLDPCR,
output LLDSEG,
output NLCASEL,
output PB, //! Select ALU register B (to CGA_MAC_ADD.PB)
output PLCA, //! Select ALU Load Control Address (to CGA_MAC_ADD.PLCA)
output PRB, //! Select Microcode register B (to CGA_MAC_ADD.PRB)
output PSEL,
output PX, //! Select ALU register X (to CGA_MAC_ADD.PX)
output SAPT,
output SPTN
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [1:0] s_csmis_1_0;
wire [4:0] s_cscomm_4_0;
wire s_addsel_n_out;
wire s_addsel_out;
wire s_cds_out;
wire s_cdsel_n_out;
wire s_cdsel_out;
wire s_cscomm_0_n;
wire s_cscomm_0;
wire s_cscomm_1_n;
wire s_cscomm_1;
wire s_cscomm_2_n;
wire s_cscomm_2;
wire s_cscomm_3_n;
wire s_cscomm_3;
wire s_cscomm_4_n;
wire s_cscomm_4;
wire s_csmis_0_n;
wire s_csmis_0;
wire s_csmis_1_n;
wire s_csmis_1;
wire s_exm_n_out;
wire s_gates1_out;
wire s_gates10_out;
wire s_gates11_out;
wire s_gates13_out;
wire s_gates15_out;
wire s_gates16_out;
wire s_gates17_out;
wire s_gates18_out;
wire s_gates19_out;
wire s_gates20_out;
wire s_gates21_out;
wire s_gates22_out;
wire s_gates23_out;
wire s_gates24_out;
wire s_gates26_out;
wire s_gates28_out;
wire s_gates29_out;
wire s_gates3_out;
wire s_gates30_out;
wire s_gates31_out;
wire s_gates32_out;
wire s_gates34_out;
wire s_gates36_out;
wire s_gates37_out;
wire s_gates38_out;
wire s_gates39_out;
wire s_gates4_out;
wire s_gates40_out;
wire s_gates42_out;
wire s_gates44_out;
wire s_gates45_out;
wire s_gates46_out;
wire s_gates48_out;
wire s_gates49_out;
wire s_gates5_out;
wire s_gates50_out;
wire s_gates51_out;
wire s_gates52_out;
wire s_gates53_out;
wire s_gates54_out;
wire s_gates55_out;
wire s_gates56_out;
wire s_gates57_out;
wire s_gates58_out;
wire s_gates59_out;
wire s_gates6_out;
wire s_gates8_out;
wire s_gates9_out;
wire s_hold_n_out;
wire s_hold_out;
wire s_lcs_n;
wire s_lldexm_out;
wire s_lldpcr_out;
wire s_lldseg_out;
wire s_mclk;
wire s_nlcasel_n_out;
wire s_nlcasel_out;
wire s_pb_out;
wire s_plca_n_out;
wire s_plca_out;
wire s_pn_n_out;
wire s_prb_n_out;
wire s_prb_out;
wire s_psel_out;
wire s_px_n_out;
wire s_px_out;
wire s_sapt_out;
wire s_spt_n_out;
wire s_wr3_n;
wire s_wr3;
wire s_wr7_n;
wire s_wr7;
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_csmis_1_0[1:0] = CSMIS_1_0;
assign s_cscomm_4_0[4:0] = CSCOMM_4_0;
assign s_wr3 = WR3;
assign s_mclk = MCLK;
assign s_lcs_n = LCSN;
assign s_wr7 = WR7;
// P2 (docs/plan-fix-unconstrained-clocks.md): in FF mode the MCLK-
// clocked register captures on posedge sysclk gated by MCLK_EN
// (aligned to the MCLK rise) instead of clocking on the routed net.
`ifdef FPGA_FF_MODE
localparam MCLK_CE = 1;
`else
localparam MCLK_CE = 0;
`endif
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign ADDSEL = s_addsel_out;
assign CDS = s_cds_out;
assign CDSEL = s_cdsel_out;
assign EXMN = s_exm_n_out;
assign HOLD = s_hold_out;
assign LLDEXM = s_lldexm_out;
assign LLDPCR = s_lldpcr_out;
assign LLDSEG = s_lldseg_out;
assign NLCASEL = s_nlcasel_out;
assign PB = s_pb_out;
assign PLCA = s_plca_out;
assign PRB = s_prb_out;
assign PSEL = s_psel_out;
assign PX = s_px_out;
assign SAPT = s_sapt_out;
assign SPTN = s_spt_n_out;
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// NOT Gate
assign s_pb_out = ~s_pn_n_out;
assign s_px_out = ~s_px_n_out;
assign s_prb_out = ~s_prb_n_out;
assign s_cdsel_out = ~s_cdsel_n_out;
assign s_addsel_out = ~s_addsel_n_out;
assign s_nlcasel_out = ~s_nlcasel_n_out;
assign s_hold_out = ~s_hold_n_out;
assign s_plca_out = ~s_plca_n_out;
assign s_wr7_n = ~s_wr7;
assign s_wr3_n = ~s_wr3;
assign s_psel_out = ~s_gates51_out;
assign s_cscomm_0 = ~s_cscomm_4_0[0];
assign s_cscomm_1 = ~s_cscomm_4_0[1];
assign s_cscomm_2 = ~s_cscomm_4_0[2];
assign s_cscomm_3 = ~s_cscomm_4_0[3];
assign s_cscomm_4 = ~s_cscomm_4_0[4];
assign s_csmis_0 = ~s_csmis_1_0[0];
assign s_csmis_1 = ~s_csmis_1_0[1];
assign s_cscomm_0_n = ~s_cscomm_0;
assign s_cscomm_1_n = ~s_cscomm_1;
assign s_cscomm_2_n = ~s_cscomm_2;
assign s_cscomm_3_n = ~s_cscomm_3;
assign s_cscomm_4_n = ~s_cscomm_4;
assign s_csmis_0_n = ~s_csmis_0;
assign s_csmis_1_n = ~s_csmis_1;
/*******************************************************************************
** Here all normal components are defined **
*******************************************************************************/
NAND_GATE_4_INPUTS #(
.BubblesMask(4'h0)
) GATES_1 (
.input1(s_cscomm_2),
.input2(s_cscomm_0_n),
.input3(s_csmis_1_n),
.input4(s_csmis_0),
.result(s_gates1_out)
);
NAND_GATE_4_INPUTS #(
.BubblesMask(4'h0)
) GATES_2 (
.input1(s_wr3_n),
.input2(s_csmis_0_n),
.input3(s_csmis_1),
.input4(s_cscomm_0),
.result(s_pn_n_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_3 (
.input1(s_cscomm_3_n),
.input2(s_csmis_1_n),
.result(s_gates3_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_4 (
.input1(s_cscomm_3_n),
.input2(s_cscomm_2),
.input3(s_cscomm_0_n),
.result(s_gates4_out)
);
// 31-JUL-2026: input3 was s_cscomm_4 - a transcription error vs the DELILAH
// schematic (CGA/MAC/DECODE sheet 1 of 4, page 25: the third input of this
// ND3 taps the ICSMIS0 row). The term is the SPT mask for APT requests
// (CSCOMM 0o34/0o35 with CSMIS=1); without it SPT and SAPT assert together
// on RDRQ,APT / WRRQ,APT and the PTSEL JK (J=SPT, K=SAPT) TOGGLES instead
// of selecting APT - from an APT state it flips to PT, the dest first-touch
// protection check reads the wrong page table and raises a spurious level-14
// page fault that kills the in-flight write (INSTRUCTION-C03 Cx:
// "MOVEW APT ==> APT" drops the destination page-boundary word).
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_5 (
.input1(s_cscomm_3_n),
.input2(s_csmis_1),
.input3(s_csmis_0_n),
.result(s_gates5_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_6 (
.input1(s_cscomm_3),
.input2(s_cscomm_2),
.input3(s_cscomm_0_n),
.result(s_gates6_out)
);
NAND_GATE_4_INPUTS #(
.BubblesMask(4'h0)
) GATES_7 (
.input1(s_wr7_n),
.input2(s_csmis_0_n),
.input3(s_gates6_out),
.input4(s_gates9_out),
.result(s_px_n_out)
);
NAND_GATE_6_INPUTS #(
.BubblesMask({2'b00, 4'h0})
) GATES_8 (
.input1(s_csmis_0_n),
.input2(s_cscomm_4_n),
.input3(s_csmis_1),
.input4(s_cscomm_0),
.input5(s_cscomm_1_n),
.input6(s_cscomm_2),
.result(s_gates8_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_9 (
.input1(s_cscomm_0),
.input2(s_csmis_1),
.result(s_gates9_out)
);
NAND_GATE_6_INPUTS #(
.BubblesMask({2'b00, 4'h0})
) GATES_10 (
.input1(s_csmis_0_n),
.input2(s_cscomm_4_n),
.input3(s_csmis_1),
.input4(s_cscomm_1),
.input5(s_cscomm_2_n),
.input6(s_cscomm_3_n),
.result(s_gates10_out)
);
NAND_GATE_5_INPUTS #(
.BubblesMask({1'b0, 4'h0})
) GATES_11 (
.input1(s_csmis_1),
.input2(s_cscomm_0_n),
.input3(s_cscomm_2),
.input4(s_cscomm_3_n),
.input5(s_cscomm_4_n),
.result(s_gates11_out)
);
NAND_GATE_5_INPUTS #(
.BubblesMask({1'b0, 4'h0})
) GATES_12 (
.input1(s_gates8_out),
.input2(s_gates10_out),
.input3(s_gates11_out),
.input4(s_gates15_out),
.input5(s_gates17_out),
.result(s_sapt_out)
);
NAND_GATE_4_INPUTS #(
.BubblesMask(4'h0)
) GATES_13 (
.input1(s_gates6_out),
.input2(s_gates9_out),
.input3(s_wr7),
.input4(s_csmis_0_n),
.result(s_gates13_out)
);
NOR_GATE_4_INPUTS #(
.BubblesMask(4'hF)
) GATES_14 (
.input1(s_gates13_out),
.input2(s_gates16_out),
.input3(s_gates18_out),
.input4(s_gates19_out),
.result(s_prb_n_out)
);
NAND_GATE_5_INPUTS #(
.BubblesMask({1'b0, 4'h0})
) GATES_15 (
.input1(s_csmis_1_n),
.input2(s_cscomm_0),
.input3(s_cscomm_2),
.input4(s_cscomm_3_n),
.input5(s_cscomm_4_n),
.result(s_gates15_out)
);
NAND_GATE_4_INPUTS #(
.BubblesMask(4'h0)
) GATES_16 (
.input1(s_wr3),
.input2(s_csmis_0_n),
.input3(s_csmis_1),
.input4(s_cscomm_0),
.result(s_gates16_out)
);
NAND_GATE_5_INPUTS #(
.BubblesMask({1'b0, 4'h0})
) GATES_17 (
.input1(s_csmis_0_n),
.input2(s_cscomm_0),
.input3(s_cscomm_2),
.input4(s_cscomm_3_n),
.input5(s_cscomm_4_n),
.result(s_gates17_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_18 (
.input1(s_cscomm_0_n),
.input2(s_cscomm_2_n),
.input3(s_csmis_0),
.result(s_gates18_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_19 (
.input1(s_cscomm_0_n),
.input2(s_cscomm_3_n),
.input3(s_csmis_0),
.result(s_gates19_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_20 (
.input1(s_cscomm_3),
.input2(s_cscomm_1),
.result(s_gates20_out)
);
NAND_GATE_6_INPUTS #(
.BubblesMask({2'b00, 4'h0})
) GATES_21 (
.input1(s_csmis_0),
.input2(s_csmis_1_n),
.input3(s_cscomm_0),
.input4(s_cscomm_1_n),
.input5(s_cscomm_2_n),
.input6(s_cscomm_4_n),
.result(s_gates21_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_22 (
.input1(s_cscomm_3_n),
.input2(s_cscomm_2_n),
.result(s_gates22_out)
);
NAND_GATE_5_INPUTS #(
.BubblesMask({1'b0, 4'h0})
) GATES_23 (
.input1(s_csmis_0),
.input2(s_csmis_1_n),
.input3(s_cscomm_0),
.input4(s_cscomm_3_n),
.input5(s_cscomm_4_n),
.result(s_gates23_out)
);
NAND_GATE_4_INPUTS #(
.BubblesMask(4'h0)
) GATES_24 (
.input1(s_cscomm_3),
.input2(s_cscomm_2),
.input3(s_csmis_1_n),
.input4(s_cscomm_0),
.result(s_gates24_out)
);
NOR_GATE_4_INPUTS #(
.BubblesMask(4'hF)
) GATES_25 (
.input1(s_gates21_out),
.input2(s_gates23_out),
.input3(s_gates26_out),
.input4(s_gates30_out),
.result(s_cdsel_n_out)
);
NAND_GATE_4_INPUTS #(
.BubblesMask(4'h0)
) GATES_26 (
.input1(s_cscomm_4_n),
.input2(s_cscomm_1),
.input3(s_cscomm_2),
.input4(s_cscomm_3),
.result(s_gates26_out)
);
NAND_GATE_8_INPUTS #(
.BubblesMask(8'h00)
) GATES_27 (
.input1(s_gates20_out),
.input2(s_cscomm_4_n),
.input3(s_gates22_out),
.input4(s_gates24_out),
.input5(s_gates28_out),
.input6(s_gates29_out),
.input7(s_gates31_out),
.input8(s_gates32_out),
.result(s_addsel_n_out)
);
NAND_GATE_4_INPUTS #(
.BubblesMask(4'h0)
) GATES_28 (
.input1(s_csmis_0),
.input2(s_cscomm_2_n),
.input3(s_cscomm_1_n),
.input4(s_csmis_1_n),
.result(s_gates28_out)
);
NAND_GATE_4_INPUTS #(
.BubblesMask(4'h0)
) GATES_29 (
.input1(s_cscomm_3_n),
.input2(s_cscomm_0),
.input3(s_csmis_1_n),
.input4(s_csmis_0),
.result(s_gates29_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_30 (
.input1(s_cscomm_4_n),
.input2(s_cscomm_2_n),
.input3(s_cscomm_3_n),
.result(s_gates30_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_31 (
.input1(s_cscomm_3_n),
.input2(s_cscomm_0_n),
.input3(s_csmis_1_n),
.result(s_gates31_out)
);
NAND_GATE_4_INPUTS #(
.BubblesMask(4'h0)
) GATES_32 (
.input1(s_cscomm_2_n),
.input2(s_cscomm_1_n),
.input3(s_cscomm_0_n),
.input4(s_csmis_1_n),
.result(s_gates32_out)
);
NAND_GATE_6_INPUTS #(
.BubblesMask({2'b00, 4'h0})
) GATES_33 (
.input1(s_cscomm_3_n),
.input2(s_cscomm_0_n),
.input3(s_cscomm_2),
.input4(s_csmis_1_n),
.input5(s_cscomm_4_n),
.input6(s_gates34_out),
.result(s_nlcasel_n_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_34 (
.input1(s_csmis_1_n),
.input2(s_csmis_0),
.input3(s_cscomm_1_n),
.result(s_gates34_out)
);
NOR_GATE #(
.BubblesMask(2'b11)
) GATES_35 (
.input1(s_cscomm_4_n),
.input2(s_gates36_out),
.result(s_hold_n_out)
);
NAND_GATE_6_INPUTS #(
.BubblesMask({2'b00, 4'h0})
) GATES_36 (
.input1(s_cscomm_2),
.input2(s_cscomm_1_n),
.input3(s_csmis_1_n),
.input4(s_gates37_out),
.input5(s_gates38_out),
.input6(s_gates39_out),
.result(s_gates36_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_37 (
.input1(s_csmis_1_n),
.input2(s_csmis_0_n),
.result(s_gates37_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_38 (
.input1(s_cscomm_3),
.input2(s_cscomm_0_n),
.input3(s_csmis_1_n),
.result(s_gates38_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_39 (
.input1(s_cscomm_3_n),
.input2(s_cscomm_0),
.input3(s_csmis_1_n),
.result(s_gates39_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_40 (
.input1(s_csmis_0_n),
.input2(s_cscomm_0_n),
.input3(s_cscomm_3_n),
.result(s_gates40_out)
);
NOR_GATE #(
.BubblesMask(2'b11)
) GATES_41 (
.input1(s_gates40_out),
.input2(s_gates42_out),
.result(s_cds_out)
);
NAND_GATE_4_INPUTS #(
.BubblesMask(4'h0)
) GATES_42 (
.input1(s_csmis_0_n),
.input2(s_cscomm_0_n),
.input3(s_cscomm_2_n),
.input4(s_cscomm_3),
.result(s_gates42_out)
);
NAND_GATE_6_INPUTS #(
.BubblesMask({2'b00, 4'h0})
) GATES_43 (
.input1(s_csmis_0_n),
.input2(s_csmis_1_n),
.input3(s_cscomm_1),
.input4(s_cscomm_2_n),
.input5(s_cscomm_3_n),
.input6(s_cscomm_4_n),
.result(s_exm_n_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_44 (
.input1(s_csmis_0_n),
.input2(s_cscomm_0),
.result(s_gates44_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_45 (
.input1(s_cscomm_2),
.input2(s_cscomm_1),
.result(s_gates45_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_46 (
.input1(s_cscomm_3_n),
.input2(s_cscomm_0_n),
.result(s_gates46_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_47 (
.input1(s_gates44_out),
.input2(s_gates46_out),
.input3(s_gates49_out),
.result(s_plca_n_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_48 (
.input1(s_cscomm_2),
.input2(s_cscomm_1_n),
.input3(s_cscomm_0_n),
.result(s_gates48_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_49 (
.input1(s_cscomm_2_n),
.input2(s_cscomm_0_n),
.result(s_gates49_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_50 (
.input1(s_csmis_1),
.input2(s_cscomm_1_n),
.result(s_gates50_out)
);
NAND_GATE_7_INPUTS #(
.BubblesMask({3'b000, 4'h0})
) GATES_51 (
.input1(s_gates45_out),
.input2(s_gates48_out),
.input3(s_gates50_out),
.input4(s_cscomm_3),
.input5(s_gates52_out),
.input6(s_gates53_out),
.input7(s_cscomm_4_n),
.result(s_gates51_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_52 (
.input1(s_cscomm_2),
.input2(s_csmis_1_n),
.input3(s_csmis_0),
.result(s_gates52_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_53 (
.input1(s_cscomm_2_n),
.input2(s_cscomm_1_n),
.input3(s_cscomm_0),
.result(s_gates53_out)
);
NAND_GATE_8_INPUTS #(
.BubblesMask(8'h00)
) GATES_54 (
.input1(s_lcs_n),
.input2(s_csmis_0_n),
.input3(s_csmis_1_n),
.input4(s_cscomm_0_n),
.input5(s_cscomm_1),
.input6(s_cscomm_2),
.input7(s_cscomm_3),
.input8(s_cscomm_4_n),
.result(s_gates54_out)
);
NAND_GATE_8_INPUTS #(
.BubblesMask(8'h00)
) GATES_55 (
.input1(s_lcs_n),
.input2(s_csmis_0),
.input3(s_csmis_1),
.input4(s_cscomm_0),
.input5(s_cscomm_1),
.input6(s_cscomm_2),
.input7(s_cscomm_3),
.input8(s_cscomm_4_n),
.result(s_gates55_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_56 (
.input1(s_cscomm_3),
.input2(s_cscomm_2),
.input3(s_cscomm_1),
.result(s_gates56_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_57 (
.input1(s_cscomm_3_n),
.input2(s_cscomm_2_n),
.input3(s_cscomm_1_n),
.result(s_gates57_out)
);
NAND_GATE_8_INPUTS #(
.BubblesMask(8'h00)
) GATES_58 (
.input1(s_lcs_n),
.input2(s_cscomm_4),
.input3(s_cscomm_3),
.input4(s_cscomm_2_n),
.input5(s_cscomm_1_n),
.input6(s_cscomm_0),
.input7(s_csmis_1_n),
.input8(s_csmis_0_n),
.result(s_gates58_out)
);
NAND_GATE_3_INPUTS #(
.BubblesMask(3'b000)
) GATES_59 (
.input1(s_cscomm_2),
.input2(s_csmis_1),
.input3(s_csmis_0_n),
.result(s_gates59_out)
);
NAND_GATE_8_INPUTS #(
.BubblesMask(8'h00)
) GATES_60 (
.input1(s_gates56_out),
.input2(s_gates57_out),
.input3(s_cscomm_4_n),
.input4(s_gates59_out),
.input5(s_gates1_out),
.input6(s_gates3_out),
.input7(s_gates4_out),
.input8(s_gates5_out),
.result(s_spt_n_out)
);
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
R41P_EN #(.USE_ENABLE(MCLK_CE)) DECODE_R41 (
.sysclk(sysclk),
.EN(MCLK_EN),
.A (s_gates54_out),
.B (s_gates55_out),
.C (s_gates58_out),
.CP (s_mclk),
.D (1'b0),
.QA (),
.QAN(s_lldexm_out),
.QB (),
.QBN(s_lldseg_out),
.QC (),
.QCN(s_lldpcr_out),
.QD (),
.QDN()
);
endmodule
