CGA_INTR_CNTLR_VECGEN_VHR¶
Source: Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_VECGEN_VHR.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_INTR > CGA_INTR_CNTLR > CGA_INTR_CNTLR_VECGEN > CGA_INTR_CNTLR_VECGEN_VHR
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.VECGEN.VHR
Used in: CGA_INTR_CNTLR_VECGEN (all tops)
Contains: SCAN_FF_EN x6
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.VECGEN.VHR. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/INTR/CNTLR/VECGEN/VHR VHR Page 86 SHEET 1 of 1 Last reviewed: 10-NOV-2024 Ronny Hansen

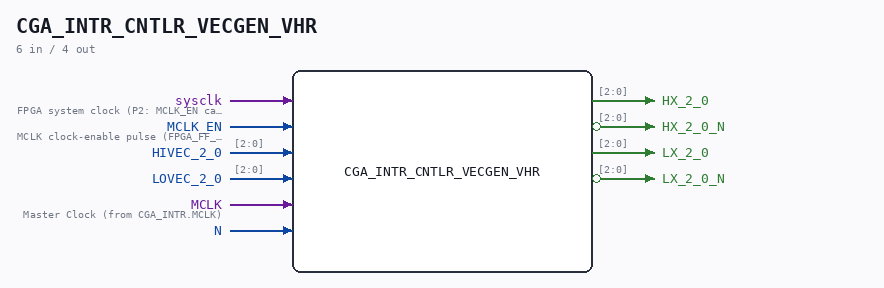

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
FPGA system clock (P2: MCLK_EN capture) |
| input | 1 |
MCLK_EN |
MCLK clock-enable pulse (FPGA_FF_MODE, else 0) |
| input | [2:0] |
HIVEC_2_0 |
|
| input | [2:0] |
LOVEC_2_0 |
|
| input | 1 |
MCLK |
Master Clock (from CGA_INTR.MCLK) |
| input | 1 |
N |
|
| output | [2:0] |
HX_2_0 |
|
| output | [2:0] |
HX_2_0_N (active low) |
|
| output | [2:0] |
LX_2_0 |
|
| output | [2:0] |
LX_2_0_N (active low) |
Verilog source¶
Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_VECGEN_VHR.v on GitHub.
Show the Verilog of CGA_INTR_CNTLR_VECGEN_VHR (145 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/INTR/CNTLR/VECGEN/VHR **
** VHR **
** **
** Page 86 **
** SHEET 1 of 1 **
** **
** Last reviewed: 10-NOV-2024 **
** Ronny Hansen **
***************************************************************************/
module CGA_INTR_CNTLR_VECGEN_VHR (
input sysclk, //! FPGA system clock (P2: MCLK_EN capture)
input MCLK_EN, //! MCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input [2:0] HIVEC_2_0,
input [2:0] LOVEC_2_0,
input MCLK, //! Master Clock (from CGA_INTR.MCLK)
input N,
output [2:0] HX_2_0,
output [2:0] HX_2_0_N,
output [2:0] LX_2_0,
output [2:0] LX_2_0_N
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [2:0] s_hivec_2_0;
wire [2:0] s_hx_2_0_n_out;
wire [2:0] s_hx_2_0_out;
wire [2:0] s_lovec_2_0;
wire [2:0] s_lx_2_0_n_out;
wire [2:0] s_lx_2_0_out;
wire s_mclk;
wire s_n;
/*******************************************************************************
** The module functionality is described here **
*******************************************************************************/
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_lovec_2_0[2:0] = LOVEC_2_0;
assign s_hivec_2_0[2:0] = HIVEC_2_0;
assign s_n = N;
assign s_mclk = MCLK;
// P2 (docs/plan-fix-unconstrained-clocks.md): in FF mode the MCLK-
// clocked registers capture on posedge sysclk gated by MCLK_EN
// (aligned to the MCLK rise) instead of clocking on the routed net.
`ifdef FPGA_FF_MODE
localparam MCLK_CE = 1;
`else
localparam MCLK_CE = 0;
`endif
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign HX_2_0 = s_hx_2_0_out[2:0];
assign HX_2_0_N = s_hx_2_0_n_out[2:0];
assign LX_2_0 = s_lx_2_0_out[2:0];
assign LX_2_0_N = s_lx_2_0_n_out[2:0];
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
// MCLK domain (CGA_INTR.MCLK, rising edge)
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) HX1 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_hivec_2_0[1]),
.Q (s_hx_2_0_out[1]),
.QN (s_hx_2_0_n_out[1]),
.TE (s_n),
.TI (s_hx_2_0_out[1])
);
// MCLK domain (CGA_INTR.MCLK, rising edge)
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) HX2 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_hivec_2_0[2]),
.Q (s_hx_2_0_out[2]),
.QN (s_hx_2_0_n_out[2]),
.TE (s_n),
.TI (s_hx_2_0_out[2])
);
// MCLK domain (CGA_INTR.MCLK, rising edge)
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) LX1 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_lovec_2_0[1]),
.Q (s_lx_2_0_out[1]),
.QN (s_lx_2_0_n_out[1]),
.TE (s_n),
.TI (s_lx_2_0_out[1])
);
// MCLK domain (CGA_INTR.MCLK, rising edge)
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) HX0 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_hivec_2_0[0]),
.Q (s_hx_2_0_out[0]),
.QN (s_hx_2_0_n_out[0]),
.TE (s_n),
.TI (s_hx_2_0_out[0])
);
// MCLK domain (CGA_INTR.MCLK, rising edge)
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) LX2 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_lovec_2_0[2]),
.Q (s_lx_2_0_out[2]),
.QN (s_lx_2_0_n_out[2]),
.TE (s_n),
.TI (s_lx_2_0_out[2])
);
// MCLK domain (CGA_INTR.MCLK, rising edge)
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) LX0 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_lovec_2_0[0]),
.Q (s_lx_2_0_out[0]),
.QN (s_lx_2_0_n_out[0]),
.TE (s_n),
.TI (s_lx_2_0_out[0])
);
endmodule
