CGA_INTR_CNTLR_VECGEN_CMP_MAGCMP

Source: Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_VECGEN_CMP_MAGCMP.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_INTR > CGA_INTR_CNTLR > CGA_INTR_CNTLR_VECGEN > CGA_INTR_CNTLR_VECGEN_CMP > CGA_INTR_CNTLR_VECGEN_CMP_MAGCMP - instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.VECGEN.CMP.HICMP

Used in: CGA_INTR_CNTLR_VECGEN_CMP (all tops)

Contains: NAND_GATE x3, NAND_GATE_3_INPUTS, NAND_GATE_4_INPUTS, NOR_GATE_3_INPUTS

Module hierarchy - All modules

Schematic

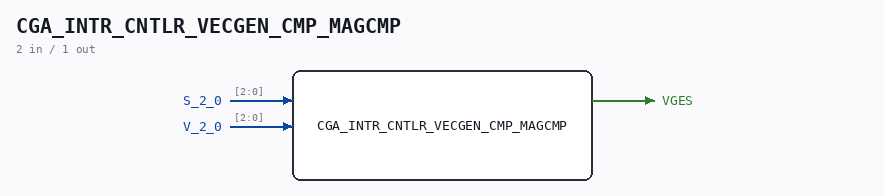

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.VECGEN.CMP.HICMP. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

ND120 CGA (CPU Gate Array / DELILAH) /CGA/INTR/CNTLR/VECGEN/CMP/MAGCMP MAGCMP Page 88 SHEET 1 of 1 Last reviewed: 10-NOV-2024 Ronny Hansen

Ports

Direction	Width	Name	Description
input	[2:0]	S_2_0
output	1	VGES
input	[2:0]	V_2_0

Verilog source

Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_VECGEN_CMP_MAGCMP.v on GitHub.

Show the Verilog of CGA_INTR_CNTLR_VECGEN_CMP_MAGCMP (110 lines)

/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH)                                  **
** /CGA/INTR/CNTLR/VECGEN/CMP/MAGCMP                                     **
** MAGCMP                                                                **
**                                                                       **
** Page 88                                                               **
** SHEET 1 of 1                                                          **
**                                                                       **
** Last reviewed: 10-NOV-2024                                            **
** Ronny Hansen                                                          **
***************************************************************************/

module CGA_INTR_CNTLR_VECGEN_CMP_MAGCMP( S_2_0,
                                         VGES,
                                         V_2_0 );

   /*******************************************************************************
   ** The inputs are defined here                                                **
   *******************************************************************************/
   input [2:0] S_2_0;
   input [2:0] V_2_0;

   /*******************************************************************************
   ** The outputs are defined here                                               **
   *******************************************************************************/
   output VGES;

   /*******************************************************************************
   ** The wires are defined here                                                 **
   *******************************************************************************/
   wire [2:0] s_s_2_0;
   wire [2:0] s_v_2_0;
   wire       s_gates1_out;
   wire       s_gates2_out;
   wire       s_gates3_out;
   wire       s_gates5_out;
   wire       s_gates6_out;
   wire       s_s1_n;
   wire       s_s2_n;
   wire       s_v0_n;
   wire       s_v1_n;
   wire       s_v2_n;
   wire       s_vges_out;

   /*******************************************************************************
   ** The module functionality is described here                                 **
   *******************************************************************************/

   /*******************************************************************************
   ** Here all input connections are defined                                     **
   *******************************************************************************/
   assign s_s_2_0[2:0] = S_2_0;
   assign s_v_2_0[2:0] = V_2_0;

   /*******************************************************************************
   ** Here all output connections are defined                                    **
   *******************************************************************************/
   assign VGES = s_vges_out;

   /*******************************************************************************
   ** Here all in-lined components are defined                                   **
   *******************************************************************************/

   // NOT Gate
   assign s_v0_n = ~s_v_2_0[0];
   assign s_v1_n = ~s_v_2_0[1];
   assign s_v2_n = ~s_v_2_0[2];

   assign s_s1_n = ~s_s_2_0[1];
   assign s_s2_n = ~s_s_2_0[2];

   /*******************************************************************************
   ** Here all normal components are defined                                     **
   *******************************************************************************/
   NAND_GATE_4_INPUTS #(.BubblesMask(4'h0))
      GATES_1 (.input1(s_gates5_out),
               .input2(s_s_2_0[0]),
               .input3(s_v0_n),
               .input4(s_gates6_out),
               .result(s_gates1_out));

   NAND_GATE_3_INPUTS #(.BubblesMask(3'b000))
      GATES_2 (.input1(s_gates6_out),
               .input2(s_v1_n),
               .input3(s_s_2_0[1]),
               .result(s_gates2_out));

   NAND_GATE #(.BubblesMask(2'b00))
      GATES_3 (.input1(s_v2_n),
               .input2(s_s_2_0[2]),
               .result(s_gates3_out));

   NOR_GATE_3_INPUTS #(.BubblesMask(3'b111))
      GATES_4 (.input1(s_gates1_out),
               .input2(s_gates2_out),
               .input3(s_gates3_out),
               .result(s_vges_out));

   NAND_GATE #(.BubblesMask(2'b00))
      GATES_5 (.input1(s_v_2_0[1]),
               .input2(s_s1_n),
               .result(s_gates5_out));

   NAND_GATE #(.BubblesMask(2'b00))
      GATES_6 (.input1(s_v_2_0[2]),
               .input2(s_s2_n),
               .result(s_gates6_out));


endmodule
