CGA_INTR_CNTLR_VECGEN_ISMUX¶
Source: Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_VECGEN_ISMUX.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_INTR > CGA_INTR_CNTLR > CGA_INTR_CNTLR_VECGEN > CGA_INTR_CNTLR_VECGEN_ISMUX
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.VECGEN.ISMUX
Used in: CGA_INTR_CNTLR_VECGEN (all tops)
Contains: AND_GATE x2, NAND_GATE x12, OR_GATE x6
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.VECGEN.ISMUX. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/INTR/CNTLR/VECGEN/ISMUX ISMUX Page 85 SHEET 1 of 1 Last reviewed: 10-NOV-2024 Ronny Hansen

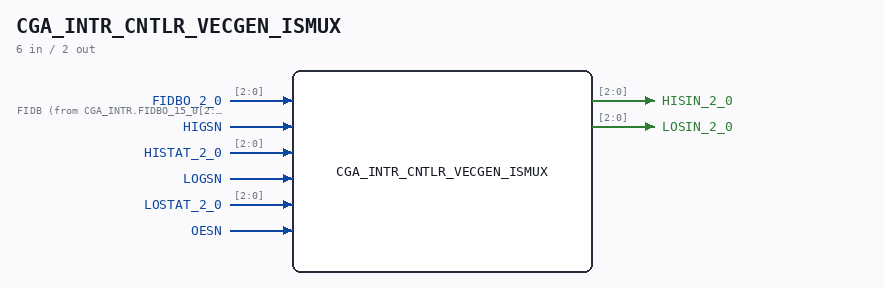

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | [2:0] |
FIDBO_2_0 |
FIDB (from CGA_INTR.FIDBO_15_0[2:0]) |
| input | 1 |
HIGSN |
|
| input | [2:0] |
HISTAT_2_0 |
|
| input | 1 |
LOGSN |
|
| input | [2:0] |
LOSTAT_2_0 |
|
| input | 1 |
OESN |
|
| output | [2:0] |
HISIN_2_0 |
|
| output | [2:0] |
LOSIN_2_0 |
Verilog source¶
Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_VECGEN_ISMUX.v on GitHub.
Show the Verilog of CGA_INTR_CNTLR_VECGEN_ISMUX (249 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/INTR/CNTLR/VECGEN/ISMUX **
** ISMUX **
** **
** Page 85 **
** SHEET 1 of 1 **
** **
** Last reviewed: 10-NOV-2024 **
** Ronny Hansen **
***************************************************************************/
module CGA_INTR_CNTLR_VECGEN_ISMUX (
input [2:0] FIDBO_2_0, //! FIDB (from CGA_INTR.FIDBO_15_0[2:0])
input HIGSN,
input [2:0] HISTAT_2_0,
input LOGSN,
input [2:0] LOSTAT_2_0,
input OESN,
output [2:0] HISIN_2_0,
output [2:0] LOSIN_2_0
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [2:0] s_lostat_2_0;
wire [2:0] s_losin_2_0_out;
wire [2:0] s_fidbo_2_0;
wire [2:0] s_histat_2_0;
wire [2:0] s_hisin_2_0_out;
wire s_gates10_out;
wire s_gates11_out;
wire s_gates12_out;
wire s_gates13_out;
wire s_gates14_out;
wire s_gates15_out;
wire s_gates16_out;
wire s_gates17_out;
wire s_gates18_out;
wire s_gates19_out;
wire s_gates20_out;
wire s_gates7_n_out;
wire s_gates7_out;
wire s_gates8_n_out;
wire s_gates8_out;
wire s_gates9_out;
wire s_higs_n;
wire s_higs;
wire s_logs_n;
wire s_oes_n;
wire s_oes;
/*******************************************************************************
** The module functionality is described here **
*******************************************************************************/
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_lostat_2_0[2:0] = LOSTAT_2_0;
assign s_fidbo_2_0[2:0] = FIDBO_2_0;
assign s_histat_2_0[2:0] = HISTAT_2_0;
assign s_logs_n = LOGSN;
assign s_oes_n = OESN;
assign s_higs_n = HIGSN;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign HISIN_2_0 = s_hisin_2_0_out[2:0];
assign LOSIN_2_0 = s_losin_2_0_out[2:0];
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// NOT Gate
assign s_higs = ~s_higs_n;
assign s_oes = ~s_oes_n;
assign s_gates8_n_out = ~s_gates8_out;
assign s_gates7_n_out = ~s_gates7_out;
/*******************************************************************************
** Here all normal components are defined **
*******************************************************************************/
OR_GATE #(
.BubblesMask(2'b11)
) GATES_1 (
.input1(s_gates9_out),
.input2(s_gates10_out),
.result(s_losin_2_0_out[2])
);
OR_GATE #(
.BubblesMask(2'b11)
) GATES_2 (
.input1(s_gates11_out),
.input2(s_gates12_out),
.result(s_losin_2_0_out[1])
);
OR_GATE #(
.BubblesMask(2'b11)
) GATES_3 (
.input1(s_gates13_out),
.input2(s_gates14_out),
.result(s_losin_2_0_out[0])
);
OR_GATE #(
.BubblesMask(2'b11)
) GATES_4 (
.input1(s_gates15_out),
.input2(s_gates16_out),
.result(s_hisin_2_0_out[2])
);
OR_GATE #(
.BubblesMask(2'b11)
) GATES_5 (
.input1(s_gates17_out),
.input2(s_gates18_out),
.result(s_hisin_2_0_out[1])
);
OR_GATE #(
.BubblesMask(2'b11)
) GATES_6 (
.input1(s_gates19_out),
.input2(s_gates20_out),
.result(s_hisin_2_0_out[0])
);
AND_GATE #(
.BubblesMask(2'b11)
) GATES_7 (
.input1(s_logs_n),
.input2(s_oes_n),
.result(s_gates7_out)
);
AND_GATE #(
.BubblesMask(2'b00)
) GATES_8 (
.input1(s_higs),
.input2(s_oes),
.result(s_gates8_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_9 (
.input1(s_lostat_2_0[2]),
.input2(s_gates7_out),
.result(s_gates9_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_10 (
.input1(s_fidbo_2_0[2]),
.input2(s_gates7_n_out),
.result(s_gates10_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_11 (
.input1(s_lostat_2_0[1]),
.input2(s_gates7_out),
.result(s_gates11_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_12 (
.input1(s_fidbo_2_0[1]),
.input2(s_gates7_n_out),
.result(s_gates12_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_13 (
.input1(s_lostat_2_0[0]),
.input2(s_gates7_out),
.result(s_gates13_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_14 (
.input1(s_fidbo_2_0[0]),
.input2(s_gates7_n_out),
.result(s_gates14_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_15 (
.input1(s_histat_2_0[2]),
.input2(s_gates8_out),
.result(s_gates15_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_16 (
.input1(s_fidbo_2_0[2]),
.input2(s_gates8_n_out),
.result(s_gates16_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_17 (
.input1(s_histat_2_0[1]),
.input2(s_gates8_out),
.result(s_gates17_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_18 (
.input1(s_fidbo_2_0[1]),
.input2(s_gates8_n_out),
.result(s_gates18_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_19 (
.input1(s_histat_2_0[0]),
.input2(s_gates8_out),
.result(s_gates19_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_20 (
.input1(s_fidbo_2_0[0]),
.input2(s_gates8_n_out),
.result(s_gates20_out)
);
endmodule
