CGA_MAC_FASTADD

Source: Verilog/DELILAH-CPU/CGA_MAC/circuit/CGA_MAC_FASTADD.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_MAC > CGA_MAC_ADD > CGA_MAC_FASTADD - instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MAC.MAC_ADD.FASTADD

Used in: CGA_MAC_ADD (all tops)

Contains: Adder x2

Module hierarchy - All modules

Schematic

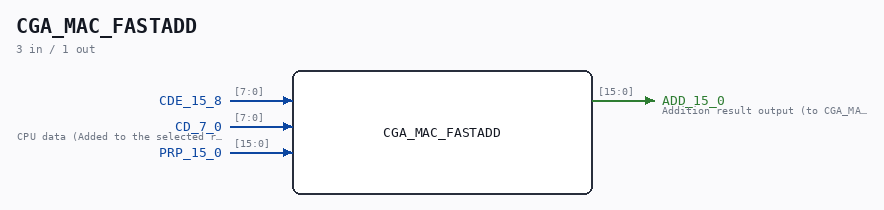

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MAC.MAC_ADD.FASTADD. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

ND120 CGA (CPU Gate Array / DELILAH) /CGA/MAC/ADD/FASTADD ADD Page 30 SHEET 1 of 1 Last reviewed: 10-NOV-2024 Ronny Hansen

Ports

Direction	Width	Name	Description
input	[7:0]	CDE_15_8
input	[7:0]	CD_7_0	CPU data (Added to the selected register) (from CGA_MAC_ADD.CD_15_0[7:0])
input	[15:0]	PRP_15_0
output	[15:0]	ADD_15_0	Addition result output (to CGA_MAC_ADD.ADD_15_0)

Verilog source

Verilog/DELILAH-CPU/CGA_MAC/circuit/CGA_MAC_FASTADD.v on GitHub.

Show the Verilog of CGA_MAC_FASTADD (69 lines)

/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH)                                  **
** /CGA/MAC/ADD/FASTADD                                                  **
** ADD                                                                   **
**                                                                       **
** Page 30                                                               **
** SHEET 1 of 1                                                          **
**                                                                       **
** Last reviewed: 10-NOV-2024                                            **
** Ronny Hansen                                                          **
***************************************************************************/

module CGA_MAC_FASTADD (
    input [ 7:0] CDE_15_8,
    input [ 7:0] CD_7_0,  //! CPU data (Added to the selected register) (from CGA_MAC_ADD.CD_15_0[7:0])
    input [15:0] PRP_15_0,

    output [15:0] ADD_15_0  //! Addition result output (to CGA_MAC_ADD.ADD_15_0)
);

  /*******************************************************************************
   ** The wires are defined here                                                 **
   *******************************************************************************/
  wire [7:0] s_cd_7_0;
  wire [7:0] s_cde_15_8;
  wire [15:0] s_add_15_0_out;
  wire [15:0] s_prp_15_0;

  wire s_carryout_lo; // Carry from the low-8 bits adder to the high-8 bits addder

  /*******************************************************************************
   ** Here all input connections are defined                                     **
   *******************************************************************************/
  assign s_cd_7_0[7:0]    = CD_7_0;
  assign s_cde_15_8[7:0]  = CDE_15_8;
  assign s_prp_15_0[15:0] = PRP_15_0;

  /*******************************************************************************
   ** Here all output connections are defined                                    **
   *******************************************************************************/
  assign ADD_15_0         = s_add_15_0_out[15:0];

  /*******************************************************************************
   ** Here all normal components are defined                                     **
   *******************************************************************************/
  Adder #(
      .extendedBits(9),
      .nrOfBits(8)
  ) ARITH_1 (
      .carryIn(1'b0),
      .carryOut(s_carryout_lo),
      .dataA(s_cd_7_0[7:0]),
      .dataB(s_prp_15_0[7:0]),
      .result(s_add_15_0_out[7:0])
  );

  Adder #(
      .extendedBits(9),
      .nrOfBits(8)
  ) ARITH_2 (
      .carryIn(s_carryout_lo),
      .carryOut(),
      .dataA(s_cde_15_8[7:0]),
      .dataB(s_prp_15_0[15:8]),
      .result(s_add_15_0_out[15:8])
  );


endmodule
