CGA_IDBCTL_PGSREG¶
Source: Verilog/DELILAH-CPU/CGA_IDBCTL/circuit/CGA_IDBCTL_PGSREG.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_IDBCTL > CGA_IDBCTL_PGSREG
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.IDBCTL.PGSREG
Used in: CGA_IDBCTL (all tops)
Contains: SCAN_FF_EN x14
Module hierarchy - All modules

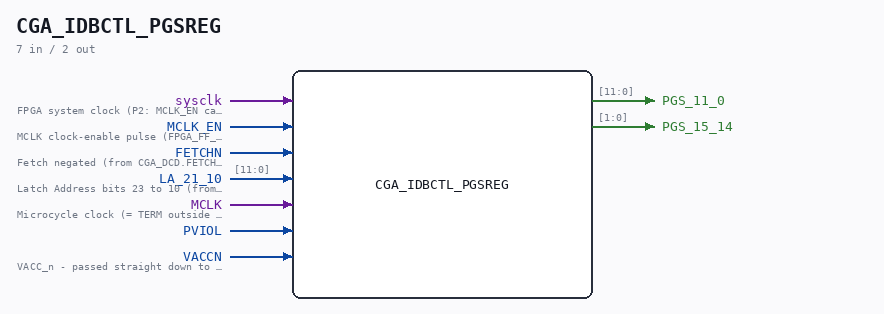

Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.IDBCTL.PGSREG. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
CPU GATE ARRAY - CGA - DELILAH CGA/IDBCTL/PGSREG - IDB Control Logic PDF page 98 of 108 Last reviewed: 9-NOV-2024 Ronny Hansen
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
FPGA system clock (P2: MCLK_EN capture) |
| input | 1 |
MCLK_EN |
MCLK clock-enable pulse (FPGA_FF_MODE, else 0) |
| input | 1 |
FETCHN |
Fetch negated (from CGA_DCD.FETCHN) |
| input | [11:0] |
LA_21_10 |
Latch Address bits 23 to 10 (from CGA_MAC.LA_23_10[11:0]) |
| input | 1 |
MCLK |
Microcycle clock (= TERM outside RWCS, stretched during RWCS) (from CPU_PROC_CGA_33.MCLK) |
| input | 1 |
PVIOL |
|
| input | 1 |
VACCN |
VACC_n - passed straight down to CGA_IDBCTL_PGSREG as its load enable (from CGA_IDBCTL.VACCN) |
| output | [11:0] |
PGS_11_0 |
|
| output | [1:0] |
PGS_15_14 |
Verilog source¶
Verilog/DELILAH-CPU/CGA_IDBCTL/circuit/CGA_IDBCTL_PGSREG.v on GitHub.
Show the Verilog of CGA_IDBCTL_PGSREG (239 lines)
/**************************************************************************
** CPU GATE ARRAY - CGA - DELILAH **
** **
** CGA/IDBCTL/PGSREG - IDB Control Logic **
** **
** PDF page 98 of 108 **
** **
** Last reviewed: 9-NOV-2024 **
** Ronny Hansen **
***************************************************************************/
module CGA_IDBCTL_PGSREG (
input sysclk, //! FPGA system clock (P2: MCLK_EN capture)
input MCLK_EN, //! MCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input FETCHN, //! Fetch negated (from CGA_DCD.FETCHN)
input [11:0] LA_21_10, //! Latch Address bits 23 to 10 (from CGA_MAC.LA_23_10[11:0])
input MCLK, //! Microcycle clock (= TERM outside RWCS, stretched during RWCS) (from CPU_PROC_CGA_33.MCLK)
input PVIOL,
// VACCN is the LOAD ENABLE of this register (inverted to s_vacc and wired
// to TE on every SCAN_FF_EN cell below; D is tied back to Q, so TE=0 holds).
// Consequence: PGS = THE LAST LA_21_10 PRESENTED WHILE VACC WAS HIGH. There
// is no separate lock - the register stops capturing simply because VACC
// stops rising, and VACC cannot rise while paging is off (CGA_DCD.v sheet
// 10/10, GATES_75). That is how PGS survives long enough for the trap
// handler to read it back through EPGS.
input VACCN, //! VACC_n - passed straight down to CGA_IDBCTL_PGSREG as its load enable (from CGA_IDBCTL.VACCN)
output [11:0] PGS_11_0,
output [ 1:0] PGS_15_14
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire s_fetch_n;
wire s_mclk;
wire s_pgs15_dq;
wire s_pviol;
wire s_vacc_n;
wire s_vacc;
wire [ 1:0] s_pga_15_14_out;
wire [11:0] s_la_21_10;
wire [11:0] s_pgs_11_0_out;
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_la_21_10[11:0] = LA_21_10;
assign s_mclk = MCLK;
assign s_fetch_n = FETCHN;
assign s_pviol = PVIOL;
assign s_vacc_n = VACCN;
// P2 (docs/plan-fix-unconstrained-clocks.md): in FF mode the MCLK-
// clocked registers capture on posedge sysclk gated by MCLK_EN
// (aligned to the MCLK rise) instead of clocking on the routed net.
`ifdef FPGA_FF_MODE
localparam MCLK_CE = 1;
`else
localparam MCLK_CE = 0;
`endif
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign PGS_11_0 = s_pgs_11_0_out[11:0];
assign PGS_15_14 = s_pga_15_14_out[1:0];
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// NOT Gate
assign s_vacc = ~s_vacc_n;
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) PGS15 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_pgs15_dq),
.Q (s_pgs15_dq),
.QN (s_pga_15_14_out[1]),
.TE (s_vacc),
.TI (s_fetch_n)
);
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) PGS14 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_pga_15_14_out[0]),
.Q (s_pga_15_14_out[0]),
.QN (),
.TE (s_vacc),
.TI (s_pviol)
);
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) PGS11 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_pgs_11_0_out[11]),
.Q (s_pgs_11_0_out[11]),
.QN (),
.TE (s_vacc),
.TI (s_la_21_10[11])
);
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) PGS10 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_pgs_11_0_out[10]),
.Q (s_pgs_11_0_out[10]),
.QN (),
.TE (s_vacc),
.TI (s_la_21_10[10])
);
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) PGS9 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_pgs_11_0_out[9]),
.Q (s_pgs_11_0_out[9]),
.QN (),
.TE (s_vacc),
.TI (s_la_21_10[9])
);
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) PGS8 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_pgs_11_0_out[8]),
.Q (s_pgs_11_0_out[8]),
.QN (),
.TE (s_vacc),
.TI (s_la_21_10[8])
);
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) PGS7 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_pgs_11_0_out[7]),
.Q (s_pgs_11_0_out[7]),
.QN (),
.TE (s_vacc),
.TI (s_la_21_10[7])
);
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) PGS3 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_pgs_11_0_out[3]),
.Q (s_pgs_11_0_out[3]),
.QN (),
.TE (s_vacc),
.TI (s_la_21_10[3])
);
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) PGS2 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_pgs_11_0_out[2]),
.Q (s_pgs_11_0_out[2]),
.QN (),
.TE (s_vacc),
.TI (s_la_21_10[2])
);
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) PGS1 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_pgs_11_0_out[1]),
.Q (s_pgs_11_0_out[1]),
.QN (),
.TE (s_vacc),
.TI (s_la_21_10[1])
);
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) PGS0 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_pgs_11_0_out[0]),
.Q (s_pgs_11_0_out[0]),
.QN (),
.TE (s_vacc),
.TI (s_la_21_10[0])
);
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) PGS6 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_pgs_11_0_out[6]),
.Q (s_pgs_11_0_out[6]),
.QN (),
.TE (s_vacc),
.TI (s_la_21_10[6])
);
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) PGS5 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_pgs_11_0_out[5]),
.Q (s_pgs_11_0_out[5]),
.QN (),
.TE (s_vacc),
.TI (s_la_21_10[5])
);
SCAN_FF_EN #(.USE_ENABLE(MCLK_CE)) PGS4 (
.sysclk(sysclk),
.EN(MCLK_EN),
.CLK(s_mclk),
.D (s_pgs_11_0_out[4]),
.Q (s_pgs_11_0_out[4]),
.QN (),
.TE (s_vacc),
.TI (s_la_21_10[4])
);
endmodule
