CGA_INTR_IRSRC¶
Source: Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_IRSRC.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_INTR > CGA_INTR_IRSRC
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.IRSRC
Used in: CGA_INTR (all tops)
Contains: NAND_GATE x16, NOR_GATE x10
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.IRSRC. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/INTR/IRSRC Interrupt Source Page 76 SHEET 1 of 1 Last reviewed: 10-NOV-2024 Ronny Hansen

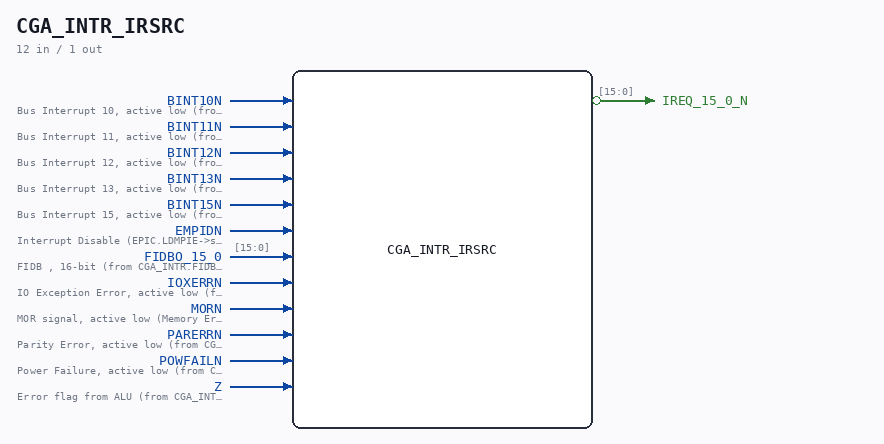

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
BINT10N |
Bus Interrupt 10, active low (from CGA_INTR.BINT10N) |
| input | 1 |
BINT11N |
Bus Interrupt 11, active low (from CGA_INTR.BINT11N) |
| input | 1 |
BINT12N |
Bus Interrupt 12, active low (from CGA_INTR.BINT12N) |
| input | 1 |
BINT13N |
Bus Interrupt 13, active low (from CGA_INTR.BINT13N) |
| input | 1 |
BINT15N |
Bus Interrupt 15, active low (from CGA_INTR.BINT15N) |
| input | 1 |
EMPIDN |
Interrupt Disable (EPIC.LDMPIE->set mask reg:inh all ints) (from CGA_INTR.EMPIDN) |
| input | [15:0] |
FIDBO_15_0 |
FIDB , 16-bit (from CGA_INTR.FIDBO_15_0) |
| input | 1 |
IOXERRN |
IO Exception Error, active low (from CGA_INTR.IOXERRN) |
| input | 1 |
MORN |
MOR signal, active low (Memory Error) (from CGA_INTR.MORN) |
| input | 1 |
PARERRN |
Parity Error, active low (from CGA_INTR.PARERRN) |
| input | 1 |
POWFAILN |
Power Failure, active low (from CGA_INTR.POWFAILN) |
| input | 1 |
Z |
Error flag from ALU (from CGA_INTR.Z) |
| output | [15:0] |
IREQ_15_0_N (active low) |
Verilog source¶
Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_IRSRC.v on GitHub.
Show the Verilog of CGA_INTR_IRSRC (302 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/INTR/IRSRC **
** Interrupt Source **
** **
** Page 76 **
** SHEET 1 of 1 **
** **
** Last reviewed: 10-NOV-2024 **
** Ronny Hansen **
***************************************************************************/
module CGA_INTR_IRSRC (
input BINT10N, //! Bus Interrupt 10, active low (from CGA_INTR.BINT10N)
input BINT11N, //! Bus Interrupt 11, active low (from CGA_INTR.BINT11N)
input BINT12N, //! Bus Interrupt 12, active low (from CGA_INTR.BINT12N)
input BINT13N, //! Bus Interrupt 13, active low (from CGA_INTR.BINT13N)
input BINT15N, //! Bus Interrupt 15, active low (from CGA_INTR.BINT15N)
input EMPIDN, //! Interrupt Disable (EPIC.LDMPIE->set mask reg:inh all ints) (from CGA_INTR.EMPIDN)
input [15:0] FIDBO_15_0, //! FIDB , 16-bit (from CGA_INTR.FIDBO_15_0)
input IOXERRN, //! IO Exception Error, active low (from CGA_INTR.IOXERRN)
input MORN, //! MOR signal, active low (Memory Error) (from CGA_INTR.MORN)
input PARERRN, //! Parity Error, active low (from CGA_INTR.PARERRN)
input POWFAILN, //! Power Failure, active low (from CGA_INTR.POWFAILN)
input Z, //! Error flag from ALU (from CGA_INTR.Z)
output [15:0] IREQ_15_0_N
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [15:0] s_ireq_15_0_n_out;
wire [15:0] s_fidbo_15_0;
wire s_bint10_n;
wire s_bint11_n;
wire s_bint12_n;
wire s_bint13_n;
wire s_bint15_n;
wire s_empid_n;
wire s_empid;
wire s_gates1_out;
wire s_gates14_out;
wire s_gates15_out;
wire s_gates16_out;
wire s_gates2_out;
wire s_gates4_out;
wire s_gates5_out;
wire s_gates6_out;
wire s_gates7_out;
wire s_gates9_out;
wire s_ioxerr_n;
wire s_mor_n;
wire s_parerr_n;
wire s_powfail_n;
wire s_z_n;
wire s_z;
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_fidbo_15_0[15:0] = FIDBO_15_0;
assign s_bint10_n = BINT10N;
assign s_bint11_n = BINT11N;
assign s_bint12_n = BINT12N;
assign s_bint13_n = BINT13N;
assign s_bint15_n = BINT15N;
assign s_empid_n = EMPIDN;
assign s_ioxerr_n = IOXERRN;
assign s_mor_n = MORN;
assign s_parerr_n = PARERRN;
assign s_powfail_n = POWFAILN;
assign s_z = Z;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign IREQ_15_0_N = s_ireq_15_0_n_out[15:0];
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// NOT Gate
assign s_z_n = ~s_z;
// NOT Gate
assign s_empid = ~s_empid_n;
/*******************************************************************************
** Here all normal components are defined **
*******************************************************************************/
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_1 (
.input1(s_fidbo_15_0[0]),
.input2(s_empid),
.result(s_gates1_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_2 (
.input1(s_fidbo_15_0[15]),
.input2(s_empid),
.result(s_gates2_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_3 (
.input1(s_fidbo_15_0[14]),
.input2(s_empid),
.result(s_ireq_15_0_n_out[14])
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_4 (
.input1(s_fidbo_15_0[13]),
.input2(s_empid),
.result(s_gates4_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_5 (
.input1(s_fidbo_15_0[12]),
.input2(s_empid),
.result(s_gates5_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_6 (
.input1(s_fidbo_15_0[11]),
.input2(s_empid),
.result(s_gates6_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_7 (
.input1(s_fidbo_15_0[10]),
.input2(s_empid),
.result(s_gates7_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_8 (
.input1(s_fidbo_15_0[9]),
.input2(s_empid),
.result(s_ireq_15_0_n_out[9])
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_9 (
.input1(s_fidbo_15_0[8]),
.input2(s_empid),
.result(s_gates9_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_10 (
.input1(s_fidbo_15_0[7]),
.input2(s_empid),
.result(s_ireq_15_0_n_out[7])
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_11 (
.input1(s_fidbo_15_0[6]),
.input2(s_empid),
.result(s_ireq_15_0_n_out[6])
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_12 (
.input1(s_fidbo_15_0[5]),
.input2(s_empid),
.result(s_ireq_15_0_n_out[5])
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_13 (
.input1(s_fidbo_15_0[4]),
.input2(s_empid),
.result(s_ireq_15_0_n_out[4])
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_14 (
.input1(s_fidbo_15_0[3]),
.input2(s_empid),
.result(s_gates14_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_15 (
.input1(s_fidbo_15_0[2]),
.input2(s_empid),
.result(s_gates15_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_16 (
.input1(s_fidbo_15_0[1]),
.input2(s_empid),
.result(s_gates16_out)
);
NOR_GATE #(
.BubblesMask(2'b11)
) GATES_17 (
.input1(s_gates16_out),
.input2(s_bint11_n),
.result(s_ireq_15_0_n_out[1])
);
NOR_GATE #(
.BubblesMask(2'b11)
) GATES_18 (
.input1(s_gates1_out),
.input2(s_bint10_n),
.result(s_ireq_15_0_n_out[0])
);
NOR_GATE #(
.BubblesMask(2'b11)
) GATES_19 (
.input1(s_gates2_out),
.input2(s_bint15_n),
.result(s_ireq_15_0_n_out[15])
);
NOR_GATE #(
.BubblesMask(2'b11)
) GATES_20 (
.input1(s_gates4_out),
.input2(s_powfail_n),
.result(s_ireq_15_0_n_out[13])
);
NOR_GATE #(
.BubblesMask(2'b11)
) GATES_21 (
.input1(s_gates5_out),
.input2(s_mor_n),
.result(s_ireq_15_0_n_out[12])
);
NOR_GATE #(
.BubblesMask(2'b11)
) GATES_22 (
.input1(s_gates6_out),
.input2(s_parerr_n),
.result(s_ireq_15_0_n_out[11])
);
NOR_GATE #(
.BubblesMask(2'b11)
) GATES_23 (
.input1(s_gates7_out),
.input2(s_ioxerr_n),
.result(s_ireq_15_0_n_out[10])
);
NOR_GATE #(
.BubblesMask(2'b11)
) GATES_24 (
.input1(s_gates9_out),
.input2(s_z_n),
.result(s_ireq_15_0_n_out[8])
);
NOR_GATE #(
.BubblesMask(2'b11)
) GATES_25 (
.input1(s_gates14_out),
.input2(s_bint13_n),
.result(s_ireq_15_0_n_out[3])
);
NOR_GATE #(
.BubblesMask(2'b11)
) GATES_26 (
.input1(s_gates15_out),
.input2(s_bint12_n),
.result(s_ireq_15_0_n_out[2])
);
endmodule
