CGA_MAC_AP09¶
Source: Verilog/DELILAH-CPU/CGA_MAC/circuit/CGA_MAC_AP09.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_MAC > CGA_MAC_AP09
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MAC.MAC_AP09
Used in: CGA_MAC (all tops)
Contains: A02 x32, CGA_MAC_APOS_CALCA, CGA_MAC_APOS_INC, NAND_GATE x16, OR_GATE_3_INPUTS x16
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MAC.MAC_AP09. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/MAC/AP09 AP09 Page 31 SHEET 1 of 1 Last reviewed: 14-DEC-2024 Ronny Hansen

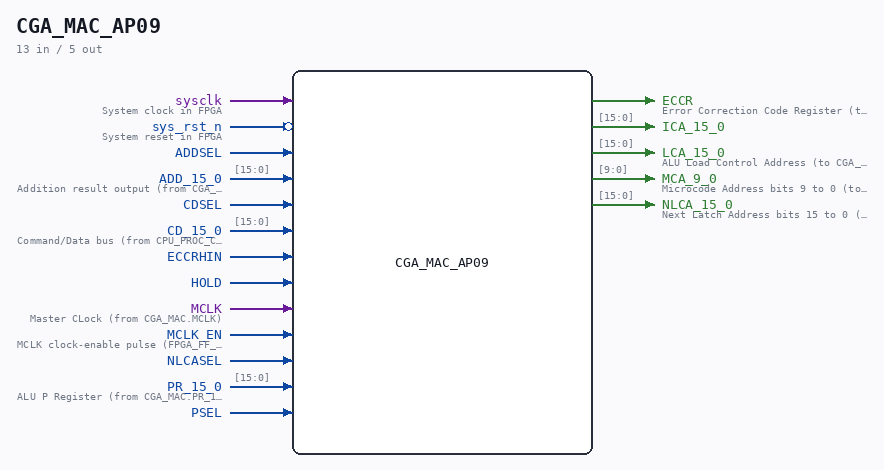

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
System clock in FPGA |
| input | 1 |
sys_rst_n (active low) |
System reset in FPGA |
| input | 1 |
ADDSEL |
|
| input | [15:0] |
ADD_15_0 |
Addition result output (from CGA_MAC_ADD.ADD_15_0) |
| input | 1 |
CDSEL |
|
| input | [15:0] |
CD_15_0 |
Command/Data bus (from CPU_PROC_CGA_33.CD_15_0) |
| input | 1 |
ECCRHIN |
|
| input | 1 |
HOLD |
|
| input | 1 |
MCLK |
Master CLock (from CGA_MAC.MCLK) |
| input | 1 |
MCLK_EN |
MCLK clock-enable pulse (FPGA_FF_MODE, else 0) |
| input | 1 |
NLCASEL |
|
| input | [15:0] |
PR_15_0 |
ALU P Register (from CGA_MAC.PR_15_0) |
| input | 1 |
PSEL |
|
| output | 1 |
ECCR |
Error Correction Code Register (to CGA_MAC.ECCR) |
| output | [15:0] |
ICA_15_0 |
|
| output | [15:0] |
LCA_15_0 |
ALU Load Control Address (to CGA_MAC_ADD.LCA_15_0) |
| output | [9:0] |
MCA_9_0 |
Microcode Address bits 9 to 0 (to CGA_MAC.MCA_9_0) |
| output | [15:0] |
NLCA_15_0 |
Next Latch Address bits 15 to 0 (to CGA_MAC.NLCA_15_0) |
Verilog source¶
Verilog/DELILAH-CPU/CGA_MAC/circuit/CGA_MAC_AP09.v on GitHub.
Show the Verilog of CGA_MAC_AP09 (709 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/MAC/AP09 **
** AP09 **
** **
** Page 31 **
** SHEET 1 of 1 **
** **
** Last reviewed: 14-DEC-2024 **
** Ronny Hansen **
***************************************************************************/
module CGA_MAC_AP09 (
// System input signals
input sysclk, // System clock in FPGA
input sys_rst_n, // System reset in FPGA
// Input signals
input ADDSEL,
input [15:0] ADD_15_0, //! Addition result output (from CGA_MAC_ADD.ADD_15_0)
input CDSEL,
input [15:0] CD_15_0, //! Command/Data bus (from CPU_PROC_CGA_33.CD_15_0)
input ECCRHIN,
input HOLD,
input MCLK, //! Master CLock (from CGA_MAC.MCLK)
input MCLK_EN, //! MCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input NLCASEL,
input [15:0] PR_15_0, //! ALU P Register (from CGA_MAC.PR_15_0)
input PSEL,
// Output signals
output ECCR, //! Error Correction Code Register (to CGA_MAC.ECCR)
output [15:0] ICA_15_0,
output [15:0] LCA_15_0, //! ALU Load Control Address (to CGA_MAC_ADD.LCA_15_0)
output [ 9:0] MCA_9_0, //! Microcode Address bits 9 to 0 (to CGA_MAC.MCA_9_0)
output [15:0] NLCA_15_0 //! Next Latch Address bits 15 to 0 (to CGA_MAC.NLCA_15_0)
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [15:0] s_add_15_0;
wire [15:0] s_lca_15_0_out;
wire [ 9:0] s_mca_9_0_out;
wire [15:0] s_ica_15_0_out;
wire [15:0] s_cd_15_0;
wire [15:0] s_pr_15_0;
wire [15:0] s_nlca_15_0_out;
wire s_addsel;
wire s_cdsel;
wire s_eccr_out;
wire s_eccrhi_n;
wire s_hold;
wire s_ica0a_n;
wire s_ica0b_n;
wire s_ica10a_n;
wire s_ica10b_n;
wire s_ica11a_n;
wire s_ica11b_n;
wire s_ica12a_n;
wire s_ica12b_n;
wire s_ica13a_n;
wire s_ica13b_n;
wire s_ica14a_n;
wire s_ica14b_n;
wire s_ica15a_n;
wire s_ica15b_n;
wire s_ica1a_n;
wire s_ica1b_n;
wire s_ica2a_n;
wire s_ica2b_n;
wire s_ica3a_n;
wire s_ica3b_n;
wire s_ica4a_n;
wire s_ica4b_n;
wire s_ica5a_n;
wire s_ica5b_n;
wire s_ica6a_n;
wire s_ica6b_n;
wire s_ica7a_n;
wire s_ica7b_n;
wire s_ica8a_n;
wire s_ica8b_n;
wire s_ica9a_n;
wire s_ica9b_n;
wire s_mclk;
wire s_nlca0_n;
wire s_nlca1_n;
wire s_nlca10_n;
wire s_nlca11_n;
wire s_nlca12_n;
wire s_nlca13_n;
wire s_nlca14_n;
wire s_nlca15_n;
wire s_nlca2_n;
wire s_nlca3_n;
wire s_nlca4_n;
wire s_nlca5_n;
wire s_nlca6_n;
wire s_nlca7_n;
wire s_nlca8_n;
wire s_nlca9_n;
wire s_nlcasel;
wire s_psel;
/*******************************************************************************
** The module functionality is described here **
*******************************************************************************/
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_add_15_0[15:0] = ADD_15_0;
assign s_cd_15_0[15:0] = CD_15_0;
assign s_pr_15_0[15:0] = PR_15_0;
assign s_mclk = MCLK;
assign s_eccrhi_n = ECCRHIN;
assign s_addsel = ADDSEL;
assign s_cdsel = CDSEL;
assign s_psel = PSEL;
assign s_nlcasel = NLCASEL;
assign s_hold = HOLD;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign ECCR = s_eccr_out;
assign ICA_15_0 = s_ica_15_0_out[15:0];
assign LCA_15_0 = s_lca_15_0_out[15:0];
assign MCA_9_0 = s_mca_9_0_out[9:0];
assign NLCA_15_0 = s_nlca_15_0_out[15:0];
/*******************************************************************************
** Here all normal components are defined **
*******************************************************************************/
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_5 (
.input1(s_nlcasel),
.input2(s_nlca_15_0_out[0]),
.result(s_nlca0_n)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_6 (
.input1(s_nlcasel),
.input2(s_nlca_15_0_out[1]),
.result(s_nlca1_n)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_1 (
.input1(s_nlcasel),
.input2(s_nlca_15_0_out[2]),
.result(s_nlca2_n)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_2 (
.input1(s_nlcasel),
.input2(s_nlca_15_0_out[3]),
.result(s_nlca3_n)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_3 (
.input1(s_nlcasel),
.input2(s_nlca_15_0_out[4]),
.result(s_nlca4_n)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_4 (
.input1(s_nlcasel),
.input2(s_nlca_15_0_out[5]),
.result(s_nlca5_n)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_7 (
.input1(s_nlcasel),
.input2(s_nlca_15_0_out[6]),
.result(s_nlca6_n)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_8 (
.input1(s_nlcasel),
.input2(s_nlca_15_0_out[7]),
.result(s_nlca7_n)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_9 (
.input1(s_nlcasel),
.input2(s_nlca_15_0_out[8]),
.result(s_nlca8_n)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_10 (
.input1(s_nlcasel),
.input2(s_nlca_15_0_out[9]),
.result(s_nlca9_n)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_11 (
.input1(s_nlcasel),
.input2(s_nlca_15_0_out[10]),
.result(s_nlca10_n)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_12 (
.input1(s_nlcasel),
.input2(s_nlca_15_0_out[11]),
.result(s_nlca11_n)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_13 (
.input1(s_nlcasel),
.input2(s_nlca_15_0_out[12]),
.result(s_nlca12_n)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_14 (
.input1(s_nlcasel),
.input2(s_nlca_15_0_out[13]),
.result(s_nlca13_n)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_15 (
.input1(s_nlcasel),
.input2(s_nlca_15_0_out[14]),
.result(s_nlca14_n)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_16 (
.input1(s_nlcasel),
.input2(s_nlca_15_0_out[15]),
.result(s_nlca15_n)
);
OR_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_20 (
.input1(s_ica0a_n),
.input2(s_ica0b_n),
.input3(s_nlca0_n),
.result(s_ica_15_0_out[0])
);
OR_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_21 (
.input1(s_ica1a_n),
.input2(s_ica1b_n),
.input3(s_nlca1_n),
.result(s_ica_15_0_out[1])
);
OR_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_22 (
.input1(s_ica2a_n),
.input2(s_ica2b_n),
.input3(s_nlca2_n),
.result(s_ica_15_0_out[2])
);
OR_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_17 (
.input1(s_ica3a_n),
.input2(s_ica3b_n),
.input3(s_nlca3_n),
.result(s_ica_15_0_out[3])
);
OR_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_18 (
.input1(s_ica4a_n),
.input2(s_ica4b_n),
.input3(s_nlca4_n),
.result(s_ica_15_0_out[4])
);
OR_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_19 (
.input1(s_ica5a_n),
.input2(s_ica5b_n),
.input3(s_nlca5_n),
.result(s_ica_15_0_out[5])
);
OR_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_23 (
.input1(s_ica6a_n),
.input2(s_ica6b_n),
.input3(s_nlca6_n),
.result(s_ica_15_0_out[6])
);
OR_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_24 (
.input1(s_ica7a_n),
.input2(s_ica7b_n),
.input3(s_nlca7_n),
.result(s_ica_15_0_out[7])
);
OR_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_25 (
.input1(s_ica8a_n),
.input2(s_ica8b_n),
.input3(s_nlca8_n),
.result(s_ica_15_0_out[8])
);
OR_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_26 (
.input1(s_ica9a_n),
.input2(s_ica9b_n),
.input3(s_nlca9_n),
.result(s_ica_15_0_out[9])
);
OR_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_27 (
.input1(s_ica10a_n),
.input2(s_ica10b_n),
.input3(s_nlca10_n),
.result(s_ica_15_0_out[10])
);
OR_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_28 (
.input1(s_ica11a_n),
.input2(s_ica11b_n),
.input3(s_nlca11_n),
.result(s_ica_15_0_out[11])
);
OR_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_29 (
.input1(s_ica12a_n),
.input2(s_ica12b_n),
.input3(s_nlca12_n),
.result(s_ica_15_0_out[12])
);
OR_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_30 (
.input1(s_ica13a_n),
.input2(s_ica13b_n),
.input3(s_nlca13_n),
.result(s_ica_15_0_out[13])
);
OR_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_31 (
.input1(s_ica14a_n),
.input2(s_ica14b_n),
.input3(s_nlca14_n),
.result(s_ica_15_0_out[14])
);
OR_GATE_3_INPUTS #(
.BubblesMask(3'b111)
) GATES_32 (
.input1(s_ica15a_n),
.input2(s_ica15b_n),
.input3(s_nlca15_n),
.result(s_ica_15_0_out[15])
);
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
// ICA - 0
A02 ICA0A (
.A(s_lca_15_0_out[0]),
.B(s_hold),
.C(s_pr_15_0[0]),
.D(s_psel),
.Z(s_ica0a_n)
);
A02 ICA0B (
.A(s_addsel),
.B(s_add_15_0[0]),
.C(s_cdsel),
.D(s_cd_15_0[0]),
.Z(s_ica0b_n)
);
// ICA - 1
A02 ICA1A (
.A(s_lca_15_0_out[1]),
.B(s_hold),
.C(s_pr_15_0[1]),
.D(s_psel),
.Z(s_ica1a_n)
);
A02 ICA1B (
.A(s_addsel),
.B(s_add_15_0[1]),
.C(s_cd_15_0[1]),
.D(s_cdsel),
.Z(s_ica1b_n)
);
// ICA - 2
A02 ICA2A (
.A(s_lca_15_0_out[2]),
.B(s_hold),
.C(s_pr_15_0[2]),
.D(s_psel),
.Z(s_ica2a_n)
);
A02 ICA2B (
.A(s_addsel),
.B(s_add_15_0[2]),
.C(s_cd_15_0[2]),
.D(s_cdsel),
.Z(s_ica2b_n)
);
// ICA - 3
A02 ICA3A (
.A(s_lca_15_0_out[3]),
.B(s_hold),
.C(s_pr_15_0[3]),
.D(s_psel),
.Z(s_ica3a_n)
);
A02 ICA3B (
.A(s_addsel),
.B(s_add_15_0[3]),
.C(s_cd_15_0[3]),
.D(s_cdsel),
.Z(s_ica3b_n)
);
// ICA - 4
A02 ICA4A (
.A(s_lca_15_0_out[4]),
.B(s_hold),
.C(s_pr_15_0[4]),
.D(s_psel),
.Z(s_ica4a_n)
);
A02 ICA4B (
.A(s_addsel),
.B(s_add_15_0[4]),
.C(s_cd_15_0[4]),
.D(s_cdsel),
.Z(s_ica4b_n)
);
// ICA - 5
A02 ICA5A (
.A(s_lca_15_0_out[5]),
.B(s_hold),
.C(s_pr_15_0[5]),
.D(s_psel),
.Z(s_ica5a_n)
);
A02 ICA5B (
.A(s_addsel),
.B(s_add_15_0[5]),
.C(s_cd_15_0[5]),
.D(s_cdsel),
.Z(s_ica5b_n)
);
// ICA - 6
A02 ICA6A (
.A(s_lca_15_0_out[6]),
.B(s_hold),
.C(s_pr_15_0[6]),
.D(s_psel),
.Z(s_ica6a_n)
);
A02 ICA6B (
.A(s_addsel),
.B(s_add_15_0[6]),
.C(s_cd_15_0[6]),
.D(s_cdsel),
.Z(s_ica6b_n)
);
// ICA - 7
A02 ICA7A (
.A(s_lca_15_0_out[7]),
.B(s_hold),
.C(s_pr_15_0[7]),
.D(s_psel),
.Z(s_ica7a_n)
);
A02 ICA7B (
.A(s_addsel),
.B(s_add_15_0[7]),
.C(s_cd_15_0[7]),
.D(s_cdsel),
.Z(s_ica7b_n)
);
// ICA - 8
A02 ICA8A (
.A(s_lca_15_0_out[8]),
.B(s_hold),
.C(s_pr_15_0[8]),
.D(s_psel),
.Z(s_ica8a_n)
);
A02 ICA8B (
.A(s_addsel),
.B(s_add_15_0[8]),
.C(s_cd_15_0[8]),
.D(s_cdsel),
.Z(s_ica8b_n)
);
// ICA - 9
A02 ICA9A (
.A(s_lca_15_0_out[9]),
.B(s_hold),
.C(s_pr_15_0[9]),
.D(s_psel),
.Z(s_ica9a_n)
);
A02 ICA9B (
.A(s_addsel),
.B(s_add_15_0[9]),
.C(s_cd_15_0[9]),
.D(s_cdsel),
.Z(s_ica9b_n)
);
// ICA - 10
A02 ICA10A (
.A(s_lca_15_0_out[10]),
.B(s_hold),
.C(s_pr_15_0[10]),
.D(s_psel),
.Z(s_ica10a_n)
);
A02 ICA10B (
.A(s_addsel),
.B(s_add_15_0[10]),
.C(s_cd_15_0[10]),
.D(s_cdsel),
.Z(s_ica10b_n)
);
// ICA - 11
A02 ICA11A (
.A(s_lca_15_0_out[11]),
.B(s_hold),
.C(s_pr_15_0[11]),
.D(s_psel),
.Z(s_ica11a_n)
);
A02 ICA11B (
.A(s_addsel),
.B(s_add_15_0[11]),
.C(s_cd_15_0[11]),
.D(s_cdsel),
.Z(s_ica11b_n)
);
// ICA - 12
A02 ICA12A (
.A(s_lca_15_0_out[12]),
.B(s_hold),
.C(s_pr_15_0[12]),
.D(s_psel),
.Z(s_ica12a_n)
);
A02 ICA12B (
.A(s_addsel),
.B(s_add_15_0[12]),
.C(s_cd_15_0[12]),
.D(s_cdsel),
.Z(s_ica12b_n)
);
// ICA - 13
A02 ICA13A (
.A(s_lca_15_0_out[13]),
.B(s_hold),
.C(s_pr_15_0[13]),
.D(s_psel),
.Z(s_ica13a_n)
);
A02 ICA13B (
.A(s_addsel),
.B(s_add_15_0[13]),
.C(s_cd_15_0[13]),
.D(s_cdsel),
.Z(s_ica13b_n)
);
// ICA - 14
A02 ICA14A (
.A(s_lca_15_0_out[14]),
.B(s_hold),
.C(s_pr_15_0[14]),
.D(s_psel),
.Z(s_ica14a_n)
);
A02 ICA14B (
.A(s_addsel),
.B(s_add_15_0[14]),
.C(s_cd_15_0[14]),
.D(s_cdsel),
.Z(s_ica14b_n)
);
// ICA - 15
A02 ICA15A (
.A(s_lca_15_0_out[15]),
.B(s_hold),
.C(s_pr_15_0[15]),
.D(s_psel),
.Z(s_ica15a_n)
);
A02 ICA15B (
.A(s_addsel),
.B(s_add_15_0[15]),
.C(s_cd_15_0[15]),
.D(s_cdsel),
.Z(s_ica15b_n)
);
// CALC A
CGA_MAC_APOS_CALCA CALCA
(
// System Input signals
.sysclk(sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
.MCLK(s_mclk),
.MCLK_EN(MCLK_EN),
.ECCR(s_eccr_out),
.ECCRHIN(s_eccrhi_n),
.ICA_15_0(s_ica_15_0_out[15:0]),
.LCA_15_0(s_lca_15_0_out[15:0]),
.MCA_9_0(s_mca_9_0_out[9:0])
);
// A INC
CGA_MAC_APOS_INC AINC (
.LCA_15_0 (s_lca_15_0_out[15:0]),
.NLCA_15_0(s_nlca_15_0_out[15:0])
);
endmodule
