CGA_INTR_CNTLR_VECGEN¶

Source: Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_VECGEN.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_INTR > CGA_INTR_CNTLR > CGA_INTR_CNTLR_VECGEN - instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.VECGEN

Used in: CGA_INTR_CNTLR (all tops)

Contains: CGA_INTR_CNTLR_VECGEN_CMP, CGA_INTR_CNTLR_VECGEN_ISMUX, CGA_INTR_CNTLR_VECGEN_OSMUX, CGA_INTR_CNTLR_VECGEN_PTY, CGA_INTR_CNTLR_VECGEN_STAT, CGA_INTR_CNTLR_VECGEN_VHR

Module hierarchy - All modules

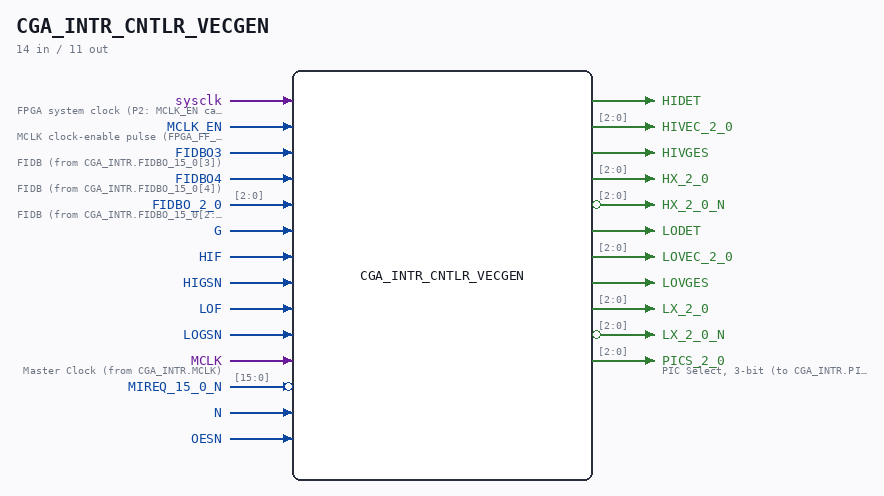

CGA_INTR_CNTLR_VECGEN symbol

Schematic¶

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.VECGEN. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description¶

ND120 CGA (CPU Gate Array / DELILAH) /CGA/INTR/CNTLR/VECGEN Vector Generator Page 83 SHEET 1 of 1 Last reviewed: 10-NOV-2024 Ronny Hansen

Ports¶

Direction	Width	Name	Description
input	`1`	`sysclk`	FPGA system clock (P2: MCLK_EN capture)
input	`1`	`MCLK_EN`	MCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input	`1`	`FIDBO3`	FIDB (from CGA_INTR.FIDBO_15_0[3])
input	`1`	`FIDBO4`	FIDB (from CGA_INTR.FIDBO_15_0[4])
input	`[2:0]`	`FIDBO_2_0`	FIDB (from CGA_INTR.FIDBO_15_0[2:0])
input	`1`	`G`
input	`1`	`HIF`
input	`1`	`HIGSN`
input	`1`	`LOF`
input	`1`	`LOGSN`
input	`1`	`MCLK`	Master Clock (from CGA_INTR.MCLK)
input	`[15:0]`	`MIREQ_15_0_N` (active low)
input	`1`	`N`
input	`1`	`OESN`
output	`1`	`HIDET`
output	`[2:0]`	`HIVEC_2_0`
output	`1`	`HIVGES`
output	`[2:0]`	`HX_2_0`
output	`[2:0]`	`HX_2_0_N` (active low)
output	`1`	`LODET`
output	`[2:0]`	`LOVEC_2_0`
output	`1`	`LOVGES`
output	`[2:0]`	`LX_2_0`
output	`[2:0]`	`LX_2_0_N` (active low)
output	`[2:0]`	`PICS_2_0`	PIC Select, 3-bit (to CGA_INTR.PICS_2_0)

Verilog source¶

Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_VECGEN.v on GitHub.

Show the Verilog of CGA_INTR_CNTLR_VECGEN (180 lines)

/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH)                                  **
** /CGA/INTR/CNTLR/VECGEN                                                **
** Vector Generator                                                      **
**                                                                       **
** Page 83                                                               **
** SHEET 1 of 1                                                          **
**                                                                       **
** Last reviewed: 10-NOV-2024                                            **
** Ronny Hansen                                                          **
***************************************************************************/

module CGA_INTR_CNTLR_VECGEN (
    input        sysclk,   //! FPGA system clock (P2: MCLK_EN capture)
    input        MCLK_EN,  //! MCLK clock-enable pulse (FPGA_FF_MODE, else 0)

    input        FIDBO3,   //! FIDB (from CGA_INTR.FIDBO_15_0[3])
    input        FIDBO4,   //! FIDB (from CGA_INTR.FIDBO_15_0[4])
    input [ 2:0] FIDBO_2_0,  //! FIDB (from CGA_INTR.FIDBO_15_0[2:0])
    input        G,
    input        HIF,
    input        HIGSN,
    input        LOF,
    input        LOGSN,
    input        MCLK,     //! Master Clock (from CGA_INTR.MCLK)
    input [15:0] MIREQ_15_0_N,
    input        N,
    input        OESN,

    output       HIDET,
    output [2:0] HIVEC_2_0,
    output       HIVGES,
    output [2:0] HX_2_0,
    output [2:0] HX_2_0_N,
    output       LODET,
    output [2:0] LOVEC_2_0,
    output       LOVGES,
    output [2:0] LX_2_0,
    output [2:0] LX_2_0_N,
    output [2:0] PICS_2_0  //! PIC Select, 3-bit (to CGA_INTR.PICS_2_0)
);

  /*******************************************************************************
   ** The wires are defined here                                                 **
   *******************************************************************************/
  wire [ 2:0] s_fidbo_2_0;
  wire [ 2:0] s_hisin2_0;
  wire [ 2:0] s_histat_2_0;
  wire [ 2:0] s_hivec_2_0_out;
  wire [ 2:0] s_hx_2_0_n_out;
  wire [ 2:0] s_hx_2_0_out;
  wire [ 2:0] s_losin_2_0;
  wire [ 2:0] s_lostat_2_0;
  wire [ 2:0] s_lovec_2_0_out;
  wire [ 2:0] s_lx_2_0_n_out;
  wire [ 2:0] s_lx_2_0_out;
  wire [ 2:0] s_pics_2_0_out;
  wire [15:0] s_mireq_15_0_n;
  wire        s_fidbo3;
  wire        s_fidbo4;
  wire        s_g;
  wire        s_hidet_out;
  wire        s_hif;
  wire        s_higs_n;
  wire        s_hivges_n_out;
  wire        s_lodet_out;
  wire        s_lof;
  wire        s_logs_n;
  wire        s_lovges_out;
  wire        s_mclk;
  wire        s_n;
  wire        s_oes_n;

  /*******************************************************************************
   ** The module functionality is described here                                 **
   *******************************************************************************/

  /*******************************************************************************
   ** Here all input connections are defined                                     **
   *******************************************************************************/
  assign s_fidbo_2_0[2:0]     = FIDBO_2_0;
  assign s_mireq_15_0_n[15:0] = MIREQ_15_0_N;
  assign s_fidbo3             = FIDBO3;
  assign s_fidbo4             = FIDBO4;
  assign s_g                  = G;
  assign s_hif                = HIF;
  assign s_higs_n             = HIGSN;
  assign s_lof                = LOF;
  assign s_logs_n             = LOGSN;
  assign s_mclk               = MCLK;
  assign s_n                  = N;
  assign s_oes_n              = OESN;

  /*******************************************************************************
   ** Here all output connections are defined                                    **
   *******************************************************************************/
  assign HIDET                = s_hidet_out;
  assign HIVEC_2_0            = s_hivec_2_0_out[2:0];
  assign HIVGES               = s_hivges_n_out;
  assign HX_2_0               = s_hx_2_0_out[2:0];
  assign HX_2_0_N             = s_hx_2_0_n_out[2:0];
  assign LODET                = s_lodet_out;
  assign LOVEC_2_0            = s_lovec_2_0_out[2:0];
  assign LOVGES               = s_lovges_out;
  assign LX_2_0               = s_lx_2_0_out[2:0];
  assign LX_2_0_N             = s_lx_2_0_n_out[2:0];
  assign PICS_2_0             = s_pics_2_0_out[2:0];

  /*******************************************************************************
   ** Here all sub-circuits are defined                                          **
   *******************************************************************************/

  CGA_INTR_CNTLR_VECGEN_VHR VHR (
      .sysclk(sysclk),
      .MCLK_EN(MCLK_EN),
      .HIVEC_2_0(s_hivec_2_0_out[2:0]),
      .HX_2_0(s_hx_2_0_out[2:0]),
      .HX_2_0_N(s_hx_2_0_n_out[2:0]),
      .LOVEC_2_0(s_lovec_2_0_out[2:0]),
      .LX_2_0(s_lx_2_0_out[2:0]),
      .LX_2_0_N(s_lx_2_0_n_out[2:0]),
      .MCLK(s_mclk),
      .N(s_n)
  );

  CGA_INTR_CNTLR_VECGEN_ISMUX ISMUX (
      .FIDBO_2_0(s_fidbo_2_0[2:0]),
      .HIGSN(s_higs_n),
      .HISIN_2_0(s_hisin2_0[2:0]),
      .HISTAT_2_0(s_histat_2_0[2:0]),
      .LOGSN(s_logs_n),
      .LOSIN_2_0(s_losin_2_0[2:0]),
      .LOSTAT_2_0(s_lostat_2_0[2:0]),
      .OESN(s_oes_n)
  );

  CGA_INTR_CNTLR_VECGEN_CMP CMP (
      .HISTAT_2_0(s_histat_2_0[2:0]),
      .HIVEC_2_0(s_hivec_2_0_out[2:0]),
      .HIVGES(s_hivges_n_out),
      .LOSTAT_2_0(s_lostat_2_0[2:0]),
      .LOVEC_2_0(s_lovec_2_0_out[2:0]),
      .LOVGES(s_lovges_out)
  );

  CGA_INTR_CNTLR_VECGEN_STAT STAT (
      .sysclk(sysclk),
      .MCLK_EN(MCLK_EN),
      .FIDBO3(s_fidbo3),
      .FIDBO4(s_fidbo4),
      .G(s_g),
      .HIF(s_hif),
      .HISIN_2_0(s_hisin2_0[2:0]),
      .HISTAT_2_0(s_histat_2_0[2:0]),
      .HIVEC_2_0(s_hivec_2_0_out[2:0]),
      .LOF(s_lof),
      .LOSIN_2_0(s_losin_2_0[2:0]),
      .LOSTAT_2_0(s_lostat_2_0[2:0]),
      .LOVEC_2_0(s_lovec_2_0_out[2:0]),
      .MCLK(s_mclk)
  );

  CGA_INTR_CNTLR_VECGEN_OSMUX OSMUX (
      .HIGSN(s_higs_n),
      .HISTAT_2_0(s_histat_2_0[2:0]),
      .LOGSN(s_logs_n),
      .LOSTAT_2_0(s_lostat_2_0[2:0]),
      .OESN(s_oes_n),
      .PICS_2_0(s_pics_2_0_out[2:0])
  );

  CGA_INTR_CNTLR_VECGEN_PTY PTY (
      .HIDET(s_hidet_out),
      .HIVEC(s_hivec_2_0_out[2:0]),
      .LODET(s_lodet_out),
      .LOVEC(s_lovec_2_0_out[2:0]),
      .MIREQ_15_0_N(s_mireq_15_0_n[15:0])
  );

endmodule
