CGA_WRF_RBLOCK_SEL16¶
Source: Verilog/DELILAH-CPU/CGA_WRF/circuit/CGA_WRF_RBLOCK_SEL16.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_WRF > CGA_WRF_RBLOCK > CGA_WRF_RBLOCK_SEL16
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.WRF.RBLOCK.SEL_0
Used in: CGA_WRF_RBLOCK (all tops)
Contains: A02 x16, NAND_GATE_8_INPUTS x2
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.WRF.RBLOCK.SEL_0. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CPU, MM&M CGA/WRF/RBLOCK/SEL16 WRF: Working Register File (PDF page 61) Last reviewed: 09-NOV-2024 Ronny Hansen

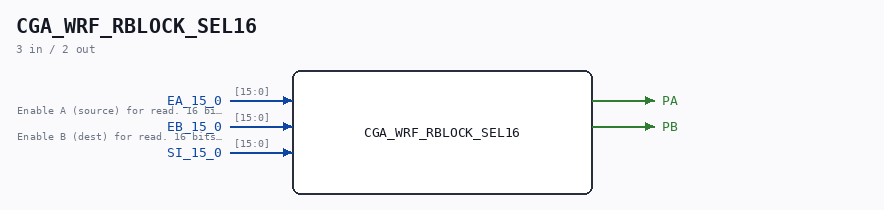

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | [15:0] |
EA_15_0 |
Enable A (source) for read. 16 bits to select register. (from CGA_WRF_RBLOCK.EA_15_0) |
| input | [15:0] |
EB_15_0 |
Enable B (dest) for read. 16 bits to select register. (from CGA_WRF_RBLOCK.EB_15_0) |
| input | [15:0] |
SI_15_0 |
|
| output | 1 |
PA |
|
| output | 1 |
PB |
Verilog source¶
Verilog/DELILAH-CPU/CGA_WRF/circuit/CGA_WRF_RBLOCK_SEL16.v on GitHub.
Show the Verilog of CGA_WRF_RBLOCK_SEL16 (230 lines)
/**************************************************************************
** ND120 CPU, MM&M **
** CGA/WRF/RBLOCK/SEL16 **
** WRF: Working Register File **
** (PDF page 61) **
** **
** Last reviewed: 09-NOV-2024 **
** Ronny Hansen **
***************************************************************************/
module CGA_WRF_RBLOCK_SEL16 (
input [15:0] EA_15_0, //! Enable A (source) for read. 16 bits to select register. (from CGA_WRF_RBLOCK.EA_15_0)
input [15:0] EB_15_0, //! Enable B (dest) for read. 16 bits to select register. (from CGA_WRF_RBLOCK.EB_15_0)
input [15:0] SI_15_0,
output PA,
output PB
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire s_out_pa;
wire s_out_pb;
wire s_za_1_0;
wire s_za_11_10;
wire s_za_13_12;
wire s_za_15_14;
wire s_za_3_2;
wire s_za_5_4;
wire s_za_7_6;
wire s_za_9_8;
wire s_zb_1_0;
wire s_zb_11_10;
wire s_zb_13_12;
wire s_zb_15_14;
wire s_zb_3_2;
wire s_zb_5_4;
wire s_zb_7_6;
wire s_zb_9_8;
wire [15:0] s_ea_15_0;
wire [15:0] s_eb_15_0;
wire [15:0] s_si_15_0;
/*******************************************************************************
** The module functionality is described here **
*******************************************************************************/
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_eb_15_0[15:0] = EB_15_0;
assign s_ea_15_0[15:0] = EA_15_0;
assign s_si_15_0[15:0] = SI_15_0;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign PA = s_out_pa;
assign PB = s_out_pb;
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
/* A SIGNALS */
A02 A15_14 (
.A(s_si_15_0[15]),
.B(s_ea_15_0[15]),
.C(s_si_15_0[14]),
.D(s_ea_15_0[14]),
.Z(s_za_15_14)
);
A02 A13_12 (
.A(s_si_15_0[13]),
.B(s_ea_15_0[13]),
.C(s_si_15_0[12]),
.D(s_ea_15_0[12]),
.Z(s_za_13_12)
);
A02 A11_10 (
.A(s_si_15_0[11]),
.B(s_ea_15_0[11]),
.C(s_si_15_0[10]),
.D(s_ea_15_0[10]),
.Z(s_za_11_10)
);
A02 A9_8 (
.A(s_si_15_0[9]),
.B(s_ea_15_0[9]),
.C(s_si_15_0[8]),
.D(s_ea_15_0[8]),
.Z(s_za_9_8)
);
A02 A7_6 (
.A(s_si_15_0[7]),
.B(s_ea_15_0[7]),
.C(s_si_15_0[6]),
.D(s_ea_15_0[6]),
.Z(s_za_7_6)
);
A02 A5_4 (
.A(s_si_15_0[5]),
.B(s_ea_15_0[5]),
.C(s_si_15_0[4]),
.D(s_ea_15_0[4]),
.Z(s_za_5_4)
);
A02 A3_2 (
.A(s_si_15_0[3]),
.B(s_ea_15_0[3]),
.C(s_si_15_0[2]),
.D(s_ea_15_0[2]),
.Z(s_za_3_2)
);
A02 A1_0 (
.A(s_si_15_0[1]),
.B(s_ea_15_0[1]),
.C(s_si_15_0[0]),
.D(s_ea_15_0[0]),
.Z(s_za_1_0)
);
NAND_GATE_8_INPUTS #(
.BubblesMask(8'h00)
) GATES_1 (
.input1(s_za_15_14),
.input2(s_za_13_12),
.input3(s_za_11_10),
.input4(s_za_9_8),
.input5(s_za_7_6),
.input6(s_za_5_4),
.input7(s_za_3_2),
.input8(s_za_1_0),
.result(s_out_pa)
);
/* B SIGNALS */
A02 B15_14 (
.A(s_si_15_0[15]),
.B(s_eb_15_0[15]),
.C(s_si_15_0[14]),
.D(s_eb_15_0[14]),
.Z(s_zb_15_14)
);
A02 B13_12 (
.A(s_si_15_0[13]),
.B(s_eb_15_0[13]),
.C(s_si_15_0[12]),
.D(s_eb_15_0[12]),
.Z(s_zb_13_12)
);
A02 B11_10 (
.A(s_si_15_0[11]),
.B(s_eb_15_0[11]),
.C(s_si_15_0[10]),
.D(s_eb_15_0[10]),
.Z(s_zb_11_10)
);
A02 B9_8 (
.A(s_si_15_0[9]),
.B(s_eb_15_0[9]),
.C(s_si_15_0[8]),
.D(s_eb_15_0[8]),
.Z(s_zb_9_8)
);
A02 B7_6 (
.A(s_si_15_0[7]),
.B(s_eb_15_0[7]),
.C(s_si_15_0[6]),
.D(s_eb_15_0[6]),
.Z(s_zb_7_6)
);
A02 B5_4 (
.A(s_si_15_0[5]),
.B(s_eb_15_0[5]),
.C(s_si_15_0[4]),
.D(s_eb_15_0[4]),
.Z(s_zb_5_4)
);
A02 B3_2 (
.A(s_si_15_0[3]),
.B(s_eb_15_0[3]),
.C(s_si_15_0[2]),
.D(s_eb_15_0[2]),
.Z(s_zb_3_2)
);
A02 B1_0 (
.A(s_si_15_0[1]),
.B(s_eb_15_0[1]),
.C(s_si_15_0[0]),
.D(s_eb_15_0[0]),
.Z(s_zb_1_0)
);
NAND_GATE_8_INPUTS #(
.BubblesMask(8'h00)
) GATES_2 (
.input1(s_zb_15_14),
.input2(s_zb_13_12),
.input3(s_zb_11_10),
.input4(s_zb_9_8),
.input5(s_zb_7_6),
.input6(s_zb_5_4),
.input7(s_zb_3_2),
.input8(s_zb_1_0),
.result(s_out_pb)
);
endmodule
