CGA_ALU_STS¶
Source: Verilog/DELILAH-CPU/CGA_ALU/circuit/CGA_ALU_STS.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_ALU > CGA_ALU_STS
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.ALU.ALU_STS
Used in: CGA_ALU (all tops)
Contains: MUX31LP x3, MUX41P, NAND_GATE x2, R41P_EN, SCAN_FF_EN x12
Module hierarchy - All modules
Schematic¶

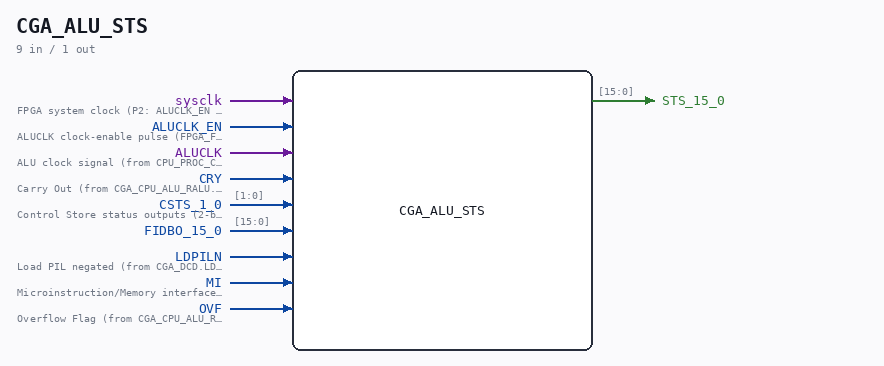

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.ALU.ALU_STS. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/ALU/STS STS REGISTER Page 51 SHEET 1 of 1 Last reviewed: 1-DEC-2024 Ronny Hansen
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
FPGA system clock (P2: ALUCLK_EN capture) |
| input | 1 |
ALUCLK_EN |
ALUCLK clock-enable pulse (FPGA_FF_MODE, else 0) |
| input | 1 |
ALUCLK |
ALU clock signal (from CPU_PROC_CGA_33.ALUCLK) |
| input | 1 |
CRY |
Carry Out (from CGA_CPU_ALU_RALU.CRY) |
| input | [1:0] |
CSTS_1_0 |
Control Store status outputs (2-bit) (from CGA_CPU_ALU_CONTR.CSTS_1_0) |
| input | [15:0] |
FIDBO_15_0 |
|
| input | 1 |
LDPILN |
Load PIL negated (from CGA_DCD.LDPILN) |
| input | 1 |
MI |
Microinstruction/Memory interface indicator (from CGA_CPU_ALU_CONTR.MI) |
| input | 1 |
OVF |
Overflow Flag (from CGA_CPU_ALU_RALU.OVF) |
| output | [15:0] |
STS_15_0 |
Verilog source¶
Verilog/DELILAH-CPU/CGA_ALU/circuit/CGA_ALU_STS.v on GitHub.
Show the Verilog of CGA_ALU_STS (334 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/ALU/STS **
** STS REGISTER **
** **
** Page 51 **
** SHEET 1 of 1 **
** **
** Last reviewed: 1-DEC-2024 **
** Ronny Hansen **
***************************************************************************/
module CGA_ALU_STS (
input sysclk, //! FPGA system clock (P2: ALUCLK_EN capture)
input ALUCLK_EN, //! ALUCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input ALUCLK, //! ALU clock signal (from CPU_PROC_CGA_33.ALUCLK)
input CRY, //! Carry Out (from CGA_CPU_ALU_RALU.CRY)
input [ 1:0] CSTS_1_0, //! Control Store status outputs (2-bit) (from CGA_CPU_ALU_CONTR.CSTS_1_0)
input [15:0] FIDBO_15_0,
input LDPILN, //! Load PIL negated (from CGA_DCD.LDPILN)
input MI, //! Microinstruction/Memory interface indicator (from CGA_CPU_ALU_CONTR.MI)
input OVF, //! Overflow Flag (from CGA_CPU_ALU_RALU.OVF)
output [15:0] STS_15_0
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [ 1:0] s_csts_1_0;
wire [15:0] s_sts_15_0_out;
wire [15:0] s_fidbo_15_0;
wire s_aluclk;
wire s_cry;
wire s_csts_0_n;
wire s_csts_1_n;
wire s_gates1_out;
wire s_gates2_out;
wire s_ists_4;
wire s_ists_5;
wire s_ists_6;
wire s_ists_7;
wire s_ldpil_n;
wire s_mi;
wire s_ovf_n;
wire s_ovf;
wire s_sts_0_n;
wire s_sts_1_n;
wire s_sts_2_n;
wire s_sts_3_n;
wire s_sts_4_n;
wire s_sts_5_n;
wire s_sts_6_n;
wire s_sts_7_n;
wire s_sts_8_n;
wire s_sts_9_n;
wire s_sts_10_n;
wire s_sts_11_n;
wire s_sts_12_n;
wire s_sts_13_n;
wire s_sts_14_n;
wire s_sts_15_n;
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_csts_1_0[1:0] = CSTS_1_0;
assign s_fidbo_15_0[15:0] = FIDBO_15_0;
assign s_ldpil_n = LDPILN;
assign s_aluclk = ALUCLK;
// P2b (docs/plan-fix-unconstrained-clocks.md): in FF mode the ALUCLK-
// clocked registers capture on posedge sysclk gated by ALUCLK_EN
// (aligned to the ALUCLK rise) instead of clocking on the routed net.
`ifdef FPGA_FF_MODE
localparam ALUCLK_CE = 1;
`else
localparam ALUCLK_CE = 0;
`endif
assign s_ovf = OVF;
assign s_mi = MI;
assign s_cry = CRY;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign STS_15_0 = s_sts_15_0_out[15:0];
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// NOT Gate
assign s_sts_15_0_out[0] = ~s_sts_0_n;
assign s_sts_15_0_out[1] = ~s_sts_1_n;
assign s_sts_15_0_out[2] = ~s_sts_2_n;
assign s_sts_15_0_out[3] = ~s_sts_3_n;
assign s_sts_15_0_out[4] = ~s_sts_4_n;
assign s_sts_15_0_out[5] = ~s_sts_5_n;
assign s_sts_15_0_out[6] = ~s_sts_6_n;
assign s_sts_15_0_out[7] = ~s_sts_7_n;
assign s_sts_15_0_out[8] = ~s_sts_8_n;
assign s_sts_15_0_out[9] = ~s_sts_9_n;
assign s_sts_15_0_out[10] = ~s_sts_10_n;
assign s_sts_15_0_out[11] = ~s_sts_11_n;
assign s_sts_15_0_out[12] = ~s_sts_12_n;
assign s_sts_15_0_out[13] = ~s_sts_13_n;
assign s_sts_15_0_out[14] = ~s_sts_14_n;
assign s_sts_15_0_out[15] = ~s_sts_15_n;
assign s_ovf_n = ~s_ovf;
assign s_csts_1_n = ~s_csts_1_0[1];
assign s_csts_0_n = ~s_csts_1_0[0];
/*******************************************************************************
** Here all normal components are defined **
*******************************************************************************/
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_1 (
.input1(s_ovf_n),
.input2(s_sts_5_n),
.result(s_gates1_out)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_2 (
.input1(s_csts_1_0[1]),
.input2(s_csts_1_0[0]),
.result(s_gates2_out)
);
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
MUX41P STS7_MUX (
.A (s_csts_1_n),
.B (s_csts_0_n),
.D0(s_fidbo_15_0[7]),
.D1(s_sts_15_0_out[7]),
.D2(s_mi),
.D3(s_sts_15_0_out[7]),
.Z (s_ists_7)
);
MUX31LP STS6_MUX (
.A (s_csts_1_n),
.B (s_csts_0_n),
.D0(s_fidbo_15_0[6]),
.D1(s_cry),
.D2(s_sts_15_0_out[6]),
.ZN(s_ists_6)
);
MUX31LP STS5_MUX (
.A (s_csts_1_n),
.B (s_csts_0_n),
.D0(s_fidbo_15_0[5]),
.D1(s_gates1_out),
.D2(s_sts_15_0_out[5]),
.ZN(s_ists_5)
);
MUX31LP STS4_MUX (
.A (s_csts_1_n),
.B (s_csts_0_n),
.D0(s_fidbo_15_0[4]),
.D1(s_ovf),
.D2(s_sts_15_0_out[4]),
.ZN(s_ists_4)
);
R41P_EN #(.USE_ENABLE(ALUCLK_CE)) STS_REG_MID (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CP(s_aluclk),
.A (s_ists_7),
.B (s_ists_6),
.C (s_ists_5),
.D (s_ists_4),
.QA (),
.QAN(s_sts_7_n),
.QB (s_sts_6_n),
.QBN(),
.QC (s_sts_5_n),
.QCN(),
.QD (s_sts_4_n),
.QDN()
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) STS15_FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_fidbo_15_0[15]),
.Q (),
.QN (s_sts_15_n),
.TE (s_ldpil_n),
.TI (s_sts_15_0_out[15])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) STS14_FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_fidbo_15_0[14]),
.Q (),
.QN (s_sts_14_n),
.TE (s_ldpil_n),
.TI (s_sts_15_0_out[14])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) STS13_FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_fidbo_15_0[13]),
.Q (),
.QN (s_sts_13_n),
.TE (s_ldpil_n),
.TI (s_sts_15_0_out[13])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) STS12_FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_fidbo_15_0[12]),
.Q (),
.QN (s_sts_12_n),
.TE (s_ldpil_n),
.TI (s_sts_15_0_out[12])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) STS11_FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_fidbo_15_0[11]),
.Q (),
.QN (s_sts_11_n),
.TE (s_ldpil_n),
.TI (s_sts_15_0_out[11])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) STS10_FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_fidbo_15_0[10]),
.Q (),
.QN (s_sts_10_n),
.TE (s_ldpil_n),
.TI (s_sts_15_0_out[10])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) STS9_FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_fidbo_15_0[9]),
.Q (),
.QN (s_sts_9_n),
.TE (s_ldpil_n),
.TI (s_sts_15_0_out[9])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) STS8_FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_fidbo_15_0[8]),
.Q (),
.QN (s_sts_8_n),
.TE (s_ldpil_n),
.TI (s_sts_15_0_out[8])
);
// 7-4?
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) STS3_FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_fidbo_15_0[3]),
.Q (),
.QN (s_sts_3_n),
.TE (s_gates2_out),
.TI (s_sts_15_0_out[3])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) STS2_FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_fidbo_15_0[2]),
.Q (),
.QN (s_sts_2_n),
.TE (s_gates2_out),
.TI (s_sts_15_0_out[2])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) STS1_FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_fidbo_15_0[1]),
.Q (),
.QN (s_sts_1_n),
.TE (s_gates2_out),
.TI (s_sts_15_0_out[1])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) STS0_FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_fidbo_15_0[0]),
.Q (),
.QN (s_sts_0_n),
.TE (s_gates2_out),
.TI (s_sts_15_0_out[0])
);
endmodule
