CGA_INTR_CNTLR_IRQ_MREQ¶

Source: Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_IRQ_MREQ.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_INTR > CGA_INTR_CNTLR > CGA_INTR_CNTLR_IRQ > CGA_INTR_CNTLR_IRQ_MREQ - instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.IRQ.IRQ_MREQ

Used in: CGA_INTR_CNTLR_IRQ (all tops)

Contains: NAND_GATE x16

Module hierarchy - All modules

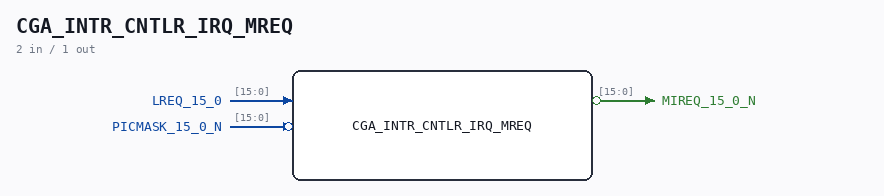

CGA_INTR_CNTLR_IRQ_MREQ symbol

Schematic¶

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.IRQ.IRQ_MREQ. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description¶

ND120 CGA (CPU Gate Array / DELILAH) /CGA/INTR/CNTLR/IRQ/MREQ MREQ Page 81 SHEET 1 of 1 Last reviewed: 10-NOV-2024 Ronny Hansen

Ports¶

Direction	Width	Name
input	`[15:0]`	`LREQ_15_0`
input	`[15:0]`	`PICMASK_15_0_N` (active low)
output	`[15:0]`	`MIREQ_15_0_N` (active low)

Verilog source¶

Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_IRQ_MREQ.v on GitHub.

Show the Verilog of CGA_INTR_CNTLR_IRQ_MREQ (173 lines)

/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH)                                  **
** /CGA/INTR/CNTLR/IRQ/MREQ                                              **
** MREQ                                                                  **
**                                                                       **
** Page 81                                                               **
** SHEET 1 of 1                                                          **
**                                                                       **
** Last reviewed: 10-NOV-2024                                            **
** Ronny Hansen                                                          **
**************************************************************************/

module CGA_INTR_CNTLR_IRQ_MREQ (
    input [15:0] LREQ_15_0,
    input [15:0] PICMASK_15_0_N,

    output [15:0] MIREQ_15_0_N
);

  /*******************************************************************************
   ** The wires are defined here                                                 **
   *******************************************************************************/
  wire [15:0] s_picmask_15_0_n;
  wire [15:0] s_lreq_15_0;
  wire [15:0] s_mireq_15_0_n_out;

  /*******************************************************************************
   ** Here all input connections are defined                                     **
   *******************************************************************************/
  assign s_picmask_15_0_n[15:0] = PICMASK_15_0_N;
  assign s_lreq_15_0[15:0] = LREQ_15_0;

  /*******************************************************************************
   ** Here all output connections are defined                                    **
   *******************************************************************************/
  assign MIREQ_15_0_N = s_mireq_15_0_n_out[15:0];

  /*******************************************************************************
   ** Here all normal components are defined                                     **
   *******************************************************************************/

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_4 (
      .input1(s_lreq_15_0[15]),
      .input2(s_picmask_15_0_n[15]),
      .result(s_mireq_15_0_n_out[15])
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_5 (
      .input1(s_lreq_15_0[14]),
      .input2(s_picmask_15_0_n[14]),
      .result(s_mireq_15_0_n_out[14])
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_6 (
      .input1(s_lreq_15_0[13]),
      .input2(s_picmask_15_0_n[13]),
      .result(s_mireq_15_0_n_out[13])
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_7 (
      .input1(s_lreq_15_0[12]),
      .input2(s_picmask_15_0_n[12]),
      .result(s_mireq_15_0_n_out[12])
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_8 (
      .input1(s_lreq_15_0[11]),
      .input2(s_picmask_15_0_n[11]),
      .result(s_mireq_15_0_n_out[11])
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_9 (
      .input1(s_lreq_15_0[10]),
      .input2(s_picmask_15_0_n[10]),
      .result(s_mireq_15_0_n_out[10])
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_10 (
      .input1(s_lreq_15_0[9]),
      .input2(s_picmask_15_0_n[9]),
      .result(s_mireq_15_0_n_out[9])
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_11 (
      .input1(s_lreq_15_0[8]),
      .input2(s_picmask_15_0_n[8]),
      .result(s_mireq_15_0_n_out[8])
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_12 (
      .input1(s_lreq_15_0[7]),
      .input2(s_picmask_15_0_n[7]),
      .result(s_mireq_15_0_n_out[7])
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_13 (
      .input1(s_lreq_15_0[6]),
      .input2(s_picmask_15_0_n[6]),
      .result(s_mireq_15_0_n_out[6])
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_14 (
      .input1(s_lreq_15_0[5]),
      .input2(s_picmask_15_0_n[5]),
      .result(s_mireq_15_0_n_out[5])
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_15 (
      .input1(s_lreq_15_0[4]),
      .input2(s_picmask_15_0_n[4]),
      .result(s_mireq_15_0_n_out[4])
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_16 (
      .input1(s_lreq_15_0[3]),
      .input2(s_picmask_15_0_n[3]),
      .result(s_mireq_15_0_n_out[3])
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_1 (
      .input1(s_lreq_15_0[2]),
      .input2(s_picmask_15_0_n[2]),
      .result(s_mireq_15_0_n_out[2])
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_2 (
      .input1(s_lreq_15_0[1]),
      .input2(s_picmask_15_0_n[1]),
      .result(s_mireq_15_0_n_out[1])
  );

  NAND_GATE #(
      .BubblesMask(2'b00)
  ) GATES_3 (
      .input1(s_lreq_15_0[0]),
      .input2(s_picmask_15_0_n[0]),
      .result(s_mireq_15_0_n_out[0])
  );



endmodule
