CGA_ALU_GPR¶
Source: Verilog/DELILAH-CPU/CGA_ALU/circuit/CGA_ALU_GPR.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_ALU > CGA_ALU_GPR
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.ALU.ALU_GPR
Used in: CGA_ALU (all tops)
Contains: D_FLIPFLOP_EN, MUX21LP, MUX41P x16, SCAN_FF_EN x15
Module hierarchy - All modules
Schematic¶

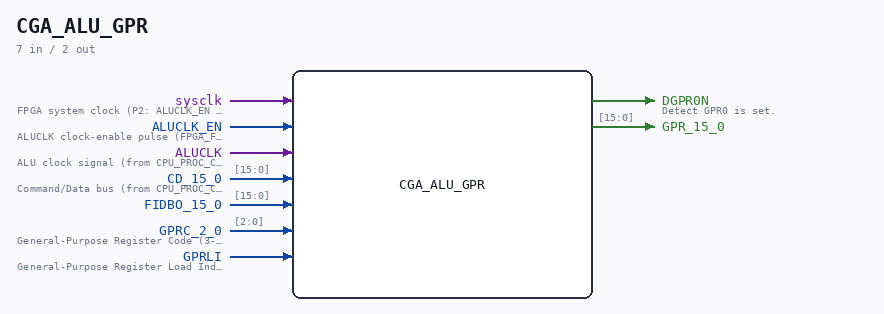

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.ALU.ALU_GPR. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/ALU/GPR Page 50 SHEET 1 of 1 Last reviewed: 20-DEC-2024 Ronny Hansen
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
FPGA system clock (P2: ALUCLK_EN capture) |
| input | 1 |
ALUCLK_EN |
ALUCLK clock-enable pulse (FPGA_FF_MODE, else 0) |
| input | 1 |
ALUCLK |
ALU clock signal (from CPU_PROC_CGA_33.ALUCLK) |
| input | [15:0] |
CD_15_0 |
Command/Data bus (from CPU_PROC_CGA_33.CD_15_0) |
| input | [15:0] |
FIDBO_15_0 |
|
| input | [2:0] |
GPRC_2_0 |
General-Purpose Register Code (3-bit) (from CGA_CPU_ALU_CONTR.GPRC_2_0) |
| input | 1 |
GPRLI |
General-Purpose Register Load Indicator (from CGA_CPU_ALU_CONTR.GPRLI) |
| output | 1 |
DGPR0N |
Detect GPR0 is set. |
| output | [15:0] |
GPR_15_0 |
Verilog source¶
Verilog/DELILAH-CPU/CGA_ALU/circuit/CGA_ALU_GPR.v on GitHub.
Show the Verilog of CGA_ALU_GPR (455 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/ALU/GPR **
** **
** Page 50 **
** SHEET 1 of 1 **
** **
** Last reviewed: 20-DEC-2024 **
** Ronny Hansen **
***************************************************************************/
module CGA_ALU_GPR (
input sysclk, //! FPGA system clock (P2: ALUCLK_EN capture)
input ALUCLK_EN, //! ALUCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input ALUCLK, //! ALU clock signal (from CPU_PROC_CGA_33.ALUCLK)
input [15:0] CD_15_0, //! Command/Data bus (from CPU_PROC_CGA_33.CD_15_0)
input [15:0] FIDBO_15_0,
input [ 2:0] GPRC_2_0, //! General-Purpose Register Code (3-bit) (from CGA_CPU_ALU_CONTR.GPRC_2_0)
input GPRLI, //! General-Purpose Register Load Indicator (from CGA_CPU_ALU_CONTR.GPRLI)
output DGPR0N, //! Detect GPR0 is set.
output [15:0] GPR_15_0
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [15:0] s_cd_15_0;
wire [15:0] s_gpr_15_0_out;
wire [ 2:0] s_gprc_2_0;
wire [15:0] s_fidbo_15_0;
wire s_aluclk;
wire s_dgpr0_n_out;
wire s_gnd;
wire s_gpr0m;
wire s_gpr10m;
wire s_gpr11m;
wire s_gpr12m;
wire s_gpr13m;
wire s_gpr14m;
wire s_gpr15m;
wire s_gpr1m;
wire s_gpr2m;
wire s_gpr3m;
wire s_gpr4m;
wire s_gpr5m;
wire s_gpr6m;
wire s_gpr7m;
wire s_gpr8m;
wire s_gpr9m;
wire s_gprli;
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_cd_15_0[15:0] = CD_15_0;
assign s_gprc_2_0[2:0] = GPRC_2_0;
assign s_fidbo_15_0[15:0] = FIDBO_15_0;
assign s_aluclk = ALUCLK;
// P2b (docs/plan-fix-unconstrained-clocks.md): in FF mode the ALUCLK-
// clocked registers capture on posedge sysclk gated by ALUCLK_EN
// (aligned to the ALUCLK rise) instead of clocking on the routed net.
`ifdef FPGA_FF_MODE
localparam ALUCLK_CE = 1;
`else
localparam ALUCLK_CE = 0;
`endif
assign s_gprli = GPRLI;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign DGPR0N = s_dgpr0_n_out;
assign GPR_15_0 = s_gpr_15_0_out[15:0];
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// Ground
assign s_gnd = 1'b0;
/*******************************************************************************
** Here all normal components are defined **
*******************************************************************************/
D_FLIPFLOP_EN #(
.USE_ENABLE(ALUCLK_CE)
) MEMORY_1 (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.clock(s_aluclk),
.d(s_dgpr0_n_out),
.preset(1'b0),
.q(),
.qBar(s_gpr_15_0_out[0]),
.reset(1'b0),
.tick(1'b1)
);
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
/*** 16 bit MUX41 ***/
MUX41P GPR15M (
.A (s_gprc_2_0[0]),
.B (s_gprc_2_0[1]),
.D0(s_fidbo_15_0[15]),
.D1(s_cd_15_0[15]),
.D2(s_gnd),
.D3(s_gpr_15_0_out[14]),
.Z (s_gpr15m)
);
MUX41P GPR14M (
.A (s_gprc_2_0[0]),
.B (s_gprc_2_0[1]),
.D0(s_fidbo_15_0[14]),
.D1(s_cd_15_0[14]),
.D2(s_gpr_15_0_out[15]),
.D3(s_gpr_15_0_out[13]),
.Z (s_gpr14m)
);
MUX41P GPR13M (
.A (s_gprc_2_0[0]),
.B (s_gprc_2_0[1]),
.D0(s_fidbo_15_0[13]),
.D1(s_cd_15_0[13]),
.D2(s_gpr_15_0_out[14]),
.D3(s_gpr_15_0_out[12]),
.Z (s_gpr13m)
);
MUX41P GPR12M (
.A (s_gprc_2_0[0]),
.B (s_gprc_2_0[1]),
.D0(s_fidbo_15_0[12]),
.D1(s_cd_15_0[12]),
.D2(s_gpr_15_0_out[13]),
.D3(s_gpr_15_0_out[11]),
.Z (s_gpr12m)
);
MUX41P GPR11M (
.A (s_gprc_2_0[0]),
.B (s_gprc_2_0[1]),
.D0(s_fidbo_15_0[11]),
.D1(s_cd_15_0[11]),
.D2(s_gpr_15_0_out[12]),
.D3(s_gpr_15_0_out[10]),
.Z (s_gpr11m)
);
MUX41P GPR10M (
.A (s_gprc_2_0[0]),
.B (s_gprc_2_0[1]),
.D0(s_fidbo_15_0[10]),
.D1(s_cd_15_0[10]),
.D2(s_gpr_15_0_out[11]),
.D3(s_gpr_15_0_out[9]),
.Z (s_gpr10m)
);
MUX41P GPR9M (
.A (s_gprc_2_0[0]),
.B (s_gprc_2_0[1]),
.D0(s_fidbo_15_0[9]),
.D1(s_cd_15_0[9]),
.D2(s_gpr_15_0_out[10]),
.D3(s_gpr_15_0_out[8]),
.Z (s_gpr9m)
);
MUX41P GPR8M (
.A (s_gprc_2_0[0]),
.B (s_gprc_2_0[1]),
.D0(s_fidbo_15_0[8]),
.D1(s_cd_15_0[8]),
.D2(s_gpr_15_0_out[9]),
.D3(s_gpr_15_0_out[7]),
.Z (s_gpr8m)
);
MUX41P GPR7M (
.A (s_gprc_2_0[0]),
.B (s_gprc_2_0[1]),
.D0(s_fidbo_15_0[7]),
.D1(s_cd_15_0[7]),
.D2(s_gpr_15_0_out[8]),
.D3(s_gpr_15_0_out[6]),
.Z (s_gpr7m)
);
MUX41P GPR6M (
.A (s_gprc_2_0[0]),
.B (s_gprc_2_0[1]),
.D0(s_fidbo_15_0[6]),
.D1(s_cd_15_0[6]),
.D2(s_gpr_15_0_out[7]),
.D3(s_gpr_15_0_out[5]),
.Z (s_gpr6m)
);
MUX41P GPR5M (
.A (s_gprc_2_0[0]),
.B (s_gprc_2_0[1]),
.D0(s_fidbo_15_0[5]),
.D1(s_cd_15_0[5]),
.D2(s_gpr_15_0_out[6]),
.D3(s_gpr_15_0_out[4]),
.Z (s_gpr5m)
);
MUX41P GPR4M (
.A (s_gprc_2_0[0]),
.B (s_gprc_2_0[1]),
.D0(s_fidbo_15_0[4]),
.D1(s_cd_15_0[4]),
.D2(s_gpr_15_0_out[5]),
.D3(s_gpr_15_0_out[3]),
.Z (s_gpr4m)
);
MUX41P GPR3M (
.A (s_gprc_2_0[0]),
.B (s_gprc_2_0[1]),
.D0(s_fidbo_15_0[3]),
.D1(s_cd_15_0[3]),
.D2(s_gpr_15_0_out[4]),
.D3(s_gpr_15_0_out[2]),
.Z (s_gpr3m)
);
MUX41P GPR2M (
.A (s_gprc_2_0[0]),
.B (s_gprc_2_0[1]),
.D0(s_fidbo_15_0[2]),
.D1(s_cd_15_0[2]),
.D2(s_gpr_15_0_out[3]),
.D3(s_gpr_15_0_out[1]),
.Z (s_gpr2m)
);
MUX41P GPR1M (
.A (s_gprc_2_0[0]),
.B (s_gprc_2_0[1]),
.D0(s_fidbo_15_0[1]),
.D1(s_cd_15_0[1]),
.D2(s_gpr_15_0_out[2]),
.D3(s_gpr_15_0_out[0]),
.Z (s_gpr1m)
);
MUX41P GPR0M (
.A (s_gprc_2_0[0]),
.B (s_gprc_2_0[1]),
.D0(s_fidbo_15_0[0]),
.D1(s_cd_15_0[0]),
.D2(s_gpr_15_0_out[1]),
.D3(s_gprli),
.Z (s_gpr0m)
);
/*** FF for DGPR0_n ***/
// Need to add a delayed latch here, as there is in the SCAN_FF's to not loose bit 0
// TODO: Convert to FF clocked with FPGA main clock
reg s_gpr0m_delayed;
always@(s_gpr0m)
begin
s_gpr0m_delayed <= s_gpr0m;
end
MUX21LP GPR0M21 (
.A (s_gpr0m_delayed),
.B (s_gpr_15_0_out[0]),
.S (s_gprc_2_0[2]),
.ZN(s_dgpr0_n_out)
);
/*** 16 bit SCAN_FF ***/
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) GPR15FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_gpr15m),
.Q (s_gpr_15_0_out[15]),
.QN (),
.TE (s_gprc_2_0[2]),
.TI (s_gpr_15_0_out[15])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) GPR14FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_gpr14m),
.Q (s_gpr_15_0_out[14]),
.QN (),
.TE (s_gprc_2_0[2]),
.TI (s_gpr_15_0_out[14])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) GPR13FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_gpr13m),
.Q (s_gpr_15_0_out[13]),
.QN (),
.TE (s_gprc_2_0[2]),
.TI (s_gpr_15_0_out[13])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) GPR12FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_gpr12m),
.Q (s_gpr_15_0_out[12]),
.QN (),
.TE (s_gprc_2_0[2]),
.TI (s_gpr_15_0_out[12])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) GPR11FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_gpr11m),
.Q (s_gpr_15_0_out[11]),
.QN (),
.TE (s_gprc_2_0[2]),
.TI (s_gpr_15_0_out[11])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) GPR10FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_gpr10m),
.Q (s_gpr_15_0_out[10]),
.QN (),
.TE (s_gprc_2_0[2]),
.TI (s_gpr_15_0_out[10])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) GPR9FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_gpr9m),
.Q (s_gpr_15_0_out[9]),
.QN (),
.TE (s_gprc_2_0[2]),
.TI (s_gpr_15_0_out[9])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) GPR8FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_gpr8m),
.Q (s_gpr_15_0_out[8]),
.QN (),
.TE (s_gprc_2_0[2]),
.TI (s_gpr_15_0_out[8])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) GPR7FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_gpr7m),
.Q (s_gpr_15_0_out[7]),
.QN (),
.TE (s_gprc_2_0[2]),
.TI (s_gpr_15_0_out[7])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) GPR6FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_gpr6m),
.Q (s_gpr_15_0_out[6]),
.QN (),
.TE (s_gprc_2_0[2]),
.TI (s_gpr_15_0_out[6])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) GPR5FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_gpr5m),
.Q (s_gpr_15_0_out[5]),
.QN (),
.TE (s_gprc_2_0[2]),
.TI (s_gpr_15_0_out[5])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) GPR4FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_gpr4m),
.Q (s_gpr_15_0_out[4]),
.QN (),
.TE (s_gprc_2_0[2]),
.TI (s_gpr_15_0_out[4])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) GPR3FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_gpr3m),
.Q (s_gpr_15_0_out[3]),
.QN (),
.TE (s_gprc_2_0[2]),
.TI (s_gpr_15_0_out[3])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) GPR2FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_gpr2m),
.Q (s_gpr_15_0_out[2]),
.QN (),
.TE (s_gprc_2_0[2]),
.TI (s_gpr_15_0_out[2])
);
SCAN_FF_EN #(.USE_ENABLE(ALUCLK_CE)) GPR1FF (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.CLK(s_aluclk),
.D (s_gpr1m),
.Q (s_gpr_15_0_out[1]),
.QN (),
.TE (s_gprc_2_0[2]),
.TI (s_gpr_15_0_out[1])
);
endmodule
