CGA_ALU_ARG

Source: Verilog/DELILAH-CPU/CGA_ALU/circuit/CGA_ALU_ARG.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_ALU > CGA_ALU_ARG - instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.ALU.ALU_ARG

Used in: CGA_ALU (all tops)

Contains: no other modules.

Module hierarchy - All modules

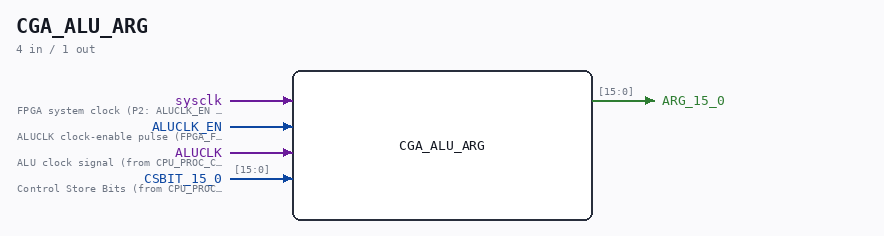

Schematic

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.ALU.ALU_ARG. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

ND120 CGA (CPU Gate Array / DELILAH) /CGA/ALU/ARG ARG REGISTER Page 53 SHEET 1 of 1 Last reviewed: 30-JAN-2025 Ronny Hansen

Ports

Direction	Width	Name	Description
input	1	sysclk	FPGA system clock (P2: ALUCLK_EN capture)
input	1	ALUCLK_EN	ALUCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input	1	ALUCLK	ALU clock signal (from CPU_PROC_CGA_33.ALUCLK)
input	[15:0]	CSBIT_15_0	Control Store Bits (from CPU_PROC_CGA_33.CSBITS[15:0])
output	[15:0]	ARG_15_0

Verilog source

Verilog/DELILAH-CPU/CGA_ALU/circuit/CGA_ALU_ARG.v on GitHub.

Show the Verilog of CGA_ALU_ARG (66 lines)

/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH)                                  **
** /CGA/ALU/ARG                                                          **
** ARG REGISTER                                                          **
**                                                                       **
** Page 53                                                               **
** SHEET 1 of 1                                                          **
**                                                                       **
** Last reviewed: 30-JAN-2025                                            **
** Ronny Hansen                                                          **
***************************************************************************/

module CGA_ALU_ARG (
    input        sysclk,     //! FPGA system clock (P2: ALUCLK_EN capture)
    input        ALUCLK_EN,  //! ALUCLK clock-enable pulse (FPGA_FF_MODE, else 0)
    input        ALUCLK,     //! ALU clock signal (from CPU_PROC_CGA_33.ALUCLK)
    input [15:0] CSBIT_15_0,  //! Control Store Bits (from CPU_PROC_CGA_33.CSBITS[15:0])

    output [15:0] ARG_15_0
);

  /*******************************************************************************
   ** The wires are defined here                                                 **
   *******************************************************************************/
  wire [15:0] s_csbits_15_0;
  wire        s_aluclk;

  reg [15:0] regArg;

  /*******************************************************************************
   ** Here all input connections are defined                                     **
   *******************************************************************************/
  assign s_csbits_15_0[15:0] = CSBIT_15_0;
  assign s_aluclk            = ALUCLK;

  /*******************************************************************************
   ** Here all output connections are defined                                    **
   *******************************************************************************/
   assign ARG_15_0            = regArg;

  /*******************************************************************************
   ** Here all sub-circuits are defined                                          **
   *******************************************************************************/

  // P2b (docs/plan-fix-unconstrained-clocks.md): in FF mode capture on
  // posedge sysclk gated by ALUCLK_EN (aligned to the ALUCLK rise)
  // instead of clocking on the routed net.
`ifdef FPGA_FF_MODE
  /* verilator lint_off UNUSEDSIGNAL */
  wire unused_aluclk = s_aluclk;
  /* verilator lint_on UNUSEDSIGNAL */
  always @(posedge sysclk) begin
    if (ALUCLK_EN) regArg <= s_csbits_15_0;
  end
`else
  /* verilator lint_off UNUSEDSIGNAL */
  wire unused_en = sysclk & ALUCLK_EN;
  /* verilator lint_on UNUSEDSIGNAL */
  always @(posedge s_aluclk) begin
    regArg <= s_csbits_15_0;
  end
`endif


endmodule
