CGA_CPU_ALU_RMUX¶
Source: Verilog/DELILAH-CPU/CGA_ALU/circuit/CGA_CPU_ALU_RMUX.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_ALU > CGA_CPU_ALU_RMUX
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.ALU.ALU_RMUX
Used in: CGA_ALU (all tops)
Contains: RMUX_Gates x16
Module hierarchy - All modules

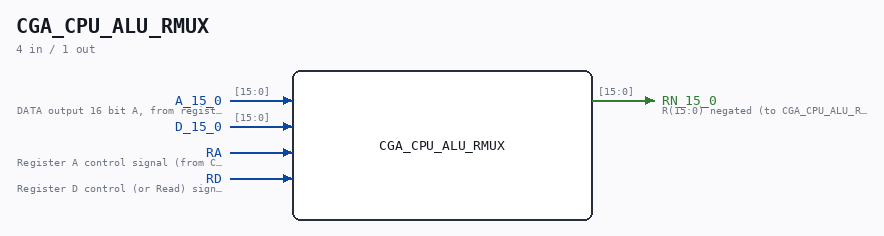

Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.ALU.ALU_RMUX. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/CPU/ALU/RMUX REGISTER MUX Page 44 SHEET 1 of 1 Last reviewed: 10-NOV-2024 Ronny Hansen
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | [15:0] |
A_15_0 |
DATA output 16 bit A, from register selected by LAA_3_0 (from CGA_WRF.A_15_0) |
| input | [15:0] |
D_15_0 |
|
| input | 1 |
RA |
Register A control signal (from CGA_CPU_ALU_CONTR.RA) |
| input | 1 |
RD |
Register D control (or Read) signal (from CGA_CPU_ALU_CONTR.RD) |
| output | [15:0] |
RN_15_0 |
R(15:0) negated (to CGA_CPU_ALU_RALU.RN_15_0) |
Verilog source¶
Verilog/DELILAH-CPU/CGA_ALU/circuit/CGA_CPU_ALU_RMUX.v on GitHub.
Show the Verilog of CGA_CPU_ALU_RMUX (183 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/CPU/ALU/RMUX **
** REGISTER MUX **
** **
** Page 44 **
** SHEET 1 of 1 **
** **
** Last reviewed: 10-NOV-2024 **
** Ronny Hansen **
***************************************************************************/
module CGA_CPU_ALU_RMUX (
input [15:0] A_15_0, //! DATA output 16 bit A, from register selected by LAA_3_0 (from CGA_WRF.A_15_0)
input [15:0] D_15_0,
input RA, //! Register A control signal (from CGA_CPU_ALU_CONTR.RA)
input RD, //! Register D control (or Read) signal (from CGA_CPU_ALU_CONTR.RD)
output [15:0] RN_15_0 //! R(15:0) negated (to CGA_CPU_ALU_RALU.RN_15_0)
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [15:0] s_d_15_0;
wire [15:0] s_a_15_0;
wire [15:0] s_rn_15_0_out;
wire s_ra;
wire s_rd;
/*******************************************************************************
** The module functionality is described here **
*******************************************************************************/
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_a_15_0[15:0] = A_15_0;
assign s_d_15_0[15:0] = D_15_0;
assign s_rd = RD;
assign s_ra = RA;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign RN_15_0 = s_rn_15_0_out[15:0];
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
//TODO: Refactor to ONE 16 bits mux
RMUX_Gates RN15 (
.A (s_a_15_0[15]),
.D (s_d_15_0[15]),
.RA(s_ra),
.RD(s_rd),
.RN(s_rn_15_0_out[15])
);
RMUX_Gates RN14 (
.A (s_a_15_0[14]),
.D (s_d_15_0[14]),
.RA(s_ra),
.RD(s_rd),
.RN(s_rn_15_0_out[14])
);
RMUX_Gates RN13 (
.A (s_a_15_0[13]),
.D (s_d_15_0[13]),
.RA(s_ra),
.RD(s_rd),
.RN(s_rn_15_0_out[13])
);
RMUX_Gates RN12 (
.A (s_a_15_0[12]),
.D (s_d_15_0[12]),
.RA(s_ra),
.RD(s_rd),
.RN(s_rn_15_0_out[12])
);
RMUX_Gates RN11 (
.A (s_a_15_0[11]),
.D (s_d_15_0[11]),
.RA(s_ra),
.RD(s_rd),
.RN(s_rn_15_0_out[11])
);
RMUX_Gates RN10 (
.A (s_a_15_0[10]),
.D (s_d_15_0[10]),
.RA(s_ra),
.RD(s_rd),
.RN(s_rn_15_0_out[10])
);
RMUX_Gates RN9 (
.A (s_a_15_0[9]),
.D (s_d_15_0[9]),
.RA(s_ra),
.RD(s_rd),
.RN(s_rn_15_0_out[9])
);
RMUX_Gates RN8 (
.A (s_a_15_0[8]),
.D (s_d_15_0[8]),
.RA(s_ra),
.RD(s_rd),
.RN(s_rn_15_0_out[8])
);
RMUX_Gates RN7 (
.A (s_a_15_0[7]),
.D (s_d_15_0[7]),
.RA(s_ra),
.RD(s_rd),
.RN(s_rn_15_0_out[7])
);
RMUX_Gates RN6 (
.A (s_a_15_0[6]),
.D (s_d_15_0[6]),
.RA(s_ra),
.RD(s_rd),
.RN(s_rn_15_0_out[6])
);
RMUX_Gates RN5 (
.A (s_a_15_0[5]),
.D (s_d_15_0[5]),
.RA(s_ra),
.RD(s_rd),
.RN(s_rn_15_0_out[5])
);
RMUX_Gates RN4 (
.A (s_a_15_0[4]),
.D (s_d_15_0[4]),
.RA(s_ra),
.RD(s_rd),
.RN(s_rn_15_0_out[4])
);
RMUX_Gates RN3 (
.A (s_a_15_0[3]),
.D (s_d_15_0[3]),
.RA(s_ra),
.RD(s_rd),
.RN(s_rn_15_0_out[3])
);
RMUX_Gates RN2 (
.A (s_a_15_0[2]),
.D (s_d_15_0[2]),
.RA(s_ra),
.RD(s_rd),
.RN(s_rn_15_0_out[2])
);
RMUX_Gates RN1 (
.A (s_a_15_0[1]),
.D (s_d_15_0[1]),
.RA(s_ra),
.RD(s_rd),
.RN(s_rn_15_0_out[1])
);
RMUX_Gates RN0 (
.A (s_a_15_0[0]),
.D (s_d_15_0[0]),
.RA(s_ra),
.RD(s_rd),
.RN(s_rn_15_0_out[0])
);
endmodule
