CGA_WRF_RBLOCK¶
Source: Verilog/DELILAH-CPU/CGA_WRF/circuit/CGA_WRF_RBLOCK.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_WRF > CGA_WRF_RBLOCK
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.WRF.RBLOCK
Used in: CGA_WRF (all tops)
Contains: CGA_WRF_RBLOCK_DR16 x13, CGA_WRF_RBLOCK_LR16 x2, CGA_WRF_RBLOCK_PREG, CGA_WRF_RBLOCK_SEL16 x16
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.WRF.RBLOCK. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CPU, MM&M CGA/WRF/RBLOCK WRF: Working Register File (PDF page 60) Last reviewed: 9-FEB-2025 Ronny Hansen

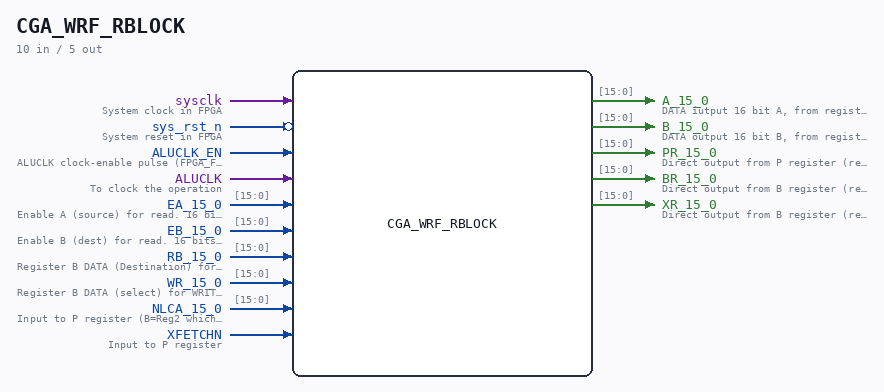

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
System clock in FPGA |
| input | 1 |
sys_rst_n (active low) |
System reset in FPGA |
| input | 1 |
ALUCLK_EN |
ALUCLK clock-enable pulse (FPGA_FF_MODE, else 0) |
| input | 1 |
ALUCLK |
To clock the operation |
| input | [15:0] |
EA_15_0 |
Enable A (source) for read. 16 bits to select register. |
| input | [15:0] |
EB_15_0 |
Enable B (dest) for read. 16 bits to select register. |
| input | [15:0] |
RB_15_0 |
Register B DATA (Destination) for WRITE. 16 bits to select register(s) |
| input | [15:0] |
WR_15_0 |
Register B DATA (select) for WRITE. 16 bits to select register(s) |
| input | [15:0] |
NLCA_15_0 |
Input to P register (B=Reg2 which is P) |
| input | 1 |
XFETCHN |
Input to P register |
| output | [15:0] |
A_15_0 |
DATA iutput 16 bit A, from register selected by EA_15_0 |
| output | [15:0] |
B_15_0 |
DATA output 16 bit B, from register selected by EB_15_0 |
| output | [15:0] |
PR_15_0 |
Direct output from P register (register #2) |
| output | [15:0] |
BR_15_0 |
Direct output from B register (register #3) |
| output | [15:0] |
XR_15_0 |
Direct output from B register (register #7) |
Verilog source¶
Verilog/DELILAH-CPU/CGA_WRF/circuit/CGA_WRF_RBLOCK.v on GitHub.
Show the Verilog of CGA_WRF_RBLOCK (1303 lines)
/**************************************************************************
** ND120 CPU, MM&M **
** CGA/WRF/RBLOCK **
** WRF: Working Register File **
** (PDF page 60) **
** **
** Last reviewed: 9-FEB-2025 **
** Ronny Hansen **
***************************************************************************/
module CGA_WRF_RBLOCK (
// System input signals
input sysclk, //! System clock in FPGA
input sys_rst_n, //! System reset in FPGA
// Input signals
input ALUCLK_EN, //! ALUCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input ALUCLK, //! To clock the operation
input [15:0] EA_15_0, //! Enable A (source) for read. 16 bits to select register.
input [15:0] EB_15_0, //! Enable B (dest) for read. 16 bits to select register.
input [15:0] RB_15_0, //! Register B DATA (Destination) for WRITE. 16 bits to select register(s)
input [15:0] WR_15_0, //! Register B DATA (select) for WRITE. 16 bits to select register(s)
input [15:0] NLCA_15_0, //! Input to P register (B=Reg2 which is P)
input XFETCHN, //! Input to P register
// Output signals
output [15:0] A_15_0, //! DATA iutput 16 bit A, from register selected by EA_15_0
output [15:0] B_15_0, //! DATA output 16 bit B, from register selected by EB_15_0
output [15:0] PR_15_0, //! Direct output from P register (register #2)
output [15:0] BR_15_0, //! Direct output from B register (register #3)
output [15:0] XR_15_0 //! Direct output from B register (register #7)
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [15:0] s_a_15_0_out;
wire [15:0] s_b_15_0_out;
wire [15:0] s_br_15_0_out;
wire [15:0] s_ea_15_0;
wire [15:0] s_eb_15_0;
wire [15:0] s_ncla_15_0;
wire [15:0] s_pr_15_0_out;
`ifdef ND120_ILA_MARK_DEBUG
(* mark_debug = "true" *)
`endif
wire [15:0] s_rb_15_0;
wire [15:0] s_reg0_z_15_0;
wire [15:0] s_reg1_d_15_0;
wire [15:0] s_reg2_p_15_0;
wire [15:0] s_reg3_b_15_0;
wire [15:0] s_reg4_l_15_0;
wire [15:0] s_reg5_a_15_0;
wire [15:0] s_reg6_t_15_0;
wire [15:0] s_reg7_x_15_0;
wire [15:0] s_reg8_sts_15_0;
wire [15:0] s_reg9_r1_15_0;
wire [15:0] s_reg10_r2_15_0;
wire [15:0] s_reg11_r3_15_0;
wire [15:0] s_reg12_r4_15_0;
wire [15:0] s_reg13_r5_15_0;
`ifdef ND120_ILA_MARK_DEBUG
(* mark_debug = "true" *)
`endif
wire [15:0] s_reg14_r6_15_0;
wire [15:0] s_reg15_r7_15_0;
wire [15:0] s_sel0_in_15_0;
wire [15:0] s_sel1_in_15_0;
wire [15:0] s_sel2_in_15_0;
wire [15:0] s_sel3_in_15_0;
wire [15:0] s_sel4_in_15_0;
wire [15:0] s_sel5_in_15_0;
wire [15:0] s_sel6_in_15_0;
wire [15:0] s_sel7_in_15_0;
wire [15:0] s_sel8_in_15_0;
wire [15:0] s_sel9_in_15_0;
wire [15:0] s_sel10_in_15_0;
wire [15:0] s_sel11_in_15_0;
wire [15:0] s_sel12_in_15_0;
wire [15:0] s_sel13_in_15_0;
wire [15:0] s_sel14_in_15_0;
wire [15:0] s_sel15_in_15_0;
`ifdef ND120_ILA_MARK_DEBUG
// Nexys build.tcl -tclargs ila (LFN campaign 24-AUG): scratch register
// R6 (console soft status - the "device activated" bit the IOX 302
// microcode ORs into the returned status), the write-select one-hot,
// and the write-data bus. No functional effect; define set only by
// that build flag.
(* mark_debug = "true" *)
`endif
wire [15:0] s_wr_15_0;
wire [15:0] s_xr_15_0_out;
wire s_aluclk_n;
wire s_aluclk;
wire s_reg0_z_0;
wire s_reg0_z_1;
wire s_reg0_z_10;
wire s_reg0_z_11;
wire s_reg0_z_12;
wire s_reg0_z_13;
wire s_reg0_z_14;
wire s_reg0_z_15;
wire s_reg0_z_2;
wire s_reg0_z_3;
wire s_reg0_z_4;
wire s_reg0_z_5;
wire s_reg0_z_6;
wire s_reg0_z_7;
wire s_reg0_z_8;
wire s_reg0_z_9;
wire s_reg1_d_0;
wire s_reg1_d_1;
wire s_reg1_d_10;
wire s_reg1_d_11;
wire s_reg1_d_12;
wire s_reg1_d_13;
wire s_reg1_d_14;
wire s_reg1_d_15;
wire s_reg1_d_2;
wire s_reg1_d_3;
wire s_reg1_d_4;
wire s_reg1_d_5;
wire s_reg1_d_6;
wire s_reg1_d_7;
wire s_reg1_d_8;
wire s_reg1_d_9;
wire s_reg10_r2_0;
wire s_reg10_r2_1;
wire s_reg10_r2_10;
wire s_reg10_r2_11;
wire s_reg10_r2_12;
wire s_reg10_r2_13;
wire s_reg10_r2_14;
wire s_reg10_r2_15;
wire s_reg10_r2_2;
wire s_reg10_r2_3;
wire s_reg10_r2_4;
wire s_reg10_r2_5;
wire s_reg10_r2_6;
wire s_reg10_r2_7;
wire s_reg10_r2_8;
wire s_reg10_r2_9;
wire s_reg11_r3_0;
wire s_reg11_r3_1;
wire s_reg11_r3_10;
wire s_reg11_r3_11;
wire s_reg11_r3_12;
wire s_reg11_r3_13;
wire s_reg11_r3_14;
wire s_reg11_r3_15;
wire s_reg11_r3_2;
wire s_reg11_r3_3;
wire s_reg11_r3_4;
wire s_reg11_r3_5;
wire s_reg11_r3_6;
wire s_reg11_r3_7;
wire s_reg11_r3_8;
wire s_reg11_r3_9;
wire s_reg12_r4_0;
wire s_reg12_r4_1;
wire s_reg12_r4_10;
wire s_reg12_r4_11;
wire s_reg12_r4_12;
wire s_reg12_r4_13;
wire s_reg12_r4_14;
wire s_reg12_r4_15;
wire s_reg12_r4_2;
wire s_reg12_r4_3;
wire s_reg12_r4_4;
wire s_reg12_r4_5;
wire s_reg12_r4_6;
wire s_reg12_r4_7;
wire s_reg12_r4_8;
wire s_reg12_r4_9;
wire s_reg13_r5_0;
wire s_reg13_r5_1;
wire s_reg13_r5_10;
wire s_reg13_r5_11;
wire s_reg13_r5_12;
wire s_reg13_r5_13;
wire s_reg13_r5_14;
wire s_reg13_r5_15;
wire s_reg13_r5_2;
wire s_reg13_r5_3;
wire s_reg13_r5_4;
wire s_reg13_r5_5;
wire s_reg13_r5_6;
wire s_reg13_r5_7;
wire s_reg13_r5_8;
wire s_reg13_r5_9;
wire s_reg14_r6_0;
wire s_reg14_r6_1;
wire s_reg14_r6_10;
wire s_reg14_r6_11;
wire s_reg14_r6_12;
wire s_reg14_r6_13;
wire s_reg14_r6_14;
wire s_reg14_r6_15;
wire s_reg14_r6_2;
wire s_reg14_r6_3;
wire s_reg14_r6_4;
wire s_reg14_r6_5;
wire s_reg14_r6_6;
wire s_reg14_r6_7;
wire s_reg14_r6_8;
wire s_reg14_r6_9;
wire s_reg15_r7_0;
wire s_reg15_r7_1;
wire s_reg15_r7_10;
wire s_reg15_r7_11;
wire s_reg15_r7_12;
wire s_reg15_r7_13;
wire s_reg15_r7_14;
wire s_reg15_r7_15;
wire s_reg15_r7_2;
wire s_reg15_r7_3;
wire s_reg15_r7_4;
wire s_reg15_r7_5;
wire s_reg15_r7_6;
wire s_reg15_r7_7;
wire s_reg15_r7_8;
wire s_reg15_r7_9;
wire s_reg2_p_0;
wire s_reg2_p_1;
wire s_reg2_p_10;
wire s_reg2_p_11;
wire s_reg2_p_12;
wire s_reg2_p_13;
wire s_reg2_p_14;
wire s_reg2_p_15;
wire s_reg2_p_2;
wire s_reg2_p_3;
wire s_reg2_p_4;
wire s_reg2_p_5;
wire s_reg2_p_6;
wire s_reg2_p_7;
wire s_reg2_p_8;
wire s_reg2_p_9;
wire s_reg3_b_0;
wire s_reg3_b_1;
wire s_reg3_b_10;
wire s_reg3_b_11;
wire s_reg3_b_12;
wire s_reg3_b_13;
wire s_reg3_b_14;
wire s_reg3_b_15;
wire s_reg3_b_2;
wire s_reg3_b_3;
wire s_reg3_b_4;
wire s_reg3_b_5;
wire s_reg3_b_6;
wire s_reg3_b_7;
wire s_reg3_b_8;
wire s_reg3_b_9;
wire s_reg4_l_0;
wire s_reg4_l_1;
wire s_reg4_l_10;
wire s_reg4_l_11;
wire s_reg4_l_12;
wire s_reg4_l_13;
wire s_reg4_l_14;
wire s_reg4_l_15;
wire s_reg4_l_2;
wire s_reg4_l_3;
wire s_reg4_l_4;
wire s_reg4_l_5;
wire s_reg4_l_6;
wire s_reg4_l_7;
wire s_reg4_l_8;
wire s_reg4_l_9;
wire s_reg5_a_0;
wire s_reg5_a_1;
wire s_reg5_a_10;
wire s_reg5_a_11;
wire s_reg5_a_12;
wire s_reg5_a_13;
wire s_reg5_a_14;
wire s_reg5_a_15;
wire s_reg5_a_2;
wire s_reg5_a_3;
wire s_reg5_a_4;
wire s_reg5_a_5;
wire s_reg5_a_6;
wire s_reg5_a_7;
wire s_reg5_a_8;
wire s_reg5_a_9;
wire s_reg6_t_0;
wire s_reg6_t_1;
wire s_reg6_t_10;
wire s_reg6_t_11;
wire s_reg6_t_12;
wire s_reg6_t_13;
wire s_reg6_t_14;
wire s_reg6_t_15;
wire s_reg6_t_2;
wire s_reg6_t_3;
wire s_reg6_t_4;
wire s_reg6_t_5;
wire s_reg6_t_6;
wire s_reg6_t_7;
wire s_reg6_t_8;
wire s_reg6_t_9;
wire s_reg7_x_0;
wire s_reg7_x_1;
wire s_reg7_x_10;
wire s_reg7_x_11;
wire s_reg7_x_12;
wire s_reg7_x_13;
wire s_reg7_x_14;
wire s_reg7_x_15;
wire s_reg7_x_2;
wire s_reg7_x_3;
wire s_reg7_x_4;
wire s_reg7_x_5;
wire s_reg7_x_6;
wire s_reg7_x_7;
wire s_reg7_x_8;
wire s_reg7_x_9;
wire s_reg8_sts_0;
wire s_reg8_sts_1;
wire s_reg8_sts_10;
wire s_reg8_sts_11;
wire s_reg8_sts_12;
wire s_reg8_sts_13;
wire s_reg8_sts_14;
wire s_reg8_sts_15;
wire s_reg8_sts_2;
wire s_reg8_sts_3;
wire s_reg8_sts_4;
wire s_reg8_sts_5;
wire s_reg8_sts_6;
wire s_reg8_sts_7;
wire s_reg8_sts_8;
wire s_reg8_sts_9;
wire s_reg9_r1_0;
wire s_reg9_r1_1;
wire s_reg9_r1_10;
wire s_reg9_r1_11;
wire s_reg9_r1_12;
wire s_reg9_r1_13;
wire s_reg9_r1_14;
wire s_reg9_r1_15;
wire s_reg9_r1_2;
wire s_reg9_r1_3;
wire s_reg9_r1_4;
wire s_reg9_r1_5;
wire s_reg9_r1_6;
wire s_reg9_r1_7;
wire s_reg9_r1_8;
wire s_reg9_r1_9;
wire s_xfetch_n;
/*******************************************************************************
** Here all wiring is defined **
*******************************************************************************/
assign s_sel0_in_15_0[0] = s_reg0_z_0;
assign s_sel0_in_15_0[1] = s_reg1_d_0;
assign s_sel0_in_15_0[2] = s_reg2_p_0;
assign s_sel0_in_15_0[3] = s_reg3_b_0;
assign s_sel0_in_15_0[4] = s_reg4_l_0;
assign s_sel0_in_15_0[5] = s_reg5_a_0;
assign s_sel0_in_15_0[6] = s_reg6_t_0;
assign s_sel0_in_15_0[7] = s_reg7_x_0;
assign s_sel0_in_15_0[8] = s_reg8_sts_0;
assign s_sel0_in_15_0[9] = s_reg9_r1_0;
assign s_sel0_in_15_0[10] = s_reg10_r2_0;
assign s_sel0_in_15_0[11] = s_reg11_r3_0;
assign s_sel0_in_15_0[12] = s_reg12_r4_0;
assign s_sel0_in_15_0[13] = s_reg13_r5_0;
assign s_sel0_in_15_0[14] = s_reg14_r6_0;
assign s_sel0_in_15_0[15] = s_reg15_r7_0;
assign s_sel1_in_15_0[0] = s_reg0_z_1;
assign s_sel1_in_15_0[1] = s_reg1_d_1;
assign s_sel1_in_15_0[2] = s_reg2_p_1;
assign s_sel1_in_15_0[3] = s_reg3_b_1;
assign s_sel1_in_15_0[4] = s_reg4_l_1;
assign s_sel1_in_15_0[5] = s_reg5_a_1;
assign s_sel1_in_15_0[6] = s_reg6_t_1;
assign s_sel1_in_15_0[7] = s_reg7_x_1;
assign s_sel1_in_15_0[8] = s_reg8_sts_1;
assign s_sel1_in_15_0[9] = s_reg9_r1_1;
assign s_sel1_in_15_0[10] = s_reg10_r2_1;
assign s_sel1_in_15_0[11] = s_reg11_r3_1;
assign s_sel1_in_15_0[12] = s_reg12_r4_1;
assign s_sel1_in_15_0[13] = s_reg13_r5_1;
assign s_sel1_in_15_0[14] = s_reg14_r6_1;
assign s_sel1_in_15_0[15] = s_reg15_r7_1;
assign s_sel2_in_15_0[0] = s_reg0_z_2;
assign s_sel2_in_15_0[1] = s_reg1_d_2;
assign s_sel2_in_15_0[2] = s_reg2_p_2;
assign s_sel2_in_15_0[3] = s_reg3_b_2;
assign s_sel2_in_15_0[4] = s_reg4_l_2;
assign s_sel2_in_15_0[5] = s_reg5_a_2;
assign s_sel2_in_15_0[6] = s_reg6_t_2;
assign s_sel2_in_15_0[7] = s_reg7_x_2;
assign s_sel2_in_15_0[8] = s_reg8_sts_2;
assign s_sel2_in_15_0[9] = s_reg9_r1_2;
assign s_sel2_in_15_0[10] = s_reg10_r2_2;
assign s_sel2_in_15_0[11] = s_reg11_r3_2;
assign s_sel2_in_15_0[12] = s_reg12_r4_2;
assign s_sel2_in_15_0[13] = s_reg13_r5_2;
assign s_sel2_in_15_0[14] = s_reg14_r6_2;
assign s_sel2_in_15_0[15] = s_reg15_r7_2;
assign s_sel3_in_15_0[0] = s_reg0_z_3;
assign s_sel3_in_15_0[1] = s_reg1_d_3;
assign s_sel3_in_15_0[2] = s_reg2_p_3;
assign s_sel3_in_15_0[3] = s_reg3_b_3;
assign s_sel3_in_15_0[4] = s_reg4_l_3;
assign s_sel3_in_15_0[5] = s_reg5_a_3;
assign s_sel3_in_15_0[6] = s_reg6_t_3;
assign s_sel3_in_15_0[7] = s_reg7_x_3;
assign s_sel3_in_15_0[8] = s_reg8_sts_3;
assign s_sel3_in_15_0[9] = s_reg9_r1_3;
assign s_sel3_in_15_0[10] = s_reg10_r2_3;
assign s_sel3_in_15_0[11] = s_reg11_r3_3;
assign s_sel3_in_15_0[12] = s_reg12_r4_3;
assign s_sel3_in_15_0[13] = s_reg13_r5_3;
assign s_sel3_in_15_0[14] = s_reg14_r6_3;
assign s_sel3_in_15_0[15] = s_reg15_r7_3;
assign s_sel4_in_15_0[0] = s_reg0_z_4;
assign s_sel4_in_15_0[1] = s_reg1_d_4;
assign s_sel4_in_15_0[2] = s_reg2_p_4;
assign s_sel4_in_15_0[3] = s_reg3_b_4;
assign s_sel4_in_15_0[4] = s_reg4_l_4;
assign s_sel4_in_15_0[5] = s_reg5_a_4;
assign s_sel4_in_15_0[6] = s_reg6_t_4;
assign s_sel4_in_15_0[7] = s_reg7_x_4;
assign s_sel4_in_15_0[8] = s_reg8_sts_4;
assign s_sel4_in_15_0[9] = s_reg9_r1_4;
assign s_sel4_in_15_0[10] = s_reg10_r2_4;
assign s_sel4_in_15_0[11] = s_reg11_r3_4;
assign s_sel4_in_15_0[12] = s_reg12_r4_4;
assign s_sel4_in_15_0[13] = s_reg13_r5_4;
assign s_sel4_in_15_0[14] = s_reg14_r6_4;
assign s_sel4_in_15_0[15] = s_reg15_r7_4;
assign s_sel5_in_15_0[0] = s_reg0_z_5;
assign s_sel5_in_15_0[1] = s_reg1_d_5;
assign s_sel5_in_15_0[2] = s_reg2_p_5;
assign s_sel5_in_15_0[3] = s_reg3_b_5;
assign s_sel5_in_15_0[4] = s_reg4_l_5;
assign s_sel5_in_15_0[5] = s_reg5_a_5;
assign s_sel5_in_15_0[6] = s_reg6_t_5;
assign s_sel5_in_15_0[7] = s_reg7_x_5;
assign s_sel5_in_15_0[8] = s_reg8_sts_5;
assign s_sel5_in_15_0[9] = s_reg9_r1_5;
assign s_sel5_in_15_0[10] = s_reg10_r2_5;
assign s_sel5_in_15_0[11] = s_reg11_r3_5;
assign s_sel5_in_15_0[12] = s_reg12_r4_5;
assign s_sel5_in_15_0[13] = s_reg13_r5_5;
assign s_sel5_in_15_0[14] = s_reg14_r6_5;
assign s_sel5_in_15_0[15] = s_reg15_r7_5;
assign s_sel6_in_15_0[0] = s_reg0_z_6;
assign s_sel6_in_15_0[1] = s_reg1_d_6;
assign s_sel6_in_15_0[2] = s_reg2_p_6;
assign s_sel6_in_15_0[3] = s_reg3_b_6;
assign s_sel6_in_15_0[4] = s_reg4_l_6;
assign s_sel6_in_15_0[5] = s_reg5_a_6;
assign s_sel6_in_15_0[6] = s_reg6_t_6;
assign s_sel6_in_15_0[7] = s_reg7_x_6;
assign s_sel6_in_15_0[8] = s_reg8_sts_6;
assign s_sel6_in_15_0[9] = s_reg9_r1_6;
assign s_sel6_in_15_0[10] = s_reg10_r2_6;
assign s_sel6_in_15_0[11] = s_reg11_r3_6;
assign s_sel6_in_15_0[12] = s_reg12_r4_6;
assign s_sel6_in_15_0[13] = s_reg13_r5_6;
assign s_sel6_in_15_0[14] = s_reg14_r6_6;
assign s_sel6_in_15_0[15] = s_reg15_r7_6;
assign s_sel7_in_15_0[0] = s_reg0_z_7;
assign s_sel7_in_15_0[1] = s_reg1_d_7;
assign s_sel7_in_15_0[2] = s_reg2_p_7;
assign s_sel7_in_15_0[3] = s_reg3_b_7;
assign s_sel7_in_15_0[4] = s_reg4_l_7;
assign s_sel7_in_15_0[5] = s_reg5_a_7;
assign s_sel7_in_15_0[6] = s_reg6_t_7;
assign s_sel7_in_15_0[7] = s_reg7_x_7;
assign s_sel7_in_15_0[8] = s_reg8_sts_7;
assign s_sel7_in_15_0[9] = s_reg9_r1_7;
assign s_sel7_in_15_0[10] = s_reg10_r2_7;
assign s_sel7_in_15_0[11] = s_reg11_r3_7;
assign s_sel7_in_15_0[12] = s_reg12_r4_7;
assign s_sel7_in_15_0[13] = s_reg13_r5_7;
assign s_sel7_in_15_0[14] = s_reg14_r6_7;
assign s_sel7_in_15_0[15] = s_reg15_r7_7;
assign s_sel8_in_15_0[0] = s_reg0_z_8;
assign s_sel8_in_15_0[1] = s_reg1_d_8;
assign s_sel8_in_15_0[2] = s_reg2_p_8;
assign s_sel8_in_15_0[3] = s_reg3_b_8;
assign s_sel8_in_15_0[4] = s_reg4_l_8;
assign s_sel8_in_15_0[5] = s_reg5_a_8;
assign s_sel8_in_15_0[6] = s_reg6_t_8;
assign s_sel8_in_15_0[7] = s_reg7_x_8;
assign s_sel8_in_15_0[8] = s_reg8_sts_8;
assign s_sel8_in_15_0[9] = s_reg9_r1_8;
assign s_sel8_in_15_0[10] = s_reg10_r2_8;
assign s_sel8_in_15_0[11] = s_reg11_r3_8;
assign s_sel8_in_15_0[12] = s_reg12_r4_8;
assign s_sel8_in_15_0[13] = s_reg13_r5_8;
assign s_sel8_in_15_0[14] = s_reg14_r6_8;
assign s_sel8_in_15_0[15] = s_reg15_r7_8;
assign s_sel9_in_15_0[0] = s_reg0_z_9;
assign s_sel9_in_15_0[1] = s_reg1_d_9;
assign s_sel9_in_15_0[2] = s_reg2_p_9;
assign s_sel9_in_15_0[3] = s_reg3_b_9;
assign s_sel9_in_15_0[4] = s_reg4_l_9;
assign s_sel9_in_15_0[5] = s_reg5_a_9;
assign s_sel9_in_15_0[6] = s_reg6_t_9;
assign s_sel9_in_15_0[7] = s_reg7_x_9;
assign s_sel9_in_15_0[8] = s_reg8_sts_9;
assign s_sel9_in_15_0[9] = s_reg9_r1_9;
assign s_sel9_in_15_0[10] = s_reg10_r2_9;
assign s_sel9_in_15_0[11] = s_reg11_r3_9;
assign s_sel9_in_15_0[12] = s_reg12_r4_9;
assign s_sel9_in_15_0[13] = s_reg13_r5_9;
assign s_sel9_in_15_0[14] = s_reg14_r6_9;
assign s_sel9_in_15_0[15] = s_reg15_r7_9;
assign s_sel10_in_15_0[0] = s_reg0_z_10;
assign s_sel10_in_15_0[1] = s_reg1_d_10;
assign s_sel10_in_15_0[2] = s_reg2_p_10;
assign s_sel10_in_15_0[3] = s_reg3_b_10;
assign s_sel10_in_15_0[4] = s_reg4_l_10;
assign s_sel10_in_15_0[5] = s_reg5_a_10;
assign s_sel10_in_15_0[6] = s_reg6_t_10;
assign s_sel10_in_15_0[7] = s_reg7_x_10;
assign s_sel10_in_15_0[8] = s_reg8_sts_10;
assign s_sel10_in_15_0[9] = s_reg9_r1_10;
assign s_sel10_in_15_0[10] = s_reg10_r2_10;
assign s_sel10_in_15_0[11] = s_reg11_r3_10;
assign s_sel10_in_15_0[12] = s_reg12_r4_10;
assign s_sel10_in_15_0[13] = s_reg13_r5_10;
assign s_sel10_in_15_0[14] = s_reg14_r6_10;
assign s_sel10_in_15_0[15] = s_reg15_r7_10;
assign s_sel11_in_15_0[0] = s_reg0_z_11;
assign s_sel11_in_15_0[1] = s_reg1_d_11;
assign s_sel11_in_15_0[2] = s_reg2_p_11;
assign s_sel11_in_15_0[3] = s_reg3_b_11;
assign s_sel11_in_15_0[4] = s_reg4_l_11;
assign s_sel11_in_15_0[5] = s_reg5_a_11;
assign s_sel11_in_15_0[6] = s_reg6_t_11;
assign s_sel11_in_15_0[7] = s_reg7_x_11;
assign s_sel11_in_15_0[8] = s_reg8_sts_11;
assign s_sel11_in_15_0[9] = s_reg9_r1_11;
assign s_sel11_in_15_0[10] = s_reg10_r2_11;
assign s_sel11_in_15_0[11] = s_reg11_r3_11;
assign s_sel11_in_15_0[12] = s_reg12_r4_11;
assign s_sel11_in_15_0[13] = s_reg13_r5_11;
assign s_sel11_in_15_0[14] = s_reg14_r6_11;
assign s_sel11_in_15_0[15] = s_reg15_r7_11;
assign s_sel12_in_15_0[0] = s_reg0_z_12;
assign s_sel12_in_15_0[1] = s_reg1_d_12;
assign s_sel12_in_15_0[2] = s_reg2_p_12;
assign s_sel12_in_15_0[3] = s_reg3_b_12;
assign s_sel12_in_15_0[4] = s_reg4_l_12;
assign s_sel12_in_15_0[5] = s_reg5_a_12;
assign s_sel12_in_15_0[6] = s_reg6_t_12;
assign s_sel12_in_15_0[7] = s_reg7_x_12;
assign s_sel12_in_15_0[8] = s_reg8_sts_12;
assign s_sel12_in_15_0[9] = s_reg9_r1_12;
assign s_sel12_in_15_0[10] = s_reg10_r2_12;
assign s_sel12_in_15_0[11] = s_reg11_r3_12;
assign s_sel12_in_15_0[12] = s_reg12_r4_12;
assign s_sel12_in_15_0[13] = s_reg13_r5_12;
assign s_sel12_in_15_0[14] = s_reg14_r6_12;
assign s_sel12_in_15_0[15] = s_reg15_r7_12;
assign s_sel13_in_15_0[0] = s_reg0_z_13;
assign s_sel13_in_15_0[1] = s_reg1_d_13;
assign s_sel13_in_15_0[2] = s_reg2_p_13;
assign s_sel13_in_15_0[3] = s_reg3_b_13;
assign s_sel13_in_15_0[4] = s_reg4_l_13;
assign s_sel13_in_15_0[5] = s_reg5_a_13;
assign s_sel13_in_15_0[6] = s_reg6_t_13;
assign s_sel13_in_15_0[7] = s_reg7_x_13;
assign s_sel13_in_15_0[8] = s_reg8_sts_13;
assign s_sel13_in_15_0[9] = s_reg9_r1_13;
assign s_sel13_in_15_0[10] = s_reg10_r2_13;
assign s_sel13_in_15_0[11] = s_reg11_r3_13;
assign s_sel13_in_15_0[12] = s_reg12_r4_13;
assign s_sel13_in_15_0[13] = s_reg13_r5_13;
assign s_sel13_in_15_0[14] = s_reg14_r6_13;
assign s_sel13_in_15_0[15] = s_reg15_r7_13;
assign s_sel14_in_15_0[0] = s_reg0_z_14;
assign s_sel14_in_15_0[1] = s_reg1_d_14;
assign s_sel14_in_15_0[2] = s_reg2_p_14;
assign s_sel14_in_15_0[3] = s_reg3_b_14;
assign s_sel14_in_15_0[4] = s_reg4_l_14;
assign s_sel14_in_15_0[5] = s_reg5_a_14;
assign s_sel14_in_15_0[6] = s_reg6_t_14;
assign s_sel14_in_15_0[7] = s_reg7_x_14;
assign s_sel14_in_15_0[8] = s_reg8_sts_14;
assign s_sel14_in_15_0[9] = s_reg9_r1_14;
assign s_sel14_in_15_0[10] = s_reg10_r2_14;
assign s_sel14_in_15_0[11] = s_reg11_r3_14;
assign s_sel14_in_15_0[12] = s_reg12_r4_14;
assign s_sel14_in_15_0[13] = s_reg13_r5_14;
assign s_sel14_in_15_0[14] = s_reg14_r6_14;
assign s_sel14_in_15_0[15] = s_reg15_r7_14;
assign s_sel15_in_15_0[0] = s_reg0_z_15;
assign s_sel15_in_15_0[1] = s_reg1_d_15;
assign s_sel15_in_15_0[2] = s_reg2_p_15;
assign s_sel15_in_15_0[3] = s_reg3_b_15;
assign s_sel15_in_15_0[4] = s_reg4_l_15;
assign s_sel15_in_15_0[5] = s_reg5_a_15;
assign s_sel15_in_15_0[6] = s_reg6_t_15;
assign s_sel15_in_15_0[7] = s_reg7_x_15;
assign s_sel15_in_15_0[8] = s_reg8_sts_15;
assign s_sel15_in_15_0[9] = s_reg9_r1_15;
assign s_sel15_in_15_0[10] = s_reg10_r2_15;
assign s_sel15_in_15_0[11] = s_reg11_r3_15;
assign s_sel15_in_15_0[12] = s_reg12_r4_15;
assign s_sel15_in_15_0[13] = s_reg13_r5_15;
assign s_sel15_in_15_0[14] = s_reg14_r6_15;
assign s_sel15_in_15_0[15] = s_reg15_r7_15;
/* Map to wires.. TODO: connect sel_ inputs direct instead*/
assign s_reg0_z_0 = s_reg0_z_15_0[0];
assign s_reg0_z_1 = s_reg0_z_15_0[1];
assign s_reg0_z_2 = s_reg0_z_15_0[2];
assign s_reg0_z_3 = s_reg0_z_15_0[3];
assign s_reg0_z_4 = s_reg0_z_15_0[4];
assign s_reg0_z_5 = s_reg0_z_15_0[5];
assign s_reg0_z_6 = s_reg0_z_15_0[6];
assign s_reg0_z_7 = s_reg0_z_15_0[7];
assign s_reg0_z_8 = s_reg0_z_15_0[8];
assign s_reg0_z_9 = s_reg0_z_15_0[9];
assign s_reg0_z_10 = s_reg0_z_15_0[10];
assign s_reg0_z_11 = s_reg0_z_15_0[11];
assign s_reg0_z_12 = s_reg0_z_15_0[12];
assign s_reg0_z_13 = s_reg0_z_15_0[13];
assign s_reg0_z_14 = s_reg0_z_15_0[14];
assign s_reg0_z_15 = s_reg0_z_15_0[15];
assign s_reg1_d_0 = s_reg1_d_15_0[0];
assign s_reg1_d_1 = s_reg1_d_15_0[1];
assign s_reg1_d_2 = s_reg1_d_15_0[2];
assign s_reg1_d_3 = s_reg1_d_15_0[3];
assign s_reg1_d_4 = s_reg1_d_15_0[4];
assign s_reg1_d_5 = s_reg1_d_15_0[5];
assign s_reg1_d_6 = s_reg1_d_15_0[6];
assign s_reg1_d_7 = s_reg1_d_15_0[7];
assign s_reg1_d_8 = s_reg1_d_15_0[8];
assign s_reg1_d_9 = s_reg1_d_15_0[9];
assign s_reg1_d_10 = s_reg1_d_15_0[10];
assign s_reg1_d_11 = s_reg1_d_15_0[11];
assign s_reg1_d_12 = s_reg1_d_15_0[12];
assign s_reg1_d_13 = s_reg1_d_15_0[13];
assign s_reg1_d_14 = s_reg1_d_15_0[14];
assign s_reg1_d_15 = s_reg1_d_15_0[15];
assign s_reg2_p_0 = s_reg2_p_15_0[0];
assign s_reg2_p_1 = s_reg2_p_15_0[1];
assign s_reg2_p_2 = s_reg2_p_15_0[2];
assign s_reg2_p_3 = s_reg2_p_15_0[3];
assign s_reg2_p_4 = s_reg2_p_15_0[4];
assign s_reg2_p_5 = s_reg2_p_15_0[5];
assign s_reg2_p_6 = s_reg2_p_15_0[6];
assign s_reg2_p_7 = s_reg2_p_15_0[7];
assign s_reg2_p_8 = s_reg2_p_15_0[8];
assign s_reg2_p_9 = s_reg2_p_15_0[9];
assign s_reg2_p_10 = s_reg2_p_15_0[10];
assign s_reg2_p_11 = s_reg2_p_15_0[11];
assign s_reg2_p_12 = s_reg2_p_15_0[12];
assign s_reg2_p_13 = s_reg2_p_15_0[13];
assign s_reg2_p_14 = s_reg2_p_15_0[14];
assign s_reg2_p_15 = s_reg2_p_15_0[15];
assign s_reg3_b_0 = s_reg3_b_15_0[0];
assign s_reg3_b_1 = s_reg3_b_15_0[1];
assign s_reg3_b_2 = s_reg3_b_15_0[2];
assign s_reg3_b_3 = s_reg3_b_15_0[3];
assign s_reg3_b_4 = s_reg3_b_15_0[4];
assign s_reg3_b_5 = s_reg3_b_15_0[5];
assign s_reg3_b_6 = s_reg3_b_15_0[6];
assign s_reg3_b_7 = s_reg3_b_15_0[7];
assign s_reg3_b_8 = s_reg3_b_15_0[8];
assign s_reg3_b_9 = s_reg3_b_15_0[9];
assign s_reg3_b_10 = s_reg3_b_15_0[10];
assign s_reg3_b_11 = s_reg3_b_15_0[11];
assign s_reg3_b_12 = s_reg3_b_15_0[12];
assign s_reg3_b_13 = s_reg3_b_15_0[13];
assign s_reg3_b_14 = s_reg3_b_15_0[14];
assign s_reg3_b_15 = s_reg3_b_15_0[15];
assign s_reg4_l_0 = s_reg4_l_15_0[0];
assign s_reg4_l_1 = s_reg4_l_15_0[1];
assign s_reg4_l_2 = s_reg4_l_15_0[2];
assign s_reg4_l_3 = s_reg4_l_15_0[3];
assign s_reg4_l_4 = s_reg4_l_15_0[4];
assign s_reg4_l_5 = s_reg4_l_15_0[5];
assign s_reg4_l_6 = s_reg4_l_15_0[6];
assign s_reg4_l_7 = s_reg4_l_15_0[7];
assign s_reg4_l_8 = s_reg4_l_15_0[8];
assign s_reg4_l_9 = s_reg4_l_15_0[9];
assign s_reg5_a_0 = s_reg5_a_15_0[0];
assign s_reg4_l_10 = s_reg4_l_15_0[10];
assign s_reg4_l_11 = s_reg4_l_15_0[11];
assign s_reg4_l_12 = s_reg4_l_15_0[12];
assign s_reg4_l_13 = s_reg4_l_15_0[13];
assign s_reg4_l_14 = s_reg4_l_15_0[14];
assign s_reg4_l_15 = s_reg4_l_15_0[15];
assign s_reg5_a_1 = s_reg5_a_15_0[1];
assign s_reg5_a_2 = s_reg5_a_15_0[2];
assign s_reg5_a_3 = s_reg5_a_15_0[3];
assign s_reg5_a_4 = s_reg5_a_15_0[4];
assign s_reg5_a_5 = s_reg5_a_15_0[5];
assign s_reg5_a_6 = s_reg5_a_15_0[6];
assign s_reg5_a_7 = s_reg5_a_15_0[7];
assign s_reg5_a_8 = s_reg5_a_15_0[8];
assign s_reg5_a_9 = s_reg5_a_15_0[9];
assign s_reg5_a_10 = s_reg5_a_15_0[10];
assign s_reg5_a_11 = s_reg5_a_15_0[11];
assign s_reg5_a_12 = s_reg5_a_15_0[12];
assign s_reg5_a_13 = s_reg5_a_15_0[13];
assign s_reg5_a_14 = s_reg5_a_15_0[14];
assign s_reg5_a_15 = s_reg5_a_15_0[15];
assign s_reg6_t_0 = s_reg6_t_15_0[0];
assign s_reg6_t_1 = s_reg6_t_15_0[1];
assign s_reg6_t_2 = s_reg6_t_15_0[2];
assign s_reg6_t_3 = s_reg6_t_15_0[3];
assign s_reg6_t_4 = s_reg6_t_15_0[4];
assign s_reg6_t_5 = s_reg6_t_15_0[5];
assign s_reg6_t_6 = s_reg6_t_15_0[6];
assign s_reg6_t_7 = s_reg6_t_15_0[7];
assign s_reg6_t_8 = s_reg6_t_15_0[8];
assign s_reg6_t_9 = s_reg6_t_15_0[9];
assign s_reg6_t_10 = s_reg6_t_15_0[10];
assign s_reg6_t_11 = s_reg6_t_15_0[11];
assign s_reg6_t_12 = s_reg6_t_15_0[12];
assign s_reg6_t_13 = s_reg6_t_15_0[13];
assign s_reg6_t_14 = s_reg6_t_15_0[14];
assign s_reg6_t_15 = s_reg6_t_15_0[15];
assign s_reg7_x_0 = s_reg7_x_15_0[0];
assign s_reg7_x_1 = s_reg7_x_15_0[1];
assign s_reg7_x_2 = s_reg7_x_15_0[2];
assign s_reg7_x_3 = s_reg7_x_15_0[3];
assign s_reg7_x_4 = s_reg7_x_15_0[4];
assign s_reg7_x_5 = s_reg7_x_15_0[5];
assign s_reg7_x_6 = s_reg7_x_15_0[6];
assign s_reg7_x_7 = s_reg7_x_15_0[7];
assign s_reg7_x_8 = s_reg7_x_15_0[8];
assign s_reg7_x_9 = s_reg7_x_15_0[9];
assign s_reg7_x_11 = s_reg7_x_15_0[11];
assign s_reg7_x_10 = s_reg7_x_15_0[10];
assign s_reg7_x_12 = s_reg7_x_15_0[12];
assign s_reg7_x_13 = s_reg7_x_15_0[13];
assign s_reg7_x_14 = s_reg7_x_15_0[14];
assign s_reg7_x_15 = s_reg7_x_15_0[15];
assign s_reg8_sts_0 = s_reg8_sts_15_0[0];
assign s_reg8_sts_1 = s_reg8_sts_15_0[1];
assign s_reg8_sts_2 = s_reg8_sts_15_0[2];
assign s_reg8_sts_3 = s_reg8_sts_15_0[3];
assign s_reg8_sts_4 = s_reg8_sts_15_0[4];
assign s_reg8_sts_5 = s_reg8_sts_15_0[5];
assign s_reg8_sts_6 = s_reg8_sts_15_0[6];
assign s_reg8_sts_7 = s_reg8_sts_15_0[7];
assign s_reg8_sts_8 = s_reg8_sts_15_0[8];
assign s_reg8_sts_9 = s_reg8_sts_15_0[9];
assign s_reg8_sts_10 = s_reg8_sts_15_0[10];
assign s_reg8_sts_11 = s_reg8_sts_15_0[11];
assign s_reg8_sts_12 = s_reg8_sts_15_0[12];
assign s_reg8_sts_13 = s_reg8_sts_15_0[13];
assign s_reg8_sts_14 = s_reg8_sts_15_0[14];
assign s_reg8_sts_15 = s_reg8_sts_15_0[15];
assign s_reg9_r1_0 = s_reg9_r1_15_0[0];
assign s_reg9_r1_1 = s_reg9_r1_15_0[1];
assign s_reg9_r1_2 = s_reg9_r1_15_0[2];
assign s_reg9_r1_3 = s_reg9_r1_15_0[3];
assign s_reg9_r1_4 = s_reg9_r1_15_0[4];
assign s_reg9_r1_5 = s_reg9_r1_15_0[5];
assign s_reg9_r1_6 = s_reg9_r1_15_0[6];
assign s_reg9_r1_7 = s_reg9_r1_15_0[7];
assign s_reg9_r1_8 = s_reg9_r1_15_0[8];
assign s_reg9_r1_9 = s_reg9_r1_15_0[9];
assign s_reg9_r1_10 = s_reg9_r1_15_0[10];
assign s_reg9_r1_11 = s_reg9_r1_15_0[11];
assign s_reg9_r1_12 = s_reg9_r1_15_0[12];
assign s_reg9_r1_13 = s_reg9_r1_15_0[13];
assign s_reg9_r1_14 = s_reg9_r1_15_0[14];
assign s_reg9_r1_15 = s_reg9_r1_15_0[15];
assign s_reg10_r2_0 = s_reg10_r2_15_0[0];
assign s_reg10_r2_1 = s_reg10_r2_15_0[1];
assign s_reg10_r2_2 = s_reg10_r2_15_0[2];
assign s_reg10_r2_3 = s_reg10_r2_15_0[3];
assign s_reg10_r2_4 = s_reg10_r2_15_0[4];
assign s_reg10_r2_5 = s_reg10_r2_15_0[5];
assign s_reg10_r2_6 = s_reg10_r2_15_0[6];
assign s_reg10_r2_7 = s_reg10_r2_15_0[7];
assign s_reg10_r2_8 = s_reg10_r2_15_0[8];
assign s_reg10_r2_9 = s_reg10_r2_15_0[9];
assign s_reg10_r2_10 = s_reg10_r2_15_0[10];
assign s_reg10_r2_11 = s_reg10_r2_15_0[11];
assign s_reg10_r2_12 = s_reg10_r2_15_0[12];
assign s_reg10_r2_13 = s_reg10_r2_15_0[13];
assign s_reg10_r2_14 = s_reg10_r2_15_0[14];
assign s_reg10_r2_15 = s_reg10_r2_15_0[15];
assign s_reg11_r3_0 = s_reg11_r3_15_0[0];
assign s_reg11_r3_1 = s_reg11_r3_15_0[1];
assign s_reg11_r3_2 = s_reg11_r3_15_0[2];
assign s_reg11_r3_3 = s_reg11_r3_15_0[3];
assign s_reg11_r3_4 = s_reg11_r3_15_0[4];
assign s_reg11_r3_5 = s_reg11_r3_15_0[5];
assign s_reg11_r3_6 = s_reg11_r3_15_0[6];
assign s_reg11_r3_7 = s_reg11_r3_15_0[7];
assign s_reg11_r3_8 = s_reg11_r3_15_0[8];
assign s_reg11_r3_9 = s_reg11_r3_15_0[9];
assign s_reg11_r3_10 = s_reg11_r3_15_0[10];
assign s_reg11_r3_11 = s_reg11_r3_15_0[11];
assign s_reg11_r3_12 = s_reg11_r3_15_0[12];
assign s_reg11_r3_13 = s_reg11_r3_15_0[13];
assign s_reg11_r3_14 = s_reg11_r3_15_0[14];
assign s_reg11_r3_15 = s_reg11_r3_15_0[15];
assign s_reg12_r4_0 = s_reg12_r4_15_0[0];
assign s_reg12_r4_1 = s_reg12_r4_15_0[1];
assign s_reg12_r4_2 = s_reg12_r4_15_0[2];
assign s_reg12_r4_3 = s_reg12_r4_15_0[3];
assign s_reg12_r4_4 = s_reg12_r4_15_0[4];
assign s_reg12_r4_5 = s_reg12_r4_15_0[5];
assign s_reg12_r4_6 = s_reg12_r4_15_0[6];
assign s_reg12_r4_7 = s_reg12_r4_15_0[7];
assign s_reg12_r4_8 = s_reg12_r4_15_0[8];
assign s_reg12_r4_9 = s_reg12_r4_15_0[9];
assign s_reg12_r4_10 = s_reg12_r4_15_0[10];
assign s_reg12_r4_11 = s_reg12_r4_15_0[11];
assign s_reg12_r4_12 = s_reg12_r4_15_0[12];
assign s_reg12_r4_13 = s_reg12_r4_15_0[13];
assign s_reg12_r4_14 = s_reg12_r4_15_0[14];
assign s_reg12_r4_15 = s_reg12_r4_15_0[15];
assign s_reg13_r5_0 = s_reg13_r5_15_0[0];
assign s_reg13_r5_1 = s_reg13_r5_15_0[1];
assign s_reg13_r5_10 = s_reg13_r5_15_0[10];
assign s_reg13_r5_11 = s_reg13_r5_15_0[11];
assign s_reg13_r5_12 = s_reg13_r5_15_0[12];
assign s_reg13_r5_13 = s_reg13_r5_15_0[13];
assign s_reg13_r5_14 = s_reg13_r5_15_0[14];
assign s_reg13_r5_15 = s_reg13_r5_15_0[15];
assign s_reg13_r5_2 = s_reg13_r5_15_0[2];
assign s_reg13_r5_3 = s_reg13_r5_15_0[3];
assign s_reg13_r5_4 = s_reg13_r5_15_0[4];
assign s_reg13_r5_5 = s_reg13_r5_15_0[5];
assign s_reg13_r5_6 = s_reg13_r5_15_0[6];
assign s_reg13_r5_7 = s_reg13_r5_15_0[7];
assign s_reg13_r5_8 = s_reg13_r5_15_0[8];
assign s_reg13_r5_9 = s_reg13_r5_15_0[9];
assign s_reg14_r6_0 = s_reg14_r6_15_0[0];
assign s_reg14_r6_1 = s_reg14_r6_15_0[1];
assign s_reg14_r6_10 = s_reg14_r6_15_0[10];
assign s_reg14_r6_11 = s_reg14_r6_15_0[11];
assign s_reg14_r6_12 = s_reg14_r6_15_0[12];
assign s_reg14_r6_13 = s_reg14_r6_15_0[13];
assign s_reg14_r6_14 = s_reg14_r6_15_0[14];
assign s_reg14_r6_15 = s_reg14_r6_15_0[15];
assign s_reg14_r6_2 = s_reg14_r6_15_0[2];
assign s_reg14_r6_3 = s_reg14_r6_15_0[3];
assign s_reg14_r6_4 = s_reg14_r6_15_0[4];
assign s_reg14_r6_5 = s_reg14_r6_15_0[5];
assign s_reg14_r6_6 = s_reg14_r6_15_0[6];
assign s_reg14_r6_7 = s_reg14_r6_15_0[7];
assign s_reg14_r6_8 = s_reg14_r6_15_0[8];
assign s_reg14_r6_9 = s_reg14_r6_15_0[9];
assign s_reg15_r7_0 = s_reg15_r7_15_0[0];
assign s_reg15_r7_1 = s_reg15_r7_15_0[1];
assign s_reg15_r7_10 = s_reg15_r7_15_0[10];
assign s_reg15_r7_11 = s_reg15_r7_15_0[11];
assign s_reg15_r7_12 = s_reg15_r7_15_0[12];
assign s_reg15_r7_13 = s_reg15_r7_15_0[13];
assign s_reg15_r7_14 = s_reg15_r7_15_0[14];
assign s_reg15_r7_15 = s_reg15_r7_15_0[15];
assign s_reg15_r7_2 = s_reg15_r7_15_0[2];
assign s_reg15_r7_3 = s_reg15_r7_15_0[3];
assign s_reg15_r7_4 = s_reg15_r7_15_0[4];
assign s_reg15_r7_5 = s_reg15_r7_15_0[5];
assign s_reg15_r7_6 = s_reg15_r7_15_0[6];
assign s_reg15_r7_7 = s_reg15_r7_15_0[7];
assign s_reg15_r7_8 = s_reg15_r7_15_0[8];
assign s_reg15_r7_9 = s_reg15_r7_15_0[9];
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_rb_15_0[15:0] = RB_15_0;
assign s_ncla_15_0[15:0] = NLCA_15_0;
assign s_wr_15_0[15:0] = WR_15_0;
assign s_eb_15_0[15:0] = EB_15_0;
assign s_ea_15_0[15:0] = EA_15_0;
assign s_xfetch_n = XFETCHN;
assign s_aluclk_n = ~ALUCLK;
assign s_aluclk = ALUCLK;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign A_15_0 = s_a_15_0_out[15:0];
assign BR_15_0 = s_br_15_0_out[15:0];
assign B_15_0 = s_b_15_0_out[15:0];
assign PR_15_0 = s_pr_15_0_out[15:0];
assign XR_15_0 = s_xr_15_0_out[15:0];
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
// Register 0 (Z)
CGA_WRF_RBLOCK_DR16 Z_REG_0 (
.sysclk (sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
// Input signals
.ALUCLK_EN(ALUCLK_EN),
.ALUCLK(s_aluclk),
.RB_15_0(s_rb_15_0[15:0]),
.REG_15_0(s_reg0_z_15_0[15:0]),
.WR(s_wr_15_0[0])
);
// Regster 1 (D)
CGA_WRF_RBLOCK_DR16 D_REG_1 (
.sysclk (sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
// Input signals
.ALUCLK_EN(ALUCLK_EN),
.ALUCLK(s_aluclk),
.RB_15_0(s_rb_15_0[15:0]),
.REG_15_0(s_reg1_d_15_0[15:0]),
.WR(s_wr_15_0[1])
);
// Register 2 (P)
CGA_WRF_RBLOCK_PREG P_REG_2 (
.sysclk (sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
// Input signals
.ALUCLK_EN(ALUCLK_EN),
.ALUCLK(s_aluclk),
.ALUCLKN(s_aluclk_n),
.NLCA_15_0(s_ncla_15_0[15:0]),
.PR_15_0(s_pr_15_0_out[15:0]),
.P_15_0(s_reg2_p_15_0[15:0]),
.RB_15_0(s_rb_15_0[15:0]),
.WR2(s_wr_15_0[2]),
.XFETCHN(s_xfetch_n)
);
// Register 3 (B)
CGA_WRF_RBLOCK_LR16 B_REG_3 (
.sysclk (sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
// Input signals
.ALUCLK_EN(ALUCLK_EN),
.ALUCLK(s_aluclk),
.LR_15_0(s_br_15_0_out[15:0]),
.RB_15_0(s_rb_15_0[15:0]),
.R_15_0(s_reg3_b_15_0[15:0]),
.WR(s_wr_15_0[3])
);
// Register 4 (L)
CGA_WRF_RBLOCK_DR16 L_REG_4 (
.sysclk (sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
// Input signals
.ALUCLK_EN(ALUCLK_EN),
.ALUCLK(s_aluclk),
.RB_15_0(s_rb_15_0[15:0]),
.REG_15_0(s_reg4_l_15_0[15:0]),
.WR(s_wr_15_0[4])
);
// Register 5 (A)
CGA_WRF_RBLOCK_DR16 A_REG_5 (
.sysclk (sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
// Input signals
.ALUCLK_EN(ALUCLK_EN),
.ALUCLK(s_aluclk),
.RB_15_0(s_rb_15_0[15:0]),
.REG_15_0(s_reg5_a_15_0[15:0]),
.WR(s_wr_15_0[5])
);
// Register 6 (T)
CGA_WRF_RBLOCK_DR16 T_REG_6 (
.sysclk (sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
// Input signals
.ALUCLK_EN(ALUCLK_EN),
.ALUCLK(s_aluclk),
.RB_15_0(s_rb_15_0[15:0]),
.REG_15_0(s_reg6_t_15_0[15:0]),
.WR(s_wr_15_0[6])
);
// Register 7 (X)
CGA_WRF_RBLOCK_LR16 X_REG_7 (
// System Input signals
.sysclk (sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
// Input signals
.ALUCLK_EN(ALUCLK_EN),
.ALUCLK(s_aluclk),
.RB_15_0(s_rb_15_0[15:0]),
.WR(s_wr_15_0[7]),
// Output signals
.LR_15_0(s_xr_15_0_out[15:0]),
.R_15_0 (s_reg7_x_15_0[15:0])
);
// Register 8 (STS)
CGA_WRF_RBLOCK_DR16 STS_REG_8 (
.sysclk (sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
// Input signals
.ALUCLK_EN(ALUCLK_EN),
.ALUCLK(s_aluclk),
.RB_15_0(s_rb_15_0[15:0]),
.REG_15_0(s_reg8_sts_15_0[15:0]),
.WR(s_wr_15_0[8])
);
// Register 9 (R1) (internal registers)
CGA_WRF_RBLOCK_DR16 R1_REG_9 (
.sysclk (sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
// Input signals
.ALUCLK_EN(ALUCLK_EN),
.ALUCLK(s_aluclk),
.RB_15_0(s_rb_15_0[15:0]),
.REG_15_0(s_reg9_r1_15_0[15:0]),
.WR(s_wr_15_0[9])
);
// Register 10 (R2)
CGA_WRF_RBLOCK_DR16 R2_REG_10 (
.sysclk (sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
// Input signals
.ALUCLK_EN(ALUCLK_EN),
.ALUCLK(s_aluclk),
.RB_15_0(s_rb_15_0[15:0]),
.REG_15_0(s_reg10_r2_15_0[15:0]),
.WR(s_wr_15_0[10])
);
// Register 11 (R3)
CGA_WRF_RBLOCK_DR16 R3_REG_11 (
.sysclk (sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
// Input signals
.ALUCLK_EN(ALUCLK_EN),
.ALUCLK(s_aluclk),
.RB_15_0(s_rb_15_0[15:0]),
.REG_15_0(s_reg11_r3_15_0[15:0]),
.WR(s_wr_15_0[11])
);
// Register 12 (R4)
CGA_WRF_RBLOCK_DR16 R4_REG_12 (
.sysclk (sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
// Input signals
.ALUCLK_EN(ALUCLK_EN),
.ALUCLK(s_aluclk),
.RB_15_0(s_rb_15_0[15:0]),
.REG_15_0(s_reg12_r4_15_0[15:0]),
.WR(s_wr_15_0[12])
);
// Register 13 (R5)
CGA_WRF_RBLOCK_DR16 R5_REG_13 (
.sysclk (sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
// Input signals
.ALUCLK_EN(ALUCLK_EN),
.ALUCLK(s_aluclk),
.RB_15_0(s_rb_15_0[15:0]),
.REG_15_0(s_reg13_r5_15_0[15:0]),
.WR(s_wr_15_0[13])
);
// Register 14 (R6)
CGA_WRF_RBLOCK_DR16 R6_REG_14 (
.sysclk (sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
// Input signals
.ALUCLK_EN(ALUCLK_EN),
.ALUCLK(s_aluclk),
.RB_15_0(s_rb_15_0[15:0]),
.REG_15_0(s_reg14_r6_15_0[15:0]),
.WR(s_wr_15_0[14])
);
// Register 15 (R7)
CGA_WRF_RBLOCK_DR16 R7_REG_15 (
.sysclk (sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
// Input signals
.ALUCLK_EN(ALUCLK_EN),
.ALUCLK(s_aluclk),
.RB_15_0(s_rb_15_0[15:0]),
.REG_15_0(s_reg15_r7_15_0[15:0]),
.WR(s_wr_15_0[15])
);
// Selector 0
CGA_WRF_RBLOCK_SEL16 SEL_0 (
.EA_15_0(s_ea_15_0[15:0]),
.EB_15_0(s_eb_15_0[15:0]),
.SI_15_0(s_sel0_in_15_0[15:0]),
.PA(s_a_15_0_out[0]),
.PB(s_b_15_0_out[0])
);
CGA_WRF_RBLOCK_SEL16 SEL_1 (
.EA_15_0(s_ea_15_0[15:0]),
.EB_15_0(s_eb_15_0[15:0]),
.PA(s_a_15_0_out[1]),
.PB(s_b_15_0_out[1]),
.SI_15_0(s_sel1_in_15_0[15:0])
);
CGA_WRF_RBLOCK_SEL16 SEL_2 (
.EA_15_0(s_ea_15_0[15:0]),
.EB_15_0(s_eb_15_0[15:0]),
.PA(s_a_15_0_out[2]),
.PB(s_b_15_0_out[2]),
.SI_15_0(s_sel2_in_15_0[15:0])
);
CGA_WRF_RBLOCK_SEL16 SEL_3 (
.EA_15_0(s_ea_15_0[15:0]),
.EB_15_0(s_eb_15_0[15:0]),
.PA(s_a_15_0_out[3]),
.PB(s_b_15_0_out[3]),
.SI_15_0(s_sel3_in_15_0[15:0])
);
CGA_WRF_RBLOCK_SEL16 SEL_4 (
.EA_15_0(s_ea_15_0[15:0]),
.EB_15_0(s_eb_15_0[15:0]),
.PA(s_a_15_0_out[4]),
.PB(s_b_15_0_out[4]),
.SI_15_0(s_sel4_in_15_0[15:0])
);
CGA_WRF_RBLOCK_SEL16 SEL_5 (
.EA_15_0(s_ea_15_0[15:0]),
.EB_15_0(s_eb_15_0[15:0]),
.PA(s_a_15_0_out[5]),
.PB(s_b_15_0_out[5]),
.SI_15_0(s_sel5_in_15_0[15:0])
);
CGA_WRF_RBLOCK_SEL16 SEL_6 (
.EA_15_0(s_ea_15_0[15:0]),
.EB_15_0(s_eb_15_0[15:0]),
.PA(s_a_15_0_out[6]),
.PB(s_b_15_0_out[6]),
.SI_15_0(s_sel6_in_15_0[15:0])
);
CGA_WRF_RBLOCK_SEL16 SEL_7 (
.EA_15_0(s_ea_15_0[15:0]),
.EB_15_0(s_eb_15_0[15:0]),
.PA(s_a_15_0_out[7]),
.PB(s_b_15_0_out[7]),
.SI_15_0(s_sel7_in_15_0[15:0])
);
CGA_WRF_RBLOCK_SEL16 SEL_8 (
.EA_15_0(s_ea_15_0[15:0]),
.EB_15_0(s_eb_15_0[15:0]),
.PA(s_a_15_0_out[8]),
.PB(s_b_15_0_out[8]),
.SI_15_0(s_sel8_in_15_0[15:0])
);
CGA_WRF_RBLOCK_SEL16 SEL_9 (
.EA_15_0(s_ea_15_0[15:0]),
.EB_15_0(s_eb_15_0[15:0]),
.PA(s_a_15_0_out[9]),
.PB(s_b_15_0_out[9]),
.SI_15_0(s_sel9_in_15_0[15:0])
);
CGA_WRF_RBLOCK_SEL16 SEL_10 (
.EA_15_0(s_ea_15_0[15:0]),
.EB_15_0(s_eb_15_0[15:0]),
.PA(s_a_15_0_out[10]),
.PB(s_b_15_0_out[10]),
.SI_15_0(s_sel10_in_15_0[15:0])
);
CGA_WRF_RBLOCK_SEL16 SEL_11 (
.EA_15_0(s_ea_15_0[15:0]),
.EB_15_0(s_eb_15_0[15:0]),
.PA(s_a_15_0_out[11]),
.PB(s_b_15_0_out[11]),
.SI_15_0(s_sel11_in_15_0[15:0])
);
CGA_WRF_RBLOCK_SEL16 SEL_12 (
.EA_15_0(s_ea_15_0[15:0]),
.EB_15_0(s_eb_15_0[15:0]),
.PA(s_a_15_0_out[12]),
.PB(s_b_15_0_out[12]),
.SI_15_0(s_sel12_in_15_0[15:0])
);
CGA_WRF_RBLOCK_SEL16 SEL_13 (
.EA_15_0(s_ea_15_0[15:0]),
.EB_15_0(s_eb_15_0[15:0]),
.PA(s_a_15_0_out[13]),
.PB(s_b_15_0_out[13]),
.SI_15_0(s_sel13_in_15_0[15:0])
);
CGA_WRF_RBLOCK_SEL16 SEL_14 (
.EA_15_0(s_ea_15_0[15:0]),
.EB_15_0(s_eb_15_0[15:0]),
.PA(s_a_15_0_out[14]),
.PB(s_b_15_0_out[14]),
.SI_15_0(s_sel14_in_15_0[15:0])
);
CGA_WRF_RBLOCK_SEL16 SEL_15 (
.EA_15_0(s_ea_15_0[15:0]),
.EB_15_0(s_eb_15_0[15:0]),
.PA(s_a_15_0_out[15]),
.PB(s_b_15_0_out[15]),
.SI_15_0(s_sel15_in_15_0[15:0])
);
`ifdef ND120_R6_PROBE
// Sim-only diagnostic (24-AUG LFN campaign): log every write to the
// microcode scratch registers R6/R1/R4 (regs 14/9/12 - the console
// soft-status and the masks the IOX 302/303 service uses) with the
// written data and the register's value. No logic effect.
reg [15:0] r_r6p_wr_prev;
always @(posedge sysclk) begin
if (s_wr_15_0[14] && !r_r6p_wr_prev[14])
$display("[r6] t=%0t R6 write data=%06o (was %06o)", $time, s_rb_15_0, s_reg14_r6_15_0);
if (s_wr_15_0[9] && !r_r6p_wr_prev[9])
$display("[r6] t=%0t R1 write data=%06o", $time, s_rb_15_0);
if (s_wr_15_0[12] && !r_r6p_wr_prev[12])
$display("[r6] t=%0t R4 write data=%06o", $time, s_rb_15_0);
r_r6p_wr_prev <= s_wr_15_0;
end
`endif
endmodule
