CGA_ALU_OUTMUX_SEL8¶
Source: Verilog/DELILAH-CPU/CGA_ALU/circuit/CGA_ALU_OUTMUX_SEL8.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_ALU > CGA_ALU_OUTMUX > CGA_ALU_OUTMUX_SEL8
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.ALU.ALU_OUTMUX.DMUX15
Used in: CGA_ALU_OUTMUX (all tops)
Contains: NAND_GATE x8, NAND_GATE_8_INPUTS
Module hierarchy - All modules

Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.ALU.ALU_OUTMUX.DMUX15. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/ALU/OUTMUX/SEL8 SEL8 Page 56 SHEET 1 of 1 Last reviewed: 10-NOV-2024 Ronny Hansen

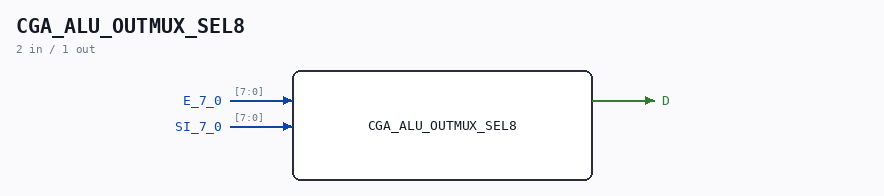

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | [7:0] |
E_7_0 |
|
| input | [7:0] |
SI_7_0 |
|
| output | 1 |
D |
Verilog source¶
Verilog/DELILAH-CPU/CGA_ALU/circuit/CGA_ALU_OUTMUX_SEL8.v on GitHub.
Show the Verilog of CGA_ALU_OUTMUX_SEL8 (129 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/ALU/OUTMUX/SEL8 **
** SEL8 **
** **
** Page 56 **
** SHEET 1 of 1 **
** **
** Last reviewed: 10-NOV-2024 **
** Ronny Hansen **
**************************************************************************/
module CGA_ALU_OUTMUX_SEL8 (
input [7:0] E_7_0,
input [7:0] SI_7_0,
output D
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [7:0] s_si_7_0;
wire [7:0] s_e_7_0;
wire s_d_out;
wire s_nand_0;
wire s_nand_1;
wire s_nand_2;
wire s_nand_3;
wire s_nand_4;
wire s_nand_5;
wire s_nand_6;
wire s_nand_7;
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_si_7_0[7:0] = SI_7_0;
assign s_e_7_0[7:0] = E_7_0;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign D = s_d_out;
/*******************************************************************************
** Here all normal components are defined **
*******************************************************************************/
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_1 (
.input1(s_si_7_0[7]),
.input2(s_e_7_0[7]),
.result(s_nand_7)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_2 (
.input1(s_si_7_0[6]),
.input2(s_e_7_0[6]),
.result(s_nand_6)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_3 (
.input1(s_si_7_0[5]),
.input2(s_e_7_0[5]),
.result(s_nand_5)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_4 (
.input1(s_si_7_0[4]),
.input2(s_e_7_0[4]),
.result(s_nand_4)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_5 (
.input1(s_si_7_0[3]),
.input2(s_e_7_0[3]),
.result(s_nand_3)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_6 (
.input1(s_si_7_0[2]),
.input2(s_e_7_0[2]),
.result(s_nand_2)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_7 (
.input1(s_si_7_0[1]),
.input2(s_e_7_0[1]),
.result(s_nand_1)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_8 (
.input1(s_si_7_0[0]),
.input2(s_e_7_0[0]),
.result(s_nand_0)
);
NAND_GATE_8_INPUTS #(
.BubblesMask(8'h00)
) GATES_9 (
.input1(s_nand_7),
.input2(s_nand_6),
.input3(s_nand_5),
.input4(s_nand_4),
.input5(s_nand_3),
.input6(s_nand_2),
.input7(s_nand_1),
.input8(s_nand_0),
.result(s_d_out)
);
endmodule
