CGA_INTR_CNTLR¶
Source: Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_INTR > CGA_INTR_CNTLR
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR
Used in: CGA_INTR (all tops)
Contains: CGA_INTR_CNTLR_CLR, CGA_INTR_CNTLR_IRGEL, CGA_INTR_CNTLR_IRQ, CGA_INTR_CNTLR_MDCD, CGA_INTR_CNTLR_VECGEN, Multiplexer_bus_2
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/INTR/CNTLR INTERRUPT CONTROLLER Page 77 SHEET 1 of 1 Last reviewed: 10-NOV-2024 Ronny Hansen
Ports¶

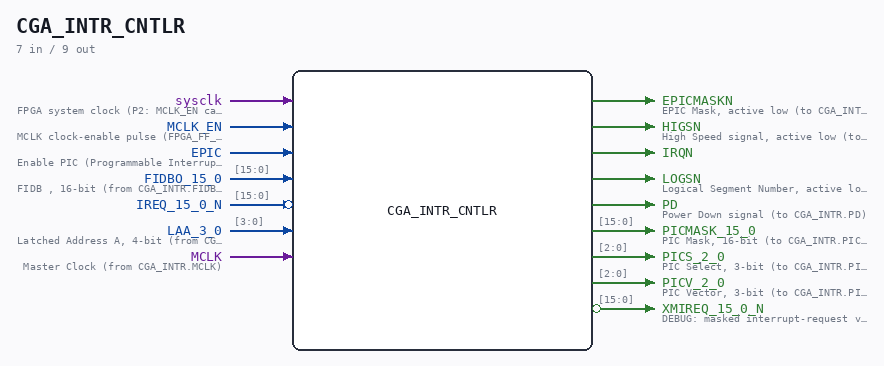

| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
FPGA system clock (P2: MCLK_EN capture) |
| input | 1 |
MCLK_EN |
MCLK clock-enable pulse (FPGA_FF_MODE, else 0) |
| input | 1 |
EPIC |
Enable PIC (Programmable Interrupt Controller) signal (from CGA_INTR.EPIC) |
| input | [15:0] |
FIDBO_15_0 |
FIDB , 16-bit (from CGA_INTR.FIDBO_15_0) |
| input | [15:0] |
IREQ_15_0_N (active low) |
|
| input | [3:0] |
LAA_3_0 |
Latched Address A, 4-bit (from CGA_INTR.LAA_3_0) |
| input | 1 |
MCLK |
Master Clock (from CGA_INTR.MCLK) |
| output | 1 |
EPICMASKN |
EPIC Mask, active low (to CGA_INTR.EPICMASKN) |
| output | 1 |
HIGSN |
High Speed signal, active low (to CGA_INTR.HIGSN) |
| output | 1 |
IRQN |
|
| output | 1 |
LOGSN |
Logical Segment Number, active low (to CGA_INTR.LOGSN) |
| output | 1 |
PD |
Power Down signal (to CGA_INTR.PD) |
| output | [15:0] |
PICMASK_15_0 |
PIC Mask, 16-bit (to CGA_INTR.PICMASK_15_0) |
| output | [2:0] |
PICS_2_0 |
PIC Select, 3-bit (to CGA_INTR.PICS_2_0) |
| output | [2:0] |
PICV_2_0 |
PIC Vector, 3-bit (to CGA_INTR.PICV_2_0) |
| output | [15:0] |
XMIREQ_15_0_N (active low) |
DEBUG: masked interrupt-request vector (active low) that drives the grant |
Verilog source¶
Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR.v on GitHub.
Show the Verilog of CGA_INTR_CNTLR (253 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/INTR/CNTLR **
** INTERRUPT CONTROLLER **
** **
** Page 77 **
** SHEET 1 of 1 **
** **
** Last reviewed: 10-NOV-2024 **
** Ronny Hansen **
***************************************************************************/
module CGA_INTR_CNTLR (
input sysclk, //! FPGA system clock (P2: MCLK_EN capture)
input MCLK_EN, //! MCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input EPIC, //! Enable PIC (Programmable Interrupt Controller) signal (from CGA_INTR.EPIC)
input [15:0] FIDBO_15_0, //! FIDB , 16-bit (from CGA_INTR.FIDBO_15_0)
input [15:0] IREQ_15_0_N,
input [ 3:0] LAA_3_0, //! Latched Address A, 4-bit (from CGA_INTR.LAA_3_0)
input MCLK, //! Master Clock (from CGA_INTR.MCLK)
output EPICMASKN, //! EPIC Mask, active low (to CGA_INTR.EPICMASKN)
output HIGSN, //! High Speed signal, active low (to CGA_INTR.HIGSN)
output IRQN,
output LOGSN, //! Logical Segment Number, active low (to CGA_INTR.LOGSN)
output PD, //! Power Down signal (to CGA_INTR.PD)
output [15:0] PICMASK_15_0, //! PIC Mask, 16-bit (to CGA_INTR.PICMASK_15_0)
output [ 2:0] PICS_2_0, //! PIC Select, 3-bit (to CGA_INTR.PICS_2_0)
output [ 2:0] PICV_2_0, //! PIC Vector, 3-bit (to CGA_INTR.PICV_2_0)
output [15:0] XMIREQ_15_0_N //! DEBUG: masked interrupt-request vector (active low) that drives the grant
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [ 2:0] s_fidbo_2_0;
wire [ 2:0] s_hivec_2_0;
wire [ 2:0] s_hx_2_0_n;
wire [ 2:0] s_hx_2_0;
wire [ 2:0] s_lx_2_0_n;
wire [ 2:0] s_lx_2_0;
wire [ 2:0] s_lovec_2_0;
wire [ 2:0] s_pics_2_0_out;
wire [ 2:0] s_picv_2_0_out;
wire [ 3:0] s_laa_3_0;
wire [15:0] s_clrq_15_0;
wire [15:0] s_din_15_0;
wire [15:0] s_fidbo_15_0;
wire [15:0] s_ireq_15_0_n;
wire [15:0] s_mireq_15_0;
wire [15:0] s_picmask_15_0_out;
wire s_a;
wire s_b;
wire s_c;
wire s_d;
wire s_e;
wire s_epic;
wire s_epicmask_n_out;
wire s_g;
wire s_h;
wire s_hidet;
wire s_hif;
wire s_highs_n_out;
wire s_hik;
wire s_hipassall;
wire s_hivges;
wire s_irq_n_out;
wire s_j;
wire s_l;
wire s_lodet;
wire s_lof;
wire s_logs_n_out;
wire s_lok;
wire s_lopasall;
wire s_lovges;
wire s_m;
wire s_mclk_n;
wire s_mclk;
wire s_n;
wire s_oem;
wire s_oes_n;
wire s_pd_out;
wire s_s;
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_laa_3_0[3:0] = LAA_3_0;
assign s_ireq_15_0_n[15:0] = IREQ_15_0_N;
assign s_fidbo_15_0[15:0] = FIDBO_15_0;
assign s_mclk = MCLK;
assign s_epic = EPIC;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign EPICMASKN = s_epicmask_n_out;
assign HIGSN = s_highs_n_out;
assign IRQN = s_irq_n_out;
assign LOGSN = s_logs_n_out;
assign PD = s_pd_out;
assign PICMASK_15_0 = s_picmask_15_0_out[15:0];
assign XMIREQ_15_0_N = s_mireq_15_0[15:0];
assign PICS_2_0 = s_pics_2_0_out[2:0];
assign PICV_2_0 = s_picv_2_0_out[2:0];
/*******************************************************************************
** Here all wiring is defined **
*******************************************************************************/
// FIDBO -> status-write value (feeds VECGEN.FIDBO_2_0 -> HISIN/LOSIN).
assign s_fidbo_2_0[0] = s_fidbo_15_0[0];
assign s_fidbo_2_0[1] = s_fidbo_15_0[1];
assign s_fidbo_2_0[2] = s_fidbo_15_0[2];
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// NOT Gate
assign s_mclk_n = ~s_mclk;
/*******************************************************************************
** Here all normal components are defined **
*******************************************************************************/
Multiplexer_bus_2 #(
.nrOfBits(16)
) PLEXERS_1 (
.muxIn_0(s_fidbo_15_0[15:0]),
.muxIn_1(s_picmask_15_0_out[15:0]),
.muxOut(s_din_15_0[15:0]),
.sel(s_oem)
);
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
CGA_INTR_CNTLR_VECGEN VECGEN (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.FIDBO3(s_fidbo_15_0[3]),
.FIDBO4(s_fidbo_15_0[4]),
.FIDBO_2_0(s_fidbo_2_0[2:0]),
.G(s_g),
.HIDET(s_hidet),
.HIF(s_hif),
.HIGSN(s_highs_n_out),
.HIVEC_2_0(s_hivec_2_0[2:0]),
.HIVGES(s_hivges),
.HX_2_0(s_hx_2_0[2:0]),
.HX_2_0_N(s_hx_2_0_n[2:0]),
.LODET(s_lodet),
.LOF(s_lof),
.LOGSN(s_logs_n_out),
.LOVEC_2_0(s_lovec_2_0[2:0]),
.LOVGES(s_lovges),
.LX_2_0(s_lx_2_0[2:0]),
.LX_2_0_N(s_lx_2_0_n[2:0]),
.MCLK(s_mclk),
.MIREQ_15_0_N(s_mireq_15_0[15:0]),
.N(s_n),
.OESN(s_oes_n),
.PICS_2_0(s_pics_2_0_out[2:0])
);
CGA_INTR_CNTLR_CLR CLR_CLEAR_CONTROL (
.CLRQ_15_0(s_clrq_15_0[15:0]),
.DIN_15_8(s_din_15_0[15:8]),
.DIN_7_0(s_din_15_0[7:0]),
.HIK(s_hik),
.HX_2_0(s_hx_2_0[2:0]),
.HX_2_0_N(s_hx_2_0_n[2:0]),
.J(s_j),
.LOK(s_lok),
.LX_2_0(s_lx_2_0[2:0]),
.LX_2_0_N(s_lx_2_0_n[2:0])
);
CGA_INTR_CNTLR_IRGEL IRGEL (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.D(s_d),
.E(s_e),
.FIDB03(s_fidbo_15_0[3]),
.FIDB04(s_fidbo_15_0[4]),
.H(s_h),
.HIDET(s_hidet),
.HIGSN(s_highs_n_out),
.HIPASSALL(s_hipassall),
.HIVEC_2_0(s_hivec_2_0[2:0]),
.HIVGES(s_hivges),
.IRQN(s_irq_n_out),
.L(s_l),
.LODET(s_lodet),
.LOGSN(s_logs_n_out),
.LOPASSALL(s_lopasall),
.LOVEC_2_0(s_lovec_2_0[2:0]),
.LOVGES(s_lovges),
.M(s_m),
.MCLK(s_mclk),
.N(s_n),
.PD(s_pd_out),
.PICV_2_0(s_picv_2_0_out[2:0]),
.S(s_s)
);
CGA_INTR_CNTLR_MDCD MDCD (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.A(s_a),
.B(s_b),
.C(s_c),
.D(s_d),
.E(s_e),
.EPIC(s_epic),
.EPICMASKN(s_epicmask_n_out),
.G(s_g),
.H(s_h),
.HIF(s_hif),
.HIK(s_hik),
.HIPASSALL(s_hipassall),
.J(s_j),
.L(s_l),
.LAA_3_0(s_laa_3_0[3:0]),
.LOF(s_lof),
.LOK(s_lok),
.LOPASSALL(s_lopasall),
.M(s_m),
.MCLK(s_mclk),
.N(s_n),
.OEM(s_oem),
.OESN(s_oes_n),
.S(s_s)
);
CGA_INTR_CNTLR_IRQ IRQ (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.A(s_a),
.B(s_b),
.C(s_c),
.CLRQ_15_0(s_clrq_15_0[15:0]),
.CPN(s_mclk_n),
.DIN_15_0(s_din_15_0[15:0]),
.IREQ_15_0_N(s_ireq_15_0_n[15:0]),
.MCLK(s_mclk),
.MIREQ_15_0_N(s_mireq_15_0[15:0]),
.PICMASK_15_0(s_picmask_15_0_out[15:0])
);
endmodule
