CGA_WRF_RBLOCK_LR16¶
Source: Verilog/DELILAH-CPU/CGA_WRF/circuit/CGA_WRF_RBLOCK_LR16.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_WRF > CGA_WRF_RBLOCK > CGA_WRF_RBLOCK_LR16
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.WRF.RBLOCK.B_REG_3
Used in: CGA_WRF_RBLOCK (all tops)
Contains: L8 x2, MUX24P x4, R81_EN x2
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.WRF.RBLOCK.B_REG_3. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CPU, MM&M CGA/WRF/RBLOCK/LR16 WRF: Working Register File (PDF page 63) Last reviewed: 9-FEB-2025 Ronny Hansen

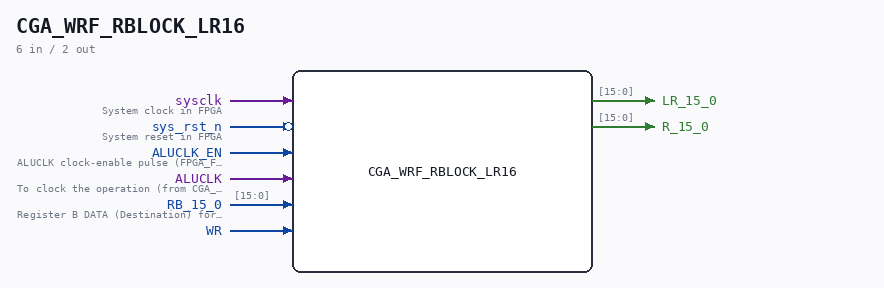

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
System clock in FPGA |
| input | 1 |
sys_rst_n (active low) |
System reset in FPGA |
| input | 1 |
ALUCLK_EN |
ALUCLK clock-enable pulse (FPGA_FF_MODE, else 0) |
| input | 1 |
ALUCLK |
To clock the operation (from CGA_WRF_RBLOCK.ALUCLK) |
| input | [15:0] |
RB_15_0 |
Register B DATA (Destination) for WRITE. 16 bits to select register(s) (from CGA_WRF_RBLOCK.RB_15_0) |
| input | 1 |
WR |
|
| output | [15:0] |
LR_15_0 |
|
| output | [15:0] |
R_15_0 |
Verilog source¶
Verilog/DELILAH-CPU/CGA_WRF/circuit/CGA_WRF_RBLOCK_LR16.v on GitHub.
Show the Verilog of CGA_WRF_RBLOCK_LR16 (324 lines)
/**************************************************************************
** ND120 CPU, MM&M **
** CGA/WRF/RBLOCK/LR16 **
** WRF: Working Register File **
** (PDF page 63) **
** **
** Last reviewed: 9-FEB-2025 **
** Ronny Hansen **
***************************************************************************/
module CGA_WRF_RBLOCK_LR16 (
// System input signals
input sysclk, // System clock in FPGA
input sys_rst_n, // System reset in FPGA
input ALUCLK_EN, //! ALUCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input ALUCLK, //! To clock the operation (from CGA_WRF_RBLOCK.ALUCLK)
input [15:0] RB_15_0, //! Register B DATA (Destination) for WRITE. 16 bits to select register(s) (from CGA_WRF_RBLOCK.RB_15_0)
input WR,
output [15:0] LR_15_0,
output [15:0] R_15_0
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire s_aluclk;
wire s_lreg_latch;
wire s_wr;
wire [15:0] s_lr_15_0_out;
wire [15:0] s_r_15_0_out;
wire [15:0] s_rb_15_0;
wire [15:0] s_ir_15_0;
/*******************************************************************************
** The module functionality is described here **
*******************************************************************************/
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_rb_15_0[15:0] = RB_15_0;
assign s_aluclk = ALUCLK;
// P2b (docs/plan-fix-unconstrained-clocks.md): in FF mode the ALUCLK-
// clocked registers capture on posedge sysclk gated by ALUCLK_EN
// (aligned to the ALUCLK rise) instead of clocking on the routed net.
`ifdef FPGA_FF_MODE
localparam ALUCLK_CE = 1;
`else
localparam ALUCLK_CE = 0;
`endif
assign s_wr = WR;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign LR_15_0 = s_lr_15_0_out[15:0];
assign R_15_0 = s_r_15_0_out[15:0];
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// Latch signal <= /ALUCLK * WR
assign s_lreg_latch = ~s_aluclk & s_wr;
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
/* Input RB (15:0) or output signal R(15:0) muxed to internal signal */
/* s_ir_n based on value of s_wr */
/* To the left in the schematich diagram on page 63 */
MUX24P MUX_15_12 (
.A (s_wr),
.D00(s_r_15_0_out[15]),
.D01(s_r_15_0_out[14]),
.D02(s_r_15_0_out[13]),
.D03(s_r_15_0_out[12]),
.D10(s_rb_15_0[15]),
.D11(s_rb_15_0[14]),
.D12(s_rb_15_0[13]),
.D13(s_rb_15_0[12]),
.Z0 (s_ir_15_0[15]),
.Z1 (s_ir_15_0[14]),
.Z2 (s_ir_15_0[13]),
.Z3 (s_ir_15_0[12])
);
MUX24P MUX_11_8 (
.A (s_wr),
.D00(s_r_15_0_out[11]),
.D01(s_r_15_0_out[10]),
.D02(s_r_15_0_out[9]),
.D03(s_r_15_0_out[8]),
.D10(s_rb_15_0[11]),
.D11(s_rb_15_0[10]),
.D12(s_rb_15_0[9]),
.D13(s_rb_15_0[8]),
.Z0 (s_ir_15_0[11]),
.Z1 (s_ir_15_0[10]),
.Z2 (s_ir_15_0[9]),
.Z3 (s_ir_15_0[8])
);
MUX24P MUX_7_4 (
.A (s_wr),
.D00(s_r_15_0_out[7]),
.D01(s_r_15_0_out[6]),
.D02(s_r_15_0_out[5]),
.D03(s_r_15_0_out[4]),
.D10(s_rb_15_0[7]),
.D11(s_rb_15_0[6]),
.D12(s_rb_15_0[5]),
.D13(s_rb_15_0[4]),
.Z0 (s_ir_15_0[7]),
.Z1 (s_ir_15_0[6]),
.Z2 (s_ir_15_0[5]),
.Z3 (s_ir_15_0[4])
);
MUX24P MUX_3_0 (
.A (s_wr),
.D00(s_r_15_0_out[3]),
.D01(s_r_15_0_out[2]),
.D02(s_r_15_0_out[1]),
.D03(s_r_15_0_out[0]),
.D10(s_rb_15_0[3]),
.D11(s_rb_15_0[2]),
.D12(s_rb_15_0[1]),
.D13(s_rb_15_0[0]),
.Z0 (s_ir_15_0[3]),
.Z1 (s_ir_15_0[2]),
.Z2 (s_ir_15_0[1]),
.Z3 (s_ir_15_0[0])
);
/* IR15-0 clocked to R(15:0) REG. In the middle of the schematich diagram on page 63 */
// verilator lint_off UNUSED
// verilator lint_off UNDRIVEN
// verilator lint_off PINCONNECTEMPTY
R81_EN #(.USE_ENABLE(ALUCLK_CE)) R_15_8 (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.A (s_ir_15_0[15]),
.B (s_ir_15_0[14]),
.C (s_ir_15_0[13]),
.D (s_ir_15_0[12]),
.E (s_ir_15_0[11]),
.F (s_ir_15_0[10]),
.G (s_ir_15_0[9]),
.H (s_ir_15_0[8]),
.CP(s_aluclk),
.QA (s_r_15_0_out[15]),
.QAN(),
.QB (s_r_15_0_out[14]),
.QBN(),
.QC (s_r_15_0_out[13]),
.QCN(),
.QD (s_r_15_0_out[12]),
.QDN(),
.QE (s_r_15_0_out[11]),
.QEN(),
.QF (s_r_15_0_out[10]),
.QFN(),
.QG (s_r_15_0_out[9]),
.QGN(),
.QH (s_r_15_0_out[8]),
.QHN()
);
R81_EN #(.USE_ENABLE(ALUCLK_CE)) R_7_0 (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.A(s_ir_15_0[7]),
.B(s_ir_15_0[6]),
.C(s_ir_15_0[5]),
.D(s_ir_15_0[4]),
.E(s_ir_15_0[3]),
.F(s_ir_15_0[2]),
.G(s_ir_15_0[1]),
.H(s_ir_15_0[0]),
.CP(s_aluclk),
.QA (s_r_15_0_out[7]),
.QAN(),
.QB (s_r_15_0_out[6]),
.QBN(),
.QC (s_r_15_0_out[5]),
.QCN(),
.QD (s_r_15_0_out[4]),
.QDN(),
.QE (s_r_15_0_out[3]),
.QEN(),
.QF (s_r_15_0_out[2]),
.QFN(),
.QG (s_r_15_0_out[1]),
.QGN(),
.QH (s_r_15_0_out[0]),
.QHN()
);
/* IR15-0 LATCHED to LR(15:0) LREG. To the right of the schematich diagram on page 63 */
/* Latch signal (s_lreg_latch) = /ALUCLK * WR (s_aluclk_n & s_wr) */
L8 L_15_8
(
// Input signals
.sysclk(sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
.L (s_lreg_latch),
.A (s_ir_15_0[15]),
.B (s_ir_15_0[14]),
.C (s_ir_15_0[13]),
.D (s_ir_15_0[12]),
.E (s_ir_15_0[11]),
.F (s_ir_15_0[10]),
.G (s_ir_15_0[9]),
.H (s_ir_15_0[8]),
.QA (s_lr_15_0_out[15]),
.QAN(),
.QB (s_lr_15_0_out[14]),
.QBN(),
.QC (s_lr_15_0_out[13]),
.QCN(),
.QD (s_lr_15_0_out[12]),
.QDN(),
.QE (s_lr_15_0_out[11]),
.QEN(),
.QF (s_lr_15_0_out[10]),
.QFN(),
.QG (s_lr_15_0_out[9]),
.QGN(),
.QH (s_lr_15_0_out[8]),
.QHN(),
// registered-value taps: deliberately unconnected here -
// the transparent output is the wanted one (see L8/L4 header).
.QA_R(),
.QB_R(),
.QC_R(),
.QD_R(),
.QE_R(),
.QF_R(),
.QG_R(),
.QH_R()
);
L8 L_7_0
(
// Input signals
.sysclk(sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
.L (s_lreg_latch),
.A (s_ir_15_0[7]),
.B (s_ir_15_0[6]),
.C (s_ir_15_0[5]),
.D (s_ir_15_0[4]),
.E (s_ir_15_0[3]),
.F (s_ir_15_0[2]),
.G (s_ir_15_0[1]),
.H (s_ir_15_0[0]),
.QA (s_lr_15_0_out[7]),
.QAN(),
.QB (s_lr_15_0_out[6]),
.QBN(),
.QC (s_lr_15_0_out[5]),
.QCN(),
.QD (s_lr_15_0_out[4]),
.QDN(),
.QE (s_lr_15_0_out[3]),
.QEN(),
.QF (s_lr_15_0_out[2]),
.QFN(),
.QG (s_lr_15_0_out[1]),
.QGN(),
.QH (s_lr_15_0_out[0]),
.QHN(),
// registered-value taps: deliberately unconnected here -
// the transparent output is the wanted one (see L8/L4 header).
.QA_R(),
.QB_R(),
.QC_R(),
.QD_R(),
.QE_R(),
.QF_R(),
.QG_R(),
.QH_R()
);
endmodule
