CGA_MAC_ADD¶
Source: Verilog/DELILAH-CPU/CGA_MAC/circuit/CGA_MAC_ADD.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_MAC > CGA_MAC_ADD
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MAC.MAC_ADD
Used in: CGA_MAC (all tops)
Contains: A02 x32, CGA_MAC_FASTADD, NAND_GATE x17, OR_GATE x16
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MAC.MAC_ADD. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/MAC/ADD ADD Page 29 SHEET 1 of 1 Last reviewed: 02-FEB-2025 Ronny Hansen

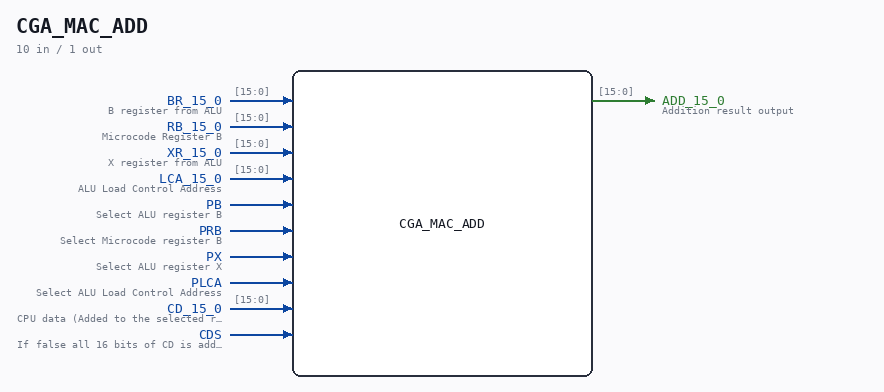

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | [15:0] |
BR_15_0 |
B register from ALU |
| input | [15:0] |
RB_15_0 |
Microcode Register B |
| input | [15:0] |
XR_15_0 |
X register from ALU |
| input | [15:0] |
LCA_15_0 |
ALU Load Control Address |
| input | 1 |
PB |
Select ALU register B |
| input | 1 |
PRB |
Select Microcode register B |
| input | 1 |
PX |
Select ALU register X |
| input | 1 |
PLCA |
Select ALU Load Control Address |
| input | [15:0] |
CD_15_0 |
CPU data (Added to the selected register) |
| input | 1 |
CDS |
If false all 16 bits of CD is added. If true, only the low 8 bits are added. |
| output | [15:0] |
ADD_15_0 |
Addition result output |
Verilog source¶
Verilog/DELILAH-CPU/CGA_MAC/circuit/CGA_MAC_ADD.v on GitHub.
Show the Verilog of CGA_MAC_ADD (684 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/MAC/ADD **
** ADD **
** **
** Page 29 **
** SHEET 1 of 1 **
** **
** Last reviewed: 02-FEB-2025 **
** Ronny Hansen **
***************************************************************************/
module CGA_MAC_ADD (
input [15:0] BR_15_0, //! B register from ALU
input [15:0] RB_15_0, //! Microcode Register B
input [15:0] XR_15_0, //! X register from ALU
input [15:0] LCA_15_0, //! ALU Load Control Address
input PB, //! Select ALU register B
input PRB, //! Select Microcode register B
input PX, //! Select ALU register X
input PLCA, //! Select ALU Load Control Address
// Special: Add CD if PLCA is low
input [15:0] CD_15_0, //! CPU data (Added to the selected register)
input CDS, //! If false all 16 bits of CD is added. If true, only the low 8 bits are added.
output [15:0] ADD_15_0 //! Addition result output
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [15:0] s_xr_15_0;
wire [15:0] s_rb_15_0;
wire [ 7:0] s_cde_15_8;
wire [15:0] s_cd_15_0;
wire [15:0] s_lca_15_0;
wire [15:0] s_add_15_0_out;
wire [15:0] s_br_15_0;
wire [15:0] s_prp_15_0;
wire s_cds_n;
wire s_cds;
wire s_cde_enable;
wire s_cdsn_nand_cd8;
wire s_cdsn_nand_cd9;
wire s_cdsn_nand_cd10;
wire s_cdsn_nand_cd11;
wire s_cdsn_nand_cd12;
wire s_cdsn_nand_cd13;
wire s_cdsn_nand_cd14;
wire s_cdsn_nand_cd15;
wire s_pb;
wire s_plca;
wire s_prb;
wire s_prp0_a_n;
wire s_prp0_b_n;
wire s_prp1_a_n;
wire s_prp1_b_n;
wire s_prp10_a_n;
wire s_prp10_b_n;
wire s_prp11_a_n;
wire s_prp11_b_n;
wire s_prp12_a_n;
wire s_prp12_b_n;
wire s_prp13_a_n;
wire s_prp13_b_n;
wire s_prp14_a_n;
wire s_prp14_b_n;
wire s_prp15_a_n;
wire s_prp15_b_n;
wire s_prp2_a_n;
wire s_prp2_b_n;
wire s_prp3_a_n;
wire s_prp3_b_n;
wire s_prp4_a_n;
wire s_prp4_b_n;
wire s_prp5_a_n;
wire s_prp5_b_n;
wire s_prp6_a_n;
wire s_prp6_b_n;
wire s_prp7_a_n;
wire s_prp7_b_n;
wire s_prp8_a_n;
wire s_prp8_b_n;
wire s_prp9_a_n;
wire s_prp9_b_n;
wire s_px;
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_xr_15_0[15:0] = XR_15_0;
assign s_rb_15_0[15:0] = RB_15_0;
assign s_cd_15_0[15:0] = CD_15_0;
assign s_lca_15_0[15:0] = LCA_15_0;
assign s_br_15_0[15:0] = BR_15_0;
assign s_pb = PB;
assign s_plca = PLCA;
assign s_prb = PRB;
assign s_cds = CDS;
assign s_px = PX;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign ADD_15_0 = s_add_15_0_out[15:0];
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// NOT Gate
assign s_cds_n = ~s_cds;
/*******************************************************************************
** Here all normal components are defined **
*******************************************************************************/
/** PRP OR 0-15*/
OR_GATE #(
.BubblesMask(2'b11)
) GATES_1 (
.input1(s_prp0_a_n),
.input2(s_prp0_b_n),
.result(s_prp_15_0[0])
);
OR_GATE #(
.BubblesMask(2'b11)
) GATES_2 (
.input1(s_prp1_a_n),
.input2(s_prp1_b_n),
.result(s_prp_15_0[1])
);
OR_GATE #(
.BubblesMask(2'b11)
) GATES_3 (
.input1(s_prp2_a_n),
.input2(s_prp2_b_n),
.result(s_prp_15_0[2])
);
OR_GATE #(
.BubblesMask(2'b11)
) GATES_4 (
.input1(s_prp3_a_n),
.input2(s_prp3_b_n),
.result(s_prp_15_0[3])
);
OR_GATE #(
.BubblesMask(2'b11)
) GATES_5 (
.input1(s_prp4_a_n),
.input2(s_prp4_b_n),
.result(s_prp_15_0[4])
);
OR_GATE #(
.BubblesMask(2'b11)
) GATES_6 (
.input1(s_prp5_a_n),
.input2(s_prp5_b_n),
.result(s_prp_15_0[5])
);
OR_GATE #(
.BubblesMask(2'b11)
) GATES_7 (
.input1(s_prp6_a_n),
.input2(s_prp6_b_n),
.result(s_prp_15_0[6])
);
OR_GATE #(
.BubblesMask(2'b11)
) GATES_8 (
.input1(s_prp7_a_n),
.input2(s_prp7_b_n),
.result(s_prp_15_0[7])
);
OR_GATE #(
.BubblesMask(2'b11)
) GATES_9 (
.input1(s_prp8_a_n),
.input2(s_prp8_b_n),
.result(s_prp_15_0[8])
);
OR_GATE #(
.BubblesMask(2'b11)
) GATES_10 (
.input1(s_prp9_a_n),
.input2(s_prp9_b_n),
.result(s_prp_15_0[9])
);
OR_GATE #(
.BubblesMask(2'b11)
) GATES_11 (
.input1(s_prp10_a_n),
.input2(s_prp10_b_n),
.result(s_prp_15_0[10])
);
OR_GATE #(
.BubblesMask(2'b11)
) GATES_12 (
.input1(s_prp11_a_n),
.input2(s_prp11_b_n),
.result(s_prp_15_0[11])
);
OR_GATE #(
.BubblesMask(2'b11)
) GATES_13 (
.input1(s_prp12_a_n),
.input2(s_prp12_b_n),
.result(s_prp_15_0[12])
);
OR_GATE #(
.BubblesMask(2'b11)
) GATES_14 (
.input1(s_prp13_a_n),
.input2(s_prp13_b_n),
.result(s_prp_15_0[13])
);
OR_GATE #(
.BubblesMask(2'b11)
) GATES_15 (
.input1(s_prp14_a_n),
.input2(s_prp14_b_n),
.result(s_prp_15_0[14])
);
OR_GATE #(
.BubblesMask(2'b11)
) GATES_16 (
.input1(s_prp15_a_n),
.input2(s_prp15_b_n),
.result(s_prp_15_0[15])
);
/** CDS and CD7 selector*/
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_17 (
.input1(s_cd_15_0[7]),
.input2(s_cds),
.result(s_cde_enable)
);
/** CD 8-15 AND selector **/
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_18 (
.input1(s_cds_n),
.input2(s_cd_15_0[8]),
.result(s_cdsn_nand_cd8)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_19 (
.input1(s_cds_n),
.input2(s_cd_15_0[9]),
.result(s_cdsn_nand_cd9)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_20 (
.input1(s_cds_n),
.input2(s_cd_15_0[10]),
.result(s_cdsn_nand_cd10)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_21 (
.input1(s_cds_n),
.input2(s_cd_15_0[11]),
.result(s_cdsn_nand_cd11)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_22 (
.input1(s_cds_n),
.input2(s_cd_15_0[12]),
.result(s_cdsn_nand_cd12)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_23 (
.input1(s_cds_n),
.input2(s_cd_15_0[13]),
.result(s_cdsn_nand_cd13)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_24 (
.input1(s_cds_n),
.input2(s_cd_15_0[14]),
.result(s_cdsn_nand_cd14)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_25 (
.input1(s_cds_n),
.input2(s_cd_15_0[15]),
.result(s_cdsn_nand_cd15)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_27 (
.input1(s_cdsn_nand_cd8),
.input2(s_cde_enable),
.result(s_cde_15_8[0])
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_28 (
.input1(s_cdsn_nand_cd9),
.input2(s_cde_enable),
.result(s_cde_15_8[1])
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_29 (
.input1(s_cdsn_nand_cd10),
.input2(s_cde_enable),
.result(s_cde_15_8[2])
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_30 (
.input1(s_cdsn_nand_cd11),
.input2(s_cde_enable),
.result(s_cde_15_8[3])
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_31 (
.input1(s_cdsn_nand_cd12),
.input2(s_cde_enable),
.result(s_cde_15_8[4])
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_32 (
.input1(s_cdsn_nand_cd13),
.input2(s_cde_enable),
.result(s_cde_15_8[5])
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_33 (
.input1(s_cdsn_nand_cd14),
.input2(s_cde_enable),
.result(s_cde_15_8[6])
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_34 (
.input1(s_cdsn_nand_cd15),
.input2(s_cde_enable),
.result(s_cde_15_8[7])
);
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
// PRP 15 input
A02 A02_31 (
.A(s_rb_15_0[15]),
.B(s_prb),
.C(s_br_15_0[15]),
.D(s_pb),
.Z(s_prp15_a_n)
);
A02 A02_32 (
.A(s_xr_15_0[15]),
.B(s_px),
.C(s_lca_15_0[15]),
.D(s_plca),
.Z(s_prp15_b_n)
);
// PRP 14 input
A02 A02_29 (
.A(s_rb_15_0[14]),
.B(s_prb),
.C(s_br_15_0[14]),
.D(s_pb),
.Z(s_prp14_a_n)
);
A02 A02_30 (
.A(s_xr_15_0[14]),
.B(s_px),
.C(s_lca_15_0[14]),
.D(s_plca),
.Z(s_prp14_b_n)
);
// PRP 13 input
A02 A02_27 (
.A(s_rb_15_0[13]),
.B(s_prb),
.C(s_br_15_0[13]),
.D(s_pb),
.Z(s_prp13_a_n)
);
A02 A02_28 (
.A(s_xr_15_0[13]),
.B(s_px),
.C(s_lca_15_0[13]),
.D(s_plca),
.Z(s_prp13_b_n)
);
// PRP 12 input
A02 A02_25 (
.A(s_rb_15_0[12]),
.B(s_prb),
.C(s_br_15_0[12]),
.D(s_pb),
.Z(s_prp12_a_n)
);
A02 A02_26 (
.A(s_xr_15_0[12]),
.B(s_px),
.C(s_lca_15_0[12]),
.D(s_plca),
.Z(s_prp12_b_n)
);
// PRP 11 input
A02 A02_23 (
.A(s_rb_15_0[11]),
.B(s_prb),
.C(s_br_15_0[11]),
.D(s_pb),
.Z(s_prp11_a_n)
);
A02 A02_24 (
.A(s_xr_15_0[11]),
.B(s_px),
.C(s_lca_15_0[11]),
.D(s_plca),
.Z(s_prp11_b_n)
);
// PRP 10 input
A02 A02_21 (
.A(s_rb_15_0[10]),
.B(s_prb),
.C(s_br_15_0[10]),
.D(s_pb),
.Z(s_prp10_a_n)
);
A02 A02_22 (
.A(s_xr_15_0[10]),
.B(s_px),
.C(s_lca_15_0[10]),
.D(s_plca),
.Z(s_prp10_b_n)
);
// PRP 9 input
A02 A02_19 (
.A(s_rb_15_0[9]),
.B(s_prb),
.C(s_br_15_0[9]),
.D(s_pb),
.Z(s_prp9_a_n)
);
A02 A02_20 (
.A(s_xr_15_0[9]),
.B(s_px),
.C(s_lca_15_0[9]),
.D(s_plca),
.Z(s_prp9_b_n)
);
// PRP 8 input
A02 A02_17 (
.A(s_rb_15_0[8]),
.B(s_prb),
.C(s_br_15_0[8]),
.D(s_pb),
.Z(s_prp8_a_n)
);
A02 A02_18 (
.A(s_xr_15_0[8]),
.B(s_px),
.C(s_lca_15_0[8]),
.D(s_plca),
.Z(s_prp8_b_n)
);
// PRP 7 input
A02 A02_15 (
.A(s_rb_15_0[7]),
.B(s_prb),
.C(s_br_15_0[7]),
.D(s_pb),
.Z(s_prp7_a_n)
);
A02 A02_16 (
.A(s_xr_15_0[7]),
.B(s_px),
.C(s_lca_15_0[7]),
.D(s_plca),
.Z(s_prp7_b_n)
);
// PRP 6 input
A02 A02_13 (
.A(s_rb_15_0[6]),
.B(s_prb),
.C(s_br_15_0[6]),
.D(s_pb),
.Z(s_prp6_a_n)
);
A02 A02_14 (
.A(s_xr_15_0[6]),
.B(s_px),
.C(s_lca_15_0[6]),
.D(s_plca),
.Z(s_prp6_b_n)
);
// PRP 5 input
A02 A02_11 (
.A(s_rb_15_0[5]),
.B(s_prb),
.C(s_br_15_0[5]),
.D(s_pb),
.Z(s_prp5_a_n)
);
A02 A02_12 (
.A(s_xr_15_0[5]),
.B(s_px),
.C(s_lca_15_0[5]),
.D(s_plca),
.Z(s_prp5_b_n)
);
// PRP 4 input
A02 A02_9 (
.A(s_rb_15_0[4]),
.B(s_prb),
.C(s_br_15_0[4]),
.D(s_pb),
.Z(s_prp4_a_n)
);
A02 A02_10 (
.A(s_xr_15_0[4]),
.B(s_px),
.C(s_lca_15_0[4]),
.D(s_plca),
.Z(s_prp4_b_n)
);
// PRP 3 input
A02 A02_7 (
.A(s_rb_15_0[3]),
.B(s_prb),
.C(s_br_15_0[3]),
.D(s_pb),
.Z(s_prp3_a_n)
);
A02 A02_8 (
.A(s_xr_15_0[3]),
.B(s_px),
.C(s_lca_15_0[3]),
.D(s_plca),
.Z(s_prp3_b_n)
);
// PRP 2 input
A02 A02_5 (
.A(s_rb_15_0[2]),
.B(s_prb),
.C(s_br_15_0[2]),
.D(s_pb),
.Z(s_prp2_a_n)
);
A02 A02_6 (
.A(s_xr_15_0[2]),
.B(s_px),
.C(s_lca_15_0[2]),
.D(s_plca),
.Z(s_prp2_b_n)
);
// PRP 1 input
A02 A02_3 (
.A(s_rb_15_0[1]),
.B(s_prb),
.C(s_br_15_0[1]),
.D(s_pb),
.Z(s_prp1_a_n)
);
A02 A02_4 (
.A(s_xr_15_0[1]),
.B(s_px),
.C(s_lca_15_0[1]),
.D(s_plca),
.Z(s_prp1_b_n)
);
// PRP 0 input
A02 A02_1 (
.A(s_rb_15_0[0]),
.B(s_prb),
.C(s_br_15_0[0]),
.D(s_pb),
.Z(s_prp0_a_n)
);
A02 A02_2 (
.A(s_xr_15_0[0]),
.B(s_px),
.C(s_lca_15_0[0]),
.D(s_plca),
.Z(s_prp0_b_n)
);
// Fastadd
CGA_MAC_FASTADD FASTADD (
// Inputs
.CD_7_0 (s_cd_15_0[7:0]),
.CDE_15_8(s_cde_15_8[7:0]),
.PRP_15_0(s_prp_15_0[15:0]),
// Outputs
.ADD_15_0(s_add_15_0_out[15:0])
);
endmodule
