CGA_ALU¶
Source: Verilog/DELILAH-CPU/CGA_ALU/circuit/CGA_ALU.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_ALU
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.ALU
Used in: CGA (all tops)
Contains: CGA_ALU_ARG, CGA_ALU_DBR, CGA_ALU_GPR, CGA_ALU_OUTMUX, CGA_ALU_QREG, CGA_ALU_SHIFT, CGA_ALU_SMUX, CGA_ALU_STS, CGA_ALU_SWAP, CGA_CPU_ALU_CONTR, CGA_CPU_ALU_RALU, CGA_CPU_ALU_RMUX, D_FLIPFLOP_EN, MUX21LP
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.ALU. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/ALU/OUTMUX OUT MUX Page 41 SHEET 1 of 1 Last reviewed: 29-JAN-2025 Ronny Hansen

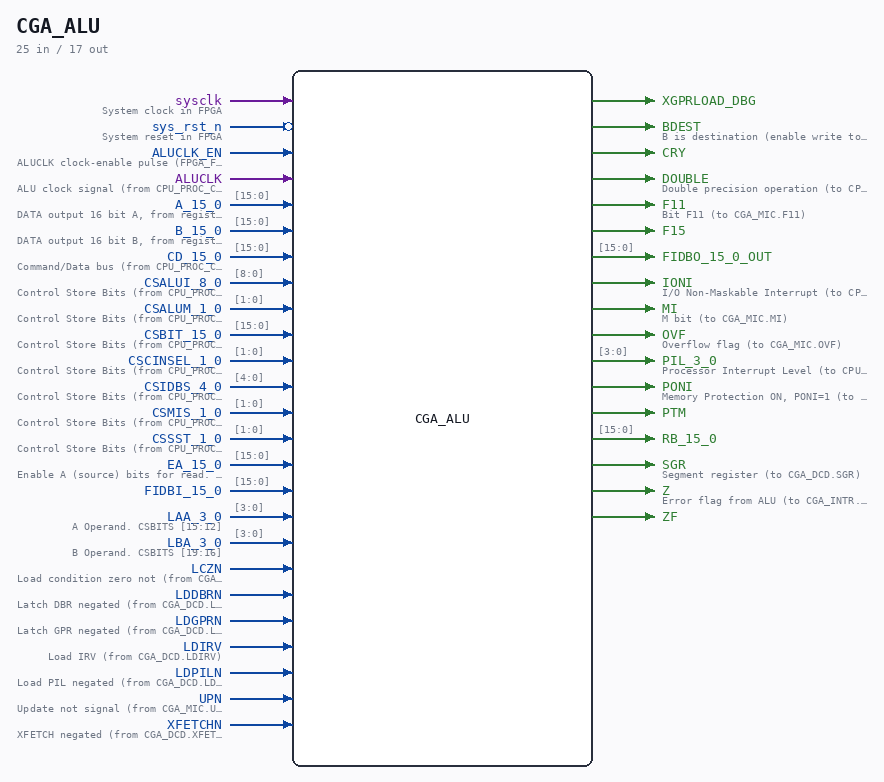

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
System clock in FPGA |
| input | 1 |
sys_rst_n (active low) |
System reset in FPGA |
| input | 1 |
ALUCLK_EN |
ALUCLK clock-enable pulse (FPGA_FF_MODE, else 0) |
| input | 1 |
ALUCLK |
ALU clock signal (from CPU_PROC_CGA_33.ALUCLK) |
| input | [15:0] |
A_15_0 |
DATA output 16 bit A, from register selected by LAA_3_0 (from CGA_WRF.A_15_0) |
| input | [15:0] |
B_15_0 |
DATA output 16 bit B, from register selected by LBA_3_0 (from CGA_WRF.B_15_0) |
| input | [15:0] |
CD_15_0 |
Command/Data bus (from CPU_PROC_CGA_33.CD_15_0) |
| input | [8:0] |
CSALUI_8_0 |
Control Store Bits (from CPU_PROC_CGA_33.CSBITS[63:55]) |
| input | [1:0] |
CSALUM_1_0 |
Control Store Bits (from CPU_PROC_CGA_33.CSBITS[45:44]) |
| input | [15:0] |
CSBIT_15_0 |
Control Store Bits (from CPU_PROC_CGA_33.CSBITS[15:0]) |
| input | [1:0] |
CSCINSEL_1_0 |
Control Store Bits (from CPU_PROC_CGA_33.CSBITS[47:46]) |
| input | [4:0] |
CSIDBS_4_0 |
Control Store Bits (from CPU_PROC_CGA_33.CSBITS[41:37]) |
| input | [1:0] |
CSMIS_1_0 |
Control Store Bits (from CPU_PROC_CGA_33.CSBITS[43:42]) |
| input | [1:0] |
CSSST_1_0 |
Control Store Bits (from CPU_PROC_CGA_33.CSBITS[54:53]) |
| input | [15:0] |
EA_15_0 |
Enable A (source) bits for read. 16 bits to select register. (from CGA_WRF.EA_15_0) |
| input | [15:0] |
FIDBI_15_0 |
|
| input | [3:0] |
LAA_3_0 |
A Operand. CSBITS [15:12] |
| input | [3:0] |
LBA_3_0 |
B Operand. CSBITS [19:16] |
| input | 1 |
LCZN |
Load condition zero not (from CGA_MIC.LCZN) |
| input | 1 |
LDDBRN |
Latch DBR negated (from CGA_DCD.LDDBRN) |
| input | 1 |
LDGPRN |
Latch GPR negated (from CGA_DCD.LDGPRN) |
| input | 1 |
LDIRV |
Load IRV (from CGA_DCD.LDIRV) |
| input | 1 |
LDPILN |
Load PIL negated (from CGA_DCD.LDPILN) |
| input | 1 |
UPN |
Update not signal (from CGA_MIC.UPN) |
| input | 1 |
XFETCHN |
XFETCH negated (from CGA_DCD.XFETCHN) |
| output | 1 |
XGPRLOAD_DBG |
|
| output | 1 |
BDEST |
B is destination (enable write to B from 'RB_15_0' on ALUCLK) (to CGA_WRF.BDEST) |
| output | 1 |
CRY |
|
| output | 1 |
DOUBLE |
Double precision operation (to CPU_PROC_CGA_33.DOUBLE) |
| output | 1 |
F11 |
Bit F11 (to CGA_MIC.F11) |
| output | 1 |
F15 |
|
| output | [15:0] |
FIDBO_15_0_OUT |
|
| output | 1 |
IONI |
I/O Non-Maskable Interrupt (to CPU_PROC_CGA_33.IONI) |
| output | 1 |
MI |
M bit (to CGA_MIC.MI) |
| output | 1 |
OVF |
Overflow flag (to CGA_MIC.OVF) |
| output | [3:0] |
PIL_3_0 |
Processor Interrupt Level (to CPU_PROC_CGA_33.PIL_3_0) |
| output | 1 |
PONI |
Memory Protection ON, PONI=1 (to CGA.XPONI) |
| output | 1 |
PTM |
|
| output | [15:0] |
RB_15_0 |
|
| output | 1 |
SGR |
Segment register (to CGA_DCD.SGR) |
| output | 1 |
Z |
Error flag from ALU (to CGA_INTR.Z) |
| output | 1 |
ZF |
Verilog source¶
Verilog/DELILAH-CPU/CGA_ALU/circuit/CGA_ALU.v on GitHub.
Show the Verilog of CGA_ALU (443 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/ALU/OUTMUX **
** OUT MUX **
** **
** Page 41 **
** SHEET 1 of 1 **
** **
** Last reviewed: 29-JAN-2025 **
** Ronny Hansen **
***************************************************************************/
module CGA_ALU (
input sysclk, // System clock in FPGA
input sys_rst_n, // System reset in FPGA
input ALUCLK_EN, //! ALUCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input ALUCLK, //! ALU clock signal (from CPU_PROC_CGA_33.ALUCLK)
input [15:0] A_15_0, //! DATA output 16 bit A, from register selected by LAA_3_0 (from CGA_WRF.A_15_0)
input [15:0] B_15_0, //! DATA output 16 bit B, from register selected by LBA_3_0 (from CGA_WRF.B_15_0)
input [15:0] CD_15_0, //! Command/Data bus (from CPU_PROC_CGA_33.CD_15_0)
input [ 8:0] CSALUI_8_0, //! Control Store Bits (from CPU_PROC_CGA_33.CSBITS[63:55])
input [ 1:0] CSALUM_1_0, //! Control Store Bits (from CPU_PROC_CGA_33.CSBITS[45:44])
input [15:0] CSBIT_15_0, //! Control Store Bits (from CPU_PROC_CGA_33.CSBITS[15:0])
input [ 1:0] CSCINSEL_1_0, //! Control Store Bits (from CPU_PROC_CGA_33.CSBITS[47:46])
input [ 4:0] CSIDBS_4_0, //! Control Store Bits (from CPU_PROC_CGA_33.CSBITS[41:37])
input [ 1:0] CSMIS_1_0, //! Control Store Bits (from CPU_PROC_CGA_33.CSBITS[43:42])
input [ 1:0] CSSST_1_0, //! Control Store Bits (from CPU_PROC_CGA_33.CSBITS[54:53])
input [15:0] EA_15_0, //! Enable A (source) bits for read. 16 bits to select register. (from CGA_WRF.EA_15_0)
input [15:0] FIDBI_15_0,
input [ 3:0] LAA_3_0, //! A Operand. CSBITS [15:12]
input [ 3:0] LBA_3_0, //! B Operand. CSBITS [19:16]
input LCZN, //! Load condition zero not (from CGA_MIC.LCZN)
input LDDBRN, //! Latch DBR negated (from CGA_DCD.LDDBRN)
input LDGPRN, //! Latch GPR negated (from CGA_DCD.LDGPRN)
input LDIRV, //! Load IRV (from CGA_DCD.LDIRV)
input LDPILN, //! Load PIL negated (from CGA_DCD.LDPILN)
input UPN, //! Update not signal (from CGA_MIC.UPN)
input XFETCHN, //! XFETCH negated (from CGA_DCD.XFETCHN)
//! DEBUG: one pulse each time the instruction register takes a NEW opcode.
//! The GPR MUX41P selects D1 = CD_15_0 when GPRC[1:0] == 01
//! (CGA_ALU_GPR.v, GPR15M..GPR0M), and the GPR flip-flops capture on the
//! ALUCLK_EN enable pulse - so this product is exactly "a macro instruction
//! word is being loaded". MEASURED 31-AUG-2026 against the
//! ND120_TRACE_VERIFY reference on two areas with very different
//! instruction mixes (REGISTER-OPERATIONS and MEMORY-REFERENCE): 469 pulses
//! vs 460 detected instructions in BOTH, i.e. a CONSTANT offset, not one
//! that scales with the mix - so it is not counting operand fetches. The
//! residual is service code the reference detector cannot see (it needs
//! GPR != 0 and both P and the opcode to change).
//! Do NOT substitute CFETCH here: that FF feeds its own Q back to D and
//! only reloads on the BRK scan path - measured 0 pulses in 460
//! instructions (see docs/build-defines.md, ND120_MIPS_TAP).
output XGPRLOAD_DBG,
output BDEST, //! B is destination (enable write to B from 'RB_15_0' on ALUCLK) (to CGA_WRF.BDEST)
output CRY,
output DOUBLE, //! Double precision operation (to CPU_PROC_CGA_33.DOUBLE)
output F11, //! Bit F11 (to CGA_MIC.F11)
output F15,
output [15:0] FIDBO_15_0_OUT,
output IONI, //! I/O Non-Maskable Interrupt (to CPU_PROC_CGA_33.IONI)
output MI, //! M bit (to CGA_MIC.MI)
output OVF, //! Overflow flag (to CGA_MIC.OVF)
output [ 3:0] PIL_3_0, //! Processor Interrupt Level (to CPU_PROC_CGA_33.PIL_3_0)
output PONI, //! Memory Protection ON, PONI=1 (to CGA.XPONI)
output PTM,
output [15:0] RB_15_0,
output SGR, //! Segment register (to CGA_DCD.SGR)
output Z, //! Error flag from ALU (to CGA_INTR.Z)
output ZF
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [ 1:0] s_cd_10_9;
wire [ 1:0] s_csalum_1_0;
wire [ 1:0] s_cscinsel_1_0;
wire [ 1:0] s_csmis_1_0;
wire [ 1:0] s_cssst_1_0;
wire [ 1:0] s_csts_1_0;
wire [ 1:0] s_qsel_1_0;
wire [ 2:0] s_gprc_2_0;
wire [ 3:0] s_laa_3_0;
wire [ 3:0] s_lba_3_0;
wire [ 3:0] s_pil_3_0_out;
wire [ 4:0] s_csidbs4_0;
wire [ 8:0] s_csalui_8_0;
wire [15:0] s_a_15_0;
wire [15:0] s_arg_15_0;
wire [15:0] s_b_15_0;
wire [15:0] s_cd_15_0;
wire [15:0] s_csbit_15_0;
wire [15:0] s_d_15_0;
wire [15:0] s_dbr_15_0;
wire [15:0] s_ea_15_0;
(* mark_debug = "true", DONT_TOUCH = "true" *) wire [15:0] s_f_15_0;
wire [15:0] s_fidbi_15_0;
wire [15:0] s_fidbo_15_0_out;
wire [15:0] s_g_15_0;
wire [15:0] s_grp_15_0;
(* mark_debug = "true", DONT_TOUCH = "true" *) wire [15:0] s_q_15_0;
wire [15:0] s_rb_15_0_out;
wire [15:0] s_rn_15_0;
wire [15:0] s_s_15_0;
wire [15:0] s_sts_15_0;
wire [15:0] s_sw_15_0;
wire s_aarg0_n;
wire s_aarg0;
wire s_aluclk;
wire s_alud2_n;
wire s_alui4;
wire s_alui7;
wire s_alui8n;
wire s_bdest_out;
wire s_carry_in;
wire s_cry_out;
wire s_dgpr0_n;
wire s_fsel;
wire s_gprli;
wire s_lcz_n;
wire s_lddbr_n;
wire s_ldgpr_n;
wire s_ldirv;
wire s_ldpil_n;
wire s_log;
wire s_mi_out;
wire s_ovf_out;
wire s_qli;
wire s_ra;
wire s_rb;
wire s_rli;
wire s_rri;
wire s_rsn;
wire s_sa;
wire s_sb;
wire s_sel_idbs2;
wire s_sgr_out;
wire s_up_n;
wire s_xfetch_n;
wire s_zf_out;
/*******************************************************************************
** Here all wiring is defined **
*******************************************************************************/
assign s_cd_10_9[1:0] = s_cd_15_0[10:9];
assign s_pil_3_0_out[3:0] = s_sts_15_0[11:8];
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_lba_3_0[3:0] = LBA_3_0;
assign s_laa_3_0[3:0] = LAA_3_0;
assign s_cd_15_0[15:0] = CD_15_0;
assign s_cssst_1_0[1:0] = CSSST_1_0;
assign s_csalui_8_0[8:0] = CSALUI_8_0;
assign s_fidbi_15_0[15:0] = FIDBI_15_0;
assign s_csidbs4_0[4:0] = CSIDBS_4_0;
assign s_cscinsel_1_0[1:0] = CSCINSEL_1_0;
assign s_csalum_1_0[1:0] = CSALUM_1_0;
assign s_ea_15_0[15:0] = EA_15_0;
assign s_csmis_1_0[1:0] = CSMIS_1_0;
assign s_a_15_0[15:0] = A_15_0;
assign s_b_15_0[15:0] = B_15_0;
assign s_csbit_15_0[15:0] = CSBIT_15_0;
assign s_up_n = UPN;
assign s_aluclk = ALUCLK;
wire s_aluclk_en_i = ALUCLK_EN;
// P2b (docs/plan-fix-unconstrained-clocks.md): in FF mode the ALUCLK-
// clocked registers capture on posedge sysclk gated by ALUCLK_EN
// (aligned to the ALUCLK rise) instead of clocking on the routed net.
`ifdef FPGA_FF_MODE
localparam ALUCLK_CE = 1;
`else
localparam ALUCLK_CE = 0;
`endif
assign s_xfetch_n = XFETCHN;
assign s_ldgpr_n = LDGPRN;
assign s_lddbr_n = LDDBRN;
assign s_ldpil_n = LDPILN;
assign s_ldirv = LDIRV;
assign s_lcz_n = LCZN;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign BDEST = s_bdest_out;
assign CRY = s_cry_out;
assign DOUBLE = s_sts_15_0[13];
assign F11 = s_f_15_0[11];
assign F15 = s_f_15_0[15];
assign FIDBO_15_0_OUT = s_fidbo_15_0_out[15:0];
assign IONI = s_sts_15_0[15];
assign MI = s_mi_out;
assign OVF = s_ovf_out;
assign PIL_3_0 = s_pil_3_0_out[3:0];
assign PONI = s_sts_15_0[14];
assign PTM = s_sts_15_0[0];
assign RB_15_0 = s_rb_15_0_out[15:0];
assign SGR = s_sgr_out;
assign Z = s_sts_15_0[3];
assign ZF = s_zf_out;
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// NOT Gate
assign s_fidbo_15_0_out[15:0] = ~s_g_15_0[15:0];
assign s_aarg0 = ~s_aarg0_n;
/*******************************************************************************
** Here all normal components are defined **
*******************************************************************************/
D_FLIPFLOP_EN #(
.USE_ENABLE(ALUCLK_CE)
) MEMORY_1 (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.clock(s_aluclk),
.d(s_csidbs4_0[2]),
.preset(1'b0),
.q(s_sel_idbs2),
.qBar(),
.reset(1'b0),
.tick(1'b1)
);
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
CGA_CPU_ALU_RALU ALU_RALU (
// FPGA system clock
.sysclk(sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
// Input signals
.ALUI4(s_alui4),
.CI(s_carry_in),
.CRY(s_cry_out),
.FSEL(s_fsel),
.F_15_0(s_f_15_0[15:0]),
.LOG(s_log),
.OVF(s_ovf_out),
.RN_15_0(s_rn_15_0[15:0]),
.RSN(s_rsn),
.SGR(s_sgr_out),
.S_15_0(s_s_15_0[15:0]),
.ZF(s_zf_out)
);
CGA_ALU_SHIFT ALU_SHIFT (
.ALUI7(s_alui7),
.ALUI8N(s_alui8n),
.F_15_0(s_f_15_0[15:0]),
.RB_15_0(s_rb_15_0_out[15:0]),
.RLI(s_rli),
.RRI(s_rri)
);
CGA_ALU_STS ALU_STS (
.sysclk(sysclk),
.ALUCLK_EN(s_aluclk_en_i),
.ALUCLK(s_aluclk),
.CRY(s_cry_out),
.CSTS_1_0(s_csts_1_0[1:0]),
.FIDBO_15_0(s_fidbo_15_0_out[15:0]),
.LDPILN(s_ldpil_n),
.MI(s_mi_out),
.OVF(s_ovf_out),
.STS_15_0(s_sts_15_0[15:0])
);
CGA_ALU_GPR ALU_GPR (
.sysclk(sysclk),
.ALUCLK_EN(s_aluclk_en_i),
.ALUCLK(s_aluclk),
.CD_15_0(s_cd_15_0[15:0]),
.DGPR0N(s_dgpr0_n),
.FIDBO_15_0(s_fidbo_15_0_out[15:0]),
.GPRC_2_0(s_gprc_2_0[2:0]),
.GPRLI(s_gprli),
.GPR_15_0(s_grp_15_0[15:0])
);
// DEBUG tap for the panel MIPS counter - see the XGPRLOAD_DBG port comment.
// Built ONLY where a panel exists to display it (ND120_MIPS_TAP, set by the
// Nexys build.tcl alongside ND120_CONSOLE_VGA). The Tang core has no panel,
// so there the net is tied off rather than left for synthesis to strip: this
// product adds fanout to ALUCLK_EN - the fanout-238 net at the end of the
// control-store critical cone - and to GPRC, so it should not exist at all
// in a build that cannot show the number.
`ifdef ND120_MIPS_TAP
assign XGPRLOAD_DBG = s_aluclk_en_i & s_gprc_2_0[0] & ~s_gprc_2_0[1];
`else
assign XGPRLOAD_DBG = 1'b0; // no panel in this build
`endif
CGA_ALU_DBR ALU_DBR (
.sysclk(sysclk),
.ALUCLK_EN(s_aluclk_en_i),
.ALUCLK(s_aluclk),
.CD_15_0 (s_cd_15_0[15:0]),
.DBR_15_0(s_dbr_15_0[15:0]),
.LDDBRN (s_lddbr_n)
);
CGA_ALU_ARG ALU_ARG (
.sysclk(sysclk),
.ALUCLK_EN(s_aluclk_en_i),
.ALUCLK(s_aluclk),
.ARG_15_0(s_arg_15_0[15:0]),
.CSBIT_15_0(s_csbit_15_0[15:0])
);
CGA_ALU_SWAP ALU_SWAP (
.sysclk(sysclk),
.ALUCLK_EN(s_aluclk_en_i),
.ALUCLK(s_aluclk),
.FIDBO_15_0(s_fidbo_15_0_out[15:0]),
.SW_15_0(s_sw_15_0[15:0])
);
MUX21LP AARG0_MUX (
.A (s_lba_3_0[3]),
.B (s_laa_3_0[0]),
.S (s_sel_idbs2),
.ZN(s_aarg0_n)
);
CGA_ALU_OUTMUX ALU_OUTMUX (
// FPGA system clock
.sysclk(sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
// Input
.AARG0(s_aarg0),
.ALUCLK_EN(s_aluclk_en_i),
.ALUCLK(s_aluclk),
.ALUD2N(s_alud2_n),
.ARG_15_0(s_arg_15_0[15:0]),
.A_15_0(s_a_15_0[15:0]),
.CSIDBS_4_0(s_csidbs4_0[4:0]),
.DBR_15_0(s_dbr_15_0[15:0]),
.EA_15_0(s_ea_15_0[15:0]),
.FIDBI_15_0(s_fidbi_15_0[15:0]),
.F_15_0(s_f_15_0[15:0]),
.GPR_15_0(s_grp_15_0[15:0]),
.LAA_3_1(s_laa_3_0[3:1]),
.LBA_2_0(s_lba_3_0[2:0]),
.STS_15_0(s_sts_15_0[15:0]),
.SW_15_0(s_sw_15_0[15:0]),
//Output
.G_15_0(s_g_15_0[15:0]),
.D_15_0(s_d_15_0[15:0])
);
CGA_ALU_QREG ALU_QREG (
.sysclk(sysclk),
.ALUCLK_EN(s_aluclk_en_i),
.ALUCLK(s_aluclk),
.F_15_0(s_f_15_0[15:0]),
.QLI(s_qli),
.QSEL_1_0(s_qsel_1_0[1:0]),
.Q_15_0(s_q_15_0[15:0])
);
CGA_CPU_ALU_RMUX ALU_RMUX (
.A_15_0(s_a_15_0[15:0]),
.D_15_0(s_d_15_0[15:0]),
.RA(s_ra),
.RD(s_rb),
.RN_15_0(s_rn_15_0[15:0])
);
CGA_ALU_SMUX ALU_SMUX (
.A_15_0(s_a_15_0[15:0]),
.B_15_0(s_b_15_0[15:0]),
.Q_15_0(s_q_15_0[15:0]),
.SA(s_sa),
.SB(s_sb),
.S_15_0(s_s_15_0[15:0])
);
CGA_CPU_ALU_CONTR ALU_CONTR (
.sysclk(sysclk),
.ALUCLK_EN(s_aluclk_en_i),
.ALUCLK(s_aluclk),
.ALUD2N(s_alud2_n),
.ALUI4(s_alui4),
.ALUI7(s_alui7),
.ALUI8N(s_alui8n),
.BDEST(s_bdest_out),
.CD_10_9(s_cd_10_9[1:0]),
.CI(s_carry_in),
.CRY(s_cry_out),
.CSALUI_8_0(s_csalui_8_0[8:0]),
.CSALUM_1_0(s_csalum_1_0[1:0]),
.CSCINSEL_1_0(s_cscinsel_1_0[1:0]),
.CSMIS_1_0(s_csmis_1_0[1:0]),
.CSSST_1_0(s_cssst_1_0[1:0]),
.CSTS_1_0(s_csts_1_0[1:0]),
.DGPR0N(s_dgpr0_n),
.F0(s_f_15_0[0]),
.F15(s_f_15_0[15]),
.FSEL(s_fsel),
.GPR0(s_grp_15_0[0]),
.GPRC_2_0(s_gprc_2_0[2:0]),
.GPRLI(s_gprli),
.LCZN(s_lcz_n),
.LDGPRN(s_ldgpr_n),
.LDIRV(s_ldirv),
.LOG(s_log),
.MI(s_mi_out),
.Q0(s_q_15_0[0]),
.Q15(s_q_15_0[15]),
.QLI(s_qli),
.QSEL_1_0(s_qsel_1_0[1:0]),
.RA(s_ra),
.RD(s_rb),
.RLI(s_rli),
.RRI(s_rri),
.RSN(s_rsn),
.SA(s_sa),
.SB(s_sb),
.STS6(s_sts_15_0[6]),
.STS7(s_sts_15_0[7]),
.UPN(s_up_n),
.XFETCHN(s_xfetch_n)
);
endmodule
