CGA_INTR_CNTLR_VECGEN_CMP

Source: Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_VECGEN_CMP.v

Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_INTR > CGA_INTR_CNTLR > CGA_INTR_CNTLR_VECGEN > CGA_INTR_CNTLR_VECGEN_CMP - instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.VECGEN.CMP

Used in: CGA_INTR_CNTLR_VECGEN (all tops)

Contains: CGA_INTR_CNTLR_VECGEN_CMP_MAGCMP x2

Module hierarchy - All modules

Schematic

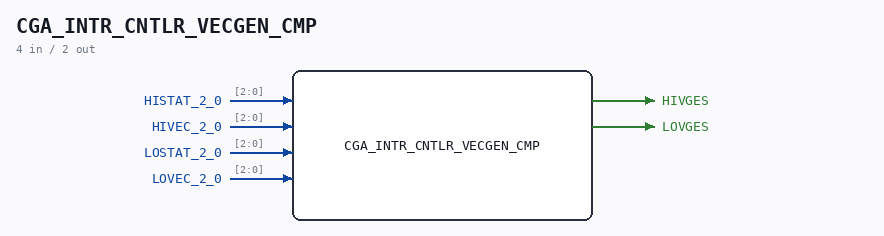

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.VECGEN.CMP. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).

Description

ND120 CGA (CPU Gate Array / DELILAH) /CGA/INTR/CNTLR/VECGEN/CMP CMP Page 88 SHEET 1 of 1 Last reviewed: 10-NOV-2024 Ronny Hansen

Ports

Direction	Width	Name	Description
input	[2:0]	HISTAT_2_0
input	[2:0]	HIVEC_2_0
input	[2:0]	LOSTAT_2_0
input	[2:0]	LOVEC_2_0
output	1	HIVGES
output	1	LOVGES

Verilog source

Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_VECGEN_CMP.v on GitHub.

Show the Verilog of CGA_INTR_CNTLR_VECGEN_CMP (63 lines)

/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH)                                  **
** /CGA/INTR/CNTLR/VECGEN/CMP                                            **
** CMP                                                                   **
**                                                                       **
** Page 88                                                               **
** SHEET 1 of 1                                                          **
**                                                                       **
** Last reviewed: 10-NOV-2024                                            **
** Ronny Hansen                                                          **
***************************************************************************/

module CGA_INTR_CNTLR_VECGEN_CMP (
    input [2:0] HISTAT_2_0,
    input [2:0] HIVEC_2_0,
    input [2:0] LOSTAT_2_0,
    input [2:0] LOVEC_2_0,

    output HIVGES,
    output LOVGES
);

  /*******************************************************************************
   ** The wires are defined here                                                 **
   *******************************************************************************/
  wire [2:0] s_lovec_2_0;
  wire [2:0] s_hivec_2_0;
  wire [2:0] s_lostat_2_0;
  wire [2:0] s_histat_2_0;
  wire       s_hivges_out;
  wire       s_lovges_out;

  /*******************************************************************************
   ** Here all input connections are defined                                     **
   *******************************************************************************/
  assign s_histat_2_0[2:0] = HISTAT_2_0;
  assign s_hivec_2_0[2:0] = HIVEC_2_0;
  assign s_lostat_2_0[2:0] = LOSTAT_2_0;
  assign s_lovec_2_0[2:0] = LOVEC_2_0;

  /*******************************************************************************
   ** Here all output connections are defined                                    **
   *******************************************************************************/
  assign HIVGES = s_hivges_out;
  assign LOVGES = s_lovges_out;

  /*******************************************************************************
   ** Here all sub-circuits are defined                                          **
   *******************************************************************************/

  CGA_INTR_CNTLR_VECGEN_CMP_MAGCMP HICMP (
      .S_2_0(s_histat_2_0[2:0]),
      .VGES (s_hivges_out),
      .V_2_0(s_hivec_2_0[2:0])
  );

  CGA_INTR_CNTLR_VECGEN_CMP_MAGCMP LOCMP (
      .S_2_0(s_lostat_2_0[2:0]),
      .VGES (s_lovges_out),
      .V_2_0(s_lovec_2_0[2:0])
  );

endmodule
