CGA_INTR_CNTLR_IRQ_MASK¶
Source: Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_IRQ_MASK.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_INTR > CGA_INTR_CNTLR > CGA_INTR_CNTLR_IRQ > CGA_INTR_CNTLR_IRQ_MASK
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.IRQ.IRQ_MASK
Used in: CGA_INTR_CNTLR_IRQ (all tops)
Contains: CGA_INTR_CNTLR_IRQ_MASK_MASKBIT x16
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.IRQ.IRQ_MASK. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/INTR/CNTLR/IRQ/MASK IRQ MASK Page 80 SHEET 1 of 1 Last reviewed: 10-NOV-2024 Ronny Hansen

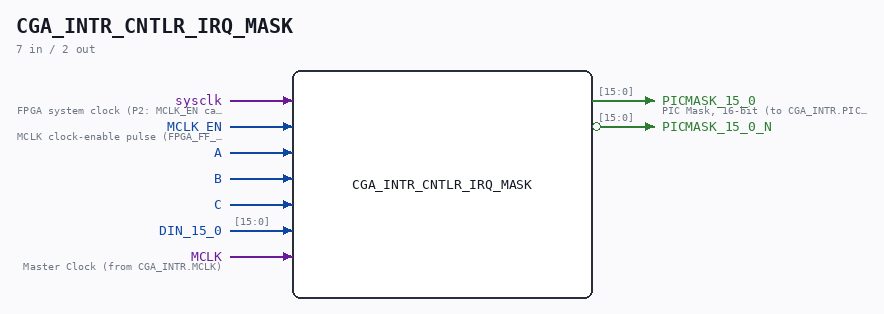

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
FPGA system clock (P2: MCLK_EN capture) |
| input | 1 |
MCLK_EN |
MCLK clock-enable pulse (FPGA_FF_MODE, else 0) |
| input | 1 |
A |
|
| input | 1 |
B |
|
| input | 1 |
C |
|
| input | [15:0] |
DIN_15_0 |
|
| input | 1 |
MCLK |
Master Clock (from CGA_INTR.MCLK) |
| output | [15:0] |
PICMASK_15_0 |
PIC Mask, 16-bit (to CGA_INTR.PICMASK_15_0) |
| output | [15:0] |
PICMASK_15_0_N (active low) |
Verilog source¶
Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_IRQ_MASK.v on GitHub.
Show the Verilog of CGA_INTR_CNTLR_IRQ_MASK (258 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/INTR/CNTLR/IRQ/MASK **
** IRQ MASK **
** **
** Page 80 **
** SHEET 1 of 1 **
** **
** Last reviewed: 10-NOV-2024 **
** Ronny Hansen **
***************************************************************************/
module CGA_INTR_CNTLR_IRQ_MASK (
input sysclk, //! FPGA system clock (P2: MCLK_EN capture)
input MCLK_EN, //! MCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input A,
input B,
input C,
input [15:0] DIN_15_0,
input MCLK, //! Master Clock (from CGA_INTR.MCLK)
output [15:0] PICMASK_15_0, //! PIC Mask, 16-bit (to CGA_INTR.PICMASK_15_0)
output [15:0] PICMASK_15_0_N
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [15:0] s_picmask_15_0_out;
wire [15:0] s_din_15_0;
wire [15:0] s_picmask_15_0_n_out;
wire s_a;
wire s_b;
wire s_c;
wire s_dcdc_n;
wire s_mclk;
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_din_15_0[15:0] = DIN_15_0;
assign s_a = A;
assign s_c = C;
assign s_b = B;
assign s_mclk = MCLK;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign PICMASK_15_0 = s_picmask_15_0_out[15:0];
assign PICMASK_15_0_N = s_picmask_15_0_n_out[15:0];
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// NOT Gate
assign s_dcdc_n = ~s_c;
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
CGA_INTR_CNTLR_IRQ_MASK_MASKBIT MASKBIT15 (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.CLOCK(s_mclk),
.DATAIN(s_din_15_0[15]),
.DCDA(s_a),
.DCDB(s_b),
.DCDCN(s_dcdc_n),
.MSK(s_picmask_15_0_out[15]),
.MSKN(s_picmask_15_0_n_out[15])
);
CGA_INTR_CNTLR_IRQ_MASK_MASKBIT MASKBIT14 (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.CLOCK(s_mclk),
.DATAIN(s_din_15_0[14]),
.DCDA(s_a),
.DCDB(s_b),
.DCDCN(s_dcdc_n),
.MSK(s_picmask_15_0_out[14]),
.MSKN(s_picmask_15_0_n_out[14])
);
CGA_INTR_CNTLR_IRQ_MASK_MASKBIT MASKBIT13 (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.CLOCK(s_mclk),
.DATAIN(s_din_15_0[13]),
.DCDA(s_a),
.DCDB(s_b),
.DCDCN(s_dcdc_n),
.MSK(s_picmask_15_0_out[13]),
.MSKN(s_picmask_15_0_n_out[13])
);
CGA_INTR_CNTLR_IRQ_MASK_MASKBIT MASKBIT12 (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.CLOCK(s_mclk),
.DATAIN(s_din_15_0[12]),
.DCDA(s_a),
.DCDB(s_b),
.DCDCN(s_dcdc_n),
.MSK(s_picmask_15_0_out[12]),
.MSKN(s_picmask_15_0_n_out[12])
);
CGA_INTR_CNTLR_IRQ_MASK_MASKBIT MASKBIT11 (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.CLOCK(s_mclk),
.DATAIN(s_din_15_0[11]),
.DCDA(s_a),
.DCDB(s_b),
.DCDCN(s_dcdc_n),
.MSK(s_picmask_15_0_out[11]),
.MSKN(s_picmask_15_0_n_out[11])
);
CGA_INTR_CNTLR_IRQ_MASK_MASKBIT MASKBIT10 (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.CLOCK(s_mclk),
.DATAIN(s_din_15_0[10]),
.DCDA(s_a),
.DCDB(s_b),
.DCDCN(s_dcdc_n),
.MSK(s_picmask_15_0_out[10]),
.MSKN(s_picmask_15_0_n_out[10])
);
CGA_INTR_CNTLR_IRQ_MASK_MASKBIT MASKBIT9 (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.CLOCK(s_mclk),
.DATAIN(s_din_15_0[9]),
.DCDA(s_a),
.DCDB(s_b),
.DCDCN(s_dcdc_n),
.MSK(s_picmask_15_0_out[9]),
.MSKN(s_picmask_15_0_n_out[9])
);
CGA_INTR_CNTLR_IRQ_MASK_MASKBIT MASKBIT8 (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.CLOCK(s_mclk),
.DATAIN(s_din_15_0[8]),
.DCDA(s_a),
.DCDB(s_b),
.DCDCN(s_dcdc_n),
.MSK(s_picmask_15_0_out[8]),
.MSKN(s_picmask_15_0_n_out[8])
);
CGA_INTR_CNTLR_IRQ_MASK_MASKBIT MASKBIT7 (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.CLOCK(s_mclk),
.DATAIN(s_din_15_0[7]),
.DCDA(s_a),
.DCDB(s_b),
.DCDCN(s_dcdc_n),
.MSK(s_picmask_15_0_out[7]),
.MSKN(s_picmask_15_0_n_out[7])
);
CGA_INTR_CNTLR_IRQ_MASK_MASKBIT MASKBIT6 (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.CLOCK(s_mclk),
.DATAIN(s_din_15_0[6]),
.DCDA(s_a),
.DCDB(s_b),
.DCDCN(s_dcdc_n),
.MSK(s_picmask_15_0_out[6]),
.MSKN(s_picmask_15_0_n_out[6])
);
CGA_INTR_CNTLR_IRQ_MASK_MASKBIT MASKBIT5 (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.CLOCK(s_mclk),
.DATAIN(s_din_15_0[5]),
.DCDA(s_a),
.DCDB(s_b),
.DCDCN(s_dcdc_n),
.MSK(s_picmask_15_0_out[5]),
.MSKN(s_picmask_15_0_n_out[5])
);
CGA_INTR_CNTLR_IRQ_MASK_MASKBIT MASKBIT4 (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.CLOCK(s_mclk),
.DATAIN(s_din_15_0[4]),
.DCDA(s_a),
.DCDB(s_b),
.DCDCN(s_dcdc_n),
.MSK(s_picmask_15_0_out[4]),
.MSKN(s_picmask_15_0_n_out[4])
);
CGA_INTR_CNTLR_IRQ_MASK_MASKBIT MASKBIT3 (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.CLOCK(s_mclk),
.DATAIN(s_din_15_0[3]),
.DCDA(s_a),
.DCDB(s_b),
.DCDCN(s_dcdc_n),
.MSK(s_picmask_15_0_out[3]),
.MSKN(s_picmask_15_0_n_out[3])
);
CGA_INTR_CNTLR_IRQ_MASK_MASKBIT MASKBIT2 (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.CLOCK(s_mclk),
.DATAIN(s_din_15_0[2]),
.DCDA(s_a),
.DCDB(s_b),
.DCDCN(s_dcdc_n),
.MSK(s_picmask_15_0_out[2]),
.MSKN(s_picmask_15_0_n_out[2])
);
CGA_INTR_CNTLR_IRQ_MASK_MASKBIT MASKBIT1 (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.CLOCK(s_mclk),
.DATAIN(s_din_15_0[1]),
.DCDA(s_a),
.DCDB(s_b),
.DCDCN(s_dcdc_n),
.MSK(s_picmask_15_0_out[1]),
.MSKN(s_picmask_15_0_n_out[1])
);
CGA_INTR_CNTLR_IRQ_MASK_MASKBIT MASKBIT0 (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.CLOCK(s_mclk),
.DATAIN(s_din_15_0[0]),
.DCDA(s_a),
.DCDB(s_b),
.DCDCN(s_dcdc_n),
.MSK(s_picmask_15_0_out[0]),
.MSKN(s_picmask_15_0_n_out[0])
);
endmodule
