CGA_WRF_RBLOCK_PREG¶
Source: Verilog/DELILAH-CPU/CGA_WRF/circuit/CGA_WRF_RBLOCK_PREG.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_WRF > CGA_WRF_RBLOCK > CGA_WRF_RBLOCK_PREG
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.WRF.RBLOCK.P_REG_2
Used in: CGA_WRF_RBLOCK (all tops)
Contains: L8 x2, MUX31LP x16, R81_EN x2
Module hierarchy - All modules
Schematic¶

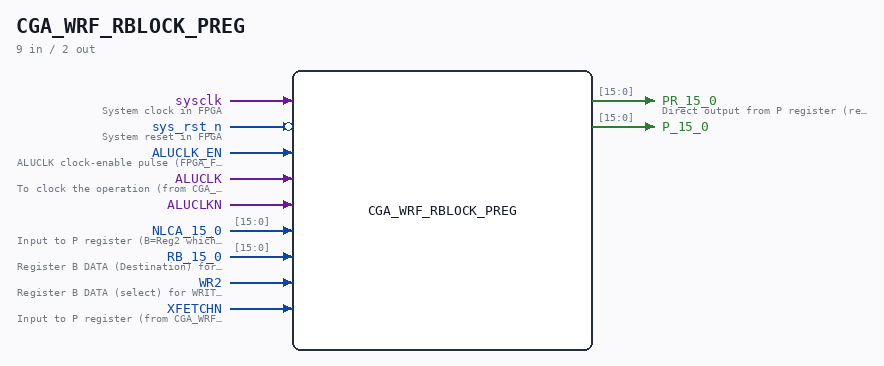

Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.WRF.RBLOCK.P_REG_2. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CPU, MM&M CGA/WRF/RBLOCK/PREG WRF: Working Register File (PDF page 62) Last reviewed: 9-FEB-2025 Ronny Hansen
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
System clock in FPGA |
| input | 1 |
sys_rst_n (active low) |
System reset in FPGA |
| input | 1 |
ALUCLK_EN |
ALUCLK clock-enable pulse (FPGA_FF_MODE, else 0) |
| input | 1 |
ALUCLK |
To clock the operation (from CGA_WRF_RBLOCK.ALUCLK) |
| input | 1 |
ALUCLKN |
|
| input | [15:0] |
NLCA_15_0 |
Input to P register (B=Reg2 which is P) (from CGA_WRF_RBLOCK.NLCA_15_0) |
| input | [15:0] |
RB_15_0 |
Register B DATA (Destination) for WRITE. 16 bits to select register(s) (from CGA_WRF_RBLOCK.RB_15_0) |
| input | 1 |
WR2 |
Register B DATA (select) for WRITE. 16 bits to select register(s) (from CGA_WRF_RBLOCK.WR_15_0[2]) |
| input | 1 |
XFETCHN |
Input to P register (from CGA_WRF_RBLOCK.XFETCHN) |
| output | [15:0] |
PR_15_0 |
Direct output from P register (register #2) (to CGA_WRF_RBLOCK.PR_15_0) |
| output | [15:0] |
P_15_0 |
Verilog source¶
Verilog/DELILAH-CPU/CGA_WRF/circuit/CGA_WRF_RBLOCK_PREG.v on GitHub.
Show the Verilog of CGA_WRF_RBLOCK_PREG (404 lines)
/**************************************************************************
** ND120 CPU, MM&M **
** CGA/WRF/RBLOCK/PREG **
** WRF: Working Register File **
** (PDF page 62) **
** **
** Last reviewed: 9-FEB-2025 **
** Ronny Hansen **
***************************************************************************/
module CGA_WRF_RBLOCK_PREG (
// System input signals
input sysclk, // System clock in FPGA
input sys_rst_n, // System reset in FPGA
input ALUCLK_EN, //! ALUCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input ALUCLK, //! To clock the operation (from CGA_WRF_RBLOCK.ALUCLK)
input ALUCLKN,
input [15:0] NLCA_15_0, //! Input to P register (B=Reg2 which is P) (from CGA_WRF_RBLOCK.NLCA_15_0)
input [15:0] RB_15_0, //! Register B DATA (Destination) for WRITE. 16 bits to select register(s) (from CGA_WRF_RBLOCK.RB_15_0)
input WR2, //! Register B DATA (select) for WRITE. 16 bits to select register(s) (from CGA_WRF_RBLOCK.WR_15_0[2])
input XFETCHN, //! Input to P register (from CGA_WRF_RBLOCK.XFETCHN)
output [15:0] PR_15_0, //! Direct output from P register (register #2) (to CGA_WRF_RBLOCK.PR_15_0)
output [15:0] P_15_0
);
wire s_aluclk_n;
wire s_aluclk;
wire s_ip0_n;
wire s_ip1_n;
wire s_ip10_n;
wire s_ip11_n;
wire s_ip12_n;
wire s_ip13_n;
wire s_ip14_n;
wire s_ip15_n;
wire s_ip2_n;
wire s_ip3_n;
wire s_ip4_n;
wire s_ip5_n;
wire s_ip6_n;
wire s_ip7_n;
wire s_ip8_n;
wire s_ip9_n;
wire s_wr2;
wire s_xfetch_n;
wire s_xfetch;
wire [15:0] s_ncla_15_0;
wire [15:0] s_p_15_0_out;
wire [15:0] s_pr_15_0_out;
wire [15:0] s_rb_15_0;
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_rb_15_0[15:0] = RB_15_0;
assign s_ncla_15_0[15:0] = NLCA_15_0;
assign s_wr2 = WR2;
assign s_aluclk = ALUCLK;
// P2b (docs/plan-fix-unconstrained-clocks.md): in FF mode the ALUCLK-
// clocked registers capture on posedge sysclk gated by ALUCLK_EN
// (aligned to the ALUCLK rise) instead of clocking on the routed net.
`ifdef FPGA_FF_MODE
localparam ALUCLK_CE = 1;
`else
localparam ALUCLK_CE = 0;
`endif
assign s_aluclk_n = ALUCLKN;
assign s_xfetch_n = XFETCHN;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign PR_15_0 = s_pr_15_0_out[15:0];
assign P_15_0 = s_p_15_0_out[15:0];
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// NOT Gate
assign s_xfetch = ~s_xfetch_n;
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
/* Bits 0-7, left side on the schematic diagram page 62 */
MUX31LP R0 (
.A (s_xfetch),
.B (s_wr2),
.D0(s_p_15_0_out[0]),
.D1(s_ncla_15_0[0]),
.D2(s_rb_15_0[0]),
.ZN(s_ip0_n)
);
MUX31LP R1 (
.A (s_xfetch),
.B (s_wr2),
.D0(s_p_15_0_out[1]),
.D1(s_ncla_15_0[1]),
.D2(s_rb_15_0[1]),
.ZN(s_ip1_n)
);
MUX31LP R2 (
.A (s_xfetch),
.B (s_wr2),
.D0(s_p_15_0_out[2]),
.D1(s_ncla_15_0[2]),
.D2(s_rb_15_0[2]),
.ZN(s_ip2_n)
);
MUX31LP R3 (
.A (s_xfetch),
.B (s_wr2),
.D0(s_p_15_0_out[3]),
.D1(s_ncla_15_0[3]),
.D2(s_rb_15_0[3]),
.ZN(s_ip3_n)
);
MUX31LP R4 (
.A (s_xfetch),
.B (s_wr2),
.D0(s_p_15_0_out[4]),
.D1(s_ncla_15_0[4]),
.D2(s_rb_15_0[4]),
.ZN(s_ip4_n)
);
MUX31LP R5 (
.A (s_xfetch),
.B (s_wr2),
.D0(s_p_15_0_out[5]),
.D1(s_ncla_15_0[5]),
.D2(s_rb_15_0[5]),
.ZN(s_ip5_n)
);
MUX31LP R6 (
.A (s_xfetch),
.B (s_wr2),
.D0(s_p_15_0_out[6]),
.D1(s_ncla_15_0[6]),
.D2(s_rb_15_0[6]),
.ZN(s_ip6_n)
);
MUX31LP R7 (
.A (s_xfetch),
.B (s_wr2),
.D0(s_p_15_0_out[7]),
.D1(s_ncla_15_0[7]),
.D2(s_rb_15_0[7]),
.ZN(s_ip7_n)
);
// verilator lint_off UNUSED
// verilator lint_off UNDRIVEN
// verilator lint_off PINCONNECTEMPTY
// Register P(7:0) (Clocked on s_aluclk)
R81_EN #(.USE_ENABLE(ALUCLK_CE)) R_P_0_7 (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.A(s_ip0_n),
.B(s_ip1_n),
.C(s_ip2_n),
.D(s_ip3_n),
.E(s_ip4_n),
.F(s_ip5_n),
.G(s_ip6_n),
.H(s_ip7_n),
.CP(s_aluclk),
.QA (),
.QAN(s_p_15_0_out[0]),
.QB (),
.QBN(s_p_15_0_out[1]),
.QC (),
.QCN(s_p_15_0_out[2]),
.QD (),
.QDN(s_p_15_0_out[3]),
.QE (),
.QEN(s_p_15_0_out[4]),
.QF (),
.QFN(s_p_15_0_out[5]),
.QG (),
.QGN(s_p_15_0_out[6]),
.QH (),
.QHN(s_p_15_0_out[7])
);
// Latch P(7:0) (Latched on s_aluclk_n)
L8 L_PR_7_0
(
// Input signals
.sysclk(sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
.L (s_aluclk_n),
.A (s_ip0_n),
.B (s_ip1_n),
.C (s_ip2_n),
.D (s_ip3_n),
.E (s_ip4_n),
.F (s_ip5_n),
.G (s_ip6_n),
.H (s_ip7_n),
.QA (),
.QAN(s_pr_15_0_out[0]),
.QB (),
.QBN(s_pr_15_0_out[1]),
.QC (),
.QCN(s_pr_15_0_out[2]),
.QD (),
.QDN(s_pr_15_0_out[3]),
.QE (),
.QEN(s_pr_15_0_out[4]),
.QF (),
.QFN(s_pr_15_0_out[5]),
.QG (),
.QGN(s_pr_15_0_out[6]),
.QH (),
.QHN(s_pr_15_0_out[7]),
// registered-value taps: deliberately unconnected here -
// the transparent output is the wanted one (see L8/L4 header).
.QA_R(),
.QB_R(),
.QC_R(),
.QD_R(),
.QE_R(),
.QF_R(),
.QG_R(),
.QH_R()
);
/* Bits 8-15, right side on the schematic diagram page 62 */
L8 L_PR_8_15
(
// Input signals
.sysclk(sysclk), // System clock in FPGA
.sys_rst_n(sys_rst_n), // System reset in FPGA
.L(s_aluclk_n),
.A(s_ip8_n),
.B(s_ip9_n),
.C(s_ip10_n),
.D(s_ip11_n),
.E(s_ip12_n),
.F(s_ip13_n),
.G(s_ip14_n),
.H(s_ip15_n),
.QA (),
.QAN(s_pr_15_0_out[8]),
.QB (),
.QBN(s_pr_15_0_out[9]),
.QC (),
.QCN(s_pr_15_0_out[10]),
.QD (),
.QDN(s_pr_15_0_out[11]),
.QE (),
.QEN(s_pr_15_0_out[12]),
.QF (),
.QFN(s_pr_15_0_out[13]),
.QG (),
.QGN(s_pr_15_0_out[14]),
.QH (),
.QHN(s_pr_15_0_out[15]),
// registered-value taps: deliberately unconnected here -
// the transparent output is the wanted one (see L8/L4 header).
.QA_R(),
.QB_R(),
.QC_R(),
.QD_R(),
.QE_R(),
.QF_R(),
.QG_R(),
.QH_R()
);
MUX31LP R8 (
.A (s_xfetch),
.B (s_wr2),
.D0(s_p_15_0_out[8]),
.D1(s_ncla_15_0[8]),
.D2(s_rb_15_0[8]),
.ZN(s_ip8_n)
);
MUX31LP R9 (
.A (s_xfetch),
.B (s_wr2),
.D0(s_p_15_0_out[9]),
.D1(s_ncla_15_0[9]),
.D2(s_rb_15_0[9]),
.ZN(s_ip9_n)
);
MUX31LP R10 (
.A (s_xfetch),
.B (s_wr2),
.D0(s_p_15_0_out[10]),
.D1(s_ncla_15_0[10]),
.D2(s_rb_15_0[10]),
.ZN(s_ip10_n)
);
MUX31LP R11 (
.A (s_xfetch),
.B (s_wr2),
.D0(s_p_15_0_out[11]),
.D1(s_ncla_15_0[11]),
.D2(s_rb_15_0[11]),
.ZN(s_ip11_n)
);
MUX31LP R12 (
.A (s_xfetch),
.B (s_wr2),
.D0(s_p_15_0_out[12]),
.D1(s_ncla_15_0[12]),
.D2(s_rb_15_0[12]),
.ZN(s_ip12_n)
);
MUX31LP R13 (
.A (s_xfetch),
.B (s_wr2),
.D0(s_p_15_0_out[13]),
.D1(s_ncla_15_0[13]),
.D2(s_rb_15_0[13]),
.ZN(s_ip13_n)
);
MUX31LP R14 (
.A (s_xfetch),
.B (s_wr2),
.D0(s_p_15_0_out[14]),
.D1(s_ncla_15_0[14]),
.D2(s_rb_15_0[14]),
.ZN(s_ip14_n)
);
MUX31LP R15 (
.A (s_xfetch),
.B (s_wr2),
.D0(s_p_15_0_out[15]),
.D1(s_ncla_15_0[15]),
.D2(s_rb_15_0[15]),
.ZN(s_ip15_n)
);
R81_EN #(.USE_ENABLE(ALUCLK_CE)) R_P_8_15 (
.sysclk(sysclk),
.EN(ALUCLK_EN),
.A(s_ip8_n),
.B(s_ip9_n),
.C(s_ip10_n),
.D(s_ip11_n),
.E(s_ip12_n),
.F(s_ip13_n),
.G(s_ip14_n),
.H(s_ip15_n),
.CP(s_aluclk),
.QA (),
.QAN(s_p_15_0_out[8]),
.QB (),
.QBN(s_p_15_0_out[9]),
.QC (),
.QCN(s_p_15_0_out[10]),
.QD (),
.QDN(s_p_15_0_out[11]),
.QE (),
.QEN(s_p_15_0_out[12]),
.QF (),
.QFN(s_p_15_0_out[13]),
.QG (),
.QGN(s_p_15_0_out[14]),
.QH (),
.QHN(s_p_15_0_out[15])
);
endmodule
