CGA_MAC_LA1025¶
Source: Verilog/DELILAH-CPU/CGA_MAC/circuit/CGA_MAC_LA1025.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_MAC > CGA_MAC_LA1025
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MAC.MAC_LA1025
Used in: CGA_MAC (all tops)
Contains: A02 x16, NAND_GATE x12, NAND_GATE_6_INPUTS, OR_GATE x8, OR_GATE_4_INPUTS x2, R81_EN x2
Module hierarchy - All modules

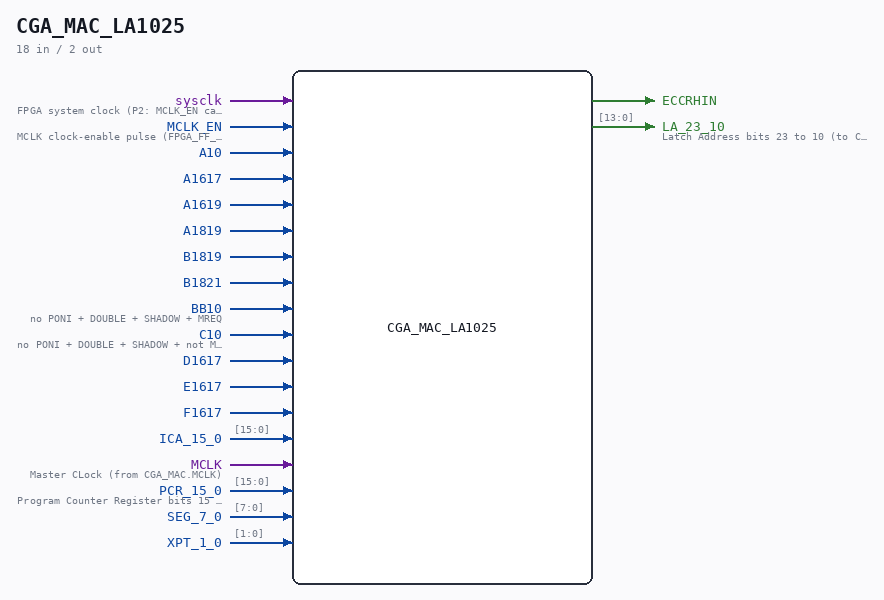

Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.MAC.MAC_LA1025. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/MAC/LA1025 ADD Page 40 SHEET 1 of 1 Last reviewed: 02-FEB-2025 Ronny Hansen 02-FEB-2025 - Refactored and removed input bus PCR_15_0_N. (Use bus PCR_15_0 only)
Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
FPGA system clock (P2: MCLK_EN capture) |
| input | 1 |
MCLK_EN |
MCLK clock-enable pulse (FPGA_FF_MODE, else 0) |
| input | 1 |
A10 |
|
| input | 1 |
A1617 |
|
| input | 1 |
A1619 |
|
| input | 1 |
A1819 |
|
| input | 1 |
B1819 |
|
| input | 1 |
B1821 |
|
| input | 1 |
BB10 |
no PONI + DOUBLE + SHADOW + MREQ |
| input | 1 |
C10 |
no PONI + DOUBLE + SHADOW + not MREQ |
| input | 1 |
D1617 |
|
| input | 1 |
E1617 |
|
| input | 1 |
F1617 |
|
| input | [15:0] |
ICA_15_0 |
|
| input | 1 |
MCLK |
Master CLock (from CGA_MAC.MCLK) |
| input | [15:0] |
PCR_15_0 |
Program Counter Register bits 15 to 0 (same net as CGA_MAC.PCR_15_0) |
| input | [7:0] |
SEG_7_0 |
|
| input | [1:0] |
XPT_1_0 |
|
| output | 1 |
ECCRHIN |
|
| output | [13:0] |
LA_23_10 |
Latch Address bits 23 to 10 (to CGA_MAC.LA_23_10) |
Verilog source¶
Verilog/DELILAH-CPU/CGA_MAC/circuit/CGA_MAC_LA1025.v on GitHub.
Show the Verilog of CGA_MAC_LA1025 (616 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/MAC/LA1025 **
** ADD **
** **
** Page 40 **
** SHEET 1 of 1 **
** **
** Last reviewed: 02-FEB-2025 **
** Ronny Hansen **
** **
** 02-FEB-2025 - Refactored and removed input bus PCR_15_0_N. **
** (Use bus PCR_15_0 only) **
***************************************************************************/
module CGA_MAC_LA1025 (
input sysclk, //! FPGA system clock (P2: MCLK_EN capture)
input MCLK_EN, //! MCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input A10,
input A1617,
input A1619,
input A1819,
input B1819,
input B1821,
input BB10, //! no PONI + DOUBLE + SHADOW + MREQ
input C10, //! no PONI + DOUBLE + SHADOW + not MREQ
input D1617,
input E1617,
input F1617,
input [15:0] ICA_15_0,
input MCLK, //! Master CLock (from CGA_MAC.MCLK)
input [15:0] PCR_15_0, //! Program Counter Register bits 15 to 0 (same net as CGA_MAC.PCR_15_0)
input [ 7:0] SEG_7_0,
input [ 1:0] XPT_1_0,
output ECCRHIN,
output [13:0] LA_23_10 //! Latch Address bits 23 to 10 (to CGA_MAC.LA_23_10)
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [15:0] s_ica_15_0;
wire [15:0] s_ica_input;
wire [13:0] s_la_23_10_out;
wire [15:0] s_pcr_15_0;
wire [ 1:0] s_xpt_1_0;
wire [ 7:0] s_seg_7_0;
wire s_a10;
wire s_a1617;
wire s_a1619;
wire s_a1819;
wire s_b1819;
wire s_b1821;
wire s_bb10;
wire s_ila10_b;
wire s_ila11_b;
wire s_ila12_b;
wire s_ila13_b;
wire s_ila14_b;
wire s_ila15_b;
wire s_c10;
wire s_d1617;
wire s_e1617;
wire s_eccrhi_n_out;
wire s_ila16_d_z;
wire s_ila17_d_z;
wire s_f1617;
wire s_ica_10_n;
wire s_ica_9_n;
wire s_ila10_a;
wire s_ila11_a;
wire s_ila12_a;
wire s_ila13_a;
wire s_ila14_a;
wire s_ila15_a;
wire s_ica6_7_z;
wire s_ila17_a_z;
wire s_ila10;
wire s_ila11;
wire s_ila12;
wire s_ila13;
wire s_ila14;
wire s_ila15;
wire s_ila16_b_z;
wire s_ila16_c_z;
wire s_ila16;
wire s_ila17_b_z;
wire s_ila17_c_z;
wire s_ila17;
wire s_ila18_a_z;
wire s_ila18_b_z;
wire s_ila18;
wire s_ila19_a_z;
wire s_ila19_b_z;
wire s_ila19;
wire s_ila20_n;
wire s_ila21_n;
wire s_ila22_n;
wire s_ila23_n;
wire s_la10_n;
wire s_la11_n;
wire s_la12_n;
wire s_la13_n;
wire s_la14_n;
wire s_mclk;
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
//assign s_ica_15_0[15:0] = ICA_15_0;
assign s_ica_input[15:0] = ICA_15_0;
assign s_pcr_15_0[15:0] = PCR_15_0;
assign s_xpt_1_0[1:0] = XPT_1_0;
assign s_seg_7_0[7:0] = SEG_7_0;
assign s_a10 = A10;
assign s_a1617 = A1617;
assign s_a1619 = A1619;
assign s_a1819 = A1819;
assign s_b1819 = B1819;
assign s_b1821 = B1821;
assign s_bb10 = BB10;
assign s_c10 = C10;
assign s_d1617 = D1617;
assign s_e1617 = E1617;
assign s_f1617 = F1617;
assign s_mclk = MCLK;
// P2 (docs/plan-fix-unconstrained-clocks.md): in FF mode the MCLK-
// clocked registers capture on posedge sysclk gated by MCLK_EN
// (aligned to the MCLK rise) instead of clocking on the routed net.
`ifdef FPGA_FF_MODE
localparam MCLK_CE = 1;
`else
localparam MCLK_CE = 0;
`endif
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign ECCRHIN = s_eccrhi_n_out;
assign LA_23_10 = s_la_23_10_out[13:0];
/*******************************************************************************
** Here all in-lined components are defined **
*******************************************************************************/
// NOT Gate
assign s_ica_9_n = ~s_ica_15_0[9];
assign s_ica_10_n = ~s_ica_15_0[10];
// Code to make LINTER _not_ complain about bits not read in PCR bits 15 and 6:0
(* keep = "true", DONT_TOUCH = "true" *) wire [7:0] unused_PCR_bits;
assign unused_PCR_bits[7:0] = { s_pcr_15_0[15], s_pcr_15_0[6:0]};
/*******************************************************************************
** Implementation **
*******************************************************************************/
// Need to delay the ICA signal change
// TODO: Review to see if the delay can be latched on posedge sysclk
reg [15:0] regICA;
always@(s_ica_input)
begin
regICA <= s_ica_input;
end
assign s_ica_15_0 = regICA;
// *** ILA 23 ***
NAND_GATE #(
.BubblesMask(2'b00)
) ILA23_NAND (
.input1(s_seg_7_0[7]),
.input2(s_a1617),
.result(s_ila23_n)
);
// *** ILA 22 ***
NAND_GATE #(
.BubblesMask(2'b00)
) ILA22_NAND (
.input1(s_seg_7_0[6]),
.input2(s_a1617),
.result(s_ila22_n)
);
// *** ILA 21 ***
NAND_GATE #(
.BubblesMask(2'b00)
) ILA21_NAND (
.input1(s_seg_7_0[5]),
.input2(s_b1821),
.result(s_ila21_n)
);
// *** ILA 20 ***
NAND_GATE #(
.BubblesMask(2'b00)
) ILA20_NAND (
.input1(s_seg_7_0[4]),
.input2(s_b1821),
.result(s_ila20_n)
);
// *** ILA 19 ***
A02 ILA19A (
.A(s_a1619),
.B(~s_pcr_15_0[14]), // PCR 14n
.C(s_seg_7_0[3]), // SEG 3
.D(s_b1821),
.Z(s_ila19_a_z)
);
A02 ILA19B (
.A(s_ica_10_n), // ICA 10n
.B(s_a1819),
.C(~s_pcr_15_0[10]), // PCR 10n
.D(s_b1819),
.Z(s_ila19_b_z)
);
OR_GATE #(
.BubblesMask(2'b11)
) ILA19_OR (
.input1(s_ila19_a_z),
.input2(s_ila19_b_z),
.result(s_ila19)
);
// *** ILA 18 ***
A02 ILA18A (
.A(s_a1619),
.B(~s_pcr_15_0[13]), // PCR 13n
.C(~s_pcr_15_0[9]), // PCR 9n
.D(s_b1819),
.Z(s_ila18_a_z)
);
A02 ILA18B (
.A(s_seg_7_0[2]), // SEG 2
.B(s_b1821),
.C(s_ica_9_n), // ICA 9n
.D(s_a1819),
.Z(s_ila18_b_z)
);
OR_GATE #(
.BubblesMask(2'b11)
) ILA18_OR (
.input1(s_ila18_a_z),
.input2(s_ila18_b_z),
.result(s_ila18)
);
// *** ILA 17 ***
A02 ILA17A (
.A(s_ica_15_0[7]),
.B(s_a10),
.C(s_ica_15_0[8]),
.D(s_bb10),
.Z(s_ila17_a_z)
);
A02 ILA17B (
.A(s_pcr_15_0[12]), // PCR 12
.B(s_a1619),
.C(s_seg_7_0[1]), // SEG 1
.D(s_a1617),
.Z(s_ila17_b_z)
);
A02 ILA17C (
.A(s_pcr_15_0[10]), // PCR 10
.B(s_d1617),
.C(s_pcr_15_0[8]), // PCR 8
.D(s_e1617),
.Z(s_ila17_c_z)
);
NAND_GATE #(
.BubblesMask(2'b00)
) ILA17D (
.input1(s_xpt_1_0[1]), // XPT 1
.input2(s_f1617),
.result(s_ila17_d_z)
);
OR_GATE_4_INPUTS #(
.BubblesMask(4'hF)
) ILA17_OR (
.input1(s_ila17_a_z),
.input2(s_ila17_b_z),
.input3(s_ila17_c_z),
.input4(s_ila17_d_z),
.result(s_ila17)
);
// *** ILA 16 ***
A02 ILA16A (
.A(s_ica_15_0[6]), // ICA 6
.B(s_a10),
.C(s_ica_15_0[7]), // ICA 7
.D(s_bb10),
.Z(s_ica6_7_z)
);
A02 ILA16B (
.A(s_pcr_15_0[11]), // PCR 11
.B(s_a1619),
.C(s_seg_7_0[0]), // SEG 0
.D(s_a1617),
.Z(s_ila16_b_z)
);
A02 ILA16C (
.A(s_pcr_15_0[9]), //PCR 9
.B(s_d1617),
.C(s_pcr_15_0[7]), // PCR 7
.D(s_e1617),
.Z(s_ila16_c_z)
);
NAND_GATE #(
.BubblesMask(2'b00)
) ILA16D (
.input1(s_xpt_1_0[0]), // XPT 0
.input2(s_f1617),
.result(s_ila16_d_z)
);
OR_GATE_4_INPUTS #(
.BubblesMask(4'hF)
) GATES_21 (
.input1(s_ica6_7_z),
.input2(s_ila16_b_z),
.input3(s_ila16_c_z),
.input4(s_ila16_d_z),
.result(s_ila16)
);
// *** ILA 15 ***
A02 ILA15A (
.A(s_ica_15_0[5]),
.B(s_a10),
.C(s_ica_15_0[6]),
.D(s_bb10),
.Z(s_ila15_a)
);
NAND_GATE #(
.BubblesMask(2'b00)
) ILA15B (
.input1(s_ica_15_0[15]),
.input2(s_c10),
.result(s_ila15_b)
);
OR_GATE #(
.BubblesMask(2'b11)
) ILA15_OR (
.input1(s_ila15_a),
.input2(s_ila15_b),
.result(s_ila15)
);
// *** ILA 14 ***
A02 ILA14A (
.A(s_ica_15_0[4]),
.B(s_a10),
.C(s_ica_15_0[5]),
.D(s_bb10),
.Z(s_ila14_a)
);
NAND_GATE #(
.BubblesMask(2'b00)
) ILA14B (
.input1(s_ica_15_0[14]),
.input2(s_c10),
.result(s_ila14_b)
);
OR_GATE #(
.BubblesMask(2'b11)
) ILA14_OR (
.input1(s_ila14_a),
.input2(s_ila14_b),
.result(s_ila14)
);
// *** ILA 13 ***
A02 ILA13A (
.A(s_ica_15_0[3]),
.B(s_a10),
.C(s_ica_15_0[4]),
.D(s_bb10),
.Z(s_ila13_a)
);
NAND_GATE #(
.BubblesMask(2'b00)
) ILA13B (
.input1(s_ica_15_0[13]),
.input2(s_c10),
.result(s_ila13_b)
);
OR_GATE #(
.BubblesMask(2'b11)
) ILA13_OR (
.input1(s_ila13_a),
.input2(s_ila13_b),
.result(s_ila13)
);
// *** ILA 12 ***
A02 ILA12A (
.A(s_ica_15_0[2]),
.B(s_a10),
.C(s_ica_15_0[3]),
.D(s_bb10),
.Z(s_ila12_a)
);
NAND_GATE #(
.BubblesMask(2'b00)
) ILA12B (
.input1(s_ica_15_0[12]),
.input2(s_c10),
.result(s_ila12_b)
);
OR_GATE #(
.BubblesMask(2'b11)
) ILA12_OR (
.input1(s_ila12_a),
.input2(s_ila12_b),
.result(s_ila12)
);
// *** ILA 11 ***
A02 ILA11A (
.A(s_ica_15_0[1]),
.B(s_a10),
.C(s_ica_15_0[2]),
.D(s_bb10),
.Z(s_ila11_a)
);
NAND_GATE #(
.BubblesMask(2'b00)
) GATES_3 (
.input1(s_ica_15_0[11]),
.input2(s_c10),
.result(s_ila11_b)
);
OR_GATE #(
.BubblesMask(2'b11)
) ILA11_OR (
.input1(s_ila11_a),
.input2(s_ila11_b),
.result(s_ila11)
);
// *** ILA 10 ***
A02 ILA10A (
.A(s_ica_15_0[0]),
.B(s_a10),
.C(s_ica_15_0[1]),
.D(s_bb10),
.Z(s_ila10_a)
);
NAND_GATE #(
.BubblesMask(2'b00)
) ILA10B (
.input1(s_ica_15_0[10]),
.input2(s_c10),
.result(s_ila10_b)
);
OR_GATE #(
.BubblesMask(2'b11)
) ILA10_OR (
.input1(s_ila10_a),
.input2(s_ila10_b),
.result(s_ila10)
);
// *******************
NAND_GATE_6_INPUTS #(
.BubblesMask({2'b00, 4'h0})
) GATES_23 (
.input1(s_la_23_10_out[5]),
.input2(s_la10_n),
.input3(s_la11_n),
.input4(s_la12_n),
.input5(s_la13_n),
.input6(s_la14_n),
.result(s_eccrhi_n_out)
);
// *** LATCHES ***
// ** HIGH-LATCH (LA_23-18)**
R81_EN #(.USE_ENABLE(MCLK_CE)) R_LA_H (
.sysclk(sysclk),
.EN(MCLK_EN),
.CP(s_mclk),
.A (1'b0),
.B (1'b0),
.C (s_ila23_n),
.D (s_ila22_n),
.E (s_ila21_n),
.F (s_ila20_n),
.G (s_ila19),
.H (s_ila18),
.QA (),
.QAN(),
.QB (),
.QBN(),
.QC (),
.QCN(s_la_23_10_out[13]),
.QD (),
.QDN(s_la_23_10_out[12]),
.QE (),
.QEN(s_la_23_10_out[11]),
.QF (),
.QFN(s_la_23_10_out[10]),
.QG (s_la_23_10_out[9]),
.QGN(),
.QH (s_la_23_10_out[8]),
.QHN()
);
// ** LOW-LATCH (LA_17-10)**
R81_EN #(.USE_ENABLE(MCLK_CE)) R_LA_L (
.sysclk(sysclk),
.EN(MCLK_EN),
.CP(s_mclk),
.A (s_ila17),
.B (s_ila16),
.C (s_ila15),
.D (s_ila14),
.E (s_ila13),
.F (s_ila12),
.G (s_ila11),
.H (s_ila10),
.QA (s_la_23_10_out[7]),
.QAN(),
.QB (s_la_23_10_out[6]),
.QBN(),
.QC (s_la_23_10_out[5]),
.QCN(),
.QD (s_la_23_10_out[4]),
.QDN(s_la14_n),
.QE (s_la_23_10_out[3]),
.QEN(s_la13_n),
.QF (s_la_23_10_out[2]),
.QFN(s_la12_n),
.QG (s_la_23_10_out[1]),
.QGN(s_la11_n),
.QH (s_la_23_10_out[0]),
.QHN(s_la10_n)
);
endmodule
