CGA_INTR_CNTLR_IRGEL¶
Source: Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_IRGEL.v
Where it sits (Simulation): ND120_TOP > ND120_CORE > ND3202D > CPU_15 > CPU_PROC_32 > CPU_PROC_CGA_33 > CGA > CGA_INTR > CGA_INTR_CNTLR > CGA_INTR_CNTLR_IRGEL
- instance path: CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.IRGEL
Used in: CGA_INTR_CNTLR (all tops)
Contains: CGA_INTR_CNTLR_IRGEL_HIGEL, CGA_INTR_CNTLR_IRGEL_HIRL, CGA_INTR_CNTLR_IRGEL_LOGEL, CGA_INTR_CNTLR_IRGEL_LORL, CGA_INTR_CNTLR_IRGEL_VMUX, NOR_GATE
Module hierarchy - All modules
Schematic¶
Drawn from the Verilog: the yosys netlist of the Simulation (Verilator) build, instance CORE.CPU_BOARD.CPU.PROC.CGA.DELILAH.INTR.CNTLR.IRGEL. Sub-modules are boxes (click the picture to open it full size; there every sub-module box links to its page, and every wire shows its Verilog name).
Description¶
ND120 CGA (CPU Gate Array / DELILAH) /CGA/INTR/CNTLR/IRGEL IRGEL Page 90 SHEET 1 of 1 Last reviewed: 10-NOV-2024 Ronny Hansen

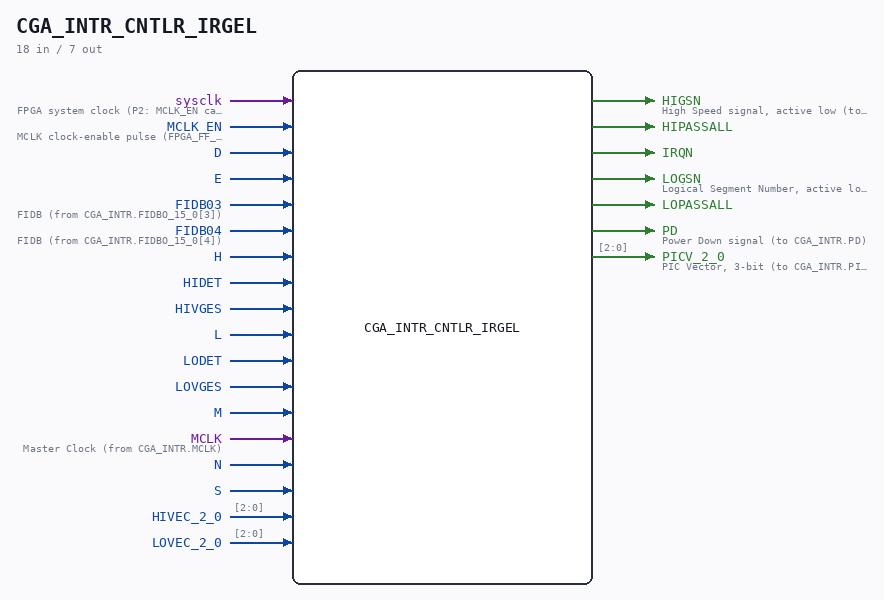

Ports¶
| Direction | Width | Name | Description |
|---|---|---|---|
| input | 1 |
sysclk |
FPGA system clock (P2: MCLK_EN capture) |
| input | 1 |
MCLK_EN |
MCLK clock-enable pulse (FPGA_FF_MODE, else 0) |
| input | 1 |
D |
|
| input | 1 |
E |
|
| input | 1 |
FIDB03 |
FIDB (from CGA_INTR.FIDBO_15_0[3]) |
| input | 1 |
FIDB04 |
FIDB (from CGA_INTR.FIDBO_15_0[4]) |
| input | 1 |
H |
|
| input | 1 |
HIDET |
|
| input | 1 |
HIVGES |
|
| input | 1 |
L |
|
| input | 1 |
LODET |
|
| input | 1 |
LOVGES |
|
| input | 1 |
M |
|
| input | 1 |
MCLK |
Master Clock (from CGA_INTR.MCLK) |
| input | 1 |
N |
|
| input | 1 |
S |
|
| input | [2:0] |
HIVEC_2_0 |
|
| input | [2:0] |
LOVEC_2_0 |
|
| output | 1 |
HIGSN |
High Speed signal, active low (to CGA_INTR.HIGSN) |
| output | 1 |
HIPASSALL |
|
| output | 1 |
IRQN |
|
| output | 1 |
LOGSN |
Logical Segment Number, active low (to CGA_INTR.LOGSN) |
| output | 1 |
LOPASSALL |
|
| output | 1 |
PD |
Power Down signal (to CGA_INTR.PD) |
| output | [2:0] |
PICV_2_0 |
PIC Vector, 3-bit (to CGA_INTR.PICV_2_0) |
Verilog source¶
Verilog/DELILAH-CPU/CGA_INTR/circuit/CGA_INTR_CNTLR_IRGEL.v on GitHub.
Show the Verilog of CGA_INTR_CNTLR_IRGEL (207 lines)
/**************************************************************************
** ND120 CGA (CPU Gate Array / DELILAH) **
** /CGA/INTR/CNTLR/IRGEL **
** IRGEL **
** **
** Page 90 **
** SHEET 1 of 1 **
** **
** Last reviewed: 10-NOV-2024 **
** Ronny Hansen **
***************************************************************************/
module CGA_INTR_CNTLR_IRGEL (
input sysclk, //! FPGA system clock (P2: MCLK_EN capture)
input MCLK_EN, //! MCLK clock-enable pulse (FPGA_FF_MODE, else 0)
input D,
input E,
input FIDB03, //! FIDB (from CGA_INTR.FIDBO_15_0[3])
input FIDB04, //! FIDB (from CGA_INTR.FIDBO_15_0[4])
input H,
input HIDET,
input HIVGES,
input L,
input LODET,
input LOVGES,
input M,
input MCLK, //! Master Clock (from CGA_INTR.MCLK)
input N,
input S,
input [2:0] HIVEC_2_0,
input [2:0] LOVEC_2_0,
output HIGSN, //! High Speed signal, active low (to CGA_INTR.HIGSN)
output HIPASSALL,
output IRQN,
output LOGSN, //! Logical Segment Number, active low (to CGA_INTR.LOGSN)
output LOPASSALL,
output PD, //! Power Down signal (to CGA_INTR.PD)
output [2:0] PICV_2_0 //! PIC Vector, 3-bit (to CGA_INTR.PICV_2_0)
);
/*******************************************************************************
** The wires are defined here **
*******************************************************************************/
wire [2:0] s_lovec_2_0;
wire [2:0] s_picv_2_0_out;
wire [2:0] s_hivec_2_0;
wire s_d;
wire s_e;
wire s_fidb03;
wire s_fidb04;
wire s_h;
wire s_hidet;
wire s_hienab_n;
wire s_higas;
wire s_higs_n_out;
wire s_hipasall_out;
wire s_hirq;
wire s_hivges;
wire s_hve /* synthesis syn_keep=1 */; // GAO probe net - see fpga/tang-nano-20k/GAO-HOWTO.md
wire s_irq_n_out;
wire s_l;
wire s_lienab_n;
wire s_lirq;
wire s_lodet;
wire s_logas_n;
wire s_logas;
wire s_logs_n_out;
wire s_lopassall_out;
wire s_lovges;
wire s_lve /* synthesis syn_keep=1 */; // GAO probe net
wire s_m;
wire s_mclk;
wire s_n;
wire s_pd_out;
wire s_rd_n;
wire s_s;
/*******************************************************************************
** The module functionality is described here **
*******************************************************************************/
/*******************************************************************************
** Here all input connections are defined **
*******************************************************************************/
assign s_lovec_2_0[2:0] = LOVEC_2_0;
assign s_hivec_2_0[2:0] = HIVEC_2_0;
assign s_d = D;
assign s_e = E;
assign s_fidb03 = FIDB03;
assign s_fidb04 = FIDB04;
assign s_h = H;
assign s_hidet = HIDET;
assign s_hivges = HIVGES;
assign s_l = L;
assign s_lodet = LODET;
assign s_lovges = LOVGES;
assign s_m = M;
assign s_mclk = MCLK;
assign s_n = N;
assign s_s = S;
/*******************************************************************************
** Here all output connections are defined **
*******************************************************************************/
assign HIGSN = s_higs_n_out;
assign HIPASSALL = s_hipasall_out;
assign IRQN = s_irq_n_out;
assign LOGSN = s_logs_n_out;
assign LOPASSALL = s_lopassall_out;
assign PD = s_pd_out;
assign PICV_2_0 = s_picv_2_0_out[2:0];
/*******************************************************************************
** Here all normal components are defined **
*******************************************************************************/
NOR_GATE #(
.BubblesMask(2'b00)
) GATES_1 (
.input1(s_hirq),
.input2(s_lirq),
.result(s_irq_n_out)
);
/*******************************************************************************
** Here all sub-circuits are defined **
*******************************************************************************/
CGA_INTR_CNTLR_IRGEL_HIGEL HIGEL (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.FIDB03(s_fidb03),
.HIDET(s_hidet),
.HIENABN(s_hienab_n),
.HIGAS(s_higas),
.HIGSN(s_higs_n_out),
.L(s_l),
.LOGASN(s_logas_n),
.M(s_m),
.MCLK(s_mclk),
.N(s_n)
);
CGA_INTR_CNTLR_IRGEL_VMUX VMUX (
.HIVEC_2_0(s_hivec_2_0[2:0]),
.HVE(s_hve),
.LOVEC_2_0(s_lovec_2_0[2:0]),
.LVE(s_lve),
.PICV_2_0(s_picv_2_0_out[2:0])
);
CGA_INTR_CNTLR_IRGEL_LOGEL LOGEL (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.FIDB04(s_fidb04),
.L(s_l),
.LIENABN(s_lienab_n),
.LOGAS(s_logas),
.LOGSN(s_logs_n_out),
.M(s_m),
.MCLK(s_mclk),
.N(s_n)
);
CGA_INTR_CNTLR_IRGEL_HIRL HIRL (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.D(s_d),
.E(s_e),
.H(s_h),
.HIDET(s_hidet),
.HIENABN(s_hienab_n),
.HIGAS(s_higas),
.HIGSN(s_higs_n_out),
.HIPASSALL(s_hipasall_out),
.HIRQ(s_hirq),
.HIVEC_2_0(s_hivec_2_0[2:0]),
.HIVGES(s_hivges),
.HVE(s_hve),
.MCLK(s_mclk),
.PD(s_pd_out),
.RDN(s_rd_n),
.S(s_s)
);
CGA_INTR_CNTLR_IRGEL_LORL LORL (
.sysclk(sysclk),
.MCLK_EN(MCLK_EN),
.D(s_d),
.E(s_e),
.LIENABN(s_lienab_n),
.LIRQ(s_lirq),
.LODET(s_lodet),
.LOGAS(s_logas),
.LOGASN(s_logas_n),
.LOPASSALL(s_lopassall_out),
.LOVEC_2_0(s_lovec_2_0[2:0]),
.LOVGES(s_lovges),
.LVE(s_lve),
.MCLK(s_mclk),
.RDN(s_rd_n),
.S(s_s)
);
endmodule
